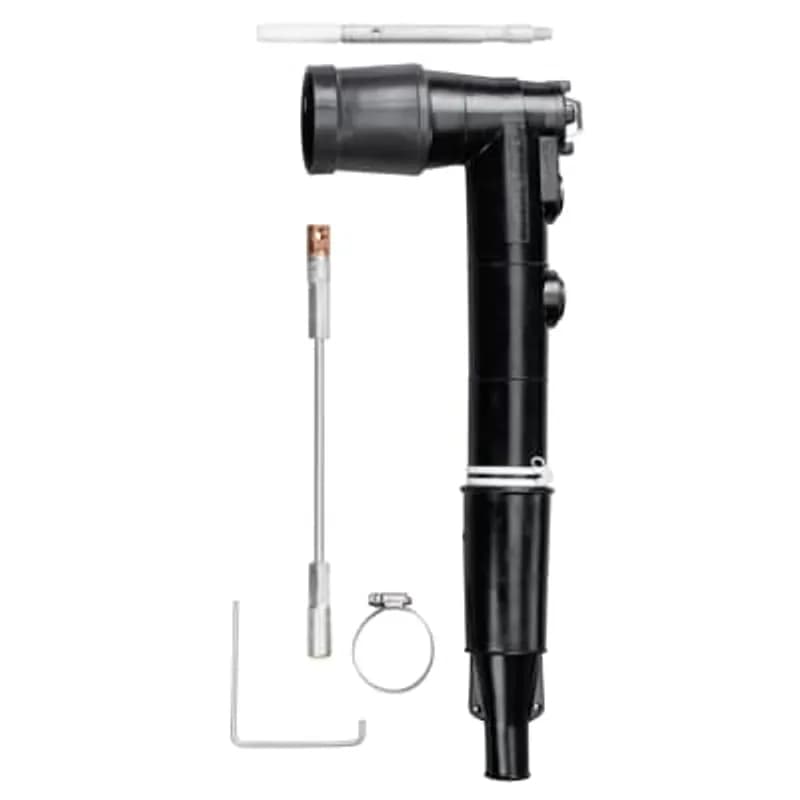

ABB Installation Products 273RLR-G-5220 25kV 200 Amp, Loadbreak Replacement Elbow Connector, Cable Insulation Diameter 0.760…
UPC: 783786627448
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 25kV voltage rating for medium-voltage systems
- 200 Amp continuous current capacity
- Bi-metal compression lug for corrosion resistance
- Loadbreak design enables safe disconnection under load
- Accommodates cable insulation diameters 0.760"–0.950"
Specifications
Amperage Rating | 200 A |
Application | Designed for connecting to and operating 25kV Class, 125kV BIL apparatus |
Color | Black |
Conductor Range | #2 STR/COMPR AWG , #1 SOL/COMPT AWG |
Environmental Conditions | Fully Submersible |
Insulation | True |
Material | Housing - EPDM-Rubber |
Size | Cable Insulation Diameter 0.760 inch to 0.950 inch |
Special Features | Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured insulation, insert and jacket. Provision for hot stick operation, Provision for ground wire connection. Wide cable range with minimum number of sizes. Extended Length Housing and Compression Lug - plus 10-1/2 inch (266.7mm) |
Standard | ANSI/IEEE Standard 386 |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -40 F |
Temperature Rating, Minimum | -40 C |
Type | Loadbreak Replacement Elbow Connector |
Voltage Rating | 15 kV |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 2.0000 L |
Package Weight (Metric) | 0.9070 kg |

K655LR-F5220
25kV, 600 Amp, Deadbreak Elbow, No Sealing Kit, without Test Point, Cable Insulation .640-.820 inches, Bi-Metal Lug, Conductor Size AWG Compressed/Stranded #2 or Compacted/Solid #1 or mm2 Compact 35.
167LRT-H-5270
15kV 200 Amp, Loadbreak Bolted Elbow with Tap. Cable Insulation Diameter 0.850 inch to 1.050 inch. Bi-Metal Compression Lug. Conductor Size AWG Compressed Stranded 4/0 /Solid 250 /mmSquared 126.67.
167RLR-F-5240
200 Amp, 15kV, Loadbreak Replacement Elbow Connector without Test Point, Cable Insulation Diameter 0.640 inch to 0.820 inch. Bi-Metal Compression Lug, Conductor Size AWG Compressed Stranded 1/0 /Solid 2/0 /mmSquared 53.49. Repair Elbow has extended length contact and elbow housing resulting in a net gain of 8-7/8 inches in length. Includes 00400X long Bi-Metal Contact.
168RLR-G-5240
15kV 200 Amp, Loadbreak Replacement Elbow Connector with Test Point. Cable Insulation Diameter 0.760 inch to 0.950 inch. Bi-Metal Compression Lug. Conductor Size AWG Compressed Stranded 1/0 /Solid 2/0 /mmSquared 53.49.
K151SP-GAB10AX
Straight Plug, 200 Amp, DeadBreak, 15/25KV, Cable Insulation Diameter 0.825 inch to 0.935 inch.
168RLR-F-5220
15kV 200 Amp, Loadbreak Replacement Elbow Connector with Test Point. Cable Insulation Diameter 0.640 inch to 0.820 inch. Bi-Metal Compression Lug. Conductor Size AWG Compressed Stranded #2/Solid #1/mmSquared 33.62.
167LRT-F5220
15kV 200 Amp, Loadbreak Bolted Elbow with Tap. Cable Insulation Diameter 0.640 inch to 0.820 inch. Bi-Metal Compression Lug. Conductor Size AWG Compressed Stranded #2/Solid #1/mmSquared 33.62.
274RLR-H-5240
25kV 200 Amp, Loadbreak Replacement Elbow Connector with Test Point. Cable Insulation Diameter 0.850 inch to 1.050 inch. Bi-Metal Compression Lug. Conductor Size AWG Compressed Stranded 1/0 /Solid 2/0 /mmSquared 53.49.Frequently Asked Questions
What is the current rating of the elbow connectors?
The elbow connectors are rated for 200 A loadbreak applications.
What voltage classes do these connectors support?
The ABB Elastimold loadbreak repair and replacement elbows are available for 15 kV and 25 kV voltage classes.
How much length does the repair elbow add?
The repair elbow features an extended housing and compression lug length that is 3 1/4 inches longer than the standard elbow.
How much length does the replacement elbow add?
The replacement elbow extends its housing and compression lug length to 8 7/8 inches over the standard elbow.
What material are the elbows constructed from?
The elbows are constructed from specially formulated, non-rigid ethylene propylene diene monomer (EPDM) rubber.
Are these elbow connectors certified?
Yes, these connectors are IEEE 386 compliant, ANSI certified, and Rural Utilities Service (RUS) accepted.
Where are Elastimold elbows manufactured?
Elastimold 200 A repair and replacement elbows are designed, molded, and tested in Albuquerque, NM, USA.
What is the test point cap catalog number?
The test point cap catalog number for elbows with a test point is 156-7.
What industry standards do these elbows comply with?
These elbow connectors are IEEE 386 compliant, ANSI certified, and Rural Utilities Service (RUS) accepted.
What is the main purpose of this elbow connector?
It transitions from live-front to dead-front equipment without splicing or pulling new cable, especially for switchgear and transformer replacements.
How to Install Elastimold 273RLR/274RLR Loadbreak Replacement Elbow Connectors
This guide provides step-by-step instructions for the safe installation and assembly of Elastimold 273RLR and 274RLR Loadbreak Replacement Elbow Connectors, converting livefront terminations to deadfront for UD cables.
Estimated time: 1h 30m
Tools needed:
Probe wrench, Wire brush, Wire strippers, Crimping tool, Hotstick, Suitable sensing device (for 274RLR voltage test)
Supplies needed:
Replacement Elbow Connector Housing, Compression Lug, Probe, Lubricant (Do Not Substitute, e.g., silicone grease), Hose Clamp, Copper wire (No. 14 AWG / 2.5mm), Appropriate connector (for neutral wires to ground), HV insulated cap(s) or connector(s) (if shipping covers are present)
- Perform Pre-Installation Checks
Check package contents for completeness and damage. Verify proper fit of all components with cable and/or mating products. Thread the probe into the compression lug to check for resistance; replace damaged components if resistance is encountered. Read all installation instructions and gather required tools.
- De-energize Apparatus and Remove Livefront Termination
DANGER: Ensure all apparatus is de-energized before proceeding. Remove the rubber cap from the terminator. Cut off the connector at the top of the terminator. Disconnect the ground lead from the base of the terminator. Remove the terminator housing from the cable.
- Prepare the Cable
Train cables to be straight and in-line with the bushing centerline. Measure and cut the cable to 10-1/2 inches from the bushing centerline. Verify the insulation shield measures less than 6-1/2 inches from the end of the cut cable. If greater, consult an ELASTIMOLD representative. Remove 1-3/8 inches of cable insulation from the end, cutting squarely. DO NOT NICK THE CONDUCTOR.
- Install the Compression Lug
Wire brush the bare aluminum conductor immediately. Install the compression lug, rotating it to spread inhibitor. Align the compression lug's contact threaded hole with the bushing bore. Crimp the lug according to the crimp chart, starting at the crimp line mark and rotating 180 degrees for each successive crimp. Carefully wipe any excessive inhibitor from the outside of the lug and cable.
- Assemble the Elbow Housing
Lubricate the cable insulation and the inside of the elbow housing with the supplied lubricant. DO NOT SUBSTITUTE. Keep insulation clean and avoid introducing excess grease into the gap between the lug and insulation. Slide the elbow connector onto the cable using a back and forth twisting motion. Wipe off all excess grease. Align the elbow with the compression lug's threaded hole. Thread the probe into the lug by hand, ensuring it turns freely for approximately four turns before becoming snug. Tighten with the wrench until the wrench bends.
- Connect the Concentric Neutral
Insert one end of a separate copper wire (No. 14 AWG / 2.5mm or equivalent) through the grounding eye on the elbow. Twist it tight without damaging the eye. Twist all neutral wires together and connect them to ground using an appropriate connector. Provide adequate slack for elbow operation. Add the supplied hose clamp as shown in the diagram and tighten snugly, but do not overtighten.
- Connect Elbow to Bushing Plug
DANGER: Lubricate the receptacle portion of the elbow connector and the mating bushing ONLY if de-energized. Operate the elbow with a full insulated hotstick; DO NOT OPERATE BY HAND. Ensure the area is clear. Remove the insulated cap from the bushing using a hotstick. Securely fasten a hotstick to the loadbreak connector pulling eye. With firm footing and positive control, withdraw the elbow from the parking stand with a fast, straight, firm motion, avoiding ground plane proximity. Place the elbow receptacle over the bushing plug, inserting the male contact until slight resistance is felt (~2 inches apart). Immediately push the elbow home with a fast, firm, straight motion to engage the internal lock on the elbow and bushing interface, applying sufficient force.
- Perform Voltage Test (274RLR Only)
WARNING: The voltage test point is a capacitance device, not directly connected to the conductor. Do not use conventional voltage measuring equipment. Test with a suitable sensing device designed for capacitive test points, following the manufacturer's directions. Treat the elbow as energized until the 'no voltage' indication is confirmed by other means. Remove the test point cap with a hotstick, peeling it off at an angle. After testing, clean and lubricate the inside surface of the cap with silicone grease and replace it tightly on the test point.
