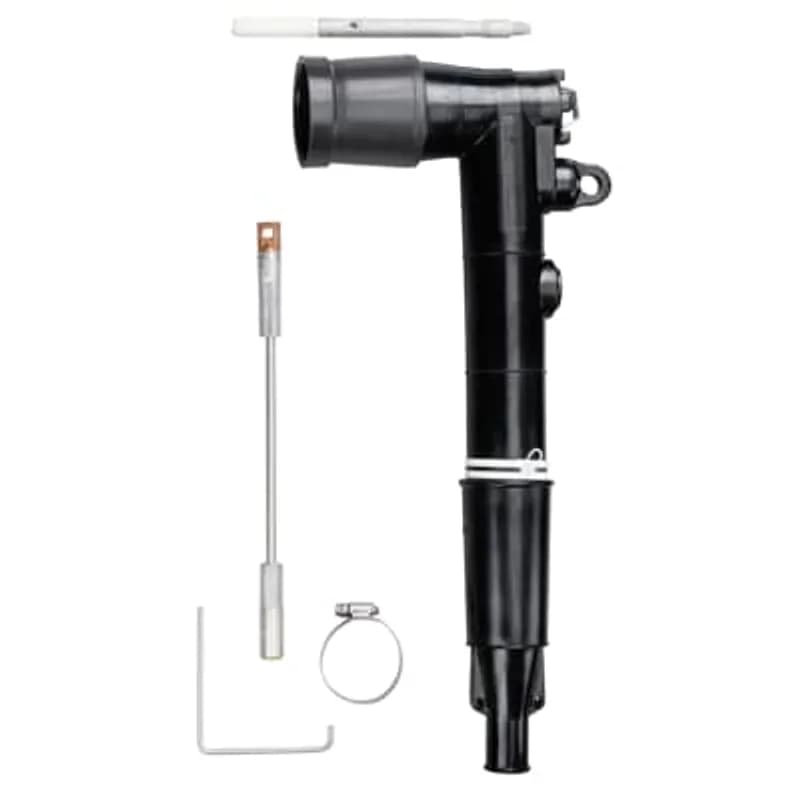

ABB - Installation Products 274RLR-H-5240 - 25kV 200 Amp, Loadbreak Replacement Elbow Connector with Test Point. Cable Insulation Diameter 0.850 inch to 1.050 inch. Bi-Metal Compression Lug. Conductor Size AWG Compressed Stranded 1/0 /Solid 2/0 /mmSquared 53.49.

ABB Installation Products 274RLR-H-5240 25kV 200 Amp, Loadbreak Replacement Elbow Connector with Test Point. Cable Insulation…

UPC: 783786642953


Documents & Media
BrochureInstallation InstructionsSpecification SheetManufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB 274RLR-H-5240 is a 25kV, 200 Amp Class loadbreak replacement elbow connector engineered for medium-voltage underground distribution systems. This fully rated connector features an extended housing and compression lug (+10.5 inches / 266.7 mm) to accommodate cables that are too short for standard elbows, enabling repairs or connections without replacing the entire cable. The connector meets ANSI/IEEE Standard 386 and is rated for 15.2kV phase-to-ground and 26.3kV phase-to-phase operating voltage, with a 125kV BIL impulse withstand rating. It supports a continuous current rating of 200A and can handle momentary fault currents up to 10kA for 10 cycles. The fully shielded, submersible molded rubber housing is peroxide-cured for long-term durability, with a non-corrosive capacitive test point for safe diagnostics. The bi-metal compression lug accepts compressed stranded conductors from AWG 1/0 to 2/0 (53.49 mm²) with insulation diameters between 0.850" and 1.050". The connector includes provisions for hot stick operation and ground wire connection, making it ideal for live-line maintenance in underground distribution networks. Typical applications include repairing failed elbow connections, extending short cables, or converting live-front to dead-front equipment without cable replacement.
  • 25kV, 200 Amp Class loadbreak replacement elbow connector
  • Extended housing (+10.5 inches / 266.7 mm) for short cables
  • Bi-metal compression lug for AWG 1/0 to 2/0 (53.49 mm²) conductors
  • Non-corrosive capacitive test point for safe diagnostics
  • Provisions for hot stick operation and ground wire connection

Specifications

Amperage Rating
200 A
Application
25kV, 200 Amps
Color
Black
Conductor Range
1/0 STR/COMPR AWG , 2/0 SOL/COMPT AWG
Connection Type
Compression Lug
Current Rating
200 A
Environmental Conditions
Fully Submersible
Insulation
True
Ip Rating
Fully Submersible
Material
Bi-Metal
Material
Molded Rubber, Bi-Metal
Material
Housing - EPDM-Rubber
Mounting Type
Elbow Connector
Poles
1P+G
Series
274RLR-H
Size
0.850 inch to 1.050 inch
Size
Cable Insulation Diameter 0.850 inch to 1.050 inch
Special Features
Replacement Elbow has extended length contact and elbow housing resulting in a net gain of 8-7/8 inches in length. Includes 00400X long Bi-Metal Contact
Standard
ANSI/IEEE Standard 386
Temperature Rating, Maximum
149 F
Temperature Rating, Maximum
65 C
Temperature Rating, Minimum
-40 F
Temperature Rating, Minimum
-40 C
Type
Loadbreak Replacement Elbow Connector with Test Point
Voltage Rating
25 kV
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
4.5100 L
Package Weight (Metric)
2.0460 kg
25kV 200 Amp, Loadbreak Elbow Connector with Test Point, .805 inch - 1.060 Inch Cable Insulation Diameter, 1/0 Stranded Wire Size, Bi-Metal Compression Lug. Includes 62 inch Ground Lead Installed Through Grounding Eye Utilizing Rivet.

262LR-C5240-CS2089

25kV 200 Amp, Loadbreak Elbow Connector with Test Point, .805 inch - 1.060 Inch Cable Insulation Diameter, 1/0 Stranded Wire Size, Bi-Metal Compression Lug. Includes 62 inch Ground Lead Installed Through Grounding Eye Utilizing Rivet.
POWER TERMINALS TYPE 3 RENTAL

45030034

POWER TERMINALS TYPE 3 RENTAL
15kV 200 Amp, Loadbreak Replacement Elbow Connector, Repair Elbow has extended length contact and elbow housing resulting in a net gain of 8-7/8 inches in length. Bi-Metal Contact. Cable Insulation Diameter 0.760 inch to 0.950 inch. Conductor Size AWG Compressed Stranded 1/0 /Solid 2/0 /mmSquared 53.49.

167RLR-G-5240

15kV 200 Amp, Loadbreak Replacement Elbow Connector, Repair Elbow has extended length contact and elbow housing resulting in a net gain of 8-7/8 inches in length. Bi-Metal Contact. Cable Insulation Diameter 0.760 inch to 0.950 inch. Conductor Size AWG Compressed Stranded 1/0 /Solid 2/0 /mmSquared 53.49.
200 Amp, 15kV, Loadbreak Replacement Elbow Connector with Test Point, Cable Insulation Diameter 0.760 inch to 0.950 inch. Bi-Metal Compression Lug, Conductor Size AWG Compressed Stranded 2/0 /Solid 3/0 /mmSquared 67.43. Repair Elbow has extended length contact and elbow housing resulting in a net gain of 8-7/8 inches in length. Includes 00400X long Bi-Metal Contact.

168RLR-G-5250

200 Amp, 15kV, Loadbreak Replacement Elbow Connector with Test Point, Cable Insulation Diameter 0.760 inch to 0.950 inch. Bi-Metal Compression Lug, Conductor Size AWG Compressed Stranded 2/0 /Solid 3/0 /mmSquared 67.43. Repair Elbow has extended length contact and elbow housing resulting in a net gain of 8-7/8 inches in length. Includes 00400X long Bi-Metal Contact.
200 Amp, 15kV, Loadbreak Bolted Elbow with Tap, Cable Insulation Diameter 0.760 inch to 0.950 inch. Bi-Metal Compression Lug, Conductor Size AWG Compressed Stranded #1/Solid 1/0 /mmSquared 42.41. Includes 02800X Bi-Metal Contact.

167LRT-G5230

200 Amp, 15kV, Loadbreak Bolted Elbow with Tap, Cable Insulation Diameter 0.760 inch to 0.950 inch. Bi-Metal Compression Lug, Conductor Size AWG Compressed Stranded #1/Solid 1/0 /mmSquared 42.41. Includes 02800X Bi-Metal Contact.
200 Amp, 35kV, Loadbreak Elbow Connector with Test Point, Cable Insulation Diameter 0.980 inch to 1.180 inch. Bi-Metal Compression Lug, Conductor Size AWG Compressed Stranded 3/0 /Solid 4/0 /mmSquared 85.01.

376LR-J-5260

200 Amp, 35kV, Loadbreak Elbow Connector with Test Point, Cable Insulation Diameter 0.980 inch to 1.180 inch. Bi-Metal Compression Lug, Conductor Size AWG Compressed Stranded 3/0 /Solid 4/0 /mmSquared 85.01.
200 Amp, 35kV, Loadbreak Elbow Connector with Test Point, Cable Insulation Diameter 0.850 inch to 1.050 inch. Bi-Metal Compression Lug, Conductor Size AWG Compressed Stranded 1/0 /Solid 2/0 /mmSquared 53.49.

376LR-H-5240

200 Amp, 35kV, Loadbreak Elbow Connector with Test Point, Cable Insulation Diameter 0.850 inch to 1.050 inch. Bi-Metal Compression Lug, Conductor Size AWG Compressed Stranded 1/0 /Solid 2/0 /mmSquared 53.49.
15kV 200 Amp, Loadbreak Replacement Elbow Connector, Repair Elbow has extended length contact and elbow housing resulting in a net gain of 8-7/8 inches in length. Bi-Metal Contact. Cable Insulation Diameter 0.760 inch to 0.950 inch. Conductor Size AWG Compressed Stranded #1/Solid 1/0 /mmSquared 42.41.

167RLR-G-5230

15kV 200 Amp, Loadbreak Replacement Elbow Connector, Repair Elbow has extended length contact and elbow housing resulting in a net gain of 8-7/8 inches in length. Bi-Metal Contact. Cable Insulation Diameter 0.760 inch to 0.950 inch. Conductor Size AWG Compressed Stranded #1/Solid 1/0 /mmSquared 42.41.

Frequently Asked Questions

Where are these elbow connectors assembled?

These Elastimold 200 A repair and replacement elbows are assembled in Albuquerque, New Mexico, USA.

What standards and certifications does the product meet?

The product is IEEE 386 compliant, ANSI certified, and Rural Utilities Service (RUS) accepted.

What cable insulation diameter does the 274RLR-H support?

The 274RLR-H supports cable insulation diameters ranging from 0.850 to 1.050 inches.

What is the catalog number for the test point cap?

The test point cap catalog number is 156-7.

Does the 274RLR connector include a test point?

Yes, the 274RLR is a replacement elbow with a built-in capacitive test point to allow testing for the presence of voltage.

How much longer is the replacement elbow connector?

The replacement elbow connector provides a net gain of 8 7⁄8 inches in length compared to a standard elbow.

What is the voltage class for the 274RLR connector?

The 274RLR connector is designed for a 25 kV voltage class.

What type of connector is the 274RLR-H-5240?

The 274RLR-H-5240 is a 200 A loadbreak replacement elbow connector.

What is the voltage class for the 274RLR connector?

The 274RLR connector is designed for a 25 kV voltage class.

What is the catalog number for the test point cap?

The test point cap catalog number is 156-7.

How to Install the 273RLR/274RLR Loadbreak Replacement Elbow Connector

This guide provides step-by-step instructions for the safe installation and initial setup of the Elastimold 273RLR and 274RLR Loadbreak Replacement Elbow Connectors, designed to convert livefront terminations to deadfront for UD cable.

Estimated time: 1h 30m

Tools needed:

Probe wrench, Hotstick, Wire brush, Crimp tool, Wire strippers, Measuring tape, Suitable voltage sensing device (for 274RLR)

Supplies needed:

Lubricant (supplied with kit), Hose clamp (supplied with kit), No. 14 AWG (2.5mm) copper wire, Appropriate ground connector, Silicone grease

  1. Perform Safety Checks and Pre-Installation Verification

    DANGER: Ensure all apparatus is de-energized during installation or removal of parts, except for test point caps and indicators. Verify all components are complete, undamaged, and compatible with the cable and mating products. Check the probe threads by threading it into the compression lug; replace if resistance is encountered. Have all required tools ready and maintain cleanliness throughout the procedure. This product must be installed only by competent personnel trained in high voltage electrical equipment safety practices.

  2. Remove Existing Livefront Terminator

    Remove the rubber cap from the existing terminator. Cut off the connector at the top of the terminator. Disconnect the ground lead from the base of the terminator. Finally, remove the terminator housing from the cable.

  3. Prepare the Cable

    Train the cable to be straight and in-line with the bushing centerline. Cut the cable to measure 10-1/2 inches (26.7 cm) from the bushing centerline. Remove 1-3/8 inches (3.5 cm) of cable insulation from the end of the cable, ensuring the cut is square and the conductor is not nicked. If the insulation shield measures less than 6-1/2 inches (16.5 cm), proceed; otherwise, consult an ELASTIMOLD representative.

  4. Install Compression Lug

    Wire brush the bare aluminum conductor immediately. Install the compression lug, rotating it to spread the inhibitor. Position the compression lug so its contact threaded hole aligns with the bushing bore. Crimp the lug according to the crimp chart, starting at the crimp line mark and rotating 180 degrees for each successive crimp. Carefully wipe any excessive inhibitor from the outside of the lug and cable.

  5. Assemble Elbow Housing

    Lubricate the cable insulation and the inside of the elbow housing with the supplied lubricant; do not substitute. Slide the elbow connector onto the cable using a back-and-forth twisting motion, then wipe off all excess grease. Align the elbow with the compression lug’s threaded hole. Thread the probe into the lug by hand, ensuring it turns freely for approximately four turns before becoming snug. Tighten the probe with the probe wrench until the wrench bends.

  6. Connect Concentric Neutral

    Insert one end of a separate No. 14 AWG (2.5mm) copper wire through the grounding eye on the elbow and twist it tight, taking care not to damage the eye. Twist all neutral wires together and connect them to ground using an appropriate connector, ensuring adequate slack for elbow operation. Add the supplied hose clamp as shown in the documentation, tightening it snugly but do not overtighten.

  7. Connect Elbow to Bushing Plug

    DANGER: Lubricate the receptacle portion of the elbow connector and the mating bushing ONLY if the transformer and elbow are known to be de-energized. Remove the insulated cap from the bushing using a hotstick. Securely fasten a hotstick to the loadbreak connector pulling eye. Place the elbow connector receptacle area over the bushing plug, inserting the elbow male contact into the bushing until the first slight resistance is felt. Immediately push the elbow home with a fast, firm, straight motion to engage the internal lock on the elbow and bushing interface, applying sufficient force.

  8. Perform Voltage Test (274RLR Only)

    For 274RLR models, remove the test point cap with a hotstick, peeling it off at an angle. WARNING: The voltage test point is a capacitance device and is not directly connected to the conductor. Do not use conventional voltage measuring equipment. Use a suitable sensing device designed for capacitive test points and follow its manufacturer’s directions. Treat the elbow as energized until the 'no voltage' indication is confirmed by other means, as contamination or incorrect equipment can provide false readings. After testing, clean and lubricate the inside surface of the cap with silicone grease and replace it on the test point.
