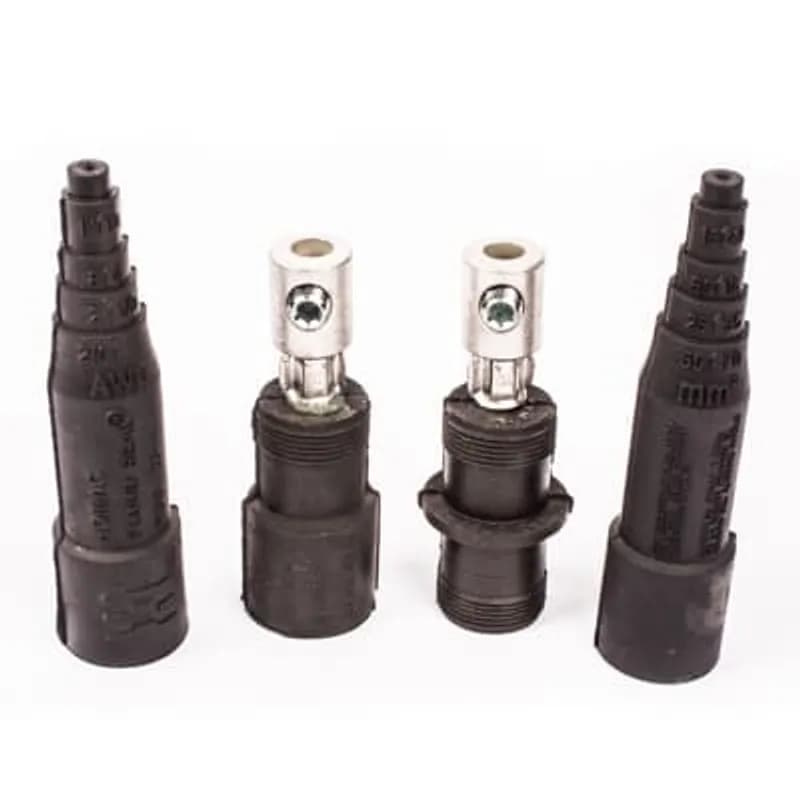

ABB - Installation Products SLK 1010 M - Flood-Seal Street and Highway Lighting Mechanical Fuse and Disconnect Kits, In-Line Variable-Range, fused, conductor range stranded 1/0-2, and solid 1/0-2

ABB Installation Products SLK 1010 M Flood-Seal Street and Highway Lighting Mechanical Fuse and Disconnect Kits, In-Line…

UPC: 783786752300

Documents & Media
Installation InstructionsManufacturer Product Website

Contact for Pricing

Minimum Qty: 50

Multiplier: 50

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB SLK 1010 M Flood-Seal Mechanical Fuse and Disconnect Kit is a critical in-line protection solution for street and highway lighting systems. This kit combines overcurrent protection with safe disconnection capability, ensuring operational continuity and maintenance safety in outdoor electrical distribution networks. Designed for variable-range applications, the SLK 1010 M accommodates conductor sizes from 1/0 AWG to 2 AWG, supporting both stranded and solid conductor types within this range. The 'Flood-Seal' designation indicates a robust design intended to withstand environmental challenges common in outdoor installations, including moisture and corrosion. Installation is simplified through a modular housing system with line and load end components, pre-lubricated fuse clips, and a connecting link for direct integration. The kit includes all necessary components: line end housing, load end housing, fuse clips, assembly dowel, and silicone grease for environmental sealing. For copper conductors only, the SLK 1010 M supports a wire range of #14-2 AWG with a 600V rating. Installation requires proper identification of line and load sides, insulation stripping to specified lengths (3/4" for 14-10 AWG, 3/8" for 8-4 AWG), and use of recommended crimp tools (T&B No. WT 111M or TBM-20S) for secure connections. The kit is part of ABB's Installation Products catalog, delivering dependable electrical solutions for critical infrastructure applications where fused protection and disconnect capability are essential.
  • In-line fuse and disconnect kit for street and highway lighting applications
  • Supports conductor sizes 1/0-2 AWG (stranded or solid)
  • 600V rated with Flood-Seal design for outdoor environmental resistance
  • Includes line/load housings, fuse clips, assembly dowel, and silicone grease
  • Requires T&B No. WT 111M or TBM-20S crimp tools for installation

Specifications

Application
Rated 600 Volts, 30 Amps Maximum, perfect for heavy-duty applications
Conductor Range
1/0 to #2 STR/SOL AWG
Connection
Mechanical
Connection Type
Stranded/Solid
Insulation
True
Material
EPDM-Rubber Housing
Material
Flood-Seal
Mounting Type
In-Line
Number of Conductors
2
Series
SLK 1010 M
Size
1/0-2 AWG
Special Features
EPDM Rubber housing ensures a fully insulated, watertight and submersible connection. Safe separations - fuse or connecting link stays in load side when separated. Dual-rated and approved for a wide range of Aluminum or Copper Conductors
Type
Breakaway Street Light Kit Fused
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.0000 L
Package Weight (Metric)
0.4540 kg
Flood-Seal Street and Highway Lighting Mechanical Fuse and Disconnect Kits, In-Line Variable-Range, non-fused, conductor range stranded 1/0-2 and solid 1/0-2

SDK 1010 M

Flood-Seal Street and Highway Lighting Mechanical Fuse and Disconnect Kits, In-Line Variable-Range, non-fused, conductor range stranded 1/0-2 and solid 1/0-2
Aluminum Flood-Seal Mechanical Splice Two-Wire Kits, conductor range 6-350 connector length 4 inch, screws per side 1

USK 350-4

Aluminum Flood-Seal Mechanical Splice Two-Wire Kits, conductor range 6-350 connector length 4 inch, screws per side 1
Flood-Seal Street and Highway Lighting Mechanical Fuse and Disconnect Kits-In-Line, fused, conductor range stranded 12,10,8,6,4 and solid 12,10,8,6,4

SLK-M

Flood-Seal Street and Highway Lighting Mechanical Fuse and Disconnect Kits-In-Line, fused, conductor range stranded 12,10,8,6,4 and solid 12,10,8,6,4
Flood-Seal Street and Highway Lighting Mechanical Fuse and Disconnect Kits, In-Line Variable-Range, fused, conductor range stranded 1/0-2 and solid 1/0-2

SLK 1010-60 M

Flood-Seal Street and Highway Lighting Mechanical Fuse and Disconnect Kits, In-Line Variable-Range, fused, conductor range stranded 1/0-2 and solid 1/0-2
Copper Flood-Seal Street and Highway Lighting Compression Fuse Kits - In-Line, Single Housing, wire size stranded 4 and solid 2

SLK 2

Copper Flood-Seal Street and Highway Lighting Compression Fuse Kits - In-Line, Single Housing, wire size stranded 4 and solid 2
Aluminum Flood-Seal Mechanical Splice Two-Wire Kits, conductor range 250-750 connector length 16-1/16 inch, screws per side 2

USK 750

Aluminum Flood-Seal Mechanical Splice Two-Wire Kits, conductor range 250-750 connector length 16-1/16 inch, screws per side 2
Copper Flood-Seal Street and Highway Lighting Compression Non-Fused Kits - In-Line, Twin Housing, wire size stranded 8-6 and solid 6-4

SDT 6

Copper Flood-Seal Street and Highway Lighting Compression Non-Fused Kits - In-Line, Twin Housing, wire size stranded 8-6 and solid 6-4
Copper Flood-Seal Street and Highway Lighting Compression Non -Fused Kits - In-Line, Single Housing, No. 6 side wire size stranded 14-10 and solid 14-8, No. 2 side wire size stranded #4 and solid #2

SDK 6-2

Copper Flood-Seal Street and Highway Lighting Compression Non -Fused Kits - In-Line, Single Housing, No. 6 side wire size stranded 14-10 and solid 14-8, No. 2 side wire size stranded #4 and solid #2

How to Install Flood-Seal Street Light Fuse Kits (SLK/SDK 1010 M)

This guide provides step-by-step instructions for the safe and proper installation of Flood-Seal Street Light Fuse Kits, including cable preparation, housing assembly, and final connection.

Tools needed:

Torque wrench/screwdriver (set to 25 in-lbs), Wire strippers, Cutting tool (e.g., utility knife or pliers)

Supplies needed:

Line-end assembly, Load-end assembly, Silicone grease, 2 FSS 20 Flood-Seal Rockets, Appropriate 13/32 inch cartridge fuse (max 600V, not glass body) or connecting link (for SDK kits)

  1. De-energize and Identify Wires

    WARNING: Danger of Electric Shock! Installation must be performed by trained installers in accordance with all applicable codes and safety rules. De-energize all associated wires and the working area before proceeding. CAUTION: Identify line- and load-side wires and match the housing body parts before installation.

  2. Prepare Line-End Cable and Housing

    Strip 3/4 inch of insulation from the conductor end of the line-end cable. Select the correct cut-off ring on the line-end housing for the cable size being used. Cut off the end housing at the tip of the arrow, ensuring the correct cable size is exposed. Wipe the line-end cable clean. Lightly pencil the end of the cable insulation. Apply silicone grease to the end of the line-end cable and to the cut opening of the line-end housing. DO NOT grease the sealing rings on the line-end housing. Insert the prepared line-end cable into the line-end assembly until it extends 2 to 3 inches beyond the housing. Torque the set screw to 25 in-lbs to secure the cable.

  3. Prepare Load-End Cable and Housing

    Strip 3/4 inch of insulation from the conductor end of the load-end cable. Wipe the load-end cable clean. Lightly pencil the end of the cable insulation. Apply silicone grease to the end of the load-end cable. Insert the prepared load-end cable into the load-end assembly until it extends 2 to 3 inches beyond the housing. Torque the set screw to 25 in-lbs to secure the cable. For SLK Kits, insert the appropriate 13/32 inch (maximum 600 Volt) cartridge fuse into the load-end assembly. DO NOT use a glass body fuse. Apply grease to the sealing area of the load-end. For SDK Kits, install the connecting link in place of a fuse in the load-end assembly. Apply grease to the sealing area of the load-end.

  4. Make Electrical Connection

    Mate the line-end housing to the load-end housing to establish the electrical connection.

  5. Seal Connection with Rockets

    Slide the two Flood-Seal Rockets over the mated line-end and load-end housings, ensuring they fully cover the connection point to create a watertight seal.
