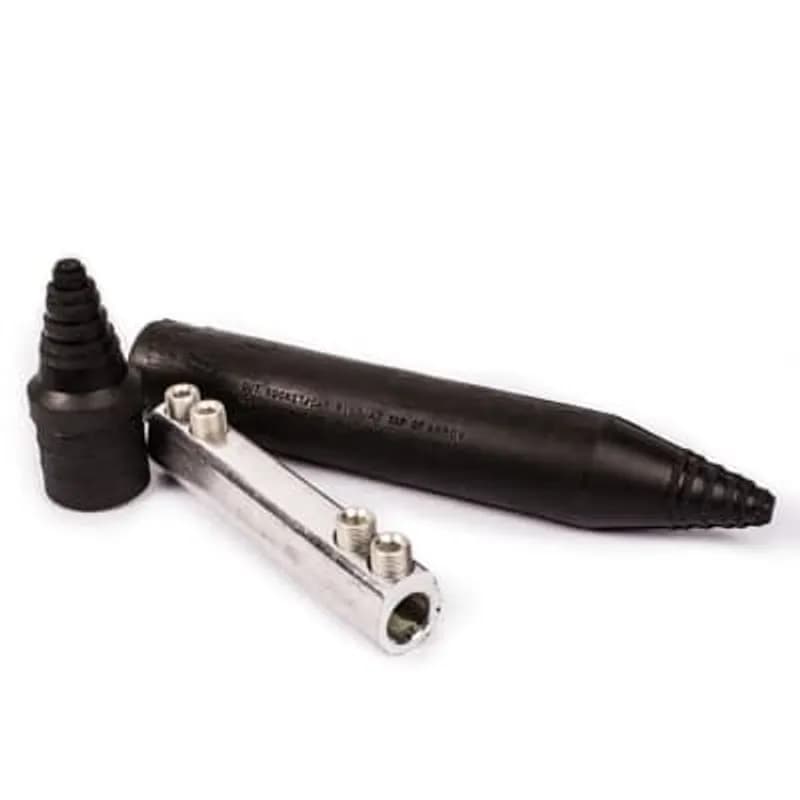

ABB Installation Products USK 750 Aluminum Flood-Seal Mechanical Splice Two-Wire Kits, conductor range 250-750 connector…
UPC: 783786755714
Documents & Media
Contact for Pricing
Minimum Qty: 15
Multiplier: 15
*Contact for lower quantities*
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- Designed for aluminum conductors
- Accommodates conductor range 250-750 kcmil
- 16-1/16 inch connector length
- Features two screws per side for secure termination
- Flood-Seal design for environmental protection
Specifications
Application | Repair Splice |
Conductor Range | 250 to 750 kcmil |
Connection | Mechanical |
Connection Type | Mechanical Splice |
Insulation | True |
Material | Aluminum |
Material | Aluminum Connector, EPDM Cover |
Number of Conductors | 2 |
Series | USK 750 |
Size | 16-1/16 inch connector |
Size | 16-1/16 inch |
Special Features | Prefilled with Oxide Inhibitor to prevent Oxidation and keep out Moisture. Dual-Rated and approved for use with Aluminum and Copper Conductors. EPDM Rubber Splice Covers ensure a fully insulated, watertight repair splice. No Taping, Heat-Shrink or Mastic needed |
Type | Mechanical Splice |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 1.8200 L |
Package Weight (Metric) | 0.8260 kg |

USK 750 TN
Tin Plated Aluminum Mechanical Splice Two-Wire Kits, conductor range 250-750 connector length 16-1/16 inch, screws per side 2
SDT 6
Copper Flood-Seal Street and Highway Lighting Compression Non-Fused Kits - In-Line, Twin Housing, wire size stranded 8-6 and solid 6-4
SDK 6-2
Copper Flood-Seal Street and Highway Lighting Compression Non -Fused Kits - In-Line, Single Housing, No. 6 side wire size stranded 14-10 and solid 14-8, No. 2 side wire size stranded #4 and solid #2
SDK 6
Copper Flood-Seal Street and Highway Lighting Compression Non-Fused Kits - In-Line, Single Housing, wire size stranded 14-10 and solid 14-8
SLK 22 M
Flood-Seal Street and Highway Lighting Mechanical Fuse and Disconnect Kits, In-Line Variable-Range, fused, conductor range stranded 2-14, and solid 2-14, Designed for 30 Amp Maximum Fuse.
SLT 2
Copper Flood-Seal Street and Highway Lighting Compression Fuse Kits - In-Line, Twin Housing, wire size stranded 2
SLK 22-60 M
Flood-Seal Street and Highway Lighting Mechanical Fuse and Disconnect Kits, In-Line Variable-Range, fused, conductor range stranded 2-14, and solid 2-14, Designed for 60 Amp Maximum Fuse.How to Install the USK 750 Flood-Seal Mechanical Splice Kit
This guide provides step-by-step instructions for installing the USK 750 Flood-Seal Mechanical Splice Kit, designed for direct-buried cable splicing with an EPDM cover for cable ranges from 250 to 750 Kcmil. Installation must be performed by trained installers in accordance with all applicable electrical codes and safety rules.
Estimated time: 45m
Tools needed:
3/8 inch hex wrench
Supplies needed:
Cut-off ring, Silicone grease, Mechanical splice connector
- Select Cut-Off Ring
Select the correct cut-off ring that corresponds to the specific cable size being used for the splice.
- Prepare First Cable End
Wipe the first cable clean to remove any dirt or debris. Strip approximately 3-1/4 inches of insulation from the end of the first cable. Bevel the end of the first cable's insulation to facilitate easier installation.
- Prepare Second Cable End
Wipe the second cable clean to remove any dirt or debris. Strip approximately 3-1/4 inches of insulation from the end of the second cable. Bevel the end of the second cable's insulation to facilitate easier installation.
- Prepare Rocket Cover
Cut off the rocket cover at the tip of the arrow, ensuring that the correct cable size is visible on the opened rocket section.
- Install Rocket on First Cable
Apply silicone grease to the end of the prepared first cable and to the cut opening of the rocket. Carefully slide the rocket cover over the first cable.
- Install Cap on Second Cable
Apply silicone grease to the end of the prepared second cable and to the cut opening of the cap. Carefully slide the cap cover over the second cable.
- Install Mechanical Connector
Connect the two prepared cable ends using the mechanical splice connector. Tighten the connector to the suggested torque using a 3/8 inch hex wrench. For 250-350 Kcmil wire, apply 240 in-lbs (20 ft-lbs). For 400-750 Kcmil wire, apply 360 in-lbs (30 ft-lbs).
- Apply Grease and Center Covers
Apply silicone grease to the open edge of the rocket cover. Carefully center the mechanical connector between the rocket and the cap covers.
- Slide Covers Together
Slide the rocket and cap covers firmly together to complete the splice, ensuring a secure "Flood-Seal" around the connection.
