ABB Installation Products SDT 6 Copper Flood-Seal Street and Highway Lighting Compression Non-Fused Kits - In-Line, Twin…
UPC: 783786751549
Documents & Media
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- ABB Installation Products SKU: SDT 6

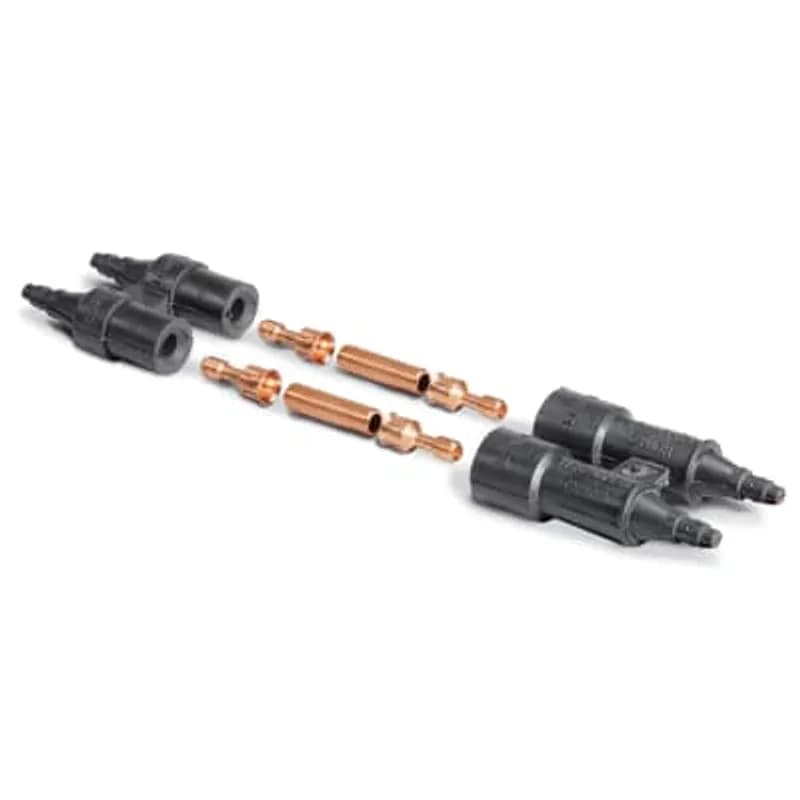

- Copper Flood-Seal Compression Kit
- Designed for Street and Highway Lighting
- In-line, Twin Housing Configuration
- Accommodates 8-6 AWG Stranded and 6-4 AWG Solid Copper Wire
Specifications
Application | Rated 600 Volts, 30 Amps Maximum, perfect for heavy-duty applications |
Conductor Range | #14 to #16 STR AWG , #14 to #4 SOL AWG |
Connection | Compression |
Connection Type | Compression |
Insulation | True |
Material | Copper |
Material | EPDM-Rubber Housing |
Mounting Type | In-Line, Twin Housing |
Number of Conductors | 4 |
Series | SDT 6 |
Size | Stranded 8-6 and solid 6-4 |
Special Features | EPDM Rubber housing ensures a fully insulated, watertight and submersible connection. Safe separations - fuse or connecting link stays in load side when separated. Breakaway design separates under tension so wires don't break |
Type | Breakaway Street Light Kit Non-Fused |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 0.3700 L |
Package Weight (Metric) | 0.1680 kg |
K675S1-CS2114
25 kV, 900 Amps, Short Shank Bushing with Stud, Apparatus Bushing, Tin Plated Copper Contact, Includes Instruction Sheet. CS2114 - for any customer
SLK 22 M
Flood-Seal Street and Highway Lighting Mechanical Fuse and Disconnect Kits, In-Line Variable-Range, fused, conductor range stranded 2-14, and solid 2-14, Designed for 30 Amp Maximum Fuse.
SLT 2
Copper Flood-Seal Street and Highway Lighting Compression Fuse Kits - In-Line, Twin Housing, wire size stranded 2SLK 22-60 M
Flood-Seal Street and Highway Lighting Mechanical Fuse and Disconnect Kits, In-Line Variable-Range, fused, conductor range stranded 2-14, and solid 2-14, Designed for 60 Amp Maximum Fuse.
SLK 6
Copper Flood-Seal Street and Highway Lighting Compression Fuse Kits - In-Line, Single Housing, wire size stranded 14-6 and solid 14-4
SLT-M
Flood-Seal Street and Highway Lighting Mechanical Fuse and Disconnect Kits-In-Line, fused, twin housing ,conductor range stranded 12,10,8,6,4 and solid 12,10,8,6,4How to Install the Flood-Seal In-Line Fuse/Disconnect Kit
This guide provides step-by-step instructions for installing the Flood-Seal In-Line Fuse/Disconnect Kit, including wire preparation, housing assembly, and fuse clip crimping for copper conductors.
Estimated time: 45m
Tools needed:
Wire strippers, Crimp tool (T & B No. WT 111M or TBM-20S), Utility knife, Measuring tape or ruler
Supplies needed:
Flood-Seal Line End Housing, Flood-Seal Load End Housing, Fuse Clips (2 or 4 depending on kit), Connecting Link (for SDK/SDT kits), Silicone Grease, Assembly Dowel, 13/32” x 1-1/2” Fuse (600V max, non-glass body), Copper Conductors (14-2 AWG)
- De-energize and Prepare Workspace
CAUTION: Identify Line and Load side wires and match housing body parts before installing. All associated wires and working area must be de-energized. WARNING: Danger of Electric Shock! Installation must be performed by trained installers in accordance with all applicable local, state and national electrical codes, installation standards and safety rules.
- Prepare Cable Ends
For 14 AWG to 10 AWG copper conductors, strip 3/4 inch of insulation. For 8 AWG to 4 AWG copper conductors, strip 3/8 inch of insulation. Do not pencil insulation and do not exceed the specified strip length. Wipe the cable clean and bevel the end of the cable insulation for easier installation.
- Prepare Line End Housing and Insert Cable
Select the correct cut-off ring on the Line End housing for your cable size. Cut off the end of the housing at the tip of the arrow, ensuring the correct cable size is visible. Apply silicone grease to the end of the prepared cable and to the cut opening of the Line End housing. Insert the cable into the Line End housing until it extends 2 to 3 inches beyond the housing.
- Prepare Load End Housing and Assemble
Repeat the cable preparation and housing insertion steps for the Load End housing. Insert the connecting link (for SDK/SDT kits) or the appropriate 13/32” x 1-1/2” (600V max, non-glass body) fuse into the Load End housing. Carefully mate the Line End and Load End housings to establish the electrical connection.
- Install and Position Fuse Clips
Apply a small amount of silicone grease to the fuse clip. Slide the housing over the fuse clip until resistance is felt. Using the provided wood dowel as an assembly and depth gauge tool, insert the fuse clip to the depth indicated for both line and load side housings as marked on the dowel. DO NOT exceed these depths.
- Crimp Fuse Clips to Conductors
Crimp the fuse clip onto the conductor using the appropriate crimp tool and die based on the conductor size (14-2 AWG copper only). Refer to the provided chart for specific tool (T & B No. WT 111M or TBM-20S) and cavity ('C', 'BLUE', 'GRAY', 'BROWN') recommendations. For some applications, perform two crimps rotated 90 degrees.
