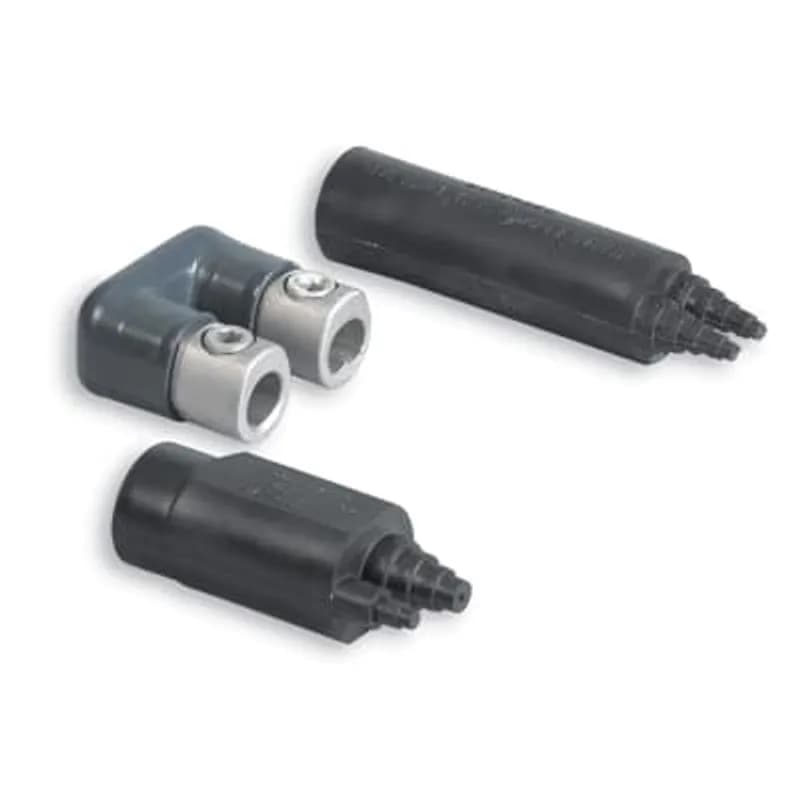

ABB Installation Products SHC 21 Aluminum Flood-Seal Mechanical Connectors, dual rated, PVC insulated, cable range feeder…
UPC: 783786751785
Documents & Media
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- Aluminum construction for durability
- Flood-Seal design for environmental protection
- Dual-rated for versatile application
- Feeder cable range: 6-350 kcmil
- Outlet cable range: 14 AWG solid - 6 AWG stranded
Specifications
Application | Flood-Seal Mechanical Connector |
Color | Black |
Conductor Range | #6 to 350 kcmil , #14 to #6 SOL AWG |
Connection | Mechanical |
Connection Type | Mechanical |
Insulation | yes |
Material | Aluminum |
Material | Aluminum Connector |
Number Of Conductors | 2 |
Poles | 2 |
Size | 3-1/4 inch |
Size | 6-350 kcmil (feeder), 14 sol-6 AWG (outlets) |
Special Features | Aluminum-alloy connector construction for High Strength and High Conductivity, Dual-rated for use with Copper or Aluminum Cables. All Connectors are 100 percent Hi-Pot tested at 4000 volts for 60 seconds |
Standard | ANSI C119.1 and C119.4 |
Type | Flood Seal Mechanical Connector |
Package Dimensions (L x W x H) | 7.5 IN x 6.8 IN x 4 IN |
Package Dimensions (L x W x H) | 19.05 cm x 17.272 cm x 10.16 cm |
Package Weight (Imperial) | 1.0200 L |
Package Weight (Metric) | 0.4630 kg |
RAB 4 OR
Multi Seal, Aluminum Insulated Bus Connector, #12 Solid - 350 kcmil, Aluminum and Copper, Four Conductor. Outward Rocket.
CFG 4 CS
Aluminum Flood-Seal Multi-Port Connectors - 95 Series Terminal Kits, Force-Fit kit, concentric 4, compressed 4, compact 4, die reference 5/8,BG,687,243,TU,52,8ACFG 6 CS
Aluminum Flood-Seal Multi-Port Connectors - 95 Series Terminal Kits, Force-Fit kit, Concentric, Compressed and Compact #6, or 16 MM2. One Outlet, Centerform Lug. 1-Hole 0.406 inch Diameter. Dies TU 52 BG 243 5/8. Kit Includes Screw and Insulating Rocket. Dual Rated for Aluminum and Copper Conductors
CFG 4 HS
Aluminum Flood-Seal Multi-Port Connectors - 95 Series Terminal Kits, Heat-Shrink kit, concentric 4, compressed 4, compact -4 Solid 1, die reference 5/8,BG,687,243,TU,52,8A
CFG 2 CS
Aluminum Flood-Seal Multi-Port Connectors - 95 Series Terminal Kits, Force-Fit kit, concentric 2, compressed 2, compact 2 and 1, solid 1, die reference 5/8,BG,687,243,TU,52,8ACFG 1/0 HS
Aluminum Flood-Seal Multi-Port Connectors - 95 Series Terminal Kits, Heat-Shrink kit, concentric 1/0, compressed 1/0, compact 2/0, solid 2/0, die reference 5/8,BG,687,243,TU,52,8ACFG 1/0 CS
Aluminum Flood-Seal Multi-Port Connectors - 95 Series Terminal Kits, Force-Fit kit, concentric 1/0, compressed 1/0, compact 2/0, solid 2/0, die reference 5/8,BG,687,243,TU,52,8ACFG 1 CS
Aluminum Flood-Seal Multi-Port Connectors - 95 Series Terminal Kits, Force-Fit kit, concentric 1, compressed 1, compact 1/0, solid 1/0, die reference 5/8,BG,687,243,TU,52,8AHow to Install Thomas & Betts SHC Series Flood-Seal Mechanical Connectors
This guide details the installation of Thomas & Betts SHC Series Flood-Seal mechanical connectors, ensuring proper cable preparation, connection, and watertight sealing. Installation must be performed by trained installers following all applicable local, state, and national electrical codes, installation standards, and safety rules.
Estimated time: 30m
Tools needed:
Cutting tool, Wire strippers, Torque wrench
Supplies needed:
Thomas & Betts SHC Series Flood-Seal Mechanical Connector, Electrical cables (service, feeder, street light as needed), Insulating rockets (for unused outlets)
- Prepare the Flood-Seal EPDM Rockets
First, remove the Flood-Seal EPDM rockets from the connector. Identify the correct rocket configuration (CST 3095 for Sweetheart Outlet or SHC 3830 for Feeder Outlet). Refer to the embossed markings on the rocket rings, select the proper rings corresponding to your cable size, and carefully cut them. Open rocket tower cut-offs only for the number of cables you intend to install initially.
- Prepare and Insert Cables
Remove the insulation from your cables; pencilling is recommended for best results. Slip the prepared Flood-Seal rocket over the stripped cables. Insert the service cables into the Sweetheart Outlet. If installing feeder and street light cables, insert them simultaneously into the feeder outlet.
- Secure and Seal the Connection
Tighten the connector's set screws according to the specified torque chart: 120 in./lbs. (10 ft.-lbs.) for #6 to #4 wire, and 240 in./lbs. (20 ft.-lbs.) for #2 to 350 MCM wire. Slip the Flood-Seal EPDM rockets over the connection and onto the shoulder of the bus until the sleeve butts against the connector bar, ensuring a fully insulated and watertight installation. For any unused outlets, cover them with the provided insulating rockets to maintain full insulating value. To re-install an uncut rocket, squeeze the barrel to expel air and assemble it onto the outlet shoulder.
