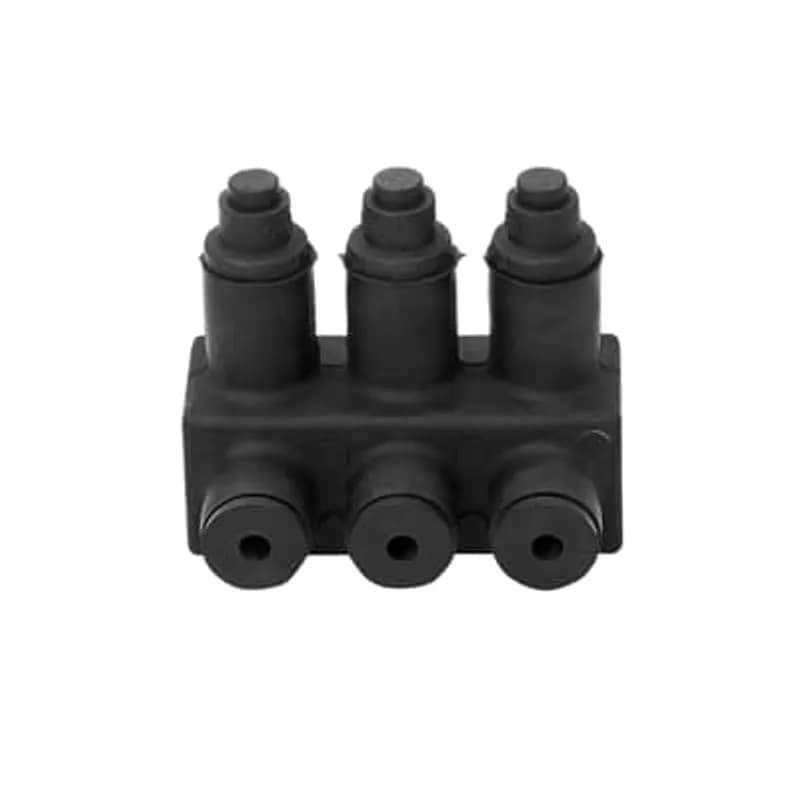

ABB Installation Products RAB 1/0-3 Aluminum Flood-Seal, Multi-Port Connector, RAB 1/0 Series, Conductor Range #14 - 1/0.…
UPC: 783786744930
Documents & Media
Contact for Pricing
Minimum Qty: 25
Multiplier: 25
*Contact for lower quantities*
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- Aluminum construction with Santoprene coating for durability
- RUS Accepted for utility and telecommunications applications
- Accommodates conductor range from #14 AWG to 1/0 AWG
- Features 3 total outlets for multi-conductor connections
- Includes caps and screws for complete installation
Specifications
Application | Dual-Rated Connector |
Color | Black |
Conductor Range | #14 to 1/0 AWG |
Connection | Mechanical |
Environmental Conditions | Waterproof |
Insulation | yes |
Material | 6061-T6 Aluminum Connector, Santoprene Body |
Material | Aluminum, Santoprene |
Number of Poles | 3 |
Poles | 3 |
Series | RAB 1/0 Series |
Size | 2-39/64 inch |
Special Features | High Performance, Dual Rated Connectors |
Standard | RUS Accepted |
Type | Aluminum Flood-Seal Multi-Port Connector RAB 1/0 Series |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 0.1900 L |
Package Weight (Metric) | 0.0860 kg |
RAB 1/0-3 OP
Multi Seal, Aluminum Insulated Bus Connector, #14 - 1/0, Aluminum and Copper, Three Conductor, Orange Plug instead of Black
SHC 2
Aluminum Flood-Seal Mechanical Connectors with Streetlight option, dual rated, PVC insulated, cable range feeder outlet S/L 6-350, outlets 2, length 3-1/4 in
CFG 2 HS
Aluminum Flood-Seal Multi-Port Connectors - 95 Series Terminal Kits, Heat-Shrink kit, concentric 2, compressed 2, compact 2 and 1, solid 1, die reference 5/8,BG,687,243,TU,52,8A
SHC 21
Aluminum Flood-Seal Mechanical Connectors, dual rated, PVC insulated, cable range feeder outlet S/L 6-350, 14 sol.-6, outlets 2, length 3-1/4 in
CFG 4 CS
Aluminum Flood-Seal Multi-Port Connectors - 95 Series Terminal Kits, Force-Fit kit, concentric 4, compressed 4, compact 4, die reference 5/8,BG,687,243,TU,52,8ACFG 6 CS
Aluminum Flood-Seal Multi-Port Connectors - 95 Series Terminal Kits, Force-Fit kit, Concentric, Compressed and Compact #6, or 16 MM2. One Outlet, Centerform Lug. 1-Hole 0.406 inch Diameter. Dies TU 52 BG 243 5/8. Kit Includes Screw and Insulating Rocket. Dual Rated for Aluminum and Copper ConductorsCFG 4 HS
Aluminum Flood-Seal Multi-Port Connectors - 95 Series Terminal Kits, Heat-Shrink kit, concentric 4, compressed 4, compact -4 Solid 1, die reference 5/8,BG,687,243,TU,52,8A
CFG 2 CS
Aluminum Flood-Seal Multi-Port Connectors - 95 Series Terminal Kits, Force-Fit kit, concentric 2, compressed 2, compact 2 and 1, solid 1, die reference 5/8,BG,687,243,TU,52,8AHow to Install Multi-Seal® RAB 1/0 Series Connectors
This guide provides step-by-step instructions for safely installing Multi-Seal® RAB 1/0 Series connectors. Installation must be performed by trained installers following all applicable electrical codes and safety rules due to the danger of electric shock. Ensure all unused cable ports are sealed and follow standard safety practices.
Estimated time: 15m
Tools needed:
Wire strippers, Torque wrench
Supplies needed:
Cable, Insulating gloves
- Prepare the Cap (if applicable)
If installing #14 to #4 AWG cable, remove the cap from the connector. Cut the cap at the correct cut-off ring for your cable size. The cap is not required for #2 to 1/0 AWG cable.
- Remove the Screw Plug
Remove the screw plug from the connector.
- Reinsert the Cap (if prepared)
If you prepared the cap in Step 1, reinsert it into the connector.
- Measure and Strip the Cable
Place the cable alongside the markings on the bottom of the connector to measure the required strip length. Carefully strip the cable to this measured length.
- Insert the Cable
Insert the stripped cable fully into the connector. For #2 to 1/0 AWG cable, insert it into the tower. For #14 to #4 AWG cable, insert it into the cap.
- Replace the Screw Plug
Replace the screw plug into the connector, ensuring it is properly seated.
- Torque the Connector
Using a torque wrench, torque the connector to 80 in/lbs to ensure a secure and proper connection. Tap conductors may be installed on an energized main but IT MUST NOT BE UNDER LOAD.
