376LR-H-2240-S

The 376LR has a 10kA Sym momentary and fault close rating for 10 cycles.

The 376LR is a 35kV, 200 Amp loadbreak elbow with a fully shielded, submersible molded rubber housing. It includes provisions for hot stick operation, ground wire connection, and a non-corrosive capacitive voltage test point.

The 376LR is a 35kV Class, 200 Amp loadbreak connector. It has a maximum phase-to-ground operating voltage of 21.1kV and a continuous and loadbreak current rating of 200 Amps.

The 376LR allows connection of cables with insulation diameters from .850 inches (21.6mm) to 1.465 inches (37.2mm).

The 376LR Loadbreak Elbow meets ANSI/IEEE Standard 386, Latest Revision.

The maximum phase-to-ground operating voltage for the 376LR is 21.1kV.

The 376LR has a 150kV BIL Impulse Withstand rating, based on a 1.2 x 50 microsecond wave.

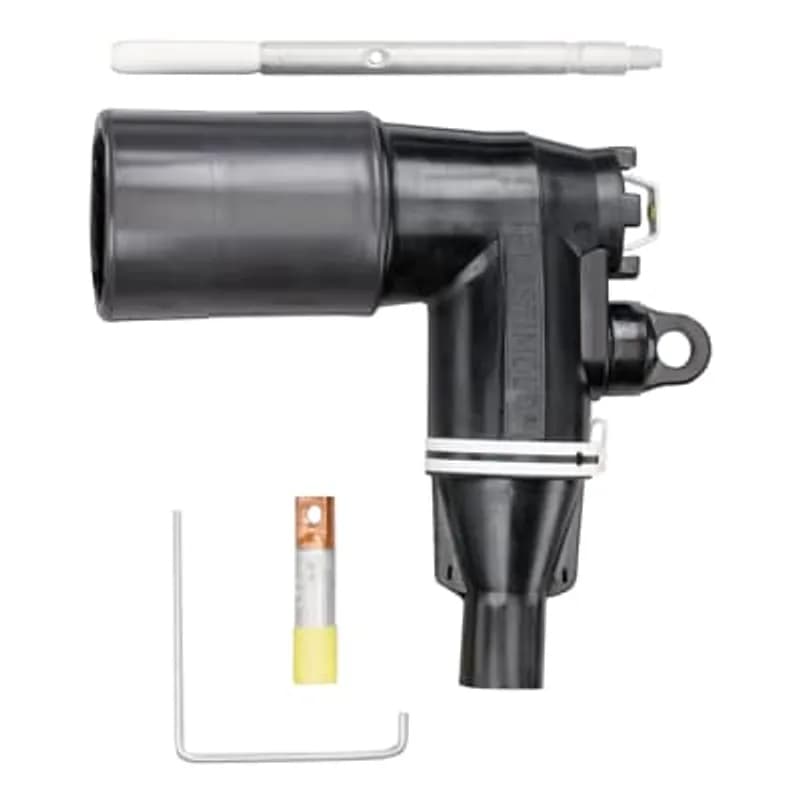

Each kit contains an elbow connector housing, a bi-metal compression lug, a probe, a probe wrench, a tube of lubricant, installation instructions, and a crimp chart.

The bi-metal compression lug, with its universal aluminum barrel, is suitable for both copper and aluminum conductors.

The 376LR has a 50kV AC one-minute withstand and a 103kV DC fifteen-minute withstand rating.
