ABB Installation Products 162A4-C5270 15kV, 200 Amp, Loadbreak Elbow with Bushing Insert Kit with Test Point, Cable Insulation…
UPC: 075114353977
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 15kV, 200 Amp rated loadbreak elbow connector for medium-voltage systems
- Compatible with Cable Insulation Diameter C (0.805–1.060 in / 20.45–26.92mm)
- Bi-metal compression lug for stranded/compressed (270–4/0 AWG) or solid/compact (up to 250 kcmil) conductors
- Includes test point for safe, non-disruptive testing and maintenance

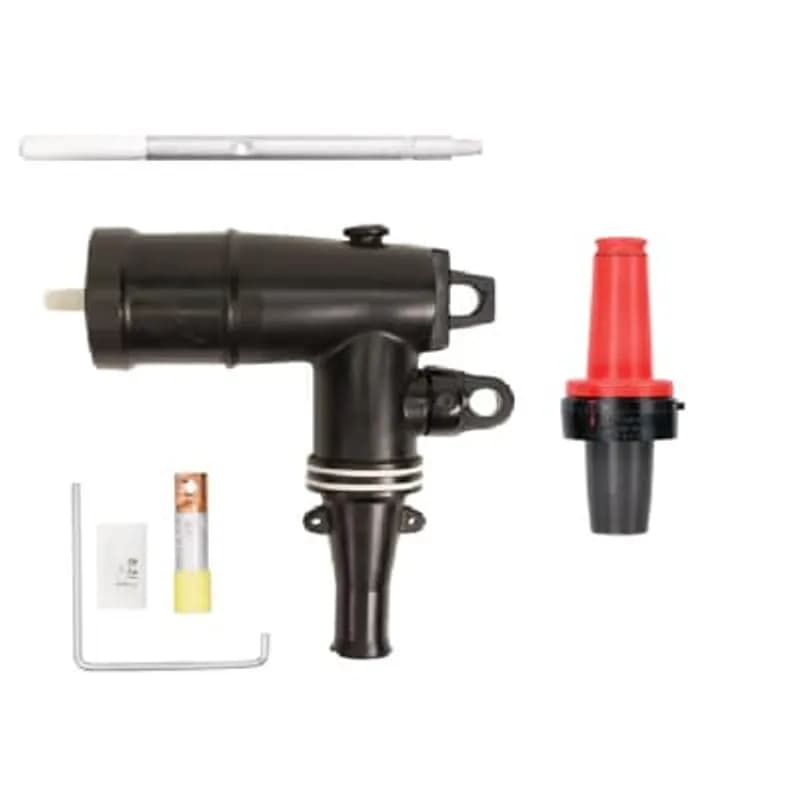

- Kit includes probe, probe wrench, bushing insert, lubricant, and protective shipping cap
Specifications
Amperage Rating | 200 A |
Application | 15kV 200 Amp |
Color | Black |
Conductor Range | 4/0 STR/COMPR AWG , 250 SOL/COMP kcmil |
Connection | Compression |
Environmental Conditions | Fully Submersible |
Insulation | True |
Length | 2.9 in |
Length | 73.66 mm |
Material | Housing - EPDM-Rubber |
Special Features | Non-corrosive capacitive test point |
Standard | ANSI/IEEE Standard 386 |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -40 F |
Temperature Rating, Minimum | -40 C |
Type | Loadbreak Elbow with Test Point and Bushing |
Voltage Rating | 15 kV |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 1.0000 L |
Package Weight (Metric) | 0.4540 kg |
655ETP-N0410-DRG
15kV 600 Series Deadbreak Elbow TAP PLUG Connector, Test and Ground Connector Kit, Test and Ground kit includes - Insulated Cap, Test and Ground reducing tap plug, 600 series Elbow housing, cable adapter and 0370 style compression lug. Cable Insulation Diameter 1.515 inch to 1.780 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 1000.
252LR-B2050
12/20 24kV, 250 Amp, Deadbreak, Elbow Connector with Test Point, No Sealing Kit, Cable Insulation Diameter - 16.13 mm - 22.90 mm, Copper Compression Lug, Conductor Size 50mm. Includes Elbow Connector Housing, Compression Lug, Probe, Probe Wrench, Bail Assembly, Tube of Lubricant, Installation Instructions, Crimp Chart and V.D. Cap-Peroxide. IEC Standard.
M465LR-P2330
35kV, 630 Amp, Deadbreak Elbow, No Test Point, IEC-IEEE, No Sealing Kit. Cable Insulation Diameter 1.725 to 1.935 inch, Copper Lug, Wire Range 500 kcmil Stranded/Compressed or 600 kcmil Solid Compact or 250/300 mm2. 10.36 inch (264.1mm) x 13 inch (330.2mm) from Bottom to Center of Bushing. Includes Elbow Connector Housing, Compression Lug, Stud, Insulated Plug with Cap, Lubricant, Cable Adapter, Installation Instructions and Crimp Chart.M465LR-N-2290
35kV, 630 Amp, Deadbreak Elbow, No Test Point, IEC-IEEE, No Sealing Kit. Cable Insulation Diameter 1.515 to 1.780 inch, Copper Lug, Wire Range 300 kcmil Stranded/Compressed or 350 kcmil Solid Compact or 150 mm2. 10.36 inch (264.1mm) x 13 inch (330.2mm) from Bottom to Center of Bushing. Includes Elbow Connector Housing, Compression Lug, Stud, Insulated Plug with Cap, Lubricant, Cable Adapter, Installation Instructions and Crimp Chart.M465LR-L-2230
35kV, 630 Amp, Deadbreak Elbow, No Test Point, IEC-IEEE, No Sealing Kit. Cable Insulation Diameter 1.180 to 1.465 inch, Copper Lug, Wire Range 1 Stranded/Compressed or 1/0 Solid Compact or 50 mm2. 10.36 inch (264.1mm) x 13 inch (330.2mm) from Bottom to Center of Bushing. Includes Elbow Connector Housing, Compression Lug, Stud, Insulated Plug with Cap, Lubricant, Cable Adapter, Installation Instructions and Crimp Chart.M465LR-G2250
35kV, 630 Amp, Deadbreak Elbow, with Test Point, IEC-IEEE, No Sealing Kit. Cable Insulation Diameter 0.760 to 0.95 inch, Copper Lug, Wire Range 2/0 Stranded/Compressed or 3/0 Solid Compact or 70 mm2. 10.36 inch (264.1mm) x 13 inch (330.2mm) from Bottom to Center of Bushing. Includes Elbow Connector Housing, Compression Lug, Stud, Insulated Plug with Cap, Lubricant, Cable Adapter, Installation Instructions and Crimp Chart.
K676ELR-L5330-S
25 kV, 900 Amp, Extended Elbow, Cable Insulation Diameter 1.180 inch to 1.465 inch. Bi-Metal Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 500 /Compacted Solid 600 /mmSquared Compact 250/300. Cold-Shrinkable Jacket Seal Included.K656SELR
600 Amp, 15/25kV, 600 Series Spiking Elbow with spiking contact, insulated plug, cap, stud, lug and cable adapter.Frequently Asked Questions
What is the maximum cable insulation diameter for this elbow?
This loadbreak elbow is designed for cable insulation diameters ranging from 0.805 to 1.060 inches (20.45-26.92mm), specified as Cable Insulation Diameter C.
What conductor sizes can be connected with this elbow?
The bi-metal compression lug supports conductor sizes from 270 to 4/0 AWG for stranded or compressed conductors, and up to 250 kcmil for solid or compact conductors.
What is the current rating of this loadbreak elbow?
The ABB 162A4-C5270 loadbreak elbow has a continuous current rating of 200 Amps.
Does this kit include a test point?
Yes, the 162A4-C5270 kit comes with a test point, which allows for easy testing of the connection.
What is the voltage class of this ABB loadbreak elbow?
This loadbreak elbow is rated for 15kV operation.
How to Prepare for Installation of the 162A4 Loadbreak Elbow Kit
This guide outlines the initial steps for selecting the correct 162A4 Loadbreak Elbow Connector kit and identifying the necessary installation documentation before proceeding with the physical installation.
Estimated time: 30m
Tools needed:
Probe wrench 271-94
Supplies needed:
Lubricant 82-08
- Determine the appropriate cable insulation diameter code
Consult the 'W Code' table provided in the documentation to determine the insulation letter code that best matches your cable's insulation diameter. This code is crucial for selecting the correct elbow connector housing for your application.
- Select the correct conductor material and compression lug codes
Refer to the 'Material Code' table to select the appropriate conductor material code (Code 5 is standard for bi-metal). Then, use the 'Conductor Code Table' to choose the proper compression lug code based on your conductor size. These codes complete your specific part number for the 162A4 kit.
- Gather kit components and locate detailed installation instructions
Verify that your kit contains all listed components, including the 162BLR-W elbow housing, bi-metal compression lug, probe, probe wrench, bushing insert, protective shipping cap, lubricant, and crucially, the 'Installation Instruction IS-1378'. For specific cable types like Jacketed Concentric Neutral or Copper Tape Shield, refer to IS-459 or IS-460 respectively for full installation details, as these documents contain the physical installation steps.
