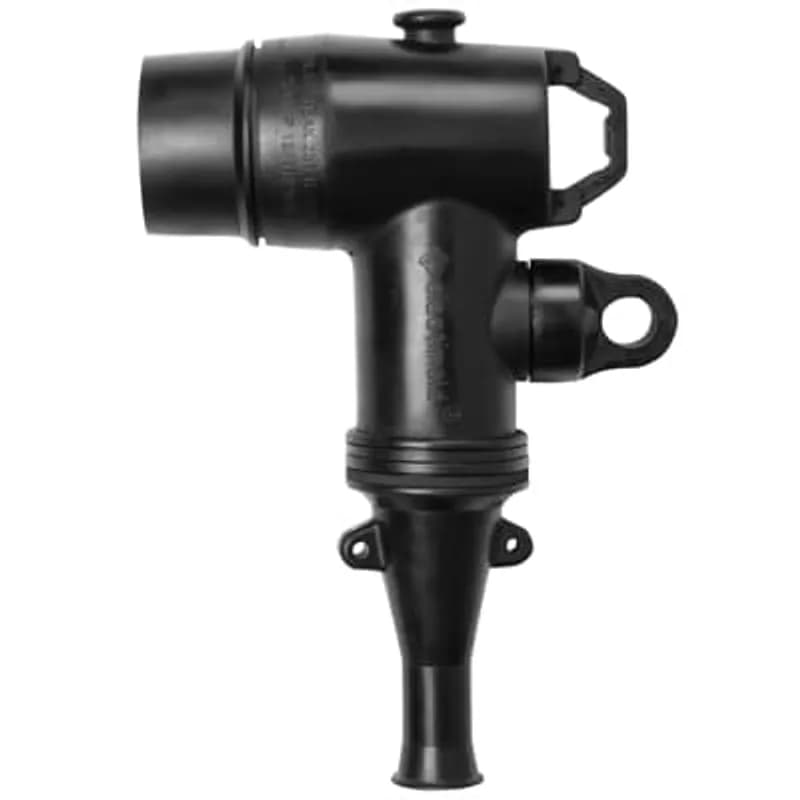

ABB Installation Products 252LR-B2035-S 12/20 24kV, 250 Amp, Deadbreak, Elbow Connector with Test Point, with Sealing Kit, Cable…
UPC: 075114373562
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 24kV rated, 250 Amp deadbreak elbow connector for medium-voltage systems
- Capacitive test point for safe, non-intrusive circuit diagnostics
- Accommodates cable insulation diameters from 16.13 mm to 22.90 mm
- Copper compression lug for 35mm² conductor termination
- Includes stainless-steel pulling eye, dual grounding eyes, and full installation kit
Specifications
Amperage Rating | 250 A |
Application | 12/20 (24) kV |
Color | Black |
Conductor Range | 35 mm |
Connection | Compression |
Connection Type | Deadbreak |
Current Rating | 250 A |
Environmental Conditions | Harsh Conditions |
Insulation | True |
Material | Copper |
Material | Housing - EPDM-Rubber |
Series | 252LR |
Size | 16.13 mm - 22.90 mm |
Special Features | Robust Stainless Steel Pulling Eye. Dual Grounding Eye Positions. Designed to Remain Fully Operational in Harsh Conditions |
Standard | IEC 60502-4, CEN 629.1 S2 |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -40 F |
Temperature Rating, Minimum | -40 C |
Type | Deadbreak Elbow Connector with Test Point |
Voltage Rating | 15 to 25 kV |
Voltage Rating | 24 kV |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 1.0000 L |
Package Weight (Metric) | 0.4540 kg |
252LR-B2035
12/20 24kV, 250 Amp, Deadbreak, Elbow Connector with Test Point, No Sealing Kit, Cable Insulation Diameter - 16.13 mm - 22.90 mm, Copper Compression Lug, Conductor Size 35mm. Includes Elbow Connector Housing, Compression Lug, Probe, Probe Wrench, Bail Assembly, Tube of Lubricant, Installation Instructions, Crimp Chart and V.D. Cap-Peroxide. IEC Standard.
262LR-E2250-S
25kV, 200 Amps, Loadbreak Elbow, Cable Insulation Diameter 1.090-1.310 inches, (27.69-33.27 mm), Copper Conductor, Conductor Size 2/0 Stranded/Compressed, 3/0 Solid/Compact. With Test Point. Kit Contains Elbow Connector Housing, Compression Lug, Probe, Probe Wrench, Lubricant, Installation Instruction Sheet and Crimp Chart. S - Cold Shrinkable Jacket Seal.
162A4-C5270
15kV, 200 Amp, Loadbreak Elbow with Bushing Insert Kit with Test Point, Cable Insulation Diameter C - 0.805 to 1.060 inch (20.45-26.92mm). Bi-Metal Compression Lug, Conductor Size 270 -4/0 Stranded/Compressed or 250 kcmil Solid/Compact.252LR-B2050
12/20 24kV, 250 Amp, Deadbreak, Elbow Connector with Test Point, No Sealing Kit, Cable Insulation Diameter - 16.13 mm - 22.90 mm, Copper Compression Lug, Conductor Size 50mm. Includes Elbow Connector Housing, Compression Lug, Probe, Probe Wrench, Bail Assembly, Tube of Lubricant, Installation Instructions, Crimp Chart and V.D. Cap-Peroxide. IEC Standard.
M465LR-P2330
35kV, 630 Amp, Deadbreak Elbow, No Test Point, IEC-IEEE, No Sealing Kit. Cable Insulation Diameter 1.725 to 1.935 inch, Copper Lug, Wire Range 500 kcmil Stranded/Compressed or 600 kcmil Solid Compact or 250/300 mm2. 10.36 inch (264.1mm) x 13 inch (330.2mm) from Bottom to Center of Bushing. Includes Elbow Connector Housing, Compression Lug, Stud, Insulated Plug with Cap, Lubricant, Cable Adapter, Installation Instructions and Crimp Chart.M465LR-N-2290
35kV, 630 Amp, Deadbreak Elbow, No Test Point, IEC-IEEE, No Sealing Kit. Cable Insulation Diameter 1.515 to 1.780 inch, Copper Lug, Wire Range 300 kcmil Stranded/Compressed or 350 kcmil Solid Compact or 150 mm2. 10.36 inch (264.1mm) x 13 inch (330.2mm) from Bottom to Center of Bushing. Includes Elbow Connector Housing, Compression Lug, Stud, Insulated Plug with Cap, Lubricant, Cable Adapter, Installation Instructions and Crimp Chart.Frequently Asked Questions
What are the available conductor sizes for the copper lug?
Copper lugs are available for conductor sizes 25, 35, 50, 70, 95, and 120 mm2.
What is the current rating of the elbow connector?
This is an IEC 250 amp deadbreak elbow connector.
What optional features are available for this connector?
Available options include sealing and grounding (-S) and bonding/grounding wire (-G).
What components are included in each connector kit?
Each kit includes the elbow connector housing, copper lug, probe, probe wrench, standard bail assembly, lubricant, installation instructions, crimp chart, and V.D. cap-peroxide.
What type of conductors are compatible with the lug?
The copper lug provided with the connector is suitable for all copper conductors only.
What industry standards does this connector meet?
The connector meets IEC 60502-4 and CEN 629.1 S2 standards and is KEMA certified.
What is the voltage rating of this connector?
The IEC 250 amp deadbreak elbow connector is rated for 12/20 (24) kV.
What are the available conductor sizes for the copper lug?
Copper lugs are available for conductor sizes 25, 35, 50, 70, 95, and 120 mm2.
What is the current rating of the elbow connector?
This is an IEC 250 amp deadbreak elbow connector.
What is the voltage rating of this connector?
The IEC 250 amp deadbreak elbow connector is rated for 12/20 (24) kV.
How to Install 252LR Deadbreak Elbow Connectors
This guide provides step-by-step instructions for the safe installation and connection of 252LR Deadbreak Elbow Connectors to UD jacketed or non-jacketed cables with concentric neutral wires or copper tape shielding.
Estimated time: 2h
Tools needed:
Wrench, Wire brush, Hot stick, Crimp tool, Wire strippers, Suitable sensing device (for voltage test)
Supplies needed:
Elbow Connector Housing, Compression Lug, Probe, Probe Contact, Lubricant, Hold-down Bail, No. 14 AWG / 2.5mm copper wire, Appropriate connector (for neutrals), Vinyl tape (if using drain wires), Conductive copper tape (if using copper tape shield kit), Cold shrink tube (if using sealing kits)
- Perform Pre-Installation Checks and Safety Review
Before starting, read the entire installation instructions. Inspect all parts for damage, proper rating, and compatibility. Ensure the elbow housing cable entrance size and compression lug size match the cable. Verify probe threads by hand-threading the probe into the compression lug. All apparatus must be de-energized during installation or removal. This product must be installed only by competent personnel trained in high voltage safety practices.
- Prepare Cable for Termination
Train the cable to ensure adequate slack for operation. Based on cable type (non-jacketed, jacketed concentric neutral, jacketed with drain wires, or jacketed copper tape shield), prepare the outer jacket, neutral wires, or copper tape shield as specified in the documentation. Ensure neutral wires are prepared for connection to tank ground. If using a sealing kit, slide the cold shrink tube onto the cable.
- Prepare Conductor and Insulation
Remove 2-1/8 inches (55mm) of shield and insulation from the cable end, cutting squarely without nicking the conductor. Wire brush bare aluminum conductors and immediately place the compression lug over the conductor, rotating to spread inhibitor. Align the lug's threaded hole with the bushing bore and crimp according to the lug's chart, rotating 180 degrees for successive crimps. Remove 6-7/8 inches (175mm) of insulation shield, beveling the insulation end 1/8 inch (5mm) maximum. Thoroughly clean the insulation.
- Assemble Elbow Housing and Probe
Clean the cable insulation and the inside of the elbow housing, then lubricate with the supplied lubricant. Slide the elbow connector onto the cable with a back-and-forth twisting motion, wiping off excess lubricant. Align the elbow with the compression lug's threaded hole. Thread the probe into the lug by hand, then tighten with a wrench until the wrench bends, ensuring not to cross-thread.
- Connect Concentric Neutrals
Insert one end of a separate No. 14 AWG (2.5mm) copper wire or equivalent through the grounding eye on the elbow and twist tightly. Twist all concentric neutral wires together and connect them to ground using an appropriate connector, ensuring adequate slack for elbow operation.
- Connect Elbow to Bushing Plug
Clean the receptacle portion of the elbow connector and the mating bushing, then lubricate with the supplied lubricant ONLY if both the transformer and elbow are known to be de-energized. Use a fully insulated hot stick to place the elbow onto the bushing. Do not operate by hand or separate if energized.
- Secure Elbow with Hold-Down Bail
Place the hold-down bail in the hold-down bracket. Pull the hold-down bail up over the crown of the elbow so the eyebolt is directly over the operating eye. Tighten the eyebolt by turning it clockwise until it seats securely in the locator. Adjust the nut on the eyebolt to act as a stop, preventing excessive force on the elbow.
- Perform Voltage Test (Optional)
If equipped with a capacitance test point, remove the test point cap with a hotstick, peeling it off at an angle. Use a suitable sensing device designed for capacitive test points to determine if the circuit is energized. Do not use conventional voltage measuring equipment. After testing, clean and lubricate the inside surface of the cap and replace it on the test point. Treat the elbow as energized until confirmed otherwise by multiple means.
