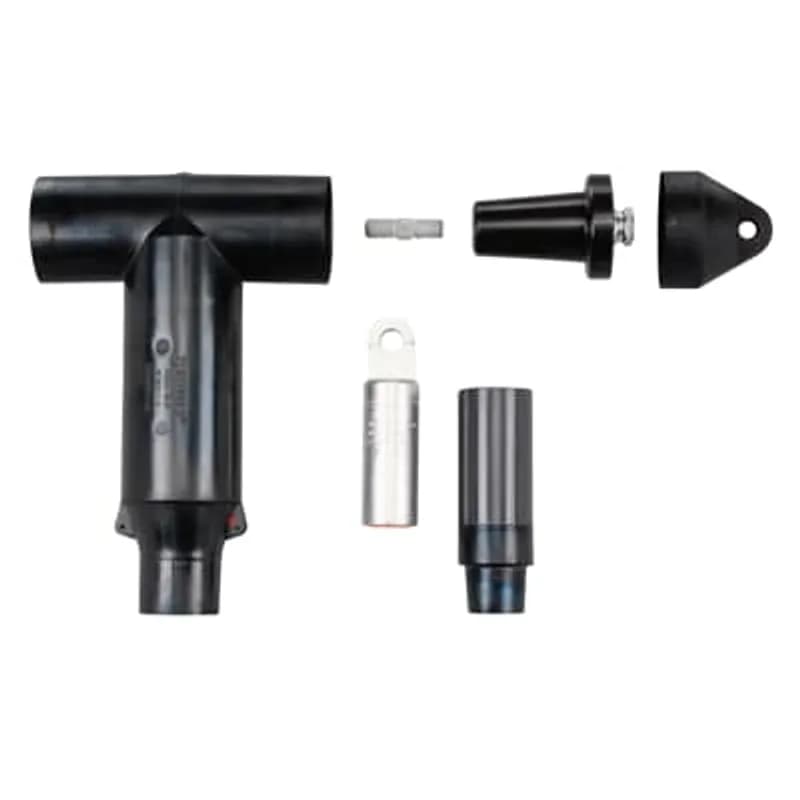

ABB - Installation Products M465LR-P2330 - 35kV, 630 Amp, Deadbreak Elbow, No Test Point, IEC-IEEE, No Sealing Kit. Cable Insulation Diameter 1.725 to 1.935 inch, Copper Lug, Wire Range 500 kcmil Stranded/Compressed or 600 kcmil Solid Compact or 250/300 mm2. 10.36 inch (264.1mm) x 13 inch (330.2mm) from Bottom to Center of Bushing. Includes Elbow Connector Housing, Compression Lug, Stud, Insulated Plug with Cap, Lubricant, Cable Adapter, Installation Instructions and Crimp Chart.

ABB Installation Products M465LR-P2330 35kV, 630 Amp, Deadbreak Elbow, No Test Point, IEC-IEEE, No Sealing Kit. Cable…

UPC: 075114184403

Documents & Media
Installation InstructionsManufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB M465LR-P2330 is a 35 kV, 630 Amp deadbreak elbow connector designed for reliable power cable termination in IEC-IEEE compliant systems. This unit features a robust construction with a copper compression lug, suitable for stranded/compressed copper conductors ranging from 500 kcmil to 600 kcmil, or 250/300 mm2 solid compact conductors. The cable insulation diameter compatibility is between 1.725 and 1.935 inches, ensuring a secure fit for a range of medium-voltage cables. This deadbreak elbow connector is engineered for straightforward installation and includes essential components: the elbow connector housing, a compression lug, a stud, an insulated plug with cap, lubricant, a cable adapter, and comprehensive installation instructions with a crimp chart. The physical dimensions from the bottom to the center of the bushing are 10.36 inches (264.1mm), with an overall length of 13 inches (330.2mm). This configuration is ideal for applications requiring a deadbreak connection without a test point, simplifying the interface while maintaining operational integrity. The M465LR-P2330 is manufactured by ABB - Installation Products, a trusted name in electrical infrastructure components. Its specific design adheres to stringent electrical standards, making it a dependable choice for utility, industrial, and commercial power distribution networks where safety and performance are paramount. The absence of a test point streamlines the connection process and reduces potential points of failure in certain system designs.
  • 35 kV voltage rating
  • 630 Amp current rating
  • Deadbreak elbow connection type
  • Copper compression lug for 500-600 kcmil stranded/compressed or 250/300 mm2 solid compact conductors
  • Compatible with cable insulation diameters from 1.725 to 1.935 inches

Specifications

Amperage Rating
630 A
Application
35kV, 630 Amp Connections
Color
Black
Conductor Range
500 kcmil , 600 kcmil
Connection
Compression
Environmental Conditions
Fully Shielded, Fully Submersible
Insulation
True
Material
Housing - EPDM-Rubber
Size
10.36 inch (264.1mm) x 13 inch (330.2mm) from Bottom to Center of Bushing
Special Features
IEC
Standard
ANSI/IEEE Standard 386. IEC Standard
Temperature Rating, Maximum
149 F
Temperature Rating, Maximum
65 C
Temperature Rating, Minimum
-40 F
Temperature Rating, Minimum
-40 C
Type
Deadbreak Elbow without Test Point
Voltage Rating
35 kV
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.0000 L
Package Weight (Metric)
0.4540 kg
