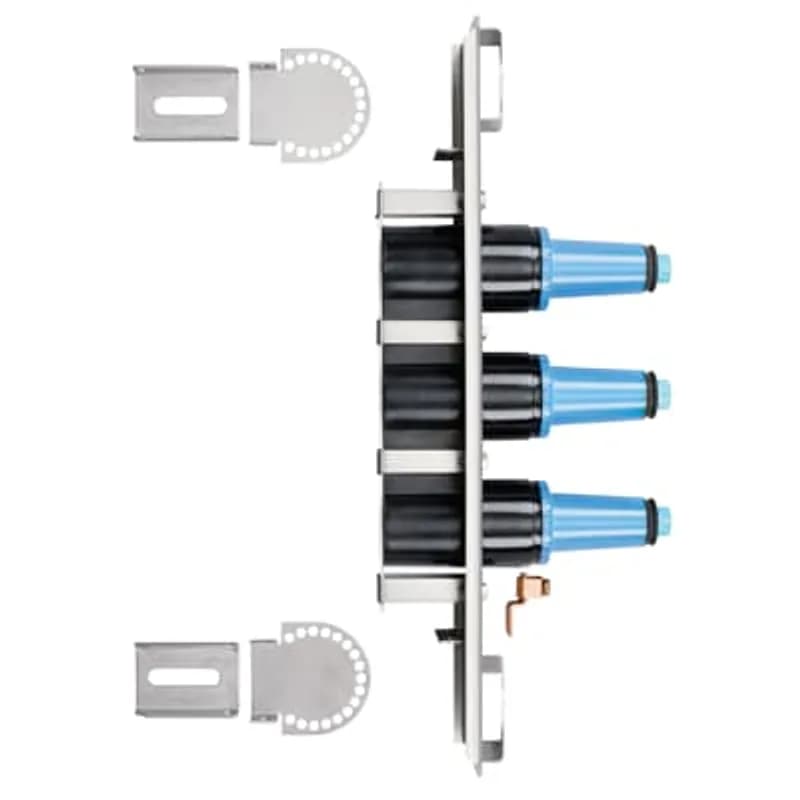

ABB Installation Products 274J3-WB-5 200 Amp, 25kV, Loadbreak 3 Point Junction. With U Straps. White Band
UPC: 783786441945
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 200 Amp Current Rating
- 25 kV Voltage Rating
- 3-Point Loadbreak Junction Configuration
- Includes U Straps for Secure Mounting
- White Band for Identification
Specifications
Amperage Rating | 200 A |
Application | Designed for subsurface, vault or padmount applications and can be used for sectionalizing, looping, tapping, and equipment bypass |
Color | Black |
Environmental Conditions | Fully Shielded, Fully Submersible |
Insulation | True |
Material | Housing - Molded Rubber |
Mounting | U-Straps |
Special Features | White Band and U Straps |
Standard | ANSI/IEEE Standard 386 |
Type | Loadbreak 3-Way Junction |
Voltage Rating | 25 kV |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 1.0000 L |
Package Weight (Metric) | 0.4540 kg |
K655L2
15/25kV 600 Series Deadbreak 2-Way L-Kit. Includes Two 600 Amp Basic Elbows, Two 28 kV 600 Amp Studs, Two Insulated Plugs with Caps, Compound and InstructionsK655L1
15/25kV 600 Series Deadbreak 1-Way L-Kit. Includes 600 Amp Basic Elbow, 28 kV 600 Amp Stud, Two Insulated Plugs with Caps, Compound and Instructions755L2
600 Amp, 35kV, 600 Series Deadbreak 2-Way L-Kit. Does not include cable adapters or compression lugs, must be ordered separately.
650LRTPA3
15kV 600 Series Test and Ground and Stick-Op, Connector System, Stick-Op Loadbreak Reducing Tap Plug, 600AT assembly tool required for operation and/or installation of Stick-Op. 600 to 200 Amps.K650LRTPA2
25kV 600 Series Stick-Op Loadbreak Reducing Tap Plug, 600AT assembly tool required for operation and/or installation of Stick-Op.Frequently Asked Questions
What is the voltage rating of this ABB junction?
The ABB 274J3-WB-5 junction has a voltage rating of 25 kV.
What is the current rating for the 274J3-WB-5?
The current rating for the ABB 274J3-WB-5 junction is 200 Amps.
What type of connection does this ABB junction offer?
This ABB junction is a 3-point loadbreak junction.
Does the 274J3-WB-5 include mounting hardware?
The ABB 274J3-WB-5 includes U straps for mounting.
What is the purpose of the white band on this junction?
The white band on the ABB 274J3-WB-5 aids in product identification.
How to Install the 274J3-WB-5 Loadbreak Junction
Instructions for installing and connecting the 274J3-WB-5 two, three, or four-point loadbreak junctions.
Estimated time: 45m
Tools needed:
Drill, Wrench
Supplies needed:
Mounting hardware, Grounding lug (if mounting surface is not conductive), Ground wire (14AWG minimum), Lubricant, Mating products (elbows or caps), Round yellow marker
- Determine mounting location and drill holes
Select the desired location for the junction assembly. Drill holes in the mounting surface according to the dimensions provided in the diagram for J2, J3, or J4 configurations.
- Assemble and mount the junction
Assemble the loadbreak junction, shield plate, and hold down brackets using the supplied fasteners. Attach the assembly to the flat mounting surface and securely tighten all fasteners to prevent movement during operation. Ensure the shield plate, hold down brackets, and conductive rubber shield are grounded. If the mounting surface is not conductive or grounded, attach a grounding lug (not provided) with one of the mounting bolts and connect a ground wire (14AWG minimum) to the lug and a ground bus.
- Prepare and connect mating products
Thoroughly clean the bushing interface of any contaminants and lubricate it with the supplied lubricant. Install the mating products (insulated caps or elbow connectors) to the bushing insert, following the instructions provided with those mating products. Apply the provided round yellow marker to the mounting surface where it will be visible to the operator.
- Verify seating of connected products
Confirm that the insulated cap or elbow connector is fully seated. This is indicated when no portion of the yellow band is visible when viewed from the side.
