ABB - Installation Products 274J4 (BOX) - 4 Point Junction Box, 25 KV, 200 Amp, Load Break

ABB Installation Products 274J4 (BOX) 4 Point Junction Box, 25 KV, 200 Amp, Load Break

UPC: 783786105724


Documents & Media
Installation InstructionsSpecification SheetManufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

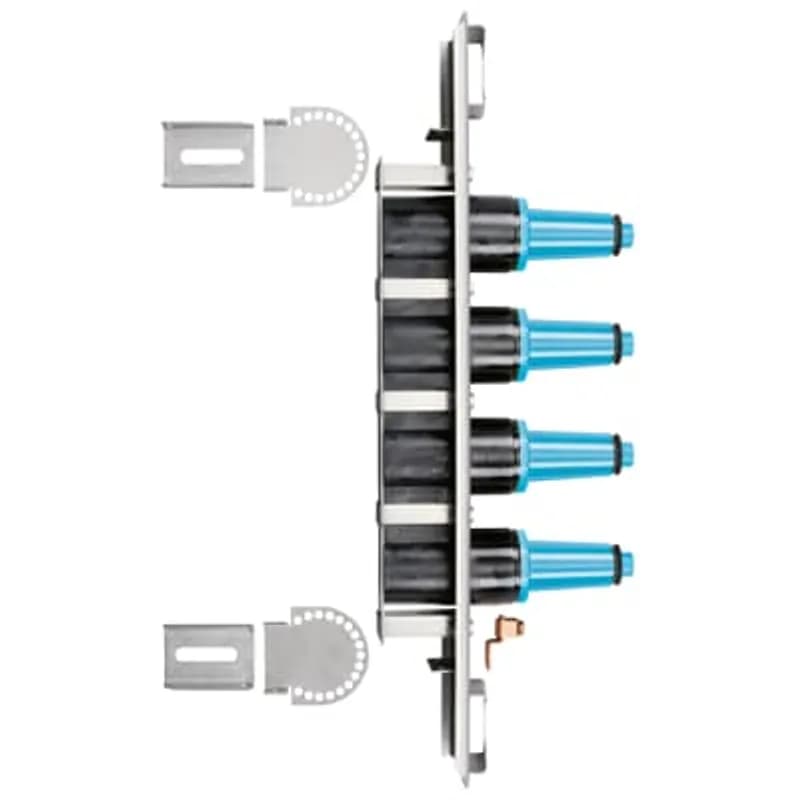

The ABB 274J4 is a 25kV, 200A loadbreak 4-way junction box designed for Elastimold systems. Manufactured by ABB Installation Products, this fully shielded, submersible molded rubber housing unit enables safe loadbreak operations in 25kV class distribution systems. It supports sectionalizing, looping, tapping, and equipment bypass in subsurface, vault, or padmount applications. The junction mates with Elastimold loadbreak products and elbow connectors, including the 25kV family and 370GLR grounding elbow. Each kit includes the junction, shipping caps, lubricant tube, and installation instructions.
  • 25kV, 200A loadbreak 4-way junction box for Elastimold systems
  • Fully shielded, submersible molded rubber housing
  • Supports sectionalizing, looping, tapping, and equipment bypass
  • Includes shipping caps, lubricant tube, and installation instructions

Specifications

Amperage Rating
200 A
Application
Designed for subsurface, vault or padmount applications and can be used for sectionalizing, looping, tapping, and equipment bypass
Color
Black
Environmental Conditions
Fully Shielded, Fully Submersible
Insulation
True
Material
Housing - Molded Rubber
Standard
ANSI/IEEE Standard 386
Type
Loadbreak 4-Way Junction
Voltage Rating
25 kV
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
14.6000 L
Package Weight (Metric)
6.6230 kg
200 Amp, 25kV, Loadbreak 4 Point Junction. Without Brackets.

274J4(1)-5

200 Amp, 25kV, Loadbreak 4 Point Junction. Without Brackets.
Solenoid Valve Connectors, Accessory, ISB gasket

V-GP1B

Solenoid Valve Connectors, Accessory, ISB gasket
200 Amp, 25kV, Loadbreak 3 Point Junction. White Band.

274J3WB

200 Amp, 25kV, Loadbreak 3 Point Junction. White Band.
200 Amp, 25kV, Insulated Cap with Ground, Equipped with Insulated Cuff. Bi-Metal Compression Lug. Ground Lead 62 inches and White.

273DRG-5

200 Amp, 25kV, Insulated Cap with Ground, Equipped with Insulated Cuff. Bi-Metal Compression Lug. Ground Lead 62 inches and White.
200 Amp, 25kV, Loadbreak 4 Point Junction. White Band.

274J4WB

200 Amp, 25kV, Loadbreak 4 Point Junction. White Band.
200 Amp, 25kV, Loadbreak Extended Bushing Insert. Includes internal torquing feature using 200AT Assembly Tool.

2701EA4A

200 Amp, 25kV, Loadbreak Extended Bushing Insert. Includes internal torquing feature using 200AT Assembly Tool.
200 Amp, 25kV, Insulated Parking Bushing, Stand Off Plug, Includes a black vent ring. White Band, Vented

272SOPWB

200 Amp, 25kV, Insulated Parking Bushing, Stand Off Plug, Includes a black vent ring. White Band, Vented
Aluminum Flood-Seal Mechanical Splice Two-Wire Kits, conductor range 2-500 connector length 12 inch, screws per side 2

USK 500-12

Aluminum Flood-Seal Mechanical Splice Two-Wire Kits, conductor range 2-500 connector length 12 inch, screws per side 2

Frequently Asked Questions

What is the product's primary function?

The 274J4 is a 25kV, 200 Amp Loadbreak 4-Way Junction. It is designed for sectionalizing, looping, tapping, and equipment bypass in distribution systems.

What is the impulse withstand rating (BIL)?

The impulse withstand (BIL) rating is 125kV (1.2 x 50 microsecond wave).

How do I order the junction with "U" style mounting straps?

To order the junction with "U" style mounting straps, add "-5" at the end of the catalog number, for example, 274J4-5.

What items are included in the kit?

Each kit contains one basic molded junction (274J4), two protective shipping caps (2701-41), two tubes of lubricant (82-08), and one installation instruction (IS-0798).

What is the fault close rating?

The junction has a 10kA Symmetrical (Sym) rating for 10 Cycles Momentary & Fault Close.

How flexible are the mounting options?

The junction includes universal brackets that accommodate curved or flat surfaces. It provides tilt mounting angles from 0° to 90° in 15° increments.

What other Elastimold products are compatible?

It provides mating for other Elastimold® loadbreak type products, including 25kV Family of Elbow Connectors, 370GLR Grounding Elbow, 370TR Test Rod, and 273/274DRG Insulated Cap.

What standards does this product meet?

The 274J4 junction meets ANSI/IEEE Standard 386, Latest Revision.

Is the junction suitable for submersible use?

Yes, the junction features a fully shielded, fully submersible molded rubber housing. It is designed as a separable, insulated assembly for energized operation.

What is the continuous and loadbreak current rating?

The junction is rated for 200 Amp continuous and loadmake/loadbreak operation.

How to Install Elastimold Loadbreak Junctions (274J Series)

This guide provides step-by-step instructions for installing Elastimold 274J series two-, three-, and four-point loadbreak junctions. It covers mounting, grounding, and preparing the interfaces for mating products.

Estimated time: 45m

Tools needed:

Screwdriver, Wrench, Wire strippers, Cleaning cloth

Supplies needed:

Mounting bolts (user-supplied, 17/32 inch or 13mm diameter), Grounding wire (No. 10 Solid to No. 1 Stranded), Lubricant (supplied with junction), Elastimold 273DR Insulated Cap (for unused interfaces), Mating loadbreak connectors or elbows

  1. Prepare Mounting Brackets and Mark Location

    DANGER: Ensure all apparatus is de-energized during installation. Loosely attach the universal mounting brackets to the junction back plate. Position the assembled unit against the desired mounting surface (flat or curved), adjust the brackets for proper alignment, and mark the mounting locations on the wall.

  2. Mount Brackets to Wall

    Detach the universal mounting brackets from the junction back plate. Securely mount the brackets to the wall using user-supplied bolts, aligning them with the marks made in Step 1. You may invert one or both brackets to adjust the distance between bolt centers as needed.

  3. Attach Junction to Brackets

    Once the universal mounting brackets are securely fastened to the wall, attach the junction back plate (with the junction attached) to the mounting brackets. Ensure that the parking stands are in the upright position during this step.

  4. Adjust Mounting Angle

    Adjust the mounting angle of the junction to the desired position, which can be from 0 to 90 degrees above or below the horizontal in 15-degree increments.

  5. Secure All Bolts

    Thoroughly tighten all bolts on the mounting brackets and junction assembly to ensure there is no movement during operation. This prevents excess distortion and potential failure.

  6. Ground the Back Plate

    Connect a grounding wire (No. 10 Solid to No. 1 Stranded) to the provided grounding lug on the back plate. Securely fasten the grounding wire to an appropriate ground point.

  7. Clean and Lubricate Bushing Interfaces

    Thoroughly wipe all bushing interfaces clean of any contaminants. Apply the supplied lubricant to the interfaces. Then, install the mating products (e.g., elbow connectors) to the bushing inserts, following the specific instructions provided with those mating products.

  8. Verify Seating and Cap Unused Interfaces

    Verify complete assembly of any installed insulated caps or elbows by ensuring no portion of the yellow band is visible when viewed from the side. IMPORTANT SAFETY WARNING: If any operating interfaces are not utilized, an Elastimold 273DR insulated cap MUST be installed on each unused interface before energization. Do NOT use protective shipping covers for this purpose as they are not insulated.
