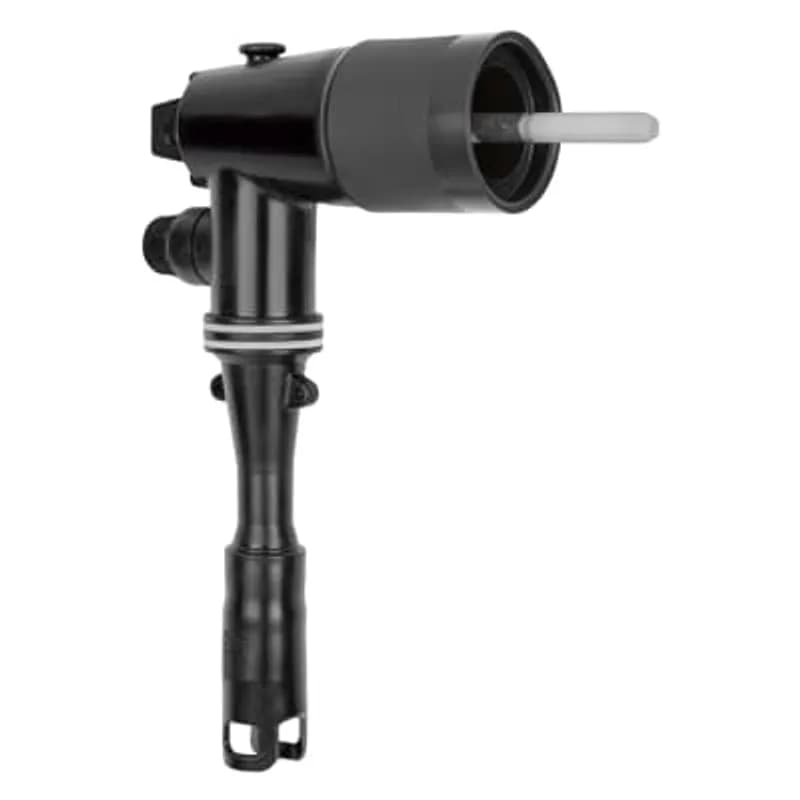

Overview
- 25kV, 200 Amp rating for reliable power distribution.
- Built-in jacket seal for environmental protection.
- Accommodates cable insulation diameters from 1.090-1.310 inches (27.69-33.27 mm).
- Bi-metal conductor compatible with 4/0 Stranded/Compressed and 250 Solid/Compact conductors.
- Includes test point for electrical testing and a complete installation kit.
Specifications
Amperage Rating | 200 A |
Application | 25kV, 200 Amp, Loadbreak Connector |
Color | Black |
Conductor Range | 4/0 STR/COMPR AWG , 250 kcmil |
Connection | Push-In |
Connection Type | Compression Lug |
Current Rating | 200 A |
Environmental Conditions | All Weather Conditions |
Insulation | True |
Material | Bi-Metal, Poly |
Material | Housing - EPDM-Rubber |
Series | 262LRJS |
Size | 1.090-1.310 inches (27.69-33.27mm) |
Size | 8.20 inch X 11.47 inch from bottom to center of Installation O-Ring, 2.86 inch Diameter |
Special Features | 25kV, 200 Amp Loadbreak Elbow. Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Provision for hot stick operation. Provision for ground wire connection. Wide cable range with minimum number of sizes. Long bi-metal compression lug is standard. Non-corrosive capacitive test point. Built in Cable Jacket Seal |
Standard | ANSI/IEEE Standard 386 |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -40 F |
Temperature Rating, Minimum | -40 C |
Type | Loadbreak Elbow Connector with Test Point and Jacket Seal |
Voltage Rating | 28 kV |
Voltage Rating | 25 kV |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 1.0000 L |
Package Weight (Metric) | 0.4540 kg |
656ETP-H0270-DRG-S
600 Series Elbows with IEEE 386 Capacitive Test Points, 600 Amp, 15kV, Test and Ground Connector Kit, Insulated Cap. 200ECS Cold-Shrinkable Jacket Seal Included. Cable Insulation Diameter 0.850 inch to 1.050 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 4/0 /Compacted Solid 250 /mmSquared Compact 125.
262LRJS-A5210
25kV, 200 Amp Loadbreak Elbow with Test Point and Jacket Seal. Cable Insulation Diameter 0.575 - 0.740 inches (14.6-18.8mm). Bi-Metal Compression Lug. Conductor Size 210 - #3 Stranded/Compressed or #2 Solid/Compact. Kit Includes Elbow Connector Housing, Lug, Probe, Probe Wrench, Tube of Lubricant, Crimp Chart, V.D. Cap Peroxide and Installation Instructions.
376LR-K2240-S
200 Amp, 35kV, Loadbreak Elbow Connector with Test Point, Cable Insulation Diameter 1.090 inch to 1.310 inch. Copper Compression Lug, Conductor Size AWG Compressed Stranded 1/0, Solid 2/0, mmSquared 53.49. 200ECS Cold-Shrinkable Jacket Seal Included.
K656LR-M2330
15/25kV, 600 Amp, Deadbreak Elbow Connector with Test Point, Cable Insulation Diameter 1.370-1.630 inches (34.798-41.402mm), Copper Lug, Conductor Size 330 - 500kcmil Stranded/Compressed, 600kcmil Solid/Compact. Kit Includes Elbow Connector Housing, Stud, Insulated Plug with Cap, Cable Adapter, V.D. Cap-Peroxide, Tube of Lubricant, Crimp Chart and Installations Instructions. 10.36 x 13.00 inches, 3.38 and 3.83 inch diameters.
375LR-H2260-S
35kV, 200 Amp, Loadbreak Elbow without Test Point, with Seal. Cable Insulation Diameter 0.850 - 1.050 inches (21.59-26.67mm). Copper Compression Lug. Conductor Size 260 - 3/0 Stranded/Compressed or 4/0 Solid/Compact. Kit Includes Elbow Connector Housing, Lug, Probe, Probe Wrench, Tube of Lubricant, Crimp Chart and Installation Instructions.376LR-K2250-S
200 Amp, 35kV, Loadbreak Elbow Connector with Test Point, Cable Insulation Diameter 1.090 inch to 1.310 inch. Copper Compression Lug, Conductor Size AWG Compressed Stranded 2/0, Solid 3/0, mmSquared 67.43. 200ECS Cold-Shrinkable Jacket Seal Included.
262LR-D2270
25kV 200 Amp, Loadbreak Elbow Connector with Test Point, .890 inch - 1.220 Inch Cable Insulation Diameter, 4/0 Stranded Wire Size, Copper Compression Lug.Frequently Asked Questions
Is an integral jacket seal option available?
Yes, an optional integral jacket seal is available for the enhanced Elastimold 200 amp loadbreak elbow.
What is the Elastimold 200 amp loadbreak elbow?
It is an enhanced 200 amp loadbreak elbow available for 15 kV and 25 kV series, designed for switching operations.
What are the voltage ratings for this loadbreak elbow?
The enhanced Elastimold 200 amp loadbreak elbow is available for 15 kV and 25 kV series applications.
What safety features are included in the enhanced elbow?
It features improved insulation for 15 kV elbows, rigid probe support, a no-stick interface with Elastimold bushings, a robust stainless-steel pulling eye, and dual grounding eye positions.
Does the enhanced loadbreak elbow have RUS acceptance?
Yes, the enhanced Elastimold 200 amp loadbreak elbow has Rural Utilities Service (RUS) acceptance from the U.S. Department of Agriculture (USDA).
What standards and certifications does the elbow meet?
The product is IEEE 386 compliant and has ANSI certification, in addition to RUS acceptance.
What is the function of the rigid probe support?
The internal rigid probe support ensures proper switching and easy probe installation.
What is the benefit of the robust pulling eye?
The robust stainless-steel pulling eye promotes durable hotstick control.
Does the elbow feature a no-stick interface?
Yes, it has a no-stick interface when used with Elastimold bushings, which has been NEETRAC tested.
Is an integral jacket seal option available?
Yes, an optional integral jacket seal is available for the enhanced Elastimold 200 amp loadbreak elbow.
How to Install the 262LRJS Loadbreak Elbow Connector
This guide provides detailed instructions for the safe and proper installation of the Elastimold 262LRJS Loadbreak Elbow Connector with Jacket Seal on UD cable, including cable preparation, elbow assembly, and neutral connection.
Estimated time: 1h 30m
Tools needed:
Probe wrench, Crimp tool, Wire brush, Hotstick
Supplies needed:
262LRJS Elbow Connector Housing, Compression Lug, Probe, Lubricant (supplied with kit), Sealing strips (mastic), Vinyl tape, Copper wire (No. 14 AWG / 2.5mm), Appropriate grounding connector
- Prepare for Installation and Safety Checks
DANGER: All apparatus must be de-energized during installation or removal of parts. This product should be installed only by competent personnel trained in good safety practices involving high voltage electrical equipment. Failure to follow these instructions will result in damage to the product and serious or fatal injury. Verify all package contents are complete and undamaged. Check all components for proper fit with the cable and mating products. Thread the probe into the compression lug to check for resistance; if resistance is encountered, replace the damaged component. If a test point cap is not installed, lubricate the cap and test point, then install the cap.
- Train and Prepare the Cable
Train the cable to ensure sufficient slack for ease of operation. Pull extra cable 24-26 inches beyond the bushing centerline and place a tape mark at the centerline. Remove the outer jacket 7-3/4 to 8 inches back from the tape mark. Unwrap neutral wires back past the bushing centerline. Cut the cable end squarely at the centerline of the bushing.
- Prepare Cable for Lug and Shielding
Wrap one strip of mastic, stretching slightly, around the cable jacket. Bend all neutral wires straight back over the mastic and press them into it. Wrap a second strip of mastic completely around the outer jacket, overlapping the imbedded neutral wires. Use a third strip if needed to build up the outer diameter. Cover all mastic with vinyl tape. Remove the insulation shield and insulation from the cable end, cutting squarely without nicking the conductor.
- Install Compression Lug
Wire brush bare aluminum conductors immediately. Install the compression lug, rotating it to spread inhibitor. Position the lug so its contact threaded hole aligns with the bushing bore. Crimp the lug starting at the crimp line mark, rotating 180 degrees for each successive crimp. Carefully wipe excessive inhibitor from the outside of the lug and cable.
- Final Cable Insulation Preparation
Remove the insulation shield as shown in the dimensional guide (6-7/8 inches from the cable end). Bevel the insulation end a maximum of 1/8 inch. Thoroughly clean the insulation to remove all traces of conductive residue.
- Assemble the Elbow Connector
Lubricate the cable insulation and the inside of the elbow housing with the supplied lubricant; do not substitute. Slide the elbow connector onto the cable with a back-and-forth twisting motion. Wipe off all excess lubricant. Align the elbow with the compression lug’s threaded hole. Thread the probe into the lug by hand, ensuring it turns freely for approximately four turns before becoming snug. Tighten the probe with the supplied wrench until the wrench bends.
- Connect Concentric Neutral Wires
Insert one end of a separate copper wire (No. 14 AWG / 2.5mm or equivalent) through the grounding eye on the elbow and twist tightly. Pull the hood over the concentric neutral seal area on the cable by pulling the tabs or rolling the seal down. Twist all neutral wires together and connect them to ground using an appropriate connector, ensuring adequate slack for elbow operation.
- Connect Elbow to Bushing (De-energized)
Lubricate the receptacle portion of the elbow connector and the mating bushing with the supplied lubricant. LUBRICATE ONLY IF THE TRANSFORMER AND ELBOW ARE KNOWN TO BE DE-ENERGIZED. Securely fasten a hotstick to the loadbreak connector pulling eye. Insert the probe tip approximately 2 inches into the bushing, then immediately push the elbow home with a fast, firm, straight motion to engage the internal lock. Do not operate by hand.
