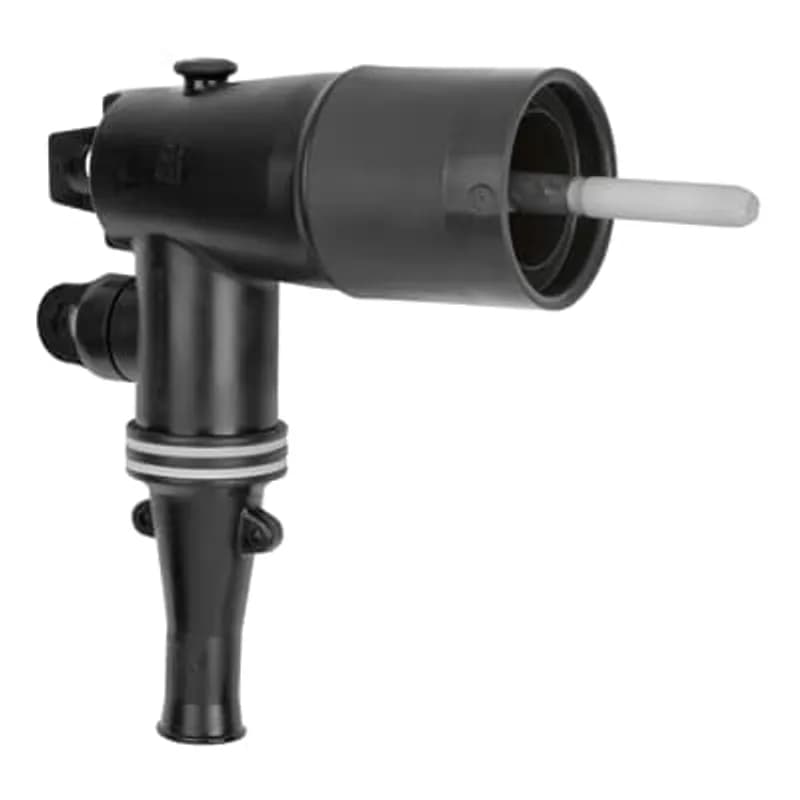

ABB Installation Products 262LR-D2270 25kV 200 Amp, Loadbreak Elbow Connector with Test Point, .890 inch - 1.220 Inch Cable…
UPC: 075114341486
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 25kV rated, 200 Amp continuous current capacity
- Integrated test point for safe voltage verification
- Accommodates .890" to 1.220" cable insulation diameters
- Designed for 4/0 AWG stranded copper wire
- Copper compression lug for low-resistance termination
Specifications
Amperage Rating | 200 A |
Application | 25/28kV, 200 Amp, Loadbreak Connector |
Color | Black |
Conductor Range | 4/0 STR/COMPR AWG , 250 kcmil |
Connection | Push-In |
Connection Type | Compression Lug |
Current Rating | 200 A |
Environmental Conditions | All Weather Conditions |
Insulation | True |
Material | Copper |
Material | Housing - EPDM-Rubber |
Series | 262LR |
Size | Cable Insulation Diameter 0.890 - 1.220 inches, Conductor Size 4/0 Stranded |
Size | 8.20 inch (208.3 mm) X 9.03 inch (229.4 mm), 2.86 inch (72.6 mm) Diameter |
Special Features | 15kV, 200 Amp Loadbreak Elbow. Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Provision for hot stick operation. Provision for ground wire connection. Wide cable range with minimum number of sizes. Long bi-metal compression lug is standard. Non-corrosive capacitive test point |
Standard | ANSI/IEEE Standard 386 |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -40 F |
Temperature Rating, Minimum | -40 C |
Type | Loadbreak Elbow Connector with Test Point |
Voltage Rating | 25 to 28 kV |
Voltage Rating | 25 kV |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 1.0000 L |
Package Weight (Metric) | 0.4540 kg |
755LR-K2270
600 Amp, 35kV, 600 Series Deadbreak Elbow (with Insulated Plug, Cap, Stud, Lug and Cable Adapter). Cable Insulation Diameter 1.090 inch to 1.310 inch. Copper Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 4/0 /Compacted Solid 250 /mmSquared Compact 125.
262LR-E2270
25/28kV, 200 Amp, Loadbreak Elbow Connector with Test Point, Cable Insulation Diameter 1.090-1.310 inches (27.68-33.27mm), Copper Lug, Conductor Size 270 - 4/0 Stranded/Compressed, 250 kcmil Solid/Compact. Kit Includes Elbow Connector Housing, Lug, Probe, Probe Wrench, Tube of Lubricant, Crimp Chart and Installations Instructions. 9.03 x 8.20 inches, 2.86 inch diameter.262LR-D2260
25/28kV, 200 Amp, Loadbreak Elbow Connector with Test Point, Cable Insulation Diameter 0.890-1.220 inches (22.61-30.99mm), Copper Lug, Conductor Size 260 - 3/0 Stranded/Compressed, 4/0 Solid/Compact. Kit Includes Elbow Connector Housing, Lug, Probe, Probe Wrench, Tube of Lubricant, Crimp Chart and Installations Instructions. 9.03 x 8.20 inches, 2.86 inch diameter.
162LR-B5240-SG2
200 Amp, 15kV, Loadbreak Elbow Connector with Test Point, Cable Insulation Diameter 0.635 inch to 0.905 inch. Bi-Metal Compression Lug. Conductor Size AWG Compressed Stranded 1/0 /Solid 2/0 /mmSquared 53.49. 200ECS-G2 Jacket Seal and Grounding Kit Included.262LR-D2240
25/28kV, 200 Amp, Loadbreak Elbow Connector with Test Point, Cable Insulation Diameter 0.890-1.220 inches (22.61-30.99mm), Copper Lug, Conductor Size 240 - 1/0 Stranded/Compressed, 2/0 Solid/Compact. Kit Includes Elbow Connector Housing, Lug, Probe, Probe Wrench, Tube of Lubricant, Crimp Chart and Installations Instructions. 9.03 x 8.20 inches, 2.86 inch diameter.262LR-E5250
25kV, 200 Amps, Loadbreak Elbow, Cable Insulation Diameter 1.090-1.310 inches, (27.69-33.27 mm), Bi-Metal Conductor, Conductor Size 2/0 Stranded/Compressed, 3/0 Solid/Compact. With Test Point. Kit Contains Elbow Connector Housing, Compression Lug, Probe, Probe Wrench, Lubricant, Installation Instruction Sheet and Crimp Chart.Frequently Asked Questions
What are the current and voltage ratings?
The product is a 200 amp loadbreak elbow available for 15 kV and 25 kV series.
What does RUS acceptance mean for the product?
RUS acceptance from the U.S. Department of Agriculture (USDA) authorizes its use in rural infrastructure construction and improvements.
What standards and certifications does the elbow meet?
The enhanced Elastimold 200 amp loadbreak elbow is IEEE 386 compliant, ANSI certified, and has Rural Utilities Service (RUS) acceptance.
How does the elbow reduce life cycle costs?
It is optimized for switching operations, provides lifetime ease of operation and non-stick performance with Elastimold bushings, and has an improved seal system.
What flexibility enhancements does the elbow offer?
The elbow offers additional sizes, improved wider cable ranges, an easy order system, and an optional integral jacket seal.
What safety features does the loadbreak elbow include?
It features improved insulation for 15 kV elbows, rigid probe support, a no-stick interface with Elastimold bushings, a robust stainless-steel pulling eye, and dual grounding eye positions.
What is the Elastimold 200 amp loadbreak elbow?
It is an enhanced 200 amp loadbreak elbow available for 15 kV and 25 kV series, designed for easier switching operations.
What are the current and voltage ratings?
The product is a 200 amp loadbreak elbow available for 15 kV and 25 kV series.
What is the Elastimold 200 amp loadbreak elbow?
It is an enhanced 200 amp loadbreak elbow available for 15 kV and 25 kV series, designed for easier switching operations.
What safety features does the loadbreak elbow include?
It features improved insulation for 15 kV elbows, rigid probe support, a no-stick interface with Elastimold bushings, a robust stainless-steel pulling eye, and dual grounding eye positions.
How to Install Elastimold 262LR Loadbreak Elbow Connectors
This guide provides step-by-step instructions for the safe installation and initial setup of Elastimold 262LR Loadbreak Elbow Connectors on various UD cables.
Estimated time: 1h 30m
Tools needed:
Wire brush, Crimp tool, Wire strippers, Probe wrench, Hotstick
Supplies needed:
Elbow Connector Housing, Compression Lug, Probe, Lubricant (supplied, DO NOT SUBSTITUTE), UD Cable, No. 14 AWG / 2.5mm copper wire, Appropriate connector for neutral wires, Conductive copper tape (if applicable), Vinyl tape (if applicable), Cold shrink tube (if applicable), Mating 25kV class 200ampere loadbreak bushing or accessory device
- Perform Initial Safety Checks and Prepare Workspace
Ensure all apparatus are de-energized before beginning installation or removal of parts. This product must be installed only by competent personnel trained in good safety practices involving high voltage electrical equipment. Inspect all package contents for completeness and damage, and verify component compatibility with the cable and mating products. Thread the probe into the compression lug to check for free movement without resistance. Gather all required tools and maintain a clean workspace throughout the procedure.
- Train and Cut the Cable
Train the cable to ensure sufficient slack (24 to 26 inches or 610 to 660mm) for ease of operation and neutral connection. Cut the cable squarely at the centerline of the bushing.
- Prepare Cable Jacket and Shield
Based on your cable type, remove the outer jacket and prepare the neutral, drain, or shield wires according to the specific instructions. For jacketed concentric neutral cable, remove the outer jacket 9-5/8 inches (240mm) back from a tape mark at the bushing centerline. For jacketed cable with drain wires, remove 9-5/8 inches (240mm) of the outer jacket, unwrap, bind, and fold back the ground wires, then wrap with vinyl tape. For jacketed copper tape shield cable, remove 9-5/8 inches (240mm) of the outer jacket and 7-1/8 inches (180mm) of the copper tape shield, then wrap conductive copper tape over the end of the copper shield to hold it in place.
- Prepare Conductor and Insulation
Remove the insulation shield and insulation 2-1/8 inches (55mm) from the cable end. Cut squarely, taking extreme care not to nick the conductor. Remove the insulation shield 6-7/8 inches (175mm) from the cable end, ensuring a straight, smooth, and squared edge. Bevel the insulation end a maximum of 1/8 inch (5mm). Thoroughly clean the insulation to remove all traces of dirt or excess inhibitor.
- Install the Compression Lug
Wire brush the bare aluminum conductors immediately after preparation. Install the compression lug onto the conductor, rotating it to spread the inhibitor. Position the compression lug so that its contact threaded hole aligns with the bushing bore. Crimp the lug according to the crimp chart provided with the lug, starting at the crimp line mark and rotating 180 degrees for each successive crimp. Carefully wipe any excess inhibitor from the outside of the lug and cable.
- Assemble the Elbow Connector Housing
Lubricate the cable insulation and the inside of the elbow housing with the supplied lubricant; do not substitute. Slide the elbow connector onto the cable using a back-and-forth twisting motion. Wipe off all excess lubricant. Align the elbow with the compression lug's threaded hole. Thread the probe into the lug by hand, ensuring it turns freely for approximately four turns before becoming snug. Tighten the probe with the supplied probe wrench until the wrench bends, indicating proper torque.
- Ground the Elbow and Neutral Wires
Insert one end of a separate copper wire (No. 14 AWG / 2.5mm or equivalent) through the grounding eye on the elbow and twist tightly, taking care not to damage the eye. Twist all neutral wires together and connect them to ground using an appropriate connector, ensuring adequate slack in the wires for elbow operation. If using a cold shrink grounding kit, refer to its specific instructions.
- Connect the Elbow to the Bushing Plug
Confirm that both the transformer and the elbow are de-energized. Lubricate the receptacle portion of the elbow connector and the mating bushing with the supplied lubricant. Securely fasten a hotstick to the loadbreak connector pulling eye. Insert the probe tip approximately 2 inches (50mm) into the bushing, then immediately push the elbow home with a fast, firm, straight motion to engage the internal lock on the elbow connector and bushing interface. Do not operate by hand.
