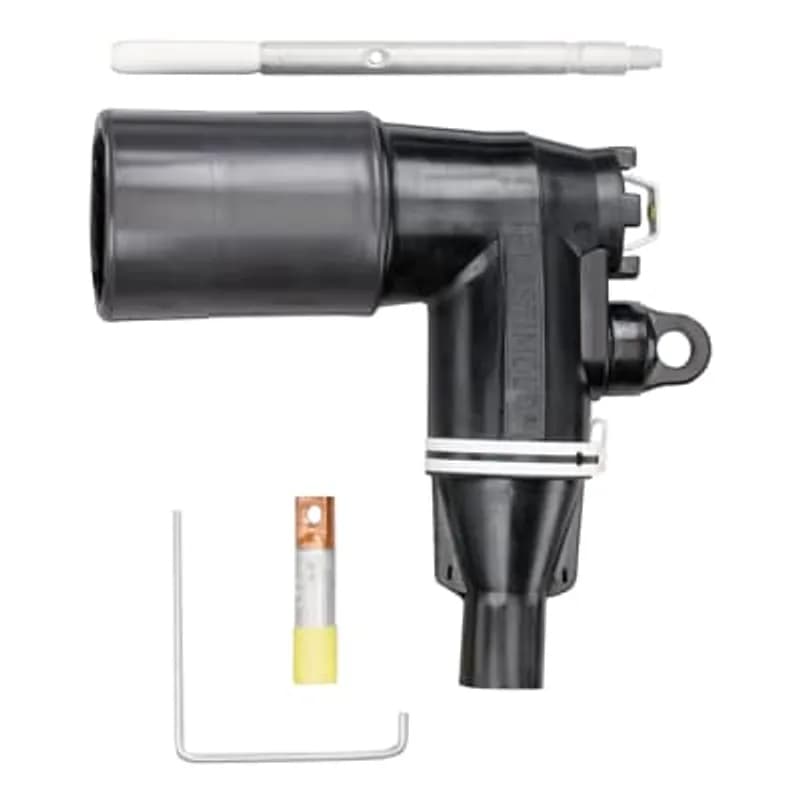

ABB Installation Products 376LR-K2250-S 200 Amp, 35kV, Loadbreak Elbow Connector with Test Point, Cable Insulation Diameter…
UPC: 075114343527
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 200 Amp, 35kV Loadbreak Elbow Connector
- Integrated Test Point for Diagnostics
- Accommodates Cable Insulation: 1.090" - 1.310"
- Copper Compression Lug: 2/0 AWG Stranded to 3/0 AWG Solid
- Includes 200ECS Cold-Shrinkable Jacket Seal
Specifications
Amperage Rating | 200 A |
Application | 35kV, 200 Amp, Loadbreak Connector |
Color | Black |
Conductor Range | 2/0 STR/COMPR AWG , 3/0 SOL/COMPT AWG |
Connection | Push-In |
Environmental Conditions | All Weather Conditions |
Insulation | True |
Material | Housing - EPDM-Rubber |
Size | 9.49 inch X 7.56 inch from bottom to center of Installation O-Ring, 3.16 inch Diameter |
Special Features | 35kV, 200 Amp Loadbreak Elbow. Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Provision for hot stick operation. Provision for ground wire connection. Wide cable range with minimum number of sizes. Long bi-metal compression lug is standard. Non-Corrosive Capacitive Voltage Test Point |
Standard | ANSI/IEEE Standard 386 |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -40 F |
Temperature Rating, Minimum | -40 C |
Type | Loadbreak Elbow Connector with Test Point |
Voltage Rating | 35 kV |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 1.0000 L |
Package Weight (Metric) | 0.4540 kg |
375LR-J-5250
200 Amp, 35kV, Loadbreak Elbow Connector without Test Point, Cable Insulation Diameter 0.980 inch to 1.180 inch. Bi-Metal Compression Lug, Conductor Size AWG Compressed Stranded 2/0 /Solid 3/0 /mmSquared 67.43.
262LR-D2270
25kV 200 Amp, Loadbreak Elbow Connector with Test Point, .890 inch - 1.220 Inch Cable Insulation Diameter, 4/0 Stranded Wire Size, Copper Compression Lug.262LR-E2270
25/28kV, 200 Amp, Loadbreak Elbow Connector with Test Point, Cable Insulation Diameter 1.090-1.310 inches (27.68-33.27mm), Copper Lug, Conductor Size 270 - 4/0 Stranded/Compressed, 250 kcmil Solid/Compact. Kit Includes Elbow Connector Housing, Lug, Probe, Probe Wrench, Tube of Lubricant, Crimp Chart and Installations Instructions. 9.03 x 8.20 inches, 2.86 inch diameter.262LR-D2260
25/28kV, 200 Amp, Loadbreak Elbow Connector with Test Point, Cable Insulation Diameter 0.890-1.220 inches (22.61-30.99mm), Copper Lug, Conductor Size 260 - 3/0 Stranded/Compressed, 4/0 Solid/Compact. Kit Includes Elbow Connector Housing, Lug, Probe, Probe Wrench, Tube of Lubricant, Crimp Chart and Installations Instructions. 9.03 x 8.20 inches, 2.86 inch diameter.
162LR-B5240-SG2
200 Amp, 15kV, Loadbreak Elbow Connector with Test Point, Cable Insulation Diameter 0.635 inch to 0.905 inch. Bi-Metal Compression Lug. Conductor Size AWG Compressed Stranded 1/0 /Solid 2/0 /mmSquared 53.49. 200ECS-G2 Jacket Seal and Grounding Kit Included.262LR-D2240
25/28kV, 200 Amp, Loadbreak Elbow Connector with Test Point, Cable Insulation Diameter 0.890-1.220 inches (22.61-30.99mm), Copper Lug, Conductor Size 240 - 1/0 Stranded/Compressed, 2/0 Solid/Compact. Kit Includes Elbow Connector Housing, Lug, Probe, Probe Wrench, Tube of Lubricant, Crimp Chart and Installations Instructions. 9.03 x 8.20 inches, 2.86 inch diameter.262LR-E5250
25kV, 200 Amps, Loadbreak Elbow, Cable Insulation Diameter 1.090-1.310 inches, (27.69-33.27 mm), Bi-Metal Conductor, Conductor Size 2/0 Stranded/Compressed, 3/0 Solid/Compact. With Test Point. Kit Contains Elbow Connector Housing, Compression Lug, Probe, Probe Wrench, Lubricant, Installation Instruction Sheet and Crimp Chart.
755LR-M0280
600 Amp, 35kV, 600 Series Deadbreak Elbow (with Insulated Plug, Cap, Stud, Lug and Cable Adapter). Cable Insulation Diameter 1.370 inch to 1.630 inch. Universal Aluminum Compression Lug. Conductor Size AWG or kcmil Compressed Stranded 250, Solid 350.Frequently Asked Questions
What apparatus is the 376LR elbow compatible with?
It has a standard interface for connecting to 35kV, 200 Amp bushing inserts, junctions, operating accessories, and distribution apparatus.
What conductor types are compatible with the standard compression lug?
The standard bi-metal compression lug has a universal aluminum barrel suitable for both copper or aluminum conductors.
What components are included in the 376LR elbow connector kit?
Each kit contains an elbow connector housing, a bi-metal compression lug, a probe, a probe wrench, a tube of lubricant, installation instructions, and a crimp chart.
What cable insulation diameters are compatible with the 376LR?
The 376LR allows connection of cables with insulation diameters from .850 in (21.6mm) to 1.465 in (37.2mm).
Can the 376LR elbow be operated with hot stick tools?
Yes, the 376LR elbow includes provisions for energized operation using standard hot stick tools for loadmaking/loadbreak operation and visible disconnect.
What is the maximum operating voltage for the 376LR elbow?
The maximum phase-to-ground operating voltage for the 376LR elbow is 21.1kV. The maximum phase-to-phase voltage is 36.6kV.
Does the 376LR elbow include a voltage test point?
Yes, the 376LR elbow is equipped with an integral, non-corrosive capacitive voltage test point.
What is the impulse withstand rating for the 376LR?
The 376LR has a 150kV BIL impulse withstand rating, measured with a 1.2 x 50 microsecond wave.
What are the voltage and current ratings of the 376LR elbow?
The 376LR elbow is rated for 35kV voltage class and 200 Amp continuous and loadbreak current. It can operate at 21.1kV max phase-to-ground.
Can the 376LR elbow be operated with hot stick tools?
Yes, the 376LR elbow includes provisions for energized operation using standard hot stick tools for loadmaking/loadbreak operation and visible disconnect.
How to Install Elastimold 375LR/376LR Loadbreak Elbow Connectors
This guide provides step-by-step instructions for the safe installation and initial setup of Elastimold 375LR (without test point) and 376LR (with test point) Loadbreak Elbow Connectors on UD cable.
Estimated time: 1h 30m
Tools needed:
Hotstick, Probe wrench, Crimp tool, Wire brush, Wire strippers
Supplies needed:
Elbow Connector Housing, Compression Lug, Probe, Lubricant (supplied), Copper wire (No. 14 AWG / 2.5mm or equivalent), Appropriate grounding connector, Insulated cap(s) or connector(s) (if replacing shipping covers)
- Prepare for Installation and Safety Checks
De-energize all apparatus before starting installation or removal of parts, except for test point caps and indicators. Ensure installation is performed only by competent personnel trained in good safety practices involving high voltage electrical equipment. Inspect all package contents to ensure they are complete and undamaged. Verify all components for proper fit with the cable and/or mating products. Check compression lug threads by hand-threading the probe; replace any damaged components if resistance is encountered prior to full assembly. Gather all required tools and maintain cleanliness throughout the procedure.
- Train and Prepare the Cable
Train the UD cable as shown in the documentation to ease operation, ensuring a minimum of 20 inches extends beyond the end of the cable pad mount transformer. Cut any excess cable squarely at the center line of the bushing. Unwrap and bind the concentric neutral wires 8-1/2 inches back from the end of the cable. Remove the shield and insulation from the cable end, cutting squarely and taking extreme care not to nick the conductor.
- Install and Crimp the Compression Lug
Wire brush the bare aluminum conductors immediately after exposure. Install the compression lug onto the wire-brushed conductor, rotating it to spread the inhibitor. Position the compression lug so its contact threaded hole aligns with the bushing bore. Crimp the lug according to the crimp chart packaged with the compression lug, starting at the crimp line mark and rotating 180 degrees for each successive crimp. Carefully wipe any excessive inhibitor from the outside of the lug and cable.
- Prepare Cable Insulation
Remove the insulation shield as indicated by the cable cut-back template. Bevel the insulation end to a maximum of 1/8 inch. Thoroughly clean the insulation to remove all traces of conductive residue, ensuring a straight, smooth, and squared finish without cuts or nicks.
- Assemble the Elbow Connector
Lubricate the cable insulation and the inside of the elbow housing with the lubricant supplied; DO NOT SUBSTITUTE, as other lubricants may be harmful. Keep the insulation clean of dirt and grime. Slide the elbow connector onto the cable with a back-and-forth twisting motion. Wipe off all excess grease. Align the elbow with the compression lug’s threaded hole. Thread the probe into the lug by hand, taking care not to cross-thread. The probe must turn freely for approximately four turns before becoming snug. Tighten the probe with the supplied wrench until the wrench bends, indicating proper torque.
- Connect the Concentric Neutral
Using a separate copper wire (No. 14 AWG / 2.5mm or equivalent), insert one end through the grounding eye on the elbow. Twist the copper wire tight, taking care not to damage the eye. Twist all neutral wires together and connect them to ground using an appropriate connector. Provide adequate slack in the wires for elbow operation.
- Prepare for Connection to Bushing (De-energized)
WARNING: Lubricate the receptacle portion of the elbow connector and the mating bushing ONLY IF THE TRANSFORMER AND ELBOW ARE KNOWN TO BE DE-ENERGIZED. Do not operate or connect the elbow by hand. All loadbreak products must be operated with a full insulated “hotstick” type live-line tool. Consult your company’s safe work practices for the required live-line tool length.
