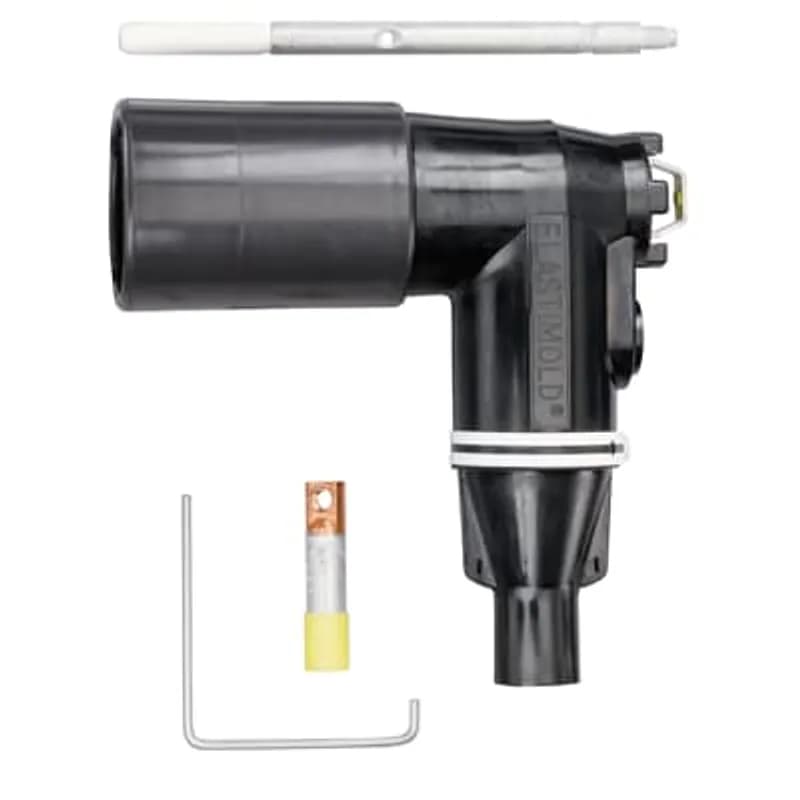

ABB Installation Products 375LR-H2260-S 35kV, 200 Amp, Loadbreak Elbow without Test Point, with Seal. Cable Insulation Diameter…
UPC: 075114341110
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 35kV voltage rating, 200A current rating
- Copper compression lug compatible with 260–3/0 stranded/compressed or 4/0 solid/compact conductors
- Cable insulation diameter range: 0.850–1.050 inches (21.59–26.67mm)
- Loadbreak design enables safe hot-stick operation under load
- Kit includes probe wrench, lubricant, crimp chart, and installation instructions
Specifications
Amperage Rating | 200 A |
Application | 35kV, 200 Amp, Loadbreak Connector |
Color | Black |
Conductor Range | 3/0 STR/COMPR AWG , 4/0 SOL/COMPT AWG |
Connection | Push-In |
Connection Type | Compression Lug |
Current Rating | 200 A |
Environmental Conditions | All Weather Conditions |
Insulation | True |
Material | Copper, Poly |
Material | Housing - EPDM-Rubber |
Series | 375LR |
Size | 7.56 inch X 8.70 inch from bottom to center of Installation O-Ring, 3.16 inch Diameter |
Size | 0.850-1.050 inches (21.59-26.67mm) |
Special Features | 35kV, 200 Amp Loadbreak Elbow. Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Provision for hot stick operation. Provision for ground wire connection. Wide cable range with minimum number of sizes. Long bi-metal compression lug is standard |
Standard | ANSI/IEEE Standard 386 |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -40 F |
Temperature Rating, Minimum | -40 C |
Type | Loadbreak Elbow Connector |
Voltage Rating | 35 kV |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 1.0000 L |
Package Weight (Metric) | 0.4540 kg |
755LR-K2260
600 Amp, 35kV, 600 Series Deadbreak Elbow (with Insulated Plug, Cap, Stud, Lug and Cable Adapter). Cable Insulation Diameter 1.090 inch to 1.310 inch. Copper Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 3/0 /Compacted Solid 4/0 /mmSquared Compact 95.
376LR-K2250-S
200 Amp, 35kV, Loadbreak Elbow Connector with Test Point, Cable Insulation Diameter 1.090 inch to 1.310 inch. Copper Compression Lug, Conductor Size AWG Compressed Stranded 2/0, Solid 3/0, mmSquared 67.43. 200ECS Cold-Shrinkable Jacket Seal Included.
262LR-D2270
25kV 200 Amp, Loadbreak Elbow Connector with Test Point, .890 inch - 1.220 Inch Cable Insulation Diameter, 4/0 Stranded Wire Size, Copper Compression Lug.262LR-E2270
25/28kV, 200 Amp, Loadbreak Elbow Connector with Test Point, Cable Insulation Diameter 1.090-1.310 inches (27.68-33.27mm), Copper Lug, Conductor Size 270 - 4/0 Stranded/Compressed, 250 kcmil Solid/Compact. Kit Includes Elbow Connector Housing, Lug, Probe, Probe Wrench, Tube of Lubricant, Crimp Chart and Installations Instructions. 9.03 x 8.20 inches, 2.86 inch diameter.262LR-D2260
25/28kV, 200 Amp, Loadbreak Elbow Connector with Test Point, Cable Insulation Diameter 0.890-1.220 inches (22.61-30.99mm), Copper Lug, Conductor Size 260 - 3/0 Stranded/Compressed, 4/0 Solid/Compact. Kit Includes Elbow Connector Housing, Lug, Probe, Probe Wrench, Tube of Lubricant, Crimp Chart and Installations Instructions. 9.03 x 8.20 inches, 2.86 inch diameter.
162LR-B5240-SG2
200 Amp, 15kV, Loadbreak Elbow Connector with Test Point, Cable Insulation Diameter 0.635 inch to 0.905 inch. Bi-Metal Compression Lug. Conductor Size AWG Compressed Stranded 1/0 /Solid 2/0 /mmSquared 53.49. 200ECS-G2 Jacket Seal and Grounding Kit Included.Frequently Asked Questions
How many grounding eye positions are available?
The elbows feature dual grounding eye positions for increased flexibility.
What products are included in the Elastimold 200 amp series?
The Elastimold 200 amp series includes loadbreak elbows and bushing inserts.
What voltage classes do the loadbreak elbows support?
The Elastimold 200 amp loadbreak elbows are designed for 15 kV and 25 kV systems.
What voltage classes do the bushing inserts support?
The Elastimold bushing inserts are designed for 25 kV and 35 kV system voltages.
What material is used for the housing?
The housing is made from 100% peroxide-cured EPDM for lasting durability.
Is an integral jacket seal available?
Yes, an integral jacket seal is available for complete sealing.
How is a no-stick interface achieved?
A no-stick interface is achieved when the elbow is used with an Elastimold PBT interface shield.
Can the bushing inserts operate when submerged?
Yes, Elastimold 200 amp bushing inserts are designed for exceptional performance under harsh conditions, including being fully submerged.
How can I visually identify the voltage class?
A color-coded PBT interface shield provides visual indication: red for 15 kV, blue for 25 kV, and black for 35 kV.
Is there a way to confirm full insertion during installation?
Yes, the PBT interface shield provides a positive visual confirmation of full insertion when installed with a 200 amp loadbreak elbow.
How to Install Elastimold 375LR/376LR Loadbreak Elbow Connectors
This guide provides step-by-step instructions for the safe installation and initial setup of Elastimold 375LR and 376LR Loadbreak Elbow Connectors on UD cable.
Estimated time: 1h 30m
Tools needed:
Probe wrench, Hotstick (full insulated live-line tool), Wire brush, Crimp tool, Wire strippers, Suitable sensing device (for capacitive test points)
Supplies needed:
Lubricant (supplied, do not substitute), Copper wire (No. 14 AWG / 2.5mm or equivalent), Appropriate connector (for grounding neutral wires), HV insulated cap(s) or connector(s) (if replacing shipping covers), Test point cap (for 376LR only), Silicone grease (for test point cap)
- Review Safety and Inspect Components
Before starting, ensure all apparatus are de-energized. Inspect all package contents for completeness and damage. Verify all components fit properly with the cable and mating products. Check the probe threads by hand-threading into the compression lug; replace if resistance is encountered. Read all instructions thoroughly and gather all required tools, maintaining a clean work area.
- Train and Prepare Cable
Train the cable to ease future operation, ensuring a minimum of 20 inches beyond the end of the cable pad mount transformer. Cut any excess cable squarely at the center line of the bushing. Unwrap and bind the concentric neutral wires 8-1/2 inches back from the end of the cable. Carefully remove the shield and insulation from the cable end, ensuring a straight, smooth, and squared cut without nicking the conductor.
- Install Compression Lug
Wire brush the bare aluminum conductors immediately after exposure. Install the compression lug, rotating it to spread the inhibitor. Position the compression lug so its contact threaded hole aligns with the bushing bore. Crimp the lug according to the crimp chart provided with the lug, starting at the crimp line mark and rotating 180 degrees for each successive crimp. Carefully wipe any excessive inhibitor from the outside of the lug and cable. Remove the insulation shield as shown in the cable cut-back template, and bevel the insulation end a maximum of 1/8 inch. Thoroughly clean the insulation to remove all traces of conductive residue.
- Assemble Elbow Housing
Lubricate the cable insulation and the inside of the elbow housing using only the supplied lubricant; do not substitute. Slide the elbow connector onto the cable with a back-and-forth twisting motion, then wipe off all excess grease. Align the elbow with the compression lug’s threaded hole. Thread the probe into the lug by hand, ensuring it turns freely for approximately four turns before becoming snug. Tighten the probe with the supplied wrench until the wrench bends, indicating proper torque.
- Connect Concentric Neutral
Using a separate No. 14 AWG (2.5mm) copper wire or equivalent, insert one end through the grounding eye on the elbow and twist it tight, taking care not to damage the eye. Twist all neutral wires together and connect them to ground using an appropriate connector. Ensure adequate slack in the wires to allow for elbow operation.
- Prepare for Connection to Bushing
If the product was supplied with protective shipping covers, remove them and replace with appropriate HV insulated caps or connectors before submerging or energizing the circuit. Lubricate the receptacle portion of the elbow connector and the mating bushing with the supplied lubricant. WARNING: Only lubricate if the transformer and elbow are known to be de-energized. Do not operate the elbow by hand; use a full insulated 'hotstick' type live-line tool for all connections and disconnections.
- (Optional) Perform Voltage Test (for 376LR only)
For 376LR models, remove the test point cap with a hotstick, peeling it off at an angle. WARNING: The voltage test point is a capacitance device and not directly connected to the conductor; do not use conventional voltage measuring equipment. Use a suitable sensing device designed for capacitive test points to determine if the cable is energized. Treat the elbow as energized until the 'no voltage' indication is confirmed by other means. After testing, clean and lubricate the inside surface of the cap with silicone grease and replace it tightly on the test point.
