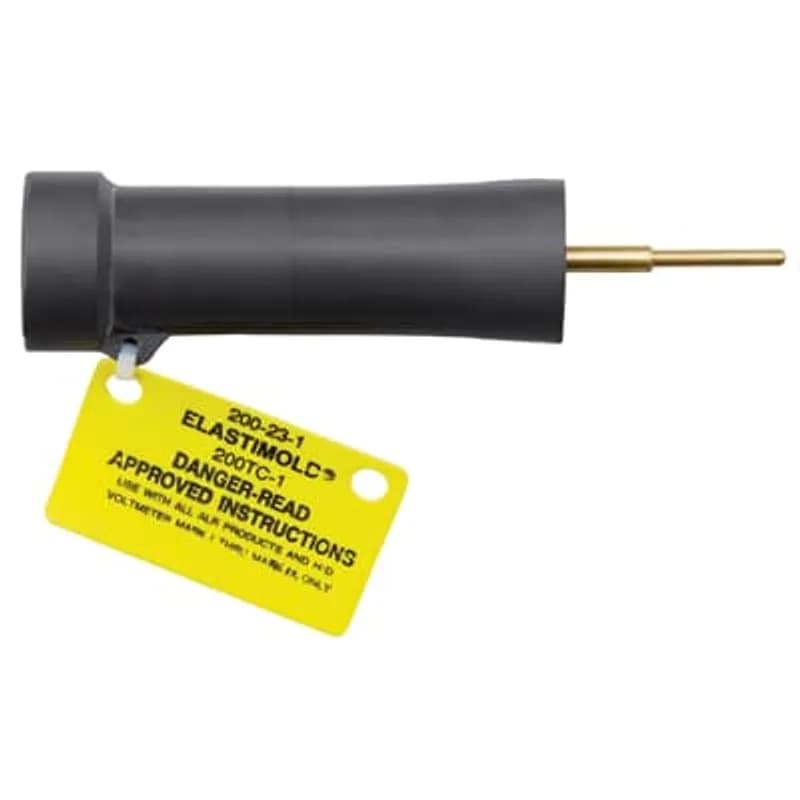

ABB Installation Products 200TC-1 15-35kV 200 Amp, Loadbreak Direct Voltage Test Port Adapter for all Loadbreak or…
UPC: 783786585786
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 200 Amp rated for 15-35kV systems with direct access to 21.1kV line-to-ground voltage
- Compatible with H/D Electric MARK I through MARK IX Voltmeter/Phaser units
- Designed for Loadbreak or Deadbreak connectors with direct access ports
- Includes lubricant tube and operating instructions for immediate use
- Enables safe, efficient voltage testing without system disconnection
Specifications
Application | Direct Voltage Test Meter Adapter for HD Electric Meters |
Connection | Push-In |
Current Rating | 200 A |
Material | EPDM-Rubber |
Size | Length 4.48 inches without probe x 1.34 inch diameter |
Type | Voltage Test Meter Adapter |
Voltage Rating | 15-35kV |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 1.0000 L |
Package Weight (Metric) | 0.4540 kg |
J6-622226-25
6 Point Junction, with one 600 Amp Bushing Interfaces, four 200 Amp Bushing Well Interface and one 600 Amp Bushing Interface, 25kV, No Tilt Mounting.
K1601WFT
15/25 kV, 200 Amp, Loadbreak, Feed-Thru Well Bracket, includes Silicone Lubricant and Instructions. EyeBolt, Bottom Shield Plate
200TC-2
15-35kV 200 Amp, Loadbreak Direct Voltage Test Port Adapter for all Loadbreak or Deadbreak connectors with a direct access port to a maximum line-to-ground voltage of 21.1kV. It is designed for use with the ROSS METER HI-Z VM25SE-A/VMP25B. Includes Direct Voltage Test Port Adapter, Tube of Lubricant and Operating Instructions.
Frequently Asked Questions
Which voltmeter/phaser models are compatible with the 200TC-1?
The 200TC-1 adapter is designed for use with the H/D Electric Company MARK I through MARK IX Voltmeter/Phaser only.
What is the maximum line-to-ground voltage this adapter can test?
The adapter provides direct access to a maximum line-to-ground voltage of 21.1kV.
What is included with the 200TC-1 adapter?
The 200TC-1 includes the Direct Voltage Test Port Adapter, a tube of lubricant, and operating instructions.
What is the voltage rating of the 200TC-1 adapter?
The ABB 200TC-1 adapter is rated for 15-35kV.
What current rating does the 200TC-1 adapter support?
The 200TC-1 adapter supports a 200 Amp current rating.
How to Perform a Voltage Test with the 200TC-1 Direct Voltage Test Port Adapter
This guide details the safe procedure for using the 200TC-1 Direct Voltage Test Port Adapter with an HD Electric Co. Voltmeter/Phaser to determine if a circuit is energized via a separable connector's direct access port. Always follow high voltage safety practices.
Estimated time: 10m
Tools needed:
Hotstick tool, HD Electric Co. MARK l thru MARK lX Voltmeter/Phaser
Supplies needed:
Tube Lubricant, Approved eye protection
- Remove Access Port Cap
Wearing approved eye protection, use a hotstick tool to remove the insulated cap or fluid injection cap from the access port. Rotate the cap while exerting a pull force. Be aware that if fluid was injected, considerable pressure may be released. The uncovered port provides direct access to the cable conductor and must be treated as live front.
- Clean and Lubricate Components
Clean and lubricate the test rod of the 200TC-1 Direct Voltage Test Port Adapter and the inside interface of the adapter itself. Ensure all surfaces are free of debris for proper contact.
- Attach Adapter to Voltmeter Hotstick
Remove the brass probe from the end of the HD voltmeter hotstick. Attach the threaded stud of the 200TC-1 Direct Voltage Test Port Adapter to the HD voltmeter hotstick. WARNING: Only use HD Electric Co. MARK l thru MARK lX Voltmeter/Phasers.
- Insert Test Adapter into Access Port
Using the HD voltmeter hotstick tool, carefully insert the test rod of the 200TC-1 Direct Voltage Test Port Adapter into the elbow access port. Ensure the adapter is fully seated to make direct contact with the conductor; otherwise, no voltage indication will be obtained. This adapter is not shielded and must be considered live front.
- Remove Test Adapter After Detection
After voltage detection has been made, immediately remove the 200TC-1 Direct Voltage Test Port Adapter from the access port by exerting a pull force with the HD hotstick tool. DANGER: Do NOT allow the adapter to remain on the access port. Direct contact with the access port or adapter can cause serious or fatal injury.
- Reinstall Insulated Cap
Clean and lubricate the inside of the insulated cap and its rod. Using a hotstick tool, install the insulated cap back onto the access port. CAUTION: The access port provides direct access to the cable conductor and must not remain uncovered. When not covered, the port must be considered live front.
