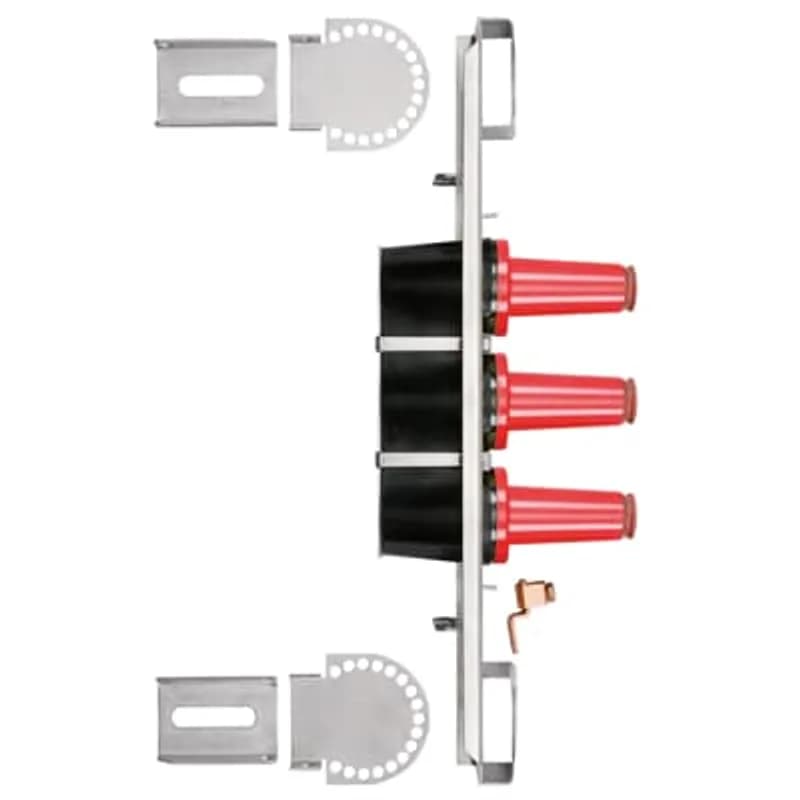

ABB Installation Products 164J3 15kV 200 Amp, Loadbreak 3-Point Junction with Stainless Steel Bracket
UPC: 783786625215
Contact for Pricing
Call (262) 252-1600 or email [email protected] for pricing and availability.
Overview
- 15kV voltage rating with 200 Amp continuous and loadbreak capability
- Fully shielded, fully submersible molded rubber housing with peroxide-cured EPDM construction
- Stainless steel mounting bracket and hardware for secure attachment to flat or curved surfaces
- Supports tilt mounting angles from 0° to 90° in 15° increments
- Compatible with Elastimold® 15kV elbow connectors for sectionalizing, looping, and tapping applications
Specifications
Application | 15kV, 200 Amps |
Connection Type | Loadbreak Junction |
Current Rating | 200 A |
Material | Stainless Steel |
Material | EPDM-Rubber |
Mounting Type | Stainless Steel Bracket |
Size | Bracket Length 20.62 inch, Depth 8.10 inch |
Temperature Rating, Maximum | 194 F |
Temperature Rating, Maximum | 90 C |
Temperature Rating, Minimum | 194 F |
Temperature Rating, Minimum | 90 C |
Type | Loadbreak 3-Point Junction |
Voltage Rating | 15 kV |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 9.6300 L |
Package Weight (Metric) | 4.3680 kg |
K675TBC
15/25kV, 900 Amp, Deadbreak Bushing for In-Air Applications (Pad-Mounted or Vault-Type or Submersible Transformers or Switchgear). One Factory installed 5/8-11 UNC-2A Stud included, other Stud must be Purchased Separately. Overall Length 13.75 inch, Diameter 4.50 inch. Molded Epoxy with Stainless Steel Flange. Boot and Collar.
164FT
15kV, 200 Amp, Loadbreak Feed-Thru. 6.87 inch long x 5.93 inch wide. 3.12 inch Center to Center. Uses Integral Parking Stand Mount. Has Eyebolt. The Feed-Thru is designed to mate with the following Elastimold products - 15kV Family of Elbow Connectors, 370TR test rod, 160GKR Grounding Elbow, 160DR or 160DRG Insulated Cap.
Frequently Asked Questions
How do I order the 164J3 junction with "U" style mounting straps?
To order the 164J3 junction with "U" style mounting straps only, add "-5" at the end of the catalog number.
What is included in the 164J3 kit?
Each 164J3 kit contains one basic molded junction, three protective shipping caps (1601-APC-1), two tubes of lubricant (82-08), and one installation instruction (IS-0378).
Is the 164J3 junction submersible?
Yes, the 164J3 junction has a fully shielded, fully submersible molded rubber housing. It is designed as a fully submersible assembly.
What type of mounting does the 164J3 junction support?
The 164J3 junction includes universal brackets that accommodate curved or flat surfaces. It provides tilt mounting angles from 0° to 90° in 15° increments.
What products are compatible with ELASTIMOLD® junctions?
ELASTIMOLD® junctions mate with 15kV Family of Elbow Connectors, 160GLR Grounding Elbow, 370TR Test Rod, and 160DR/DRG or 167/168DRG Insulated Caps.
What is the continuous and loadbreak current rating?
The 164J3 junction is rated for 200 Amp continuous and loadbreak operation. It also has a 10kA Sym 10 Cycles Momentary & Fault Close rating.
What is the operating voltage for the 164J3 junction?
The 164J3 junction is suitable for 15-kV class distribution systems. Its operating voltage is 8.3kV Phase-to-Ground and 14.4kV Max Phase-to-Phase.
What are the applications for ELASTIMOLD® junctions?
ELASTIMOLD® junctions are designed for subsurface, vault, or padmount applications. They can be used for sectionalizing, looping, tapping, and equipment bypass.
What is the 164J3 product?
The 164J3 is a 15kV, 200 Amp Loadbreak 3-Way Junction with a stainless steel bracket. It features a fully shielded, fully submersible molded rubber housing.
What are the applications for ELASTIMOLD® junctions?
ELASTIMOLD® junctions are designed for subsurface, vault, or padmount applications. They can be used for sectionalizing, looping, tapping, and equipment bypass.
How to Install the 160DRG/167DRG Insulated Cap with Ground Lead
This guide provides instructions for installing the ELASTIMOLD 15kV class (8.3kV phase-to-ground and 14.4kV phase-to-phase) 160DRG and 167DRG insulated caps, designed for insulating, shielding, and watersealing loadbreak bushing interfaces. Ensure all apparatus is de-energized during installation.
Estimated time: 15m
Tools needed:
Hotstick
Supplies needed:
160DRG or 167DRG Insulated Cap with Ground Lead, Lubricant (supplied or ELASTIMOLD approved)
- Connect Electrostatic Grounding Wire
Connect the free end of the electrostatic grounding wire to the system ground. Leave enough slack for hot-stick operation of the insulated cap. CAUTION: Train the electrostatic grounding wire so it does not contact the bushing interface during operation.
- Prepare Insulated Cap
Remove the protective cover from the insulated cap. Lubricate the cap’s internal mating surface using only the supplied lubricant or ELASTIMOLD approved lubricants. DO NOT SUBSTITUTE, as other lubricants may be harmful. Keep the internal mating surface free from dirt and grime. Always replace the protective cover when not in use.
- Attach Insulated Cap to Bushing
Firmly attach a hotstick to the insulated cap's pulling eye. Insert the male contact of the insulated cap into the loadbreak bushing, and push it home with a fast, firm, straight motion. Make certain it is fully mated, with the locking ring seated. Detach the hotstick from the insulated cap.
