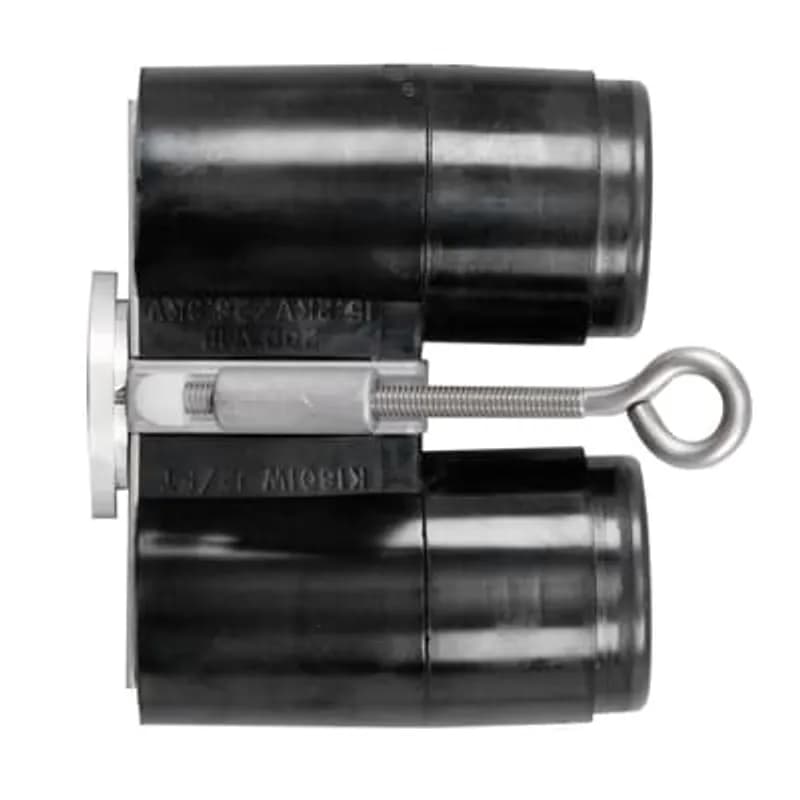

ABB Installation Products K1601WFT 15/25 kV, 200 Amp, Loadbreak, Feed-Thru Well Bracket, includes Silicone Lubricant and…
UPC: 783786657643
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- Rated 15/25 kV, 200 Amp continuous current
- Loadbreak feed-thru design for safe operation
- Includes silicone lubricant and installation instructions
- Bottom shield plate and eyebolt for secure mounting
- Compatible with well-type pad-mounted transformers and switchgear
Specifications
Application | 15/25 kV, 200 Amps |
Current Rating | 200 A |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -4 F |
Temperature Rating, Minimum | -20 C |
Type | Feed-Thru Well |
Voltage Rating | 15/25 kV |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 0.0010 L |
Package Weight (Metric) | 0.0010 kg |
150-TB-2
15/25kV, T-Splice 6-3/4 inch Long Bail Assembly, Made of Stainless Steel, Used for Assisting Cable to Transformer Connections. Non-Current Carrying. The 150TB2 bailing assembly kit consists of a modified hold down bail for securing Elastimold® tee splice K150T to a K150DP Deadbreak insulating plug. This assembly provides positive hold down force between the tee splice and the insulating plug.
200TC-2
15-35kV 200 Amp, Loadbreak Direct Voltage Test Port Adapter for all Loadbreak or Deadbreak connectors with a direct access port to a maximum line-to-ground voltage of 21.1kV. It is designed for use with the ROSS METER HI-Z VM25SE-A/VMP25B. Includes Direct Voltage Test Port Adapter, Tube of Lubricant and Operating Instructions.
Frequently Asked Questions
What is included in the K1601WFT kit?
Each K1601WFT kit contains one feed-thru body, two lubricants (82-08), and one installation instruction (IS-0493).
What is the momentary and fault close rating?
The momentary and fault close rating for both 15kV and 25kV voltage classes is 10kA Sym for 10 cycles.
What is the continuous and loadbreak current rating?
The continuous and loadbreak current rating for both 15kV and 25kV voltage classes is 200 Amp.
What is the max operating voltage for 25kV class?
For the 25kV voltage class, the maximum phase-to-ground operating voltage is 15.2kV.
What is the max operating voltage for 15kV class?
For the 15kV voltage class, the maximum phase-to-ground operating voltage is 8.3kV.
What standard does the K1601WFT meet?
The K1601WFT meets ANSI/IEEE Standard 386, Latest Revision.
What Elastimold products are compatible with K1601WFT?
The K1601WFT mates with Elastimold 1601A4 Loadbreak, 2701A4 Loadbreak, and K1501A1 Deadbreak feed-thru inserts.
What voltage classes is K1601WFT suitable for?
The K1601WFT is suitable for use with 15kV or 25kV class loadbreak and/or deadbreak bushing inserts.
What is the K1601WFT product?
The K1601WFT is a fully shielded, fully submersible insulated connector designed for energized operation.
What voltage classes is K1601WFT suitable for?
The K1601WFT is suitable for use with 15kV or 25kV class loadbreak and/or deadbreak bushing inserts.
How to Install the K1601WFT Well Feed-Thru/Grounding Device
This guide provides step-by-step instructions for safely installing and grounding the K1601WFT Well Feed-Thru/Grounding Device, including preparing bushing wells and mounting the device.
Estimated time: 45m
Tools needed:
Screwdriver, Wire strippers, Hotstick
Supplies needed:
No. 14 copper wire, Supplied lubricant, Mounting hardware, Bushing
- Prepare for Installation and Ground the Device
Ensure all apparatus is de-energized before beginning installation. Inspect all parts for damage, proper rating, and compatibility. Insert a No. 14 copper ground lead or equivalent into the grounding lug provided on the mounting hardware and tighten the lug. Connect the opposite end of the ground lead to a suitable ground, leaving enough slack to operate with a hotstick.
- Prepare Bushing Wells and Install Bushings
Remove any protective shipping caps from the bushing wells. Inspect the bushing wells to ensure they are dry and free from all contaminants. Lubricate the well interface area with the supplied lubricant or an ELASTIMOLD approved lubricant; do not substitute. Install the bushings into the wells following the installation instructions included with the bushing.
- Mount the Feed-Thru to a Parking Stand
Firmly attach the feed-thru eye to a hotstick. Using the hotstick, slide the feed-thru onto the parking stand. Unlock the hotstick and back it off slightly to allow space for the eyebolt to be tightened. Tighten the eyebolt by rotating the hotstick clockwise until snug; do not overtighten. Release the hotstick.
- Perform Final Safety Checks Before Energizing
Before energizing the circuit, ensure all operating interfaces are clean and lubricated. If any operating interfaces are not utilized, install an ELASTIMOLD insulated cap or insulated plug. Do not use the protective shipping covers for this function as they are not insulated and are only intended to keep the operating interface surfaces clean during handling and installation.
