Overview
- 15kV voltage class, 200 Amp continuous/loadbreak current rating
- Fully shielded, submersible design for energized operation
- Adjustable bracket enables left/right and tilt positioning
- Meets ANSI/IEEE Standard 386 with 95kV BIL impulse withstand
- Compatible with Elastimold 15kV elbow connectors and accessories
- Stainless Steel Bracket for durability
Specifications
Application | 15 kV, 200 Amps |
Connection Type | Feed-Thru |
Current Rating | 200 A |
Material | Stainless Steel |
Mounting Type | Adjustable Bracket |
Poles | 2-Point |
Series | 164FT |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -4 F |
Temperature Rating, Minimum | -20 C |
Type | Adjustable Bracket 2-Point Feed-Thru |
Voltage Rating | 15 kV |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 5.6800 L |
Package Weight (Metric) | 2.5760 kg |
650BAW
15-25 kV. 600 Amp, Bolt Washers Prepack, (1) Zinc Plated Steel Compression Washer Diameter 1.313 inch with .640/.653 Diameter Hole, (1) Tin Plated Steel Flat Washer 1-1/4 inch Diameter with .656 inch Hole, (1) 304 Stainless Steel Hex Head Cap Screw Machined 5/8-11 UNC-2A Overall Length 1.9 inch. (1) Nylon Rod, (3) Lubricant packets.
164FT
15kV, 200 Amp, Loadbreak Feed-Thru. 6.87 inch long x 5.93 inch wide. 3.12 inch Center to Center. Uses Integral Parking Stand Mount. Has Eyebolt. The Feed-Thru is designed to mate with the following Elastimold products - 15kV Family of Elbow Connectors, 370TR test rod, 160GKR Grounding Elbow, 160DR or 160DRG Insulated Cap.
Frequently Asked Questions
What is the 164FT2-AB product?

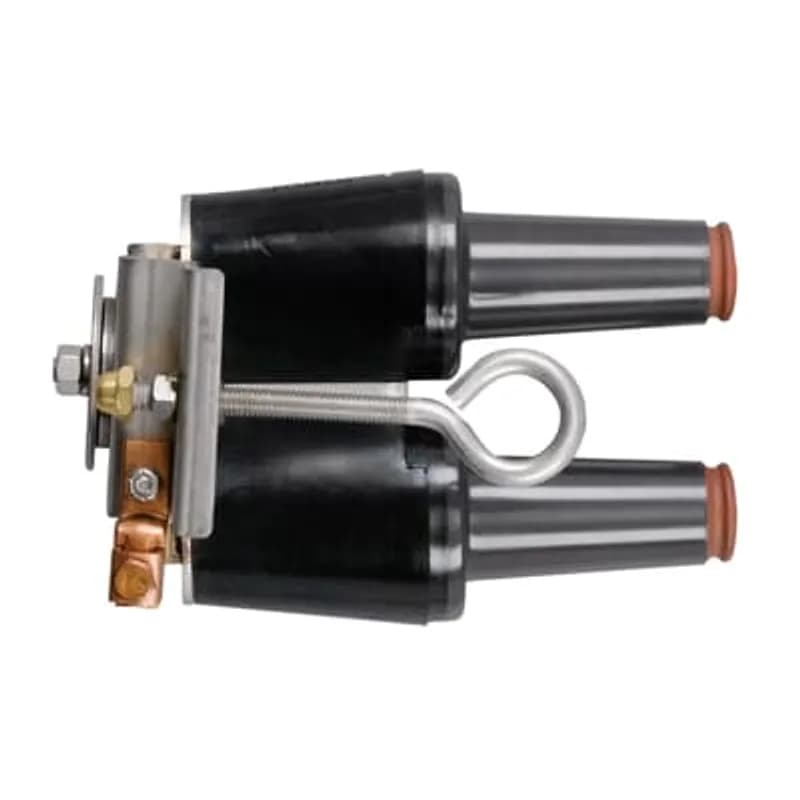

The 164FT2-AB is a 15kV 200A Loadbreak Adjustable Feed-Thru, a fully shielded and submersible insulated connector.
What products are compatible with the 164FT2-AB?
It mates with 15kV Family of Elbow Connectors, 370TR test rod, 160GLR grounding elbow, and 160DR/DRG insulated cap.
What is the Corona Extinction rating?
The Corona Extinction rating is 11kV AC @ 3pC sensitivity.
What items are included in the 164FT2-AB kit?
Each kit contains one feed-thru body, two protective shipping caps, two lubricants, and one installation instruction.
What type of insulation and jacket does it use?
The 164FT2-AB uses peroxide-cured insulation and jacket.
Does the 164FT2-AB have an adjustable bracket?
Yes, it features an adjustable bracket that allows the parking stand attachment to be adjusted and the feed-thru tilt.
What is the Impulse Withstand (BIL) rating?
The Impulse Withstand (BIL) rating is 95kV (1.2 x 50 microsecond wave).
What standard does the 164FT2-AB meet?
The 164FT2-AB meets ANSI/IEEE Standard 386, Latest Revision.
What is the continuous and loadbreak current rating?
The 164FT2-AB has a continuous and loadbreak current rating of 200 Amps.
What is the maximum operating voltage phase-to-ground?
The maximum phase-to-ground operating voltage is 8.3kV.
How to Install and Operate the 160DRG/167DRG Insulated Cap with Ground Lead
This guide provides instructions for the safe installation, connection, and operation of the ELASTIMOLD 160DRG and 167DRG insulated caps with ground lead on 15kV class loadbreak bushing interfaces.
Estimated time: 20m
Tools needed:
Hotstick
Supplies needed:
160DRG or 167DRG Insulated Cap with Ground Lead, Lubricant (supplied or ELASTIMOLD approved)
- Connect Electrostatic Grounding Wire
Connect the free end of the electrostatic grounding wire to the system ground. Ensure enough slack is left for hot-stick operation of the insulated cap. CAUTION: Train the grounding wire to avoid contact with the bushing interface during operation.
- Prepare and Lubricate the Insulated Cap
Remove the protective cover from the insulated cap. Lubricate the cap's internal mating surface using only the supplied lubricant or ELASTIMOLD approved lubricants. Do not substitute. Keep the internal mating surface free from dirt and grime. Always replace the protective cover when the cap is not in use.
- Install the Insulated Cap onto the Bushing
Firmly attach a hotstick to the insulated cap's pulling eye. Insert the male contact of the insulated cap into the loadbreak bushing, pushing it home with a fast, firm, straight motion. Verify it is fully mated with the locking ring seated. Detach the hotstick from the insulated cap.
- Remove the Insulated Cap (Operation)
To remove the cap, attach a hotstick to the pulling eye. Before pulling, rotate the insulated cap clockwise slightly while it is still in the mated position to break surface friction. Pull the receptacle off with a fast, firm, straight motion. After removal, disconnect the electrostatic grounding wire from the system ground. Replace the protective cover on the insulated cap to keep its internal surface clean.
