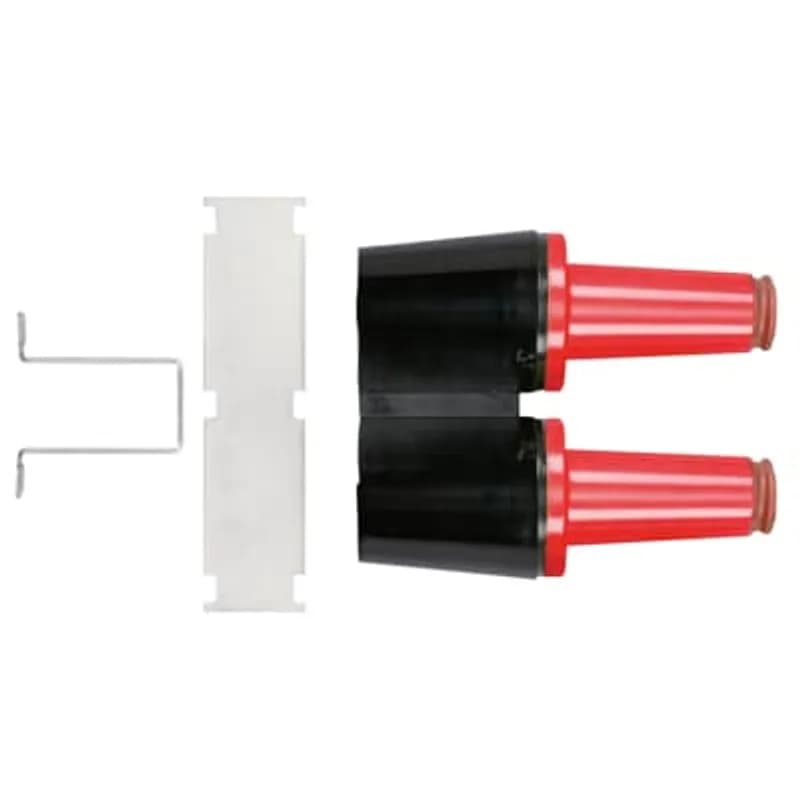

ABB Installation Products 164J2-5 15kV 200 Amp, Loadbreak 2-point Junction With U Straps
UPC: 783786623471
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 15kV Insulation Rating
- 200 Amp Current Rating
- Loadbreak Capability
- 2-Point Junction Configuration
- Includes 'U' Straps for Termination
Specifications
Application | Provide a fully shielded, fully submersible, separable, insulated assembly designed for energized operation. They are suitable for use on 15-kV class distribution systems, and rated for 200-ampere loadmake/loadbreak operation. Designed for subsurface, vault or padmount applications and can be used for sectionalizing, looping, tapping, and equipment bypass |
Material | EPDM-Rubber |
Special Features | 15kV, 200 Amp Loadbreak 2-Way Junction. Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Provides mating for Elastimold Elbow connectors. Mounting hardware for flat or curved mounting positions. U style Mounting Straps |
Standard | ANSI/IEEE 386 |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -40 F |
Temperature Rating, Minimum | -40 C |
Type | 2-Point Junction |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 3.6600 L |
Package Weight (Metric) | 1.6600 kg |
K675TBC
15/25kV, 900 Amp, Deadbreak Bushing for In-Air Applications (Pad-Mounted or Vault-Type or Submersible Transformers or Switchgear). One Factory installed 5/8-11 UNC-2A Stud included, other Stud must be Purchased Separately. Overall Length 13.75 inch, Diameter 4.50 inch. Molded Epoxy with Stainless Steel Flange. Boot and Collar.
164FT
15kV, 200 Amp, Loadbreak Feed-Thru. 6.87 inch long x 5.93 inch wide. 3.12 inch Center to Center. Uses Integral Parking Stand Mount. Has Eyebolt. The Feed-Thru is designed to mate with the following Elastimold products - 15kV Family of Elbow Connectors, 370TR test rod, 160GKR Grounding Elbow, 160DR or 160DRG Insulated Cap.Frequently Asked Questions
What products are compatible with the 164J2-5 junction?
It is designed to mate with Elastimold® 15kV Family of Elbow Connectors, 160GLR Grounding Elbow, 370TR Test Rod, and 160DR/DRG or 167/168DRG Insulated Caps.
What is the operating voltage for the 164J2-5 junction?
The operating voltage is 8.3kV Phase-to-Ground, with a maximum Phase-to-Phase voltage of 14.4kV.
What items are included in the 164J2-5 kit?
The kit includes the basic molded junction, two protective shipping caps, a junction prepack, two tubes of lubricant, and installation instructions.
What is the continuous and loadbreak current rating?
The 164J2-5 junction is rated for 200 Amp continuous and loadbreak operation.
What are the typical applications for the 164J2-5 junction?
It is designed for subsurface, vault, or padmount applications and can be used for sectionalizing, looping, tapping, and equipment bypass.
Is the 164J2-5 junction submersible?
Yes, the 164J2-5 junction has a fully shielded, fully submersible molded rubber housing.
What are the key features of the 164J2-5 junction?
It is a 15kV, 200 Amp Loadbreak 2-Way Junction with a fully shielded, submersible molded rubber housing and stainless steel mounting "U" straps.
What are the typical applications for the 164J2-5 junction?
It is designed for subsurface, vault, or padmount applications and can be used for sectionalizing, looping, tapping, and equipment bypass.
What items are included in the 164J2-5 kit?
The kit includes the basic molded junction, two protective shipping caps, a junction prepack, two tubes of lubricant, and installation instructions.
What are the key features of the 164J2-5 junction?
It is a 15kV, 200 Amp Loadbreak 2-Way Junction with a fully shielded, submersible molded rubber housing and stainless steel mounting "U" straps.
How to Install the 160DRG/167DRG Insulated Cap with Ground Lead
This guide provides step-by-step instructions for safely installing the ELASTIMOLD 160DRG and 167DRG insulated caps with ground leads onto 15kV class loadbreak bushing interfaces, including critical safety warnings.
Estimated time: 15m
Tools needed:
Hotstick, High voltage safety equipment
Supplies needed:
160DRG or 167DRG Insulated Cap with Ground Lead, Lubricant
- Prepare for Installation and Connect Ground Lead
Ensure all apparatus is de-energized during installation, except for test point caps and indicators that can be installed and operated energized. Inspect the insulated cap and mating parts for damage, proper rating, and compatibility. Connect the free end of the electrostatic grounding wire to the system ground, leaving enough slack for hot-stick operation. Ensure the grounding wire does not contact the bushing interface during operation.
- Prepare Insulated Cap
Remove the protective cover from the insulated cap. Lubricate the cap’s internal mating surface using only the supplied lubricant or ELASTIMOLD approved lubricants. Do not substitute, as other lubricants may be harmful. Keep the internal mating surface free from dirt and grime. Always replace the protective cover when the cap is not in use.
- Install Insulated Cap onto Bushing
Firmly attach a hotstick to the insulated cap's pulling eye. Insert the male contact of the insulated cap into the loadbreak bushing. Push the cap home with a fast, firm, straight motion, ensuring it is fully mated and the locking ring is seated. Detach the hotstick from the insulated cap.
