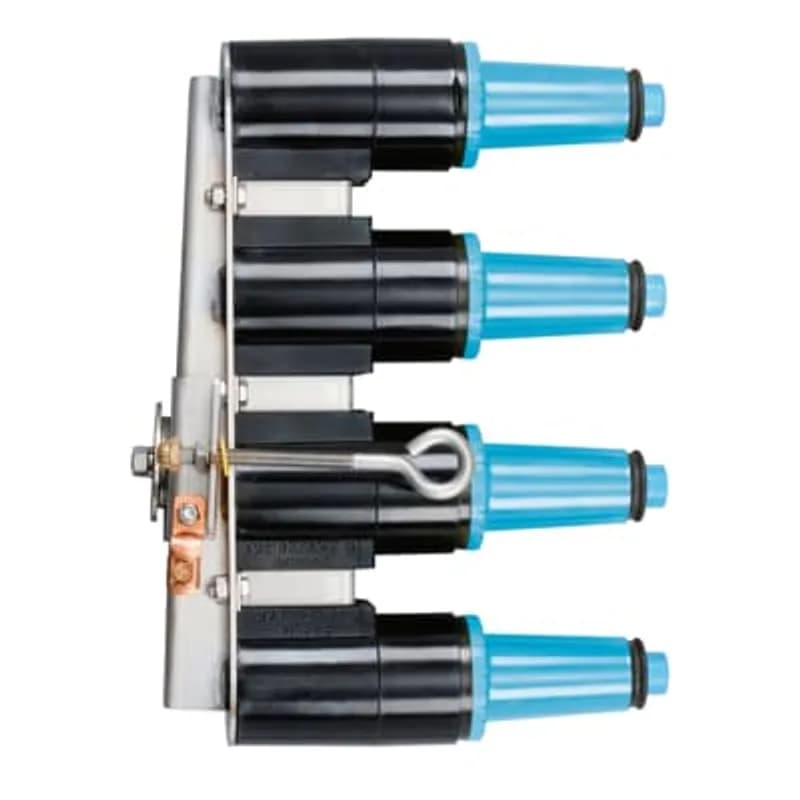

ABB Installation Products 164FT4-AB 15kV 200 Amp, Loadbreak Adjustable Bracket 4-Point Feed-Thru with Stainless Steel Bracket
UPC: 783786493999
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 15kV voltage class with 200 Amp continuous/loadbreak rating
- 4-pole configuration with adjustable stainless steel bracket for precise alignment
- Meets ANSI/IEEE Standard 386 with 95kV BIL impulse withstand rating
- Fully shielded and submersible for energized operation in harsh environments
- Compatible with Elastimold 15kV elbow connectors and accessories for testing/grounding
Specifications
Application | 15 kV, 200 Amps |
Connection Type | Loadbreak Feed-Thru |
Current Rating | 200 A |
Material | Stainless Steel Bracket |
Mounting Type | Adjustable Bracket |
Poles | 4 |
Series | 164FT4 |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -4 F |
Temperature Rating, Minimum | -20 C |
Type | Adjustable Bracket 4-Point Feed-Thru |
Voltage Rating | 15 kV |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 1.0000 L |
Package Weight (Metric) | 0.4540 kg |
K675TBC
15/25kV, 900 Amp, Deadbreak Bushing for In-Air Applications (Pad-Mounted or Vault-Type or Submersible Transformers or Switchgear). One Factory installed 5/8-11 UNC-2A Stud included, other Stud must be Purchased Separately. Overall Length 13.75 inch, Diameter 4.50 inch. Molded Epoxy with Stainless Steel Flange. Boot and Collar.
200TC-2
15-35kV 200 Amp, Loadbreak Direct Voltage Test Port Adapter for all Loadbreak or Deadbreak connectors with a direct access port to a maximum line-to-ground voltage of 21.1kV. It is designed for use with the ROSS METER HI-Z VM25SE-A/VMP25B. Includes Direct Voltage Test Port Adapter, Tube of Lubricant and Operating Instructions.
Frequently Asked Questions
What is the 164FT4-AB product?
The 164FT4-AB is a 15kV 200A Loadbreak Adjustable 4-point Feed-Thru. It is a fully shielded, fully submersible insulated connector designed for energized operation.
Can the 164FT4-AB be used for grounding?
Yes, grounding of the circuit is accomplished when the 164FT4-AB is used in conjunction with the 370TR test rod and 160GLR grounding elbow.
What is included in the 164FT4-AB kit?
Each kit contains one 164FT4-AB feed-thru body, four protective shipping caps (1601-APC-1), two lubricants (82-08), and one installation instruction (IS-1102).
What type of insulation does it use?
The 164FT4-AB utilizes peroxide-cured insulation and jacket materials.
Does it have a parking stand mount?
Yes, the 164FT4-AB incorporates an integral parking stand mount.
What is the impulse withstand rating?
The impulse withstand rating (BIL) is 95kV, based on a 1.2 x 50 microsecond wave.
What are the AC and DC withstand ratings?
The AC one-minute withstand rating is 34kV. The DC 15-minute withstand rating is 53kV.
What is the purpose of the 164FT4-AB?
It provides a loadbreak junction point when used with 15kV class elbow connectors. It can also be used for circuit testing, grounding, isolation, and dead-ending with specific accessories.
How does the adjustable bracket work?
The adjustable bracket allows the parking stand attachment to be adjusted left and right. It also allows the feed-thru tilt to be adjusted for optimal operating placement.
What products are compatible with the 164FT4-AB?
It is designed to mate with 15kV Family of Elbow Connectors, 370TR test rod, 160GLR grounding elbow, and 160DR/DRG insulated cap.
How to Install the 160DRG/167DRG Insulated Cap with Ground Lead
This guide provides step-by-step instructions for safely installing the 160DRG and 167DRG insulated caps with ground leads onto 15kV class loadbreak bushing interfaces. Ensure all apparatus are de-energized before beginning.
Estimated time: 15m
Tools needed:
Hotstick
Supplies needed:
160DRG or 167DRG Insulated Cap with Ground Lead, ELASTIMOLD approved lubricant
- De-energize Apparatus and Inspect Parts
Ensure all apparatus are de-energized before beginning installation. Inspect the contents of the package for completeness and damage. Verify all components, including the insulated cap and mating products, for proper fit, rating, and compatibility.
- Connect Electrostatic Grounding Wire
Connect the free end of the electrostatic grounding wire to the system ground. Leave enough slack for hot-stick operation of the insulated cap. CAUTION: Train the electrostatic grounding wire so it does not contact the bushing interface during operation.
- Prepare Insulated Cap for Installation
Remove the protective cover from the insulated cap. Lubricate the cap’s internal mating surface using only the supplied lubricant or ELASTIMOLD approved lubricants. Do not substitute other lubricants, as they may be harmful. Keep the internal mating surface free from dirt and grime.
- Install Insulated Cap onto Bushing
Firmly attach a hotstick to the insulated cap's pulling eye. Insert the male contact of the insulated cap into the loadbreak bushing. Push the cap home with a fast, firm, straight motion, ensuring it is fully mated with the locking ring seated. Detach the hotstick from the insulated cap.
