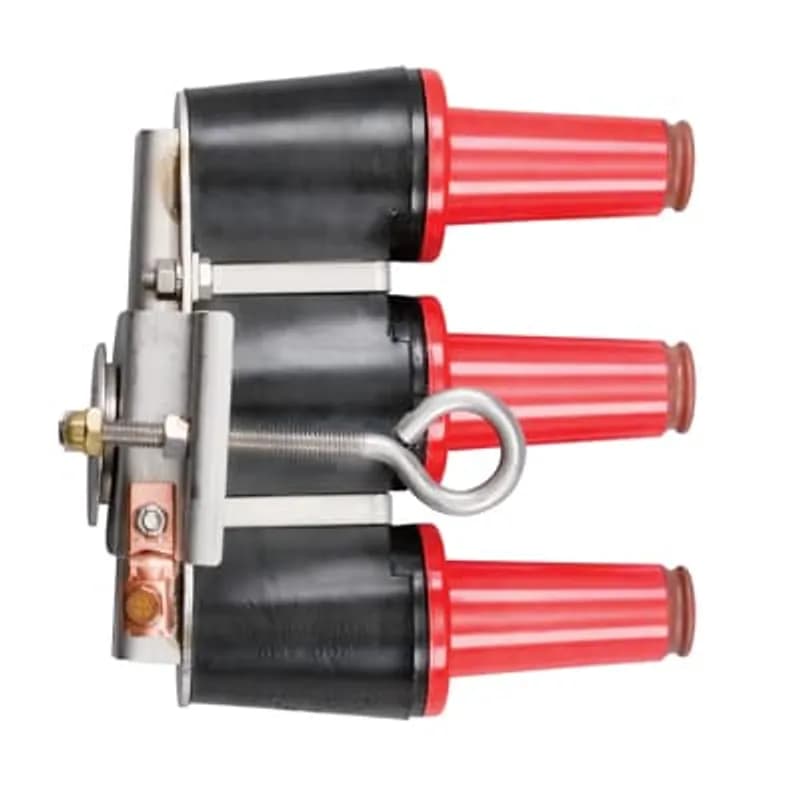

ABB Installation Products 164FT3-AB 15kV 200 Amp, Loadbreak Adjustable Bracket 3-Point Feed-Thru with Stainless Steel Bracket
UPC: 783786493982
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 15kV voltage class with 200 Amp continuous & loadbreak rating
- 3-point feed-thru configuration for high-current applications
- Adjustable bracket for precise positioning and optimal alignment
- Stainless steel bracket for corrosion resistance in harsh environments
- Meets ANSI/IEEE Standard 386 with 95kV BIL and 10kA momentary rating
- Compatible with ABB 15kV elbow connectors, test rods, and grounding components
- Peroxide-cured insulation and jacket for long-term reliability
- Pre-drilled holes and modular design for simplified installation
Specifications
Application | 15 kV, 200 Amps |
Connection Type | Feed-Thru |
Current Rating | 200 A |
Material | Stainless Steel |
Mounting Type | Adjustable Bracket |
Mounting Type | 3-Point Adjustable Bracket |
Poles | 3-point |
Series | 164FT |
Series | 164FT3 |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -4 F |
Temperature Rating, Minimum | -20 C |
Type | Adjustable Bracket 3-Point Feed-Thru |
Voltage Rating | 15 kV |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 8.1300 L |
Package Weight (Metric) | 3.6880 kg |
200AT
15-35kV 200 Amp Loadbreak Assembly Tool, internal torquing feature. 12.34 inch long x 3.00 inch wide. 5/16 inch Hex Drive. Has Eye instead of T-Handle.
164FT
15kV, 200 Amp, Loadbreak Feed-Thru. 6.87 inch long x 5.93 inch wide. 3.12 inch Center to Center. Uses Integral Parking Stand Mount. Has Eyebolt. The Feed-Thru is designed to mate with the following Elastimold products - 15kV Family of Elbow Connectors, 370TR test rod, 160GKR Grounding Elbow, 160DR or 160DRG Insulated Cap.
Frequently Asked Questions
What is the 164FT3-AB product type?
The 164FT3-AB is a 15kV 200A Loadbreak Adjustable 3-Point Feed-Thru, a fully shielded, fully submersible insulated connector.
What products are compatible with the 164FT3-AB?
It mates with 15kV Family of Elbow Connectors, 370TR test rod, 160GLR grounding elbow, and 160DR/DRG insulated cap.
What is the AC one-minute withstand voltage?
The AC one-minute withstand voltage is 34kV.
What is included in the 164FT3-AB kit?
Each kit contains one 164FT3-AB feed-thru body, three protective shipping caps (1601-APC-1), two lubricants (82-08), and one installation instruction (IS-1102).
What type of insulation and jacket does it use?
The 164FT3-AB uses peroxide-cured insulation and jacket.
Does the 164FT3-AB have an adjustable bracket?
Yes, the 164FT3-AB features an adjustable bracket to facilitate the best operating placement by adjusting the parking stand and feed-thru tilt.
What is the impulse withstand rating (BIL)?
The impulse withstand (BIL) is 95kV (1.2 x 50 microsecond wave).
What standards does the 164FT3-AB meet?
The 164FT3-AB meets ANSI/IEEE Standard 386, Latest Revision.
What is the continuous and loadbreak current rating?
The 164FT3-AB has a continuous and loadbreak current rating of 200 Amps.
What is the maximum operating voltage for this feed-thru?
The maximum phase-to-ground operating voltage is 8.3kV, and the maximum phase-to-phase is 14.4kV.
