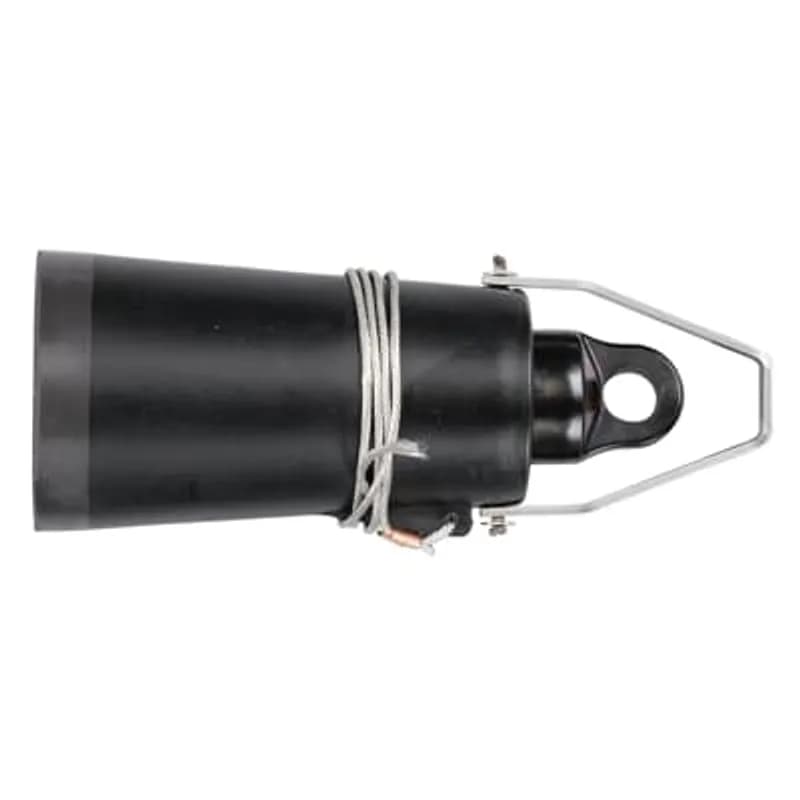

ABB Installation Products 168DRG 15kV 200 Amp, Loadbreak Insulated Cap with Ground Lead and Test Point, Equipped with…
UPC: 783786639960
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 15kV operating voltage
- 200 Amp current rating
- Loadbreak capability
- Includes ground lead (#14 AWG)
- Equipped with insulated cuff and brass probe
Specifications
Application | Fully shielded, fully submersible, hot stick operable, separable connectors designed for energized operation. They are suitable for use on 15kV class loadbreak systems |
Connection Type | #14 AWG Ground Lead |
Current Rating | 200 A |
Material | Brass |
Material | EPDM-Rubber |
Poles | 1P+G |
Series | 168DRG |
Size | 3.00 inch Diameter |
Size | 3.00 inch Diameter, 7.88 inch Length |
Special Features | 15kV, 200 Amp Loadbreak Rated. Molded EPDM Rubber. Includes all brass probe. Provision for hotstick operation. Ground lead wire #14 AWG attached. Insulated cuff for extra protection. Non-corrosive capacitive test point |
Standard | ANSI/IEEE 386 |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -40 F |
Temperature Rating, Minimum | -40 C |
Type | Insulated Cap |
Voltage Rating | 15 kV |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 1.5500 L |
Package Weight (Metric) | 0.7030 kg |
376DRG
35kV 200 Amp, Loadbreak Insulated Cap with Ground Lead #14 AWG and Test Point, equipped with insulated cuff. Brass Probe. Diameter 3.13 inch, Length 8.56 inch.
160DRG
15kV 200 Amp, Loadbreak Insulated Cap with Ground Lead #14 AWG. Diameter 2.90 inch, 2.47 inch Length.
1602A3R
15kV 200 Amp, Loadbreak Feed-Thru Insert, Fully rotatable for 360 degree positioning. Includes bail assembly to secure feed-thru insert to bushing well.
2702A1
25kV 200 Amp, Loadbreak Feed-Thru Insert. Fully rotatable for 360 degree positioning. Includes bail assembly to secure feed-thru insert to bushing well.
3701A4
35kV 200 Amp, Loadbreak Bushing Insert, rated for single phase applications only. Includes a black vent ring.Frequently Asked Questions
What is the voltage rating of the ABB 168DRG?
The ABB 168DRG is rated for 15kV operating voltage.
What is the current capacity of this insulated cap?
This insulated cap has a current rating of 200 Amps.
Does the 168DRG include a ground lead?
Yes, the 168DRG is equipped with a #14 AWG ground lead.
What is the diameter and length of the insulated cap?
The insulated cap has a diameter of 3.00 inches and a length of 7.88 inches.
What type of probe does the 168DRG feature?
The 168DRG is equipped with a brass probe.
How to Install the 168DRG Insulated Cap with Test Point & Ground Lead
The 168DRG is designed for insulating, shielding, and watersealing 15kV class loadbreak bushing interfaces. This guide details its safe installation and initial setup.
Estimated time: 20m
Tools needed:
Hotstick
Supplies needed:
168DRG Insulated Cap with Test Point & Ground Lead, ELASTIMOLD approved lubricant
- Ensure Safety and De-energize Apparatus
Before beginning, ensure all apparatus is de-energized. This product must be installed only by competent personnel trained in good safety practices involving high voltage electrical equipment. Failure to follow these instructions will result in damage to the product and serious or fatal injury.
- Connect Electrostatic Grounding Wire
Connect the free end of the electrostatic grounding wire to the system ground, leaving enough slack for hot-stick operation of the insulated cap. CAUTION: The electrostatic grounding wire should be trained so as not to contact the bushing interface during operation.
- Prepare and Lubricate the Insulated Cap
Remove the protective cap from the insulated cap. Lubricate the receptacle’s internal mating surface using only ELASTIMOLD approved lubricants. DO NOT SUBSTITUTE, as other lubricants may be harmful to this product and its mating products. Keep the internal mating surface free from dirt and grime.
- Attach and Mate the Insulated Cap
Firmly attach a hotstick to the insulated cap pulling eye. Insert the male contact of the insulated cap into the loadbreak bushing, and push it home with a fast, firm, straight motion. Make certain it is fully mated, with the locking ring seated. Detach the hotstick from the insulated cap.
