UPC: 783786649761
Contact for Pricing
Minimum Qty: 25
Multiplier: 25
*Contact for lower quantities*
Overview
- 15kV voltage rating for medium-voltage systems
- 200 Amp continuous current capacity
- Loadbreak functionality for safe connection/disconnection
- Insulated design for enhanced safety
- ABB - Installation Products manufacturer
Specifications
Application | 15kV, 200 Amps |
Current Rating | 200 A |
Material | Insulated |
Material | EPDM-Rubber |
Mounting Type | Stand Off Plug |
Series | 161SOP |
Size | Length approximately 5.12 inch, Width 4.66 inch not counting Eyebolt |
Special Features | Insulation |
Temperature Rating, Maximum | 194 F |
Temperature Rating, Maximum | 90 C |
Temperature Rating, Minimum | 194 F |
Temperature Rating, Minimum | 90 C |
Type | Loadbreak Parking Bushing |
Voltage Rating | 15kV |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 1.2800 L |
Package Weight (Metric) | 0.5810 kg |
K650RTW
15/25kV 600 Series Deadbreak Reducing Tap Well. Length 5.37 inch. Width 3 inch not counting bracket. 600/200 Amps
1602A3R
15kV 200 Amp, Loadbreak Feed-Thru Insert, Fully rotatable for 360 degree positioning. Includes bail assembly to secure feed-thru insert to bushing well.
2702A1
25kV 200 Amp, Loadbreak Feed-Thru Insert. Fully rotatable for 360 degree positioning. Includes bail assembly to secure feed-thru insert to bushing well.
3701A4
35kV 200 Amp, Loadbreak Bushing Insert, rated for single phase applications only. Includes a black vent ring.
3701A3
35kV 200 Amp, Loadbreak Bushing Insert, includes a black vent ring, includes internal torquing feature using 200AT Assembly Tool.
Frequently Asked Questions
What items are included in the 161SOP kit?
Each kit contains one 161SOP bushing, two lubricants 82-08, installation instruction IS-0777, and one protective shipping cap 1601-APC-1.
What is the 161SOP's primary function?

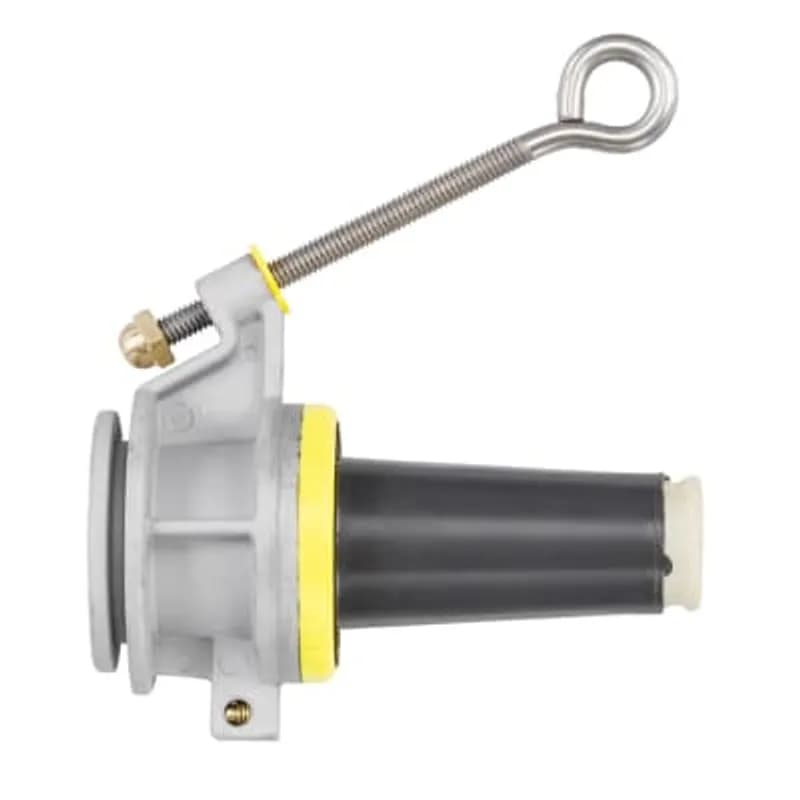

The 161SOP is an insulated parking bushing with a 15kV class, 200 Amp loadbreak interface, designed for insertion into a standard parking stand.
What products are compatible with the 161SOP?
Mating Elastimold 15kV class Loadbreak Elbows can be placed on the 161SOP to provide a fully shielded connection.
What industry standard does the 161SOP meet?
The 161SOP meets ANSI/IEEE Standard 386, Latest Revision.
What is the voltage class of the 161SOP?
The 161SOP belongs to the 15kV voltage class.
What is the maximum operating phase-to-ground voltage?
The maximum phase-to-ground operating voltage for the 161SOP is 8.3kV.
What is the maximum phase-to-phase voltage rating?
The maximum phase-to-phase voltage rating for the 161SOP is 14.4kV.
What is the impulse withstand (BIL) rating?
The impulse withstand (BIL) rating is 95kV, based on a 1.2 x 50 microsecond wave.
What are the AC and DC withstand voltages?
The one-minute AC withstand is 34kV, and the 15-minute DC withstand is 53kV.
What is the corona extinction voltage?
The corona extinction voltage is 11kV AC at 3pC sensitivity.
How to Install the 161SOP Insulated Cap with Ground Lead
Instructions for installing and removing the 161SOP insulated cap with ground lead on a loadbreak bushing interface.
Estimated time: 30m
Tools needed:
Hotstick, Screwdriver
Supplies needed:
Insulated Cap with Ground Lead, Lubricant, Mounting screws
- Connect the electrostatic grounding wire
Connect the free end of the electrostatic grounding wire to the system ground. Ensure there is enough slack for hot-stick operation of the insulated cap. The grounding wire should not contact the bushing interface during operation. WARNING: If the ground lead disconnects during operation, do not attempt to reattach without first pulling the insulated cap off the bushing with the hotstick.
- Prepare the insulated cap
Remove the protective cover from the insulated cap. Lubricate the cap's internal mating surface using only the supplied lubricant or ELASTIMOLD approved lubricants. Keep the internal mating surface free from dirt and grime. Always replace the protective cover when not in use.
- Install the insulated cap
Firmly attach the hotstick to the insulated cap's pulling eye. Insert the male contact of the insulated cap into the loadbreak bushing. Push home with a fast, firm, straight motion, ensuring it is fully mated and the locking ring is seated. Detach the hotstick from the insulated cap.
- Remove the insulated cap
Attach the hotstick to the pulling eye. Before pulling, rotate the insulated cap clockwise while in the mated position to break surface friction. Pull the receptacle off with a fast, firm, straight motion. Remove the electrostatic grounding wire of the insulated cap from the system ground. Replace the protective cover on the insulated cap.
