Overview
- 15kV voltage rating
- 200 Amp current rating
- Fully rotatable for 360-degree positioning
- Includes bail assembly for secure connection
- Manufactured by ABB - Installation Products
Specifications
Application | Designed for use as an apparatus bushing interface and provide extra tap connection |
Material | EPDM-Rubber |
Size | 10.66 inch (270.8 mm) Length, 4.00 inch (101.6 mm) Center to Center, 7.00 inch (177.8 mm) wide |
Special Features | 15kV, 200 Amp Loadbreak Rated. Transform radial feed transformer into loop-feed unit. Provide extra tap for elbow arrester connection. Peroxide-cured insulation and jacket. Provision for groundwire connection. Fully rotatable for 360 degree positioning. Includes bail assembly to secure feed-thru insert to bushing well |
Standard | ANSI/IEEE 386 |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -40 F |
Temperature Rating, Minimum | -40 C |
Type | Feed-Thru Insert |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 4.6200 L |
Package Weight (Metric) | 2.0960 kg |
K650RTW
15/25kV 600 Series Deadbreak Reducing Tap Well. Length 5.37 inch. Width 3 inch not counting bracket. 600/200 Amps
2702A1

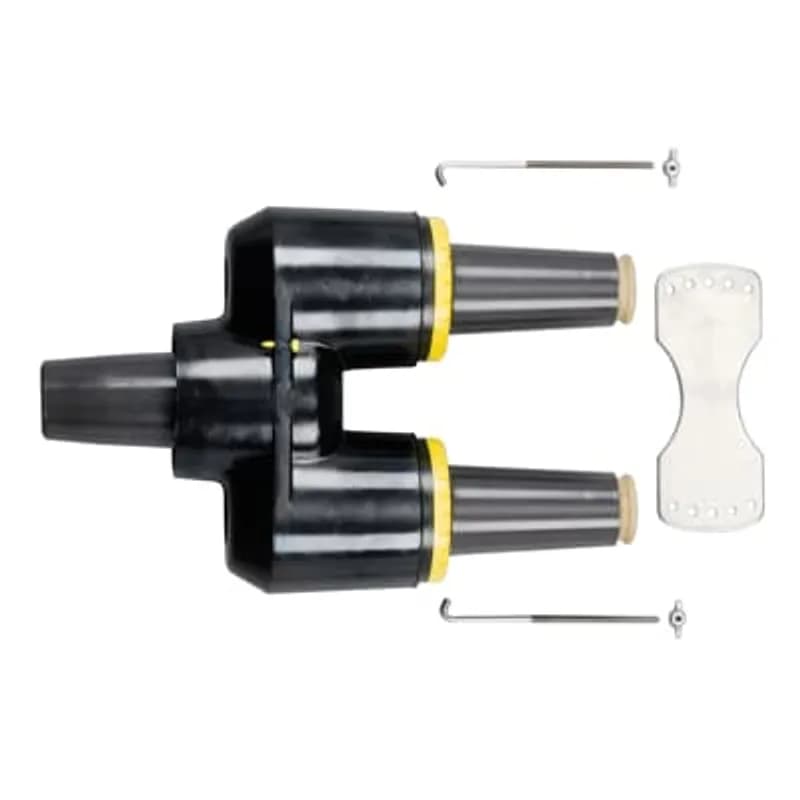

25kV 200 Amp, Loadbreak Feed-Thru Insert. Fully rotatable for 360 degree positioning. Includes bail assembly to secure feed-thru insert to bushing well.
3701A4
35kV 200 Amp, Loadbreak Bushing Insert, rated for single phase applications only. Includes a black vent ring.
3701A3
35kV 200 Amp, Loadbreak Bushing Insert, includes a black vent ring, includes internal torquing feature using 200AT Assembly Tool.
Frequently Asked Questions
What items are included in the 1602A3R kit?
Each kit contains one 1602A3R bushing insert, two protective shipping caps, lubricant, installation instructions, and one bail assembly.
What is the 1602A3R bushing insert's voltage class?
The 1602A3R bushing insert is designed for the 15kV voltage class.
What is the maximum operating voltage for the 1602A3R?
The maximum operating voltage is 8.3kV phase-to-ground and 14.4kV phase-to-phase.
What is the continuous and loadbreak current rating?
The 1602A3R has a continuous and loadbreak current rating of 200 Amps.
What standards does the 1602A3R meet?
The 1602A3R meets ANSI/IEEE Standard 386, Latest Revision.
What is the impulse withstand rating (BIL) for this insert?
The impulse withstand rating (BIL) is 95kV (1.2 x 50 microsecond wave).
What apparatus can the 1602A3R connect to?
It can connect shielded cable to sub-surface transformers, generators, pad mounted transformers, switchgear, regulators, and reclosers.
What type of bushing well is compatible with the 1602A3R?
The 1602A3R fits a standard ANSI bushing well interface and is easily installed in an Elastimold® universal bushing well.
Is a bail assembly included with the 1602A3R?
Yes, a bail assembly is included with each 1602A3R kit to secure the feed-thru insert to the bushing well.
What is the fault close rating for the 1602A3R?
The fault close rating is 10kA Symmetrical for 10 Cycles.
How to Install the 1602A3R Loadbreak Feed-Thru Insert
This guide provides step-by-step instructions for the safe installation and initial setup of the 1602A3R Loadbreak Feed-Thru Insert, including mounting, lubrication, grounding, and mating product connection.
Estimated time: 45m
Tools needed:
Wire strippers
Supplies needed:
1602A3R Loadbreak Feed-Thru Insert, Stainless Steel Plate, Stainless Steel Hook Bolts, Stainless Steel Wing Nuts, Lubricant (supplied or ELASTIMOLD approved), No. 14 AWG Copper Wire (or equivalent), Suitable grounding connector
- Prepare for Installation and Verify Components
DANGER: Ensure all apparatus is de-energized before beginning installation. Inspect the contents of the 1602A3R package to confirm all parts (insert, stainless steel plate, hook bolts, wing nuts, lubricant) are present, undamaged, and compatible with mating parts. Verify proper fit with cable and/or mating products.
- Check Apparatus Bushing Well Bolt Height
When installing the feed-thru insert in a clampable apparatus bushing well, check that mounting hardware does not protrude more than 0.500 inches (12.7mm) above the top of the bushing well. If bolts protrude excessively, consult the apparatus manufacturer for proper shortening methods.
- Inspect and Lubricate the Bushing Well and Insert
Inspect the apparatus bushing well to ensure it is dry and free from all contaminants. Lubricate the bushing well, its outer well surface, and the bushing well interface and cuff area of the feed-thru insert using only the supplied lubricant or an ELASTIMOLD approved lubricant. Do not substitute other lubricants.
- Install and Align the Feed-Thru Insert
Place the lubricated portion of the feed-thru insert into the apparatus bushing well. Rotate the feed-thru insert clockwise until it is fully seated; do not force it to avoid damaging bushing well threads. Once seated, rotate the insert counter-clockwise up to a half turn (180 degrees) to achieve the desired alignment. A definite stop will indicate the end of the adjustment range.
- Secure the Feed-Thru Insert with Mounting Hardware
Assemble the hook bolts into the available upper bushing well tabs. Place the stainless steel plate over the threaded ends of the bolts, selecting the hole that allows the most vertical position for the hook bolts. Assemble the stainless steel wing nuts and tighten them securely by hand.
- Install the Electrostatic Grounding Wire
Push a length of No. 14 AWG copper wire (or equivalent) through one of the grounding holes on the feed-thru insert. Form a small loop and twist it tightly, being careful not to damage the conductive shield. Connect the free end of the wire to the system ground using a suitable connector. Ensure the grounding wire does not contact the bushing interface, adjacent interfaces, or interfere with nearby accessories.
- Prepare for Mating Products and Verify Seating
If immediately mating with an elbow connector or insulated cap, remove the protective shipping caps from the feed-thru insert. Thoroughly wipe the bushing interfaces clean of any contaminants and lubricate them with the supplied or ELASTIMOLD approved lubricant. Install the mating products according to their specific instructions. DANGER: Do not energize or submerge the apparatus with shipping caps on the feed-thru insert, as they are not insulated or watertight. Complete assembly of an insulated cap or elbow is indicated by no portion of the yellow band being visible when viewed from the side.
