Overview

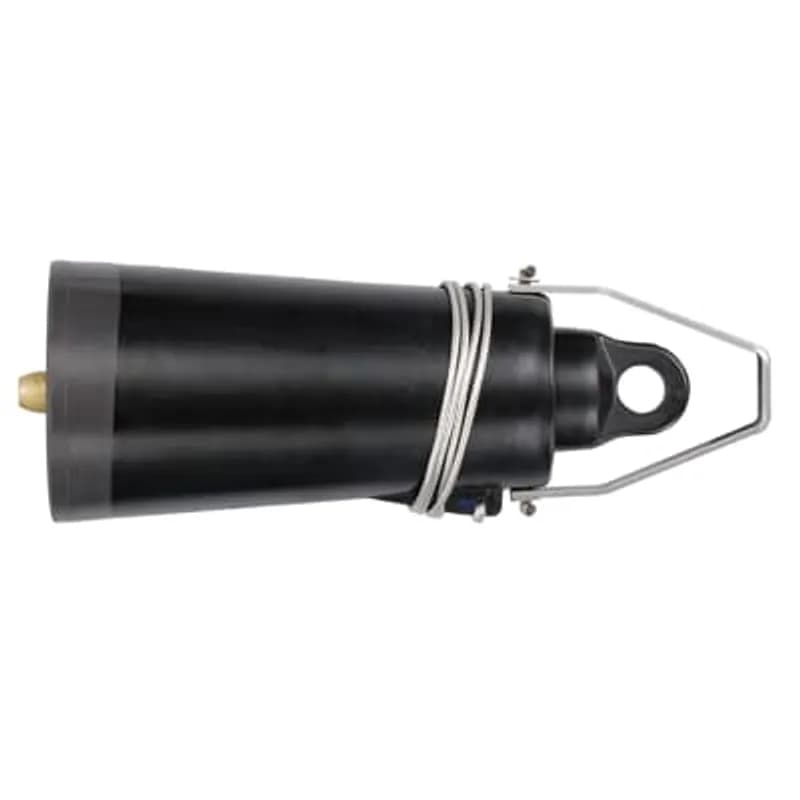

- 35kV rated for high-voltage applications
- 200 Amp loadbreak capability with brass probe
- Includes #14 AWG ground lead and test point
- Insulated cuff for enhanced safety
- Dimensions: 3.13" diameter x 8.56" length
Specifications
Application | Fully shielded, fully submersible, hot stick operable, separable connectors designed for energized operation. They are suitable for use on 35kV class loadbreak Single and Triple Phase systems |
Current Rating | 200A |
Material | Brass |
Material | EPDM-Rubber |
Size | 3.13 inch (79.4 mm) Diameter |
Size | Diameter 3.13 inch, Length 8.56 inch |
Special Features | 35kV, 200 Amp Loadbreak Rated. Molded EPDM Rubber. Includes all brass probe. Provision for hotstick operation. Ground lead wire #14 AWG attached. Insulated cuff for extra protection. Non-corrosive capacitive test point |
Standard | ANSI/IEEE 386 |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -40 F |
Temperature Rating, Minimum | -40 C |
Type | Insulated Cap |
Voltage Rating | 35kV |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 2.0000 L |
Package Weight (Metric) | 0.9070 kg |
168DRG
15kV 200 Amp, Loadbreak Insulated Cap with Ground Lead and Test Point, Equipped with insulated cuff. Has Brass Probe. Ground Lead #14 AWG. 3.00 inch Diameter, 7.88 inch Length.
K1501FT
15/25kV 200 Amp, Deadbreak Feed-Thru, Bails are required, but not included, order separately. Center-to-Center spacing equals 4 inches.
150-TB-5
15/25kV, Deadbreak Elbow Bail Assembly, Made of Stainless Steel, Used for Assisting Cable to Transformer Connections. Non-Current Carrying. The ELASTIMOLD® 150TB5 bailing assembly kit consists of two stainless steel bail connectors, a stainless steel collar and a length of stainless steel strap. This kit was designed to secure two ELASTIMOLD® non-loadbreak elbow connectors 156LR and an ELASTIMOLD® straight plug K151SP to the ELASTIMOLD tee connector K150T. The 150TB5 minimizes any possibility of separation of the assembled tee splice mating connectors due to cable movement.
150-TB-2
15/25kV, T-Splice 6-3/4 inch Long Bail Assembly, Made of Stainless Steel, Used for Assisting Cable to Transformer Connections. Non-Current Carrying. The 150TB2 bailing assembly kit consists of a modified hold down bail for securing Elastimold® tee splice K150T to a K150DP Deadbreak insulating plug. This assembly provides positive hold down force between the tee splice and the insulating plug.
K151-SOP
15/25kV 200 Amp, Deadbreak Insulated Parking Bushing, stand off plug, Bails are required, but not included, order separately.
150-TB-4
15/25kV, T Connection Bail Assembly, Made of Stainless Steel, Used for Assisting Cable to Transformer Connections. Non-Current Carrying. The ELASTIMOLD® 150TB4 bailing assembly kit consists of three stainless steel collars and three lengths of stainless steel strap. This bailing assembly was designed to secure two ELASTIMOLD® straight receptacles K151SR and an ELASTIMOLD® straight plug K151SR and an ELASTIMOLD® tee connector K150T, or two straight receptacles K151SR to an in-line junction K150S. NOTE: For the K150S, only two of the three straps and collars are used. The 150TB4 minimizes any possibility of separation of the assemblies due to cable movement.150-TB-1
15/25kV, T-Splice Short Bail Assembly, Made of Stainless Steel, Used for Assisting Cable to Transformer Connections. Non-Current Carrying. The 150TB1 bailing assembly kit consists of a modified hold down bail for securing Elastimold® tee splice K150T to any apparatus supplied with Elastimold® 200 A dead-break bushings. This assembly provides positive hold down force on the tee splice minimizing the possibility of cable movement in the mating parts to dislodge the tee splice from the apparatus bushing.Frequently Asked Questions
What is the diameter and length of the 376DRG?
The diameter is 3.13 inches and the length is 8.56 inches.
Is the 376DRG compatible with standard 35kV equipment?
Yes, it is designed for 35kV class systems.
What material is the probe made of?
The probe is made of brass for low-resistance contact.
Does the 376DRG have a test point?
Yes, it is equipped with a test point for verification.
What is the rated voltage of the 376DRG?
The 376DRG is rated for 35kV operation.
What is the current rating of the loadbreak cap?
The device supports a 200 Amp current rating for loadbreak operations.
Does the 376DRG include a ground lead?
Yes, it comes with a #14 AWG ground lead for safety.
How to Install the 376DRG Insulated Cap
This guide provides instructions for safely installing the 376DRG (or 274DRG) insulated cap onto a loadbreak bushing interface, including grounding and voltage verification procedures. This product is designed for insulating, shielding, and watersealing 35kV class (or 25kV class for 274DRG) loadbreak bushing interfaces.
Tools needed:
Hotstick, Suitable voltage sensing device
Supplies needed:
Insulated Cap with test point, Ground Lead, ELASTIMOLD approved lubricant, Test Point Cap, Silicone grease
- Prepare for Installation and Safety Check
Ensure all apparatus is de-energized before beginning installation, except for test point caps and indicators. Verify that all components are undamaged, rated correctly, and compatible with mating parts. This installation must only be performed by competent personnel trained in high voltage electrical equipment safety practices.
- Connect the Grounding Wire
Connect the free end of the electrostatic grounding wire to the system ground. Ensure there is enough slack for hot-stick operation of the insulated cap and that the wire is trained not to contact the bushing interface during operation. WARNING: If the ground lead disconnects during operation, do not attempt to reattach without first pulling the insulated cap off the bushing with the hotstick.
- Lubricate the Insulated Cap
Remove the protective cap from the insulated cap. Lubricate the receptacle’s internal mating surface using only ELASTIMOLD approved lubricants; do not substitute. Keep the internal mating surface free from dirt and grime. Always replace the protective cover when the cap is not in use.
- Install the Insulated Cap onto the Bushing
Firmly attach a hotstick to the insulated cap's pulling eye. Insert the male contact of the insulated cap into the loadbreak bushing, pushing it home with a fast, firm, and straight motion. Confirm it is fully mated with the locking ring seated, then detach the hotstick from the insulated cap.
- Perform Voltage Test (Optional but Recommended)
If equipped with an integral capacitance test point, remove the test point cap using a hotstick, peeling it off at an angle. WARNING: The voltage test point is a capacitance device, not directly connected to the conductor. Use a suitable sensing device designed for capacitive test points and follow its manufacturer’s directions. Do not use conventional voltage measuring equipment. Treat the elbow as energized until the 'no voltage' indication is confirmed by other means to prevent serious injury.
- Replace Test Point Cap
After completing the voltage detection, clean and lubricate the inside surface of the test point cap with silicone grease, then replace it firmly onto the test point.
