UPC: 783786466863
Documents & Media
Contact for Pricing
Overview

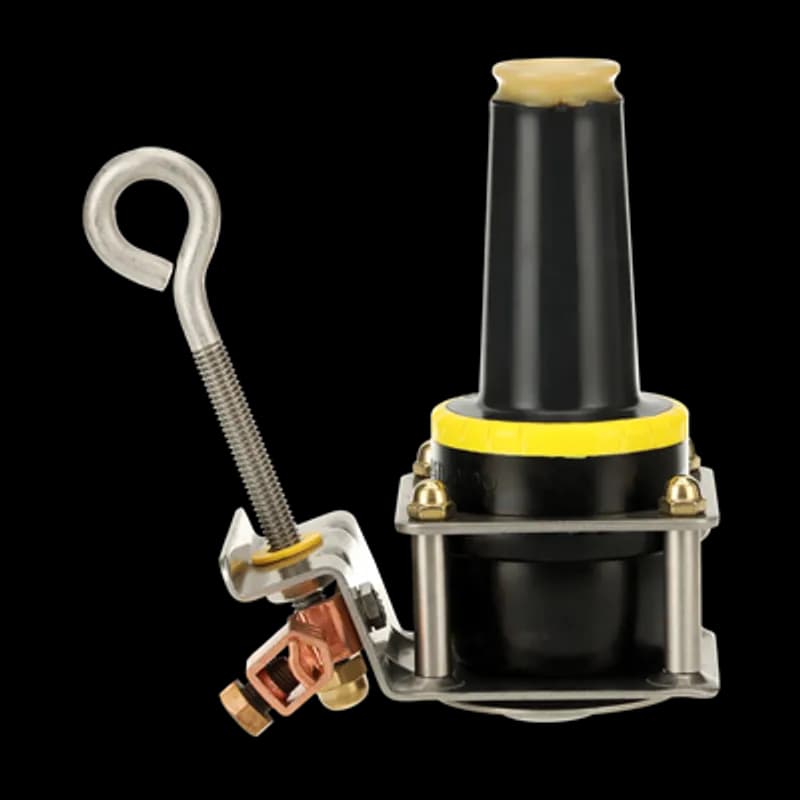

- 15kV voltage class with 200A continuous and loadbreak current rating
- Meets ANSI/IEEE Standard 386 for 15kV class operations
- Molded EPDM interface for reliable insulation and corona extinction at 3pC sensitivity
- Bolted stainless steel bracket with disk for corrosion-resistant mounting
- Compatible with standard 15kV class cables and loadbreak elbows
Specifications
Application | 15 kV, 200 Amps |
Current Rating | 200 A |
Material | Insulated |
Mounting Type | Stainless Steel Bracket |
Series | 164SOP |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -40 F |
Temperature Rating, Minimum | -40 C |
Type | Insulated Parking Bushing |
Voltage Rating | 15kV |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 2.5000 L |
Package Weight (Metric) | 1.1340 kg |
K650RTW
15/25kV 600 Series Deadbreak Reducing Tap Well. Length 5.37 inch. Width 3 inch not counting bracket. 600/200 Amps
1602A3R
15kV 200 Amp, Loadbreak Feed-Thru Insert, Fully rotatable for 360 degree positioning. Includes bail assembly to secure feed-thru insert to bushing well.
2702A1
25kV 200 Amp, Loadbreak Feed-Thru Insert. Fully rotatable for 360 degree positioning. Includes bail assembly to secure feed-thru insert to bushing well.
3701A4
35kV 200 Amp, Loadbreak Bushing Insert, rated for single phase applications only. Includes a black vent ring.
3701A3
35kV 200 Amp, Loadbreak Bushing Insert, includes a black vent ring, includes internal torquing feature using 200AT Assembly Tool.
How to Install the 164SOP Insulated Cap with Ground Lead
Instructions for installing and removing the 164SOP insulated cap with ground lead on a loadbreak bushing interface.
Estimated time: 30m
Tools needed:
Hotstick, Screwdriver
Supplies needed:
Insulated Cap with Ground Lead, Lubricant, Mounting screws
- Connect the electrostatic grounding wire
Connect the free end of the electrostatic grounding wire to the system ground. Ensure there is enough slack for hot-stick operation of the insulated cap. The grounding wire should not contact the bushing interface during operation. WARNING: If the ground lead disconnects during operation, do not attempt to reattach without first pulling the insulated cap off the bushing with the hotstick.
- Prepare the insulated cap
Remove the protective cover from the insulated cap. Lubricate the cap's internal mating surface using only the supplied lubricant or ELASTIMOLD approved lubricants. Keep the internal mating surface free from dirt and grime. Always replace the protective cover when not in use.
- Install the insulated cap
Firmly attach the hotstick to the insulated cap's pulling eye. Insert the male contact of the insulated cap into the loadbreak bushing. Push home with a fast, firm, straight motion, ensuring it is fully mated and the locking ring is seated. Detach the hotstick from the insulated cap.
- Remove the insulated cap
Attach the hotstick to the pulling eye. Before pulling, rotate the insulated cap clockwise while in the mated position to break surface friction. Pull the receptacle off with a fast, firm, straight motion. Remove the electrostatic grounding wire of the insulated cap from the system ground. Replace the protective cover on the insulated cap.
