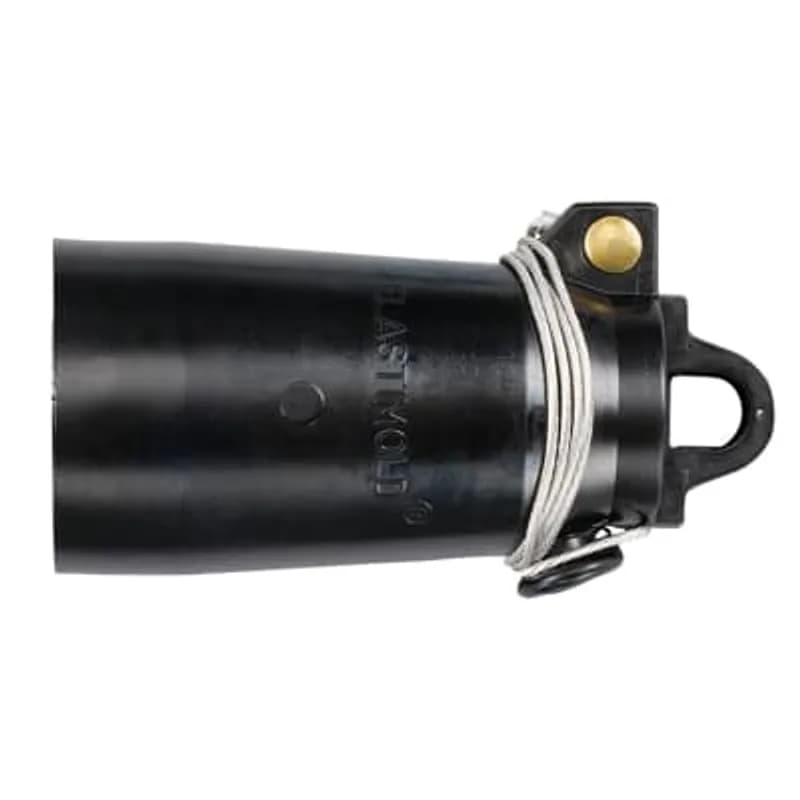

ABB Installation Products 160DRG 15kV 200 Amp, Loadbreak Insulated Cap with Ground Lead #14 AWG. Diameter 2.90 inch, 2.47…
UPC: 783786469482
Contact for Pricing
Call (262) 252-1600 or email [email protected] for pricing and availability.
Overview
- 15kV voltage rating for medium-voltage applications
- 200 Amp continuous current rating
- #14 AWG ground lead for safety and grounding compliance
- 2.90" diameter x 2.47" length for compact installations
- Insulated construction for dielectric strength and environmental resistance
Specifications
Application | 15kV, 200 Amps |
Material | EPDM-Rubber |
Size | Length 6.2 inch, Diameter 2.9 inch |
Special Features | Isolation of Components |
Temperature Rating, Maximum | 194 F |
Temperature Rating, Maximum | 90 C |
Temperature Rating, Minimum | 194 F |
Temperature Rating, Minimum | 90 C |
Type | Loadbreak Insulalted Cap |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 1.2900 L |
Package Weight (Metric) | 0.5850 kg |
K675TBC
15/25kV, 900 Amp, Deadbreak Bushing for In-Air Applications (Pad-Mounted or Vault-Type or Submersible Transformers or Switchgear). One Factory installed 5/8-11 UNC-2A Stud included, other Stud must be Purchased Separately. Overall Length 13.75 inch, Diameter 4.50 inch. Molded Epoxy with Stainless Steel Flange. Boot and Collar.
1602A3R
15kV 200 Amp, Loadbreak Feed-Thru Insert, Fully rotatable for 360 degree positioning. Includes bail assembly to secure feed-thru insert to bushing well.Frequently Asked Questions
What are the key features of the 160DRG cap?
The 160DRG insulated cap is fully shielded, fully submersible, hot stick operable, and designed for energized operation. It is a separable insulated connector.
What is the Basic Impulse Level (BIL) withstand rating?
The BIL impulse withstand rating is 95kV (1.2 x 50 microsecond wave).
What material is the 160DRG cap molded from?
The 160DRG cap is molded from EPDM Rubber.
What is the momentary and fault close current rating?
The momentary and fault close current rating is 10kA Sym for 10 cycles.
What is the continuous and loadbreak current rating?
The continuous and loadbreak current rating is 200 Amp.
What is the corona extinction voltage?
The corona extinction voltage is 11kV AC at 3pC sensitivity.
What is the DC 15-minute withstand rating?
The DC 15-minute withstand rating is 53kV.
What is the AC one-minute withstand rating?
The AC one-minute withstand rating is 34kV.
What is the maximum phase-to-phase operating voltage?
The maximum phase-to-phase operating voltage for the 15kV class is 14.4kV.
What is the maximum phase-to-ground operating voltage?
The maximum phase-to-ground operating voltage for the 15kV class is 8.3kV.
How to Install the 160DRG/167DRG Insulated Cap with Ground Lead
This guide provides instructions for safely installing the 160DRG and 167DRG insulated caps with ground leads onto 15kV class loadbreak bushing interfaces, ensuring proper insulation, shielding, and watersealing. All apparatus must be de-energized during installation.
Estimated time: 20m
Tools needed:
Hotstick
Supplies needed:
Insulated Cap with Ground Lead, Lubricant
- Connect Electrostatic Grounding Wire
Connect the free end of the electrostatic grounding wire to the system ground, ensuring enough slack for hot-stick operation of the insulated cap. CAUTION: Train the electrostatic grounding wire so it does not contact the bushing interface during operation.
- Prepare and Lubricate the Insulated Cap
Remove the protective cover from the insulated cap. Lubricate the cap’s internal mating surface using only the supplied lubricant or ELASTIMOLD approved lubricants. DO NOT SUBSTITUTE, as other lubricants may be harmful to this product and its mating products. Keep the internal mating surface free from dirt and grime. Always replace the protective cover when not in use.
- Attach Insulated Cap to Loadbreak Bushing
Firmly attach a hotstick to the insulated cap pulling eye. Insert the male contact of the insulated cap into the loadbreak bushing, and push it home with a fast, firm, straight motion. Make certain it is fully mated, with the locking ring seated. Detach the hotstick from the insulated cap.
