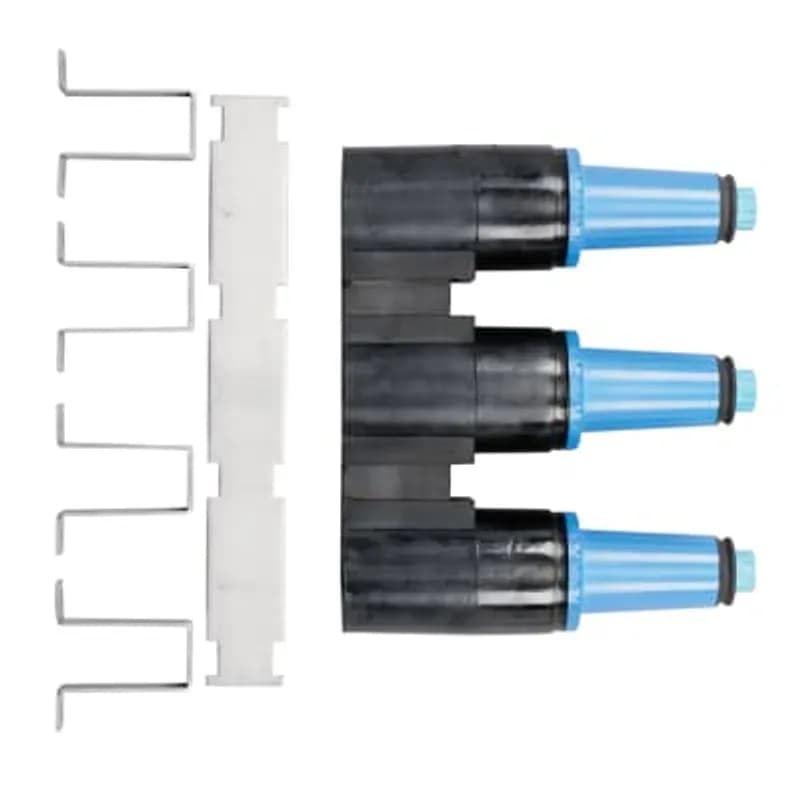

ABB - Installation Products 373J3-5 - 35kV 200 Amp, Loadbreak 3-point Junction With U Straps

ABB Installation Products 373J3-5 35kV 200 Amp, Loadbreak 3-point Junction With U Straps

UPC: 783786661572


Documents & Media
Installation InstructionsSpecification SheetManufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

ABB 373J3-5 is a 35kV class, 200 Amp, 3-way loadbreak junction for subsurface, vault, or padmount applications. It mates with ELASTIMOLD 375LR/376LR elbows, 370GLR grounding elbows, 370TR test rods, and 370DR/370DRG insulated caps. Designed for sectionalizing, looping, tapping, and equipment bypass, it operates fully shielded, submersible, and insulated on 35kV systems. Rated 200A continuous/loadbreak with universal brackets for 0°–90° tilt in 15° increments. Includes U-style mounting straps (SKU suffix -5). - Voltage Class: 35kV (1Ø & 3Ø) - Max Phase-to-Ground: 21.1kV - Max Phase-to-Phase: 36.6kV - BIL: 150kV (1.2x50µs) - 1-min AC Withstand: 50kV - 15-min DC Withstand: 103kV - Corona Extinction: 26kV AC @ 3pC - Momentary/Fault Close: 10kA symmetrical (10 cycles) Kit includes molded junction, mounting hardware, four U straps, three shipping caps, three lubricant tubes, and instructions.
  • 35kV voltage class, 200 Amp continuous and loadbreak rating
  • 3-way loadbreak junction for sectionalizing, looping, tapping, and bypass
  • Fully shielded, fully submersible, separable insulated assembly
  • Universal mounting brackets for flat or curved surfaces (0°-90° tilt in 15° increments)
  • Includes U style mounting straps, hardware, shipping caps, lubricant, and instructions

Specifications

Application
Designed for subsurface, vault or padmount applications and can be used for sectionalizing, looping, tapping, and equipment bypass
Connection Type
Loadbreak 3-point junction
Current Rating
200A
Material
EPDM-Rubber with Stainless Steel Strap
Material
EPDM (peroxide-cured) with conductive materials
Poles
3P
Series
373J3
Size
4.00 inch (101.6 mm) Center to Center, 8.37 inch (212.6 mm) High, 2.50 inch (63.5 mm) wide
Special Features
35kV, 200 Amp Loadbreak 3-Way Junction. Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Provides mating for Elastimold Elbow connectors. Mounting hardware for flat or curved mounting positions. Rated for 3 Phase switching. Includes black vent ring
Standard
ANSI/IEEE 386
Temperature Rating, Maximum
149 F
Temperature Rating, Maximum
65 C
Temperature Rating, Minimum
-40 F
Temperature Rating, Minimum
-40 C
Type
3-Point Junction
Voltage Rating
35kV
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
0.0010 L
Package Weight (Metric)
0.0010 kg
15/25kV, T-Splice 6-3/4 inch Long Bail Assembly, Made of Stainless Steel, Used for Assisting Cable to Transformer Connections. Non-Current Carrying. The 150TB2 bailing assembly kit consists of a modified hold down bail for securing Elastimold® tee splice K150T to a K150DP Deadbreak insulating plug. This assembly provides positive hold down force between the tee splice and the insulating plug.

150-TB-2

15/25kV, T-Splice 6-3/4 inch Long Bail Assembly, Made of Stainless Steel, Used for Assisting Cable to Transformer Connections. Non-Current Carrying. The 150TB2 bailing assembly kit consists of a modified hold down bail for securing Elastimold® tee splice K150T to a K150DP Deadbreak insulating plug. This assembly provides positive hold down force between the tee splice and the insulating plug.
HMI door mounting kit with 15M cable

181B2258

HMI door mounting kit with 15M cable
Polarizing Cover / Hermaphroditic Cover, Black, Nylon, 8 Position, AMPMODU IV/V

103350-4

Polarizing Cover / Hermaphroditic Cover, Black, Nylon, 8 Position, AMPMODU IV/V
35kV 200 Amp, Loadbreak Feed-Thru, rated for single phase applications only.

371FT

35kV 200 Amp, Loadbreak Feed-Thru, rated for single phase applications only.
25kV 200 Amp, Loadbreak Adjustable Bracket 2-Point Feed-Thru. With Stainless Steel Bracket.

274FT2-AB

25kV 200 Amp, Loadbreak Adjustable Bracket 2-Point Feed-Thru. With Stainless Steel Bracket.
25kV 200 Amp, Loadbreak Adjustable Bracket 4-Point Feed-Thru. With Stainless Steel Bracket.

274FT4-AB

25kV 200 Amp, Loadbreak Adjustable Bracket 4-Point Feed-Thru. With Stainless Steel Bracket.
25kV 200 Amp, Loadbreak Adjustable Bracket 3-Point Feed-Thru. With Stainless Steel Bracket.

274FT3-AB

25kV 200 Amp, Loadbreak Adjustable Bracket 3-Point Feed-Thru. With Stainless Steel Bracket.
35kV 200 Amp, Loadbreak 4-Point Junction with Stainless Steel Bracket

373J4

35kV 200 Amp, Loadbreak 4-Point Junction with Stainless Steel Bracket

Frequently Asked Questions

What is the voltage rating of the 373J3-5?

The 373J3-5 is rated for 35kV, making it suitable for medium-voltage applications.

What is the current rating of this junction?

The junction supports a continuous current rating of 200 Amps.

Does this junction support loadbreak operations?

Yes, the 373J3-5 is designed for loadbreak operations, allowing safe disconnection under load.

What type of connections does the 373J3-5 use?

The junction features a 3-point design with U Straps for secure and stable electrical connections.

Is the 373J3-5 compatible with standard 35kV equipment?

Yes, it is designed for compatibility with standard 35kV class equipment.

How to Install the 373J3-5 Loadbreak Junction

This guide provides step-by-step instructions for the safe installation and initial setup of the Elastimold 373J3-5 Three-Point Loadbreak Junction. It covers mounting, grounding, and preparing the junction for operation.

Estimated time: 45m

Tools needed:

Drill, Measuring tape, Wrench or socket set, Wire strippers

Supplies needed:

Mounting hardware (supplied), Grounding lug (if required, not provided), Ground wire (14AWG minimum, if required), Silicone lubricant, Elastimold insulated caps (270DR or 370DR, if required, not provided)

  1. Prepare for Installation and Determine Location

    DANGER: Ensure all apparatus is de-energized during installation or removal of parts. Inspect the junction and all components for damage, proper rating, and compatibility with mating parts. Determine the desired mounting location for the junction assembly and mark the drilling points according to the provided dimensions for the 373J3-5 model.

  2. Drill Mounting Holes

    Using appropriate tools, drill the necessary mounting holes at the marked locations. Refer to the installation diagram for precise hole diameters and spacing for the 373J3-5 junction.

  3. Assemble and Mount the Junction

    Assemble the loadbreak junction, shield plate, and hold down brackets using the supplied fasteners. Attach the assembled unit to the prepared flat mounting surface. Securely tighten all fasteners to prevent any movement during operation.

  4. Ground the Junction Assembly

    CAUTION: The shield plate, hold down brackets, and black conductive rubber shield must be grounded. If the mounting surface is conductive and grounded, no additional grounding may be necessary. For insulating mounting surfaces, attach a grounding lug (not provided) with one of the mounting bolts and connect a minimum 14AWG ground wire from the lug to a ground bus.

  5. Prepare Bushings for Operation

    Remove any protective shipping caps from the bushings and thoroughly clean the bushing surfaces. Apply silicone lubricant (DO NOT SUBSTITUTE) to the bushings before connecting any Elastimold loadbreak connectors. If any bushings will not be utilized, install appropriate Elastimold 270DR (25kV class) or 370DR (35kV class) insulated caps on the unused bushings before energizing the circuit. Do not use the protective shipping caps for this function as they are not insulated.
