UPC: 783786634064
Contact for Pricing
Overview

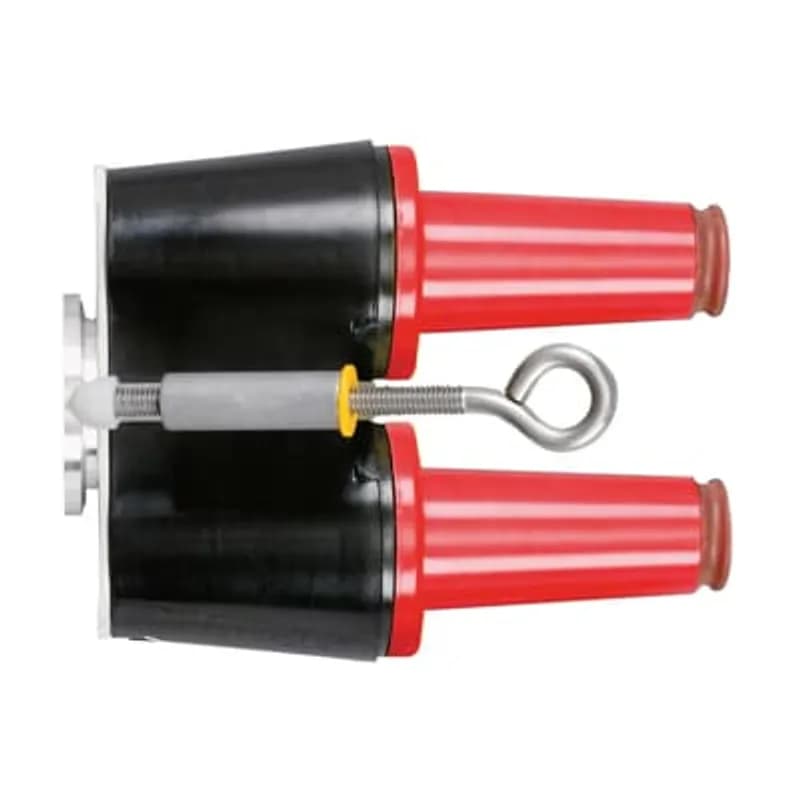

- 200 Amp, 15kV class loadbreak feed-thru for medium-voltage systems
- 6.87" length x 5.93" width x 3.12" center-to-center spacing
- Integral parking stand mount and eyebolt for secure handling
- Compatible with ABB Elastimold 15kV Family of Elbow Connectors, 370TR test rod, 160GKR grounding elbow, and 160DR/160DRG insulated caps
- Deadfront design for safe energized switching per IEEE 592 and ANSI C119.4
Specifications
Application | 15kV, 200 Amps |
Current Rating | 200 A |
Material | EPDM-Rubber |
Mounting | Uses integral parking stand mount |
Mounting Type | Integral Parking Stand Mount |
Size | Length 6.87 inch, Width 5.93 inch |
Size | 6.87 inch long x 5.93 inch wide |
Special Features | Rated for Single Phase Applications only |
Standard | ANSI/IEEE Standard 386 |
Temperature Rating, Maximum | 194 F |
Temperature Rating, Maximum | 90 C |
Temperature Rating, Minimum | 194 F |
Temperature Rating, Minimum | 90 C |
Type | Feed-Thru |
Voltage Rating | 15kV |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 3.9200 L |
Package Weight (Metric) | 1.7780 kg |
K650RTW
15/25kV 600 Series Deadbreak Reducing Tap Well. Length 5.37 inch. Width 3 inch not counting bracket. 600/200 Amps
168DRG
15kV 200 Amp, Loadbreak Insulated Cap with Ground Lead and Test Point, Equipped with insulated cuff. Has Brass Probe. Ground Lead #14 AWG. 3.00 inch Diameter, 7.88 inch Length.
160DRG
15kV 200 Amp, Loadbreak Insulated Cap with Ground Lead #14 AWG. Diameter 2.90 inch, 2.47 inch Length.
Frequently Asked Questions
What is the Corona Extinction rating?
The Corona Extinction rating is 11kV AC at 3pC sensitivity.
What is the primary application of the 164FT?
The 164FT is a fully shielded, submersible insulated connector designed for energized operation in 15kV class loadbreak systems. It provides a loadbreak junction point.
What voltage class is the 164FT designed for?
The 164FT is designed for 15kV voltage class systems.
What is the maximum operating phase-to-ground voltage?
The maximum phase-to-ground operating voltage for the 164FT is 8.3kV.
What is the maximum phase-to-phase voltage rating?
The maximum phase-to-phase voltage rating for the 164FT is 14.4kV.
What is the continuous and loadbreak current rating?
The 164FT has a continuous and loadbreak current rating of 200 Amp.
What standard does the 164FT meet?
The 164FT meets ANSI/IEEE Standard 386, Latest Revision.
What products can the 164FT mate with?
The 164FT can mate with 15kV Family of Elbow Connectors, 370TR test rod, 160GLR grounding elbow, and 160DR/DRG insulated cap.
What is included in the 164FT kit?
Each kit contains one 164FT feed-thru body, two 1601-APC-1 protective shipping caps, two lubricants 82-08, and one IS-0376 installation instruction.
What is the BIL impulse withstand rating?
The BIL impulse withstand rating is 95kV (1.2 x 50 microsecond wave).
How to Install the 164FT Feed-Thru as a Junction Point
This guide provides step-by-step instructions for installing the 164FT Feed-Thru/Grounding Device, primarily for use as a junction point. It covers initial setup, grounding, and connecting loadbreak elbows.
Estimated time: 1h
Tools needed:
Hotstick, Wrench or Screwdriver, Voltage detection device
Supplies needed:
Feed-thru Body Complete with Mounting Hardware, Lubricant (supplied), No. 14 copper wire (or equivalent) ground lead, Loadbreak elbows (mating parts)
- Prepare for Installation and Ensure Safety
Before beginning, read all instructions and the Loadbreak Elbow Operating Instructions (IS-167/168LR). Ensure all apparatus is de-energized during installation or removal of parts, except for test point caps and indicators. Verify all components are complete, undamaged, and compatible with mating parts. Have all required tools ready and maintain cleanliness throughout the procedure. This product must be installed only by competent personnel trained in high voltage electrical equipment safety practices.
- Connect the Ground Lead
Insert a No. 14 copper wire (or equivalent) ground lead into the grounding lug provided on the mounting hardware and firmly tighten the lug. Connect the opposite end of the ground lead to a reliable ground, ensuring enough slack is left to allow operation with a hotstick.
- Prepare the Feed-Thru Bushings
Remove any protective caps from the bushings of the feed-thru. These caps must not be on the bushings when the feed-thru is in use. Thoroughly clean the bushing surfaces and then lubricate them using only the lubricant supplied with the product. Do not substitute with other lubricants, as they may be harmful.
- Mount the Feed-Thru onto a Parking Stand
Firmly attach the feed-thru eye to a full insulated hotstick. Using the hotstick, carefully slide the feed-thru onto a parking stand. Unlock the hotstick and back off slightly to create space. Tighten the eyebolt by rotating the hotstick clockwise until it is snug. DO NOT OVERTIGHTEN. Release the hotstick from the feed-thru eye.
- Connect the First Loadbreak Elbow
Remove one loadbreak elbow from its apparatus loadbreak bushing, following the applicable loadbreak operating instructions (IS-165/166LR). Firmly attach a hotstick to the elbow. Insert the probe tip of the elbow into one side of the feed-thru until you feel the first slight resistance. Immediately push the elbow home with a fast, firm, straight motion to engage the internal lock on the mating interfaces.
- Connect the Second Loadbreak Elbow
Remove the second loadbreak elbow, following the applicable loadbreak operating instructions (IS-165/166LR). Firmly attach a hotstick to this elbow. Insert the probe tip into the remaining feed-thru bushing until the first slight resistance is felt. Immediately push the elbow home with a fast, firm, straight motion to engage the internal lock on the mating interfaces.
- Verify Complete Assembly
Inspect the assembled product. A complete assembly of an insulated cap or elbow is indicated when no portion of the yellow band is visible when viewed from the side.
