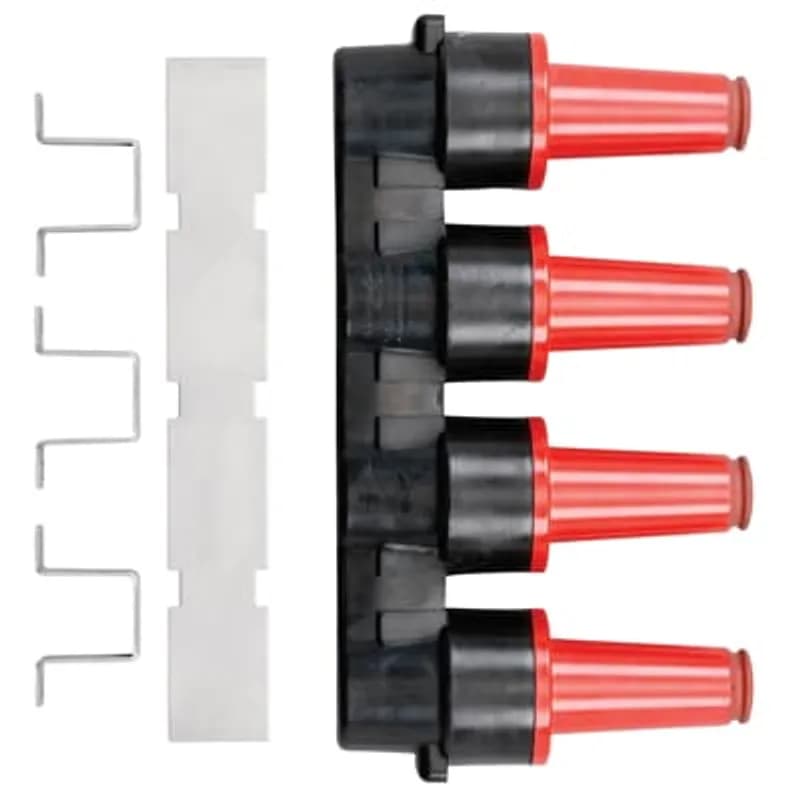

ABB Installation Products 164J4-5 15kV 200 Amp, Loadbreak 4-point Junction With U Straps
UPC: 783786638383
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 15kV voltage class with 200 Amp continuous and loadbreak rating
- Fully shielded, fully submersible molded rubber housing
- 4-way junction for sectionalizing, looping, tapping, and bypass applications
- Meets ANSI/IEEE Standard 386 with 95kV BIL impulse withstand
- Includes U-straps and back plates for front or back surface mounting
Specifications
Application | Provide a fully shielded, fully submersible, separable, insulated assembly designed for energized operation. They are suitable for use on 15-kV class distribution systems, and rated for 200-ampere loadmake/loadbreak operation. Designed for subsurface, vault or padmount applications and can be used for sectionalizing, looping, tapping, and equipment bypass |
Material | EPDM-Rubber |
Special Features | 15kV, 200 Amp Loadbreak 4-Way Junction. Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Provides mating for Elastimold Elbow connectors. Mounting hardware for flat or curved mounting positions. U style Mounting Straps |
Standard | ANSI/IEEE 386 |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -40 F |
Temperature Rating, Minimum | -40 C |
Type | 4-Point Junction |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 7.3900 L |
Package Weight (Metric) | 3.3520 kg |
K675TBC
15/25kV, 900 Amp, Deadbreak Bushing for In-Air Applications (Pad-Mounted or Vault-Type or Submersible Transformers or Switchgear). One Factory installed 5/8-11 UNC-2A Stud included, other Stud must be Purchased Separately. Overall Length 13.75 inch, Diameter 4.50 inch. Molded Epoxy with Stainless Steel Flange. Boot and Collar.
168DRG
15kV 200 Amp, Loadbreak Insulated Cap with Ground Lead and Test Point, Equipped with insulated cuff. Has Brass Probe. Ground Lead #14 AWG. 3.00 inch Diameter, 7.88 inch Length.
160DRG
15kV 200 Amp, Loadbreak Insulated Cap with Ground Lead #14 AWG. Diameter 2.90 inch, 2.47 inch Length.
Frequently Asked Questions
What is the voltage rating of the ABB 164J4-5 junction?
The ABB 164J4-5 junction has an operating voltage rating of 15kV.
What is the current capacity of this loadbreak junction?
The ABB 164J4-5 junction is rated for 200 Amps.
How many connection points does the 164J4-5 offer?
The ABB 164J4-5 is a 4-point junction, providing four connection points.
What does 'loadbreak' mean for this junction?
Loadbreak capability means the junction can be safely opened and closed while carrying electrical current.
What is the purpose of the 'U' straps on this junction?
The 'U' straps are part of the connection mechanism, designed for secure mounting and integration.
How to Install the Elastimold 160DRG/167DRG Insulated Cap with Ground Lead
This guide provides step-by-step instructions for the safe installation of the Elastimold 160DRG and 167DRG Insulated Caps with Ground Lead. These caps are designed for insulating, shielding, and watersealing 15kV class loadbreak bushing interfaces. Ensure all apparatus is de-energized before installation.
Estimated time: 20m
Tools needed:
Hotstick
Supplies needed:
Elastimold 160DRG/167DRG Insulated Cap with Ground Lead, Elastimold Approved Lubricant
- Connect the Ground Lead
Connect the free end of the electrostatic grounding wire to the system ground, ensuring enough slack for hot-stick operation of the insulated cap. CAUTION: Train the electrostatic grounding wire so it does not contact the bushing interface during operation. WARNING: If the ground lead disconnects during operation, do not attempt to reattach without first pulling the insulated cap off the bushing with the hotstick.
- Prepare the Insulated Cap
Remove the protective cover from the insulated cap. Lubricate the cap’s internal mating surface using only the supplied lubricant or ELASTIMOLD approved lubricants. DO NOT SUBSTITUTE, as other lubricants may be harmful. Keep the internal mating surface free from dirt and grime. Always replace the protective cover when not in use.
- Install the Insulated Cap
Firmly attach a hotstick to the insulated cap pulling eye. Insert the male contact of the insulated cap into the loadbreak bushing, and push home with a fast, firm, straight motion. Make certain it is fully mated, with the locking ring seated. Detach the hotstick from the insulated cap.
