UPC: 783786469475
Contact for Pricing
Minimum Qty: 30
Multiplier: 30
*Contact for lower quantities*
Overview
- 15kV voltage class, 200 Amp continuous and loadbreak current rating
- Meets ANSI/IEEE Standard 386 for 15kV class systems
- Fully shielded, fully submersible, and hot stick operable
- Molded EPDM rubber construction with brass probe included
- Used to dead-end Elastimold mating products (1601A4, 1602A3R, 164FT, 164 series)
Specifications
Application | 15kV, 200 Amps |
Current Rating | 200 A |
Material | EPDM-Rubber |
Series | 160DR |
Size | Length 6.18 inch, Diameter 2.9 inch |
Special Features | Isolation of Components |
Temperature Rating, Maximum | 194 F |
Temperature Rating, Maximum | 90 C |
Temperature Rating, Minimum | 194 F |
Temperature Rating, Minimum | 90 C |
Type | Loadbreak Insulalted Cap |
Voltage Rating | 15 kV |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 1.2300 L |
Package Weight (Metric) | 0.5580 kg |
K675TBC
15/25kV, 900 Amp, Deadbreak Bushing for In-Air Applications (Pad-Mounted or Vault-Type or Submersible Transformers or Switchgear). One Factory installed 5/8-11 UNC-2A Stud included, other Stud must be Purchased Separately. Overall Length 13.75 inch, Diameter 4.50 inch. Molded Epoxy with Stainless Steel Flange. Boot and Collar.
1602A3R
15kV 200 Amp, Loadbreak Feed-Thru Insert, Fully rotatable for 360 degree positioning. Includes bail assembly to secure feed-thru insert to bushing well.
2702A1
25kV 200 Amp, Loadbreak Feed-Thru Insert. Fully rotatable for 360 degree positioning. Includes bail assembly to secure feed-thru insert to bushing well.
3701A4
35kV 200 Amp, Loadbreak Bushing Insert, rated for single phase applications only. Includes a black vent ring.
3701A3
35kV 200 Amp, Loadbreak Bushing Insert, includes a black vent ring, includes internal torquing feature using 200AT Assembly Tool.
Frequently Asked Questions
What is the ABB 160DR product?

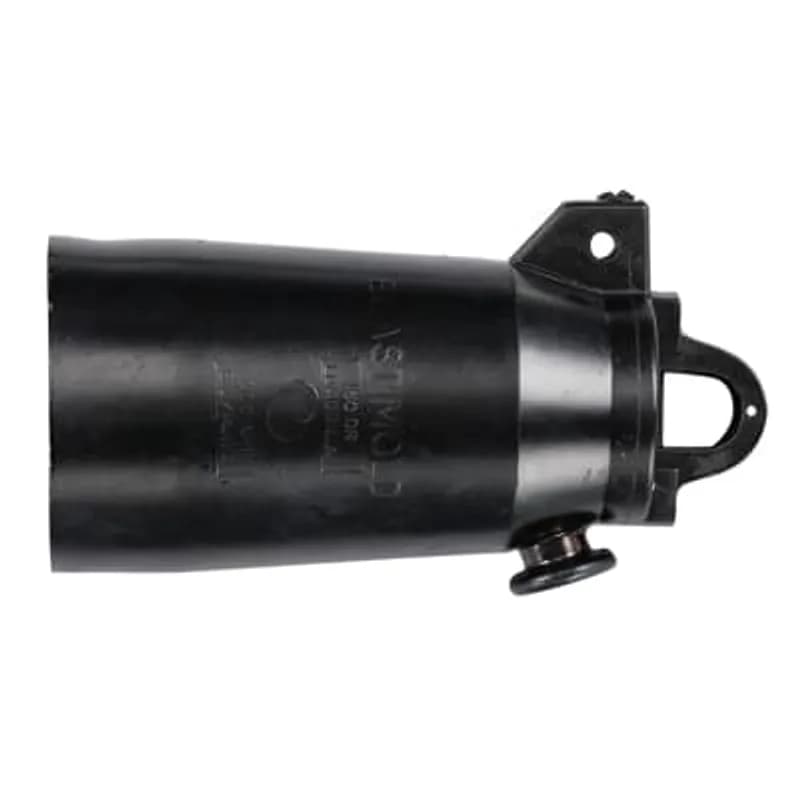

The 160DR is a 15kV 200A Loadbreak Insulated Cap without ground, designed as a fully shielded, submersible, hot stick operable connector.
Can a ground wire be connected to the 160DR?
Yes, the 160DR has a provision for ground wire connection.
What is the DC 15-minute withstand voltage rating?
The DC 15-minute withstand voltage rating for the 160DR is 53kV.
What is the AC one-minute withstand voltage rating?
The AC one-minute withstand voltage rating for the 160DR is 34kV.
Is there a version of the 160DR without a probe?
Yes, the 160DR is also available without a probe; specify model 160DRA when ordering.
What items are included in the 160DR kit?
Each kit contains one 160DR Bushing Insert, one 82-08 Lubricant, and one IS-0893 Installation Instruction.
What Elastimold products are compatible with the 160DR?
The 160DR is compatible with 1601A4 Bushing insert, 1602A3R Feed-thru insert, 164FT Feed-thru, and 164 series junctions.
Does the 160DR support hotstick operation?
Yes, the 160DR insulated cap includes a provision for hotstick operation.
What is the Impulse Withstand (BIL) rating?
The Impulse Withstand (BIL) rating is 95kV (1.2 x 50 microsecond wave).
What is the continuous and loadbreak current rating?
The 160DR is rated for 200 Amp continuous and loadbreak current.
How to Install the 160DR(3) Insulated Cap
The 160DR(3) is designed for insulating, shielding, and watersealing 15kV class loadbreak bushing interfaces. This guide provides instructions for its safe installation, emphasizing de-energization and proper connection procedures.
Estimated time: 15m
Tools needed:
Hotstick, Wire strippers
Supplies needed:
160DR(3) Insulated Cap, Lubricant, Electrostatic grounding wire
- De-energize Apparatus and Connect Grounding Wire
Ensure all apparatus is de-energized before beginning installation. Connect an electrostatic grounding wire, equivalent to No. 12 to No. 14 copper, to the grounding eye of the insulated cap and twist it tight. Connect the free end of this electrostatic grounding wire to the system ground, leaving enough slack for hot-stick operation of the insulated cap. CAUTION: Train the electrostatic grounding wire so as not to contact the bushing interface during operation.
- Prepare the Insulated Cap
Remove the protective cover from the insulated cap. Lubricate the cap’s internal mating surface. Use only the supplied lubricant or ELASTIMOLD approved lubricants; DO NOT SUBSTITUTE, as other lubricants may be harmful to this product and its mating products. Keep the internal mating surface free from dirt and grime. Always replace the protective cover when the cap is not in use.
- Install the Insulated Cap
Firmly attach a hotstick to the insulated cap's pulling eye. Insert the male contact of the insulated cap into the loadbreak bushing. Push the cap home with a fast, firm, straight motion, making certain it is fully mated with the locking ring seated. Detach the hotstick from the insulated cap.
