nVent TEG6B - Exhaust Grille, Bulletin D85 (Hoffman Thermal Management Products - Hoffman EMC & Type 12 Fans), Size/Dims: fits 6 in. Pkg, Material: ABS, Finish: Black
nVent

TEG6B

UPC: 783510415396

Contact for Pricing

Overview

The nVent TEG6B Exhaust Grille (SKU: TEG6B) is a specialized component from nVent's Hoffman Thermal Management Products, designed for industrial ventilation and thermal management. Constructed from durable black ABS plastic, this grille is engineered to fit a 6-inch nominal fan or exhaust package size. Its dimensions are 7.80 x 8.87 x 0.49 inches (198 x 225 x 12 mm), with specific cutout dimensions of 7.80 x 8.87 inches (198 x 225 mm). The TEG6B is rated for UL Type 12 protection, ensuring effective ingress protection against dust, dirt, and other contaminants, crucial for maintaining the integrity of enclosed electrical and electronic equipment. This grille serves as a direct replacement for standard grilles on both fan and exhaust packages, offering a black aesthetic finish. It is compatible with TEP6 and TEP6UL12 exhaust packages and TFP61/TFP62 fan packages. The TEG6B is designed to work with Type 12 filter replacements (TFLT6UL12) to maintain the enclosure's UL Type 12 rating. Manufactured in the US, this exhaust grille is an essential accessory for ensuring proper airflow and environmental protection in industrial enclosures and machinery. Its robust ABS construction and specific Type 12 rating make it a reliable choice for maintaining optimal operating conditions for sensitive equipment.
  • 6-inch nominal size for fan and exhaust packages
  • Durable black ABS plastic construction
  • UL Type 12 rated for dust and dirt ingress protection
  • Dimensions: 7.80 x 8.87 x 0.49 inches (198 x 225 x 12 mm)
  • Replaces standard grilles on nVent Hoffman fan and exhaust packages

Specifications

Color
Black
IP Rating
IP66
Material
ABS
Nema Rating
Type 12
Series
Hoffman Thermal Management Products
Series
TEG
Size
6 in.
Package Dimensions (L x W x H)
19 IN x 12.5 IN x 0.5 IN
Package Dimensions (L x W x H)
48.26 cm x 31.75 cm x 1.27 cm
Package Weight (Imperial)
0.500 L
Package Weight (Metric)
0.227 kg
Exhaust Grille, Bulletin D85 (Hoffman Thermal Management Products - Hoffman EMC & Type 12 Fans), Size/Dims: fits 4 in. Pkg, Material: ABS, Finish: Black

TEG4B

Exhaust Grille, Bulletin D85 (Hoffman Thermal Management Products - Hoffman EMC & Type 12 Fans), Size/Dims: fits 4 in. Pkg, Material: ABS, Finish: Black
Exhaust Grille, Bulletin D85 (Hoffman Thermal Management Products - Hoffman EMC & Type 12 Fans), Size/Dims: fits 10 in. Pkg, Material: ABS, Finish: Black

TEG10B

Exhaust Grille, Bulletin D85 (Hoffman Thermal Management Products - Hoffman EMC & Type 12 Fans), Size/Dims: fits 10 in. Pkg, Material: ABS, Finish: Black
HF10 Side-Mount Filter Fan, 115V 103CFM, Black

HF1016513

HF10 Side-Mount Filter Fan, 115V 103CFM, Black
HF10 Side-Mount Filter Fan, 115V 159CFM, Black

HF1016413

HF10 Side-Mount Filter Fan, 115V 159CFM, Black
HF13 Side-Mount Filter Fan, 48V 395CFM, Black

HF1348413

HF13 Side-Mount Filter Fan, 48V 395CFM, Black

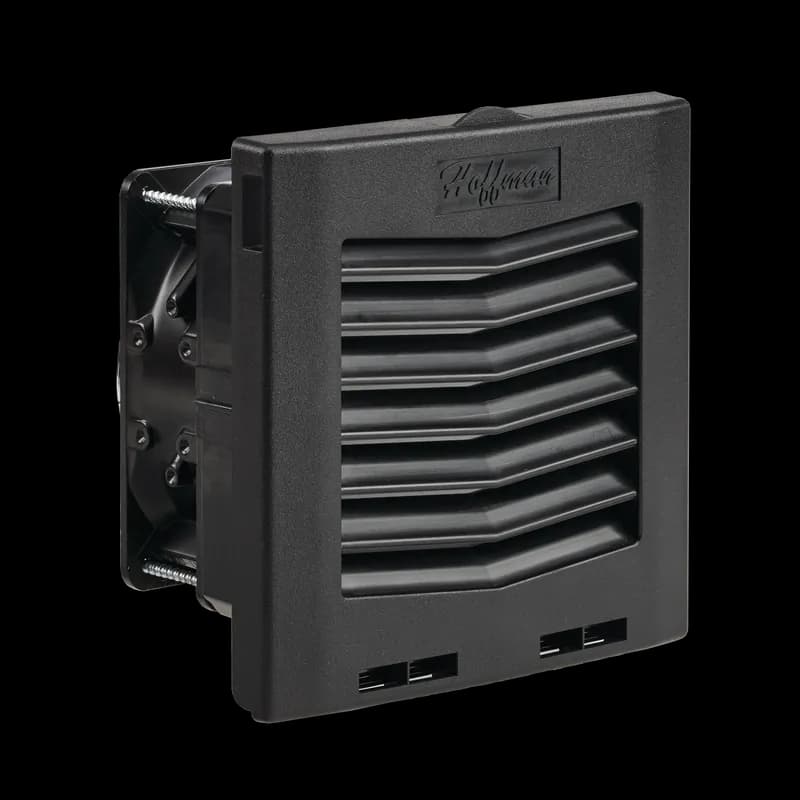

HF05 Side-Mount Filter Fan, 48V 35CFM, Black

HF0548413

HF05 Side-Mount Filter Fan, 48V 35CFM, Black
HF13 Side-Mount Filter Fan, 115V 395CFM, Black

HF1316413

HF13 Side-Mount Filter Fan, 115V 395CFM, Black

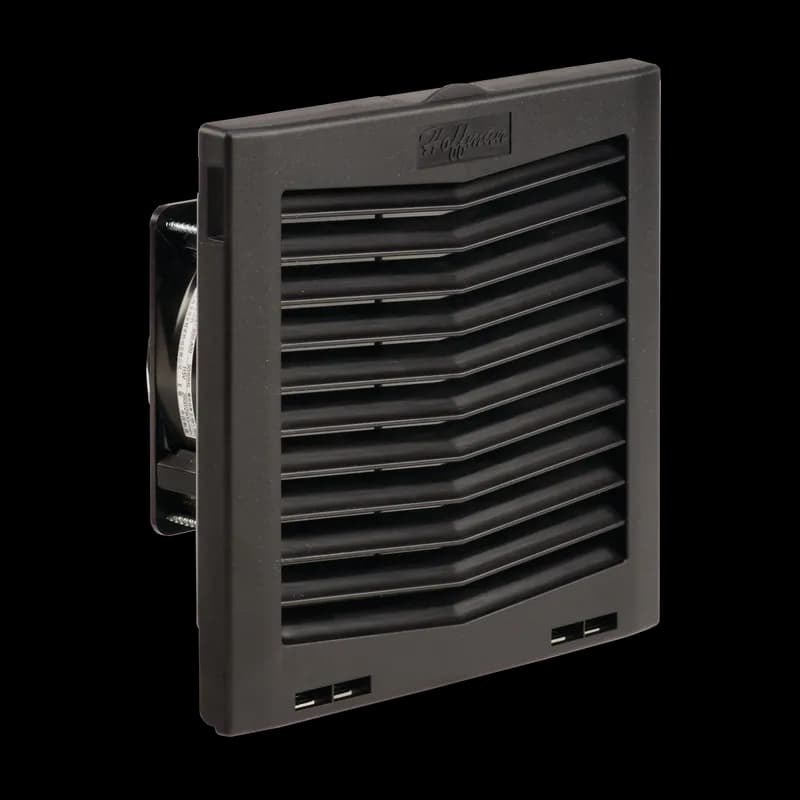

HF09 Side-Mount Filter Fan, 230V 33CFM, Black

HF0926513

HF09 Side-Mount Filter Fan, 230V 33CFM, Black

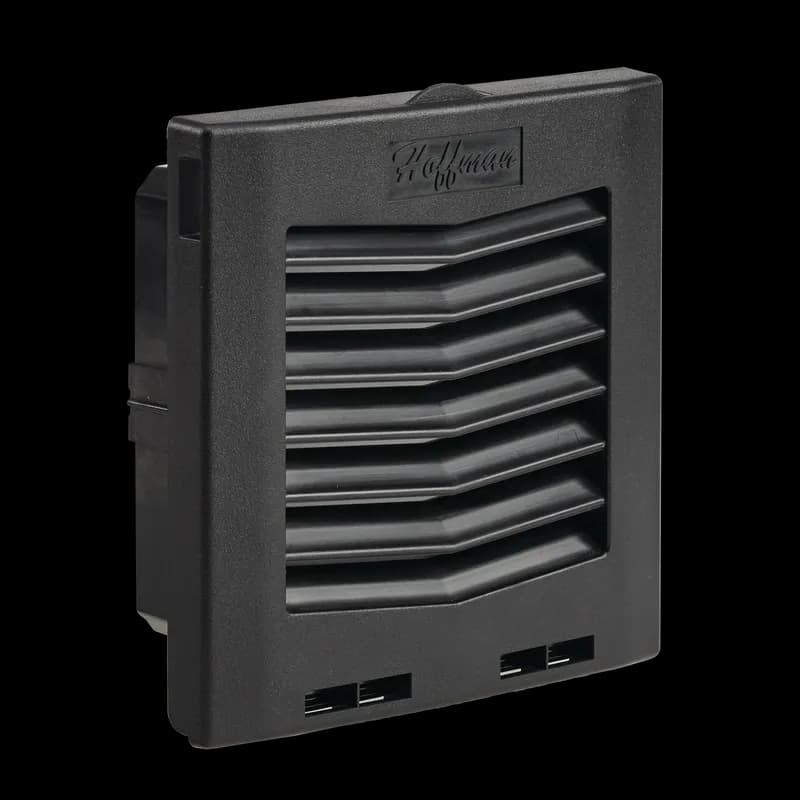

HG Filter Fan Exhaust Grille IP54, fits HF05 fans 5-inch, Black, Plastic
