Contact for Pricing
Overview

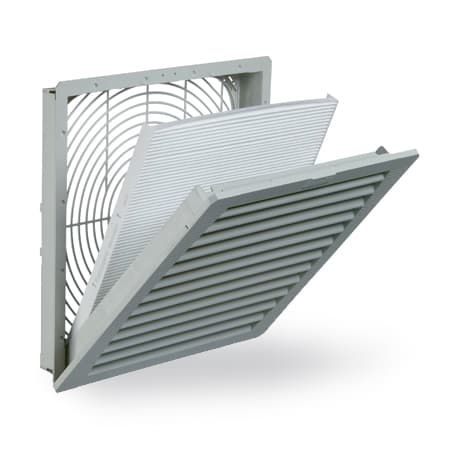

- Click-Fit design quickly installs into enclosure wall; no tools or screws required
- Opens with the flick of a finger for easy filter replacement
- Enclosure side wall mounting
- Reverse airflow option on HF13 models available to push/pull air through higher static pressure
- Standard rope gasket provides proper seal to the enclosure
- Similar cut-out sizes as other filter fan manufacturers
- Terminal block connections
- Optional thermostat available to save energy and extend service life
- Hinged grille remains attached after opening
- Size rage from 4 inch (102 mm) to 13 inch (325 mm)
Specifications
Airflow | 56 m³/h |
Airflow | 33 ft³/min |
Ambient Temperature | 14 to 131 deg F |
Ambient Temperature, Maximum | 131 F |
Ambient Temperature, Maximum | 55 C |
Ambient Temperature, Minimum | 14 F |
Ambient Temperature, Minimum | -10 C |
Amperage Rating | 0.12/0.10 A |
Application | Controls and Drives;Power Distribution |
Color | Graphite Black |
Color | Black |
Color Code | RAL 9011 |
Depth | 105 mm |
Depth | 4.15 in |
Finish | Smooth Matte |
Finish | Black;Smooth Matte |
Flow Rate | 33 CFM |
Height | 208 mm |
Height | 8.19 in |
Housing Material | Non-metallic |
IP Rating | IP55 |
Material | UV-resistant black plastic (RAL 9011) |
Material | UV-resistant plastic |
Material | Plastic |
Max Current | 0.12 A |
Mounting Type | Side-Mount |
Nema Rating | Type 12 |
Nominal Voltage | 230 V |
Operating Temperature | -40 to 60 |
Operating Temperature | 14-131 °F |
Series | HF09 |
Size | 8.19 x 8.21 x 4.15 in |
Type | Fans and Filter Fans |
Voltage AC | 200-250 V |
Voltage Rating | 230 V |
Voltage Rating | 230 VAC |
Weight | 3.18 lb |
Weight | 1 kg |
Width | 209 mm |
Width | 8.21 in |
Package Dimensions (L x W x H) | 10.25 IN x 10.25 IN x 8.5 IN |
Package Dimensions (L x W x H) | 26.035 cm x 26.035 cm x 21.59 cm |
Package Weight (Imperial) | 3.180 L |
Package Weight (Metric) | 1.442 kg |
How to Install the Side-Mount Filter Fans and Grilles
This guide provides step-by-step instructions for installing side-mount filter fans and grilles in an enclosure.
Estimated time: 45m
Tools needed:
Screwdriver, Wire strippers, Drill, Torque wrench
Supplies needed:
Mounting screws, Terminal connectors, Cutout template
- Prepare the enclosure
Apply the cutout template to the desired location on the side of the enclosure and cut out the hole using the appropriate size for your model.
- Insert the fan or grille
Deburr the cutting edge and insert the fan or grille into the opening until all four corners snap and lock securely.
- Install mounting fasteners
If the enclosure material thickness is between 0.10 (2.5 mm) and 0.14 (3.5 mm), install mounting fasteners by removing the grille and drilling out the necessary holes. Torque the fasteners to 20-25 in-lbs (2.3-2.8 Nm).
- Wire the filter fan
Follow the wiring diagrams provided for your specific model to connect the filter fan correctly.
- Verify clearance
Ensure that the installed filter fan has a minimum clearance of 7.00 (178 mm) from any obstructions.
