Contact for Pricing
Overview

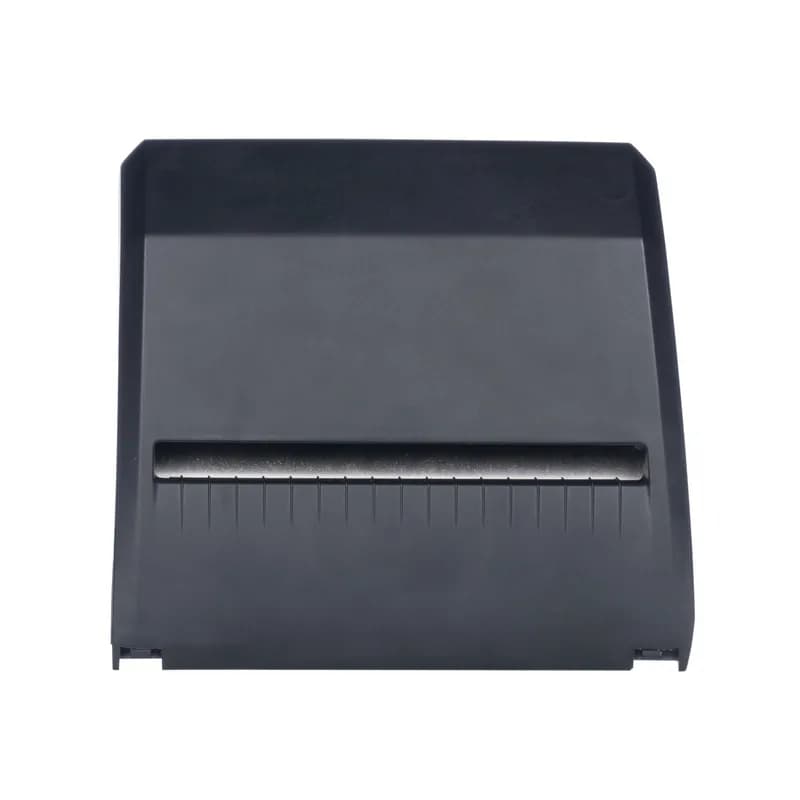

- Automatic perforation cutting for thermal transfer labels
- Seamless integration with Panduit DP4300M desktop printers
- Eliminates manual cutting for improved workflow efficiency
- Supports standard label widths compatible with DP4300M
- Compact desktop design for easy installation
Specifications
Type | Automatic Cutter Module |
Package Dimensions (L x W x H) | 5.5 IN x 9 IN x 6 IN |
Package Dimensions (L x W x H) | 13.97 cm x 22.86 cm x 15.24 cm |
Package Weight (Imperial) | 1.1000 L |
Package Weight (Metric) | 0.4990 kg |
LS8E-ACA
The 100 24-Her LS8E and LS8EQ Hand-Held Thermal Transfer Printers is part of the complete line of identification solutions from Panduit. It is available individually or as part of the printer kit.
DP4300H/E
The DP4300H/E Thermal Transfer Desktop Printer produces high-quality print-on-demand labels for a wide range of applications. Easily print raised panel labels, electrical component labels, network component labels, arc flash labels, and safety signs for equipment and facility identification. Includes 300 dpi printer, Easy-Mark™ Labeling Software, 1 roll of RHEH4BL black hybrid ribbon, USB cable, quick start guide, UK, Germany, Switzerland, and China power cords; not for use in North America.
DP4300M
The DP4300M Thermal Transfer Desktop Printer has 300 dpi resolution and 5.9" per second maximum print speed. Print a variety of self-laminating labels, component labels, non-laminated labels, heat-shrink labels, marker plates, and continuous tapes up to 4" wide. It includes Easy-Mark™ Labeling Software, RMEH4BL black hybrid ribbon, a USB cable, a user manual, a quick start card, and US power cord. For use in North America.
DP4300HD/E
The DP4300HD/E Two-Sided Thermal Transfer Desktop Printer produces high-quality print-on-demand labels for wire and cable marking applications using Panduit Two-Sided Heat Shrink Labels. This solution is ideal for labeling in OEM, MRO, and Construction. Includes 300 dpi printer w/ Touch Screen, Easy-Mark™ Labeling Software, 2 rolls of RHEH4BL Black Hybrid Ribbons, USB Cable, Quick Start Guide and Power Cords for UK, Germany, Switzerland, and China. Not for use in North America.
DP4300HD
The DP4300HD Two-Sided Thermal Transfer Desktop Printer produces high-quality print-on-demand labels for wire and cable marking applications using Panduit Two-Sided Heat Shrink Labels. This solution is ideal for labeling in OEM, MRO, and Construction. Includes 300 dpi printer w/ Touch Screen, Easy-Mark™ Labeling Software, 2 rolls of RHEH4BL Black Hybrid Ribbons, USB Cable, Quick Start Guide and US Power Cord. For use in North America.
DP4300M/E
The DP4300M/E Thermal Transfer Desktop Printer has 300 dpi resolution and 5.9" per second maximum print speed. Print a variety of self-laminating labels, component labels, non-laminated labels, heat-shrink labels, marker plates, and continuous tapes up to 4" wide. It includes Easy-Mark™ Labeling Software, RMEH4BL black hybrid ribbon, a USB cable, a user manual, a quick start card, and EU, UK, Swiss, Australia, and China power cords; for use outside of North America.Frequently Asked Questions
What printers is the DP4300M-PCUT compatible with?
The DP4300M-PCUT is designed for use with Panduit DP4300M thermal transfer desktop printers.
Is the DP4300M-PCUT a standalone device?
No, it is an optional add-on module for the DP4300M thermal transfer printer.
Does the DP4300M-PCUT require manual operation?
No, the DP4300M-PCUT operates automatically during the printing process.
What type of labels does the DP4300M-PCUT support?
The cutter supports standard label widths compatible with the DP4300M printer.
How to Install and Set Up the DP4300M-PCUT Perforation Cutter
This guide provides step-by-step instructions for safely installing the DP4300M-PCUT perforation cutter onto a DP4300M series printer, loading material, and adjusting its initial settings.
Estimated time: 20m
- Disconnect Power and Remove Tear-off Plate
WARNING: Disconnect the printer from the electrical outlet before proceeding. Fold down the printer's tear-off plate, pull its axles out of the holders, and then remove the tear-off plate.
- Mount the DP4300M-PCUT Cutter
Ensure the printer is still disconnected from the electrical outlet. Put the snap arm of the cutter into the guide on the printer. Push the cutter's axles into the holders. Fold up the cutter until it snaps securely onto the printer.
- Load Material into the Printer and Cutter
Fold down the mounted cutter. Insert labels into the printer as per the printer's operator manual, ensuring the front edge of the media strip reaches through the cutter. Guide the labels into the cutter's slot and then fold up the cutter.
- Power On and Perform Initial Synchronization
Switch on the printer. The cutter will perform a synchronization action. Press the ' ' button on the control panel to move the media forward and perform an initial cut for synchronization. This synchronization is not necessary if the printhead was not opened between print jobs.
- Configure Cutter Settings via Software or Printer LCD
For primary control, adjust cutter options in Easy Mark Plus labeling software: Select 'Print Document', choose your printer, press 'Properties', select 'Accessories Options', then 'Perforator option', and adjust settings. Alternatively, for printer LCD adjustments, navigate to 'Setup > Cutting' to set 'Cut position' and 'Perforation level'. For continuous media, go to 'Setup > Labels' and select 'Continuous media' for the 'Label sensor' setting.
