Overview

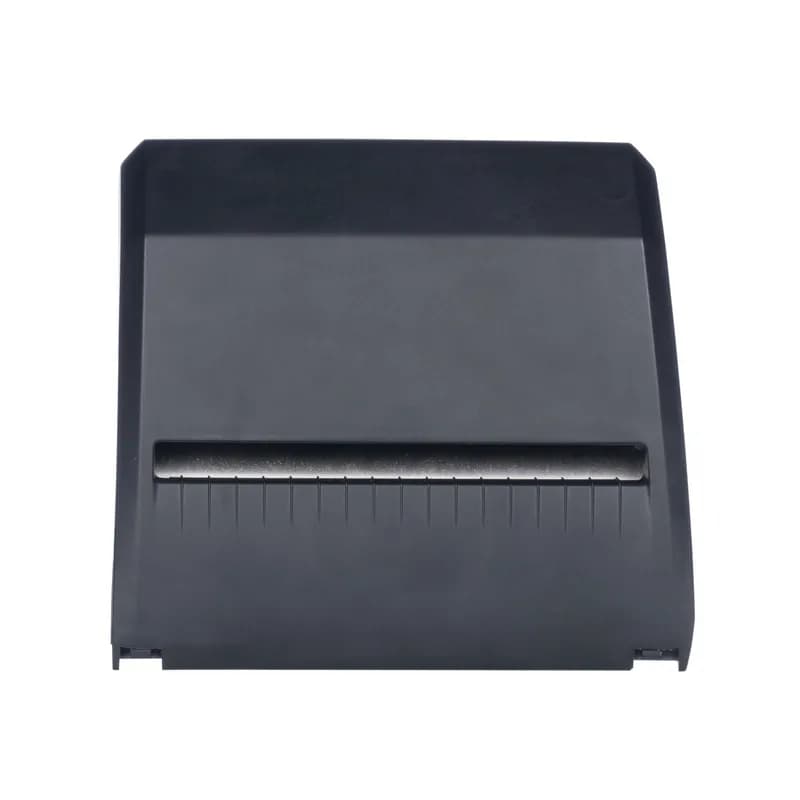

- Automatic label cutting for Panduit DP4300M thermal transfer printers
- Eliminates manual trimming, reducing waste and downtime
- Supports labels up to 4 inches wide
- Operates on 24V DC power for direct compatibility
- Space-saving design mounts directly to the printer
Specifications
Type | Automatic Cutter Module |
Package Dimensions (L x W x H) | 5.5 IN x 9 IN x 6 IN |
Package Dimensions (L x W x H) | 13.97 cm x 22.86 cm x 15.24 cm |
Package Weight (Imperial) | 1.1000 L |
Package Weight (Metric) | 0.4990 kg |
LS8E-ACA
The 100 24-Her LS8E and LS8EQ Hand-Held Thermal Transfer Printers is part of the complete line of identification solutions from Panduit. It is available individually or as part of the printer kit.
DP4300HD
The DP4300HD Two-Sided Thermal Transfer Desktop Printer produces high-quality print-on-demand labels for wire and cable marking applications using Panduit Two-Sided Heat Shrink Labels. This solution is ideal for labeling in OEM, MRO, and Construction. Includes 300 dpi printer w/ Touch Screen, Easy-Mark™ Labeling Software, 2 rolls of RHEH4BL Black Hybrid Ribbons, USB Cable, Quick Start Guide and US Power Cord. For use in North America.
DP4300M/E
The DP4300M/E Thermal Transfer Desktop Printer has 300 dpi resolution and 5.9" per second maximum print speed. Print a variety of self-laminating labels, component labels, non-laminated labels, heat-shrink labels, marker plates, and continuous tapes up to 4" wide. It includes Easy-Mark™ Labeling Software, RMEH4BL black hybrid ribbon, a USB cable, a user manual, a quick start card, and EU, UK, Swiss, Australia, and China power cords; for use outside of North America.
EZ-YHS34
EZL Wire Marker Label for Wire Range 2-4, Heat-Shrink Yellow Polyolefin, 3/4 inch, 5 feet lengthEZ-WHS34
EZL Wire Marker Label for Wire Range 2-4, Heat-Shrink White Polyolefin, 3/4 inch, 5 feet lengthEZ-YHS14
EZL Wire Marker Label for Wire Range 10-16, Heat-Shrink Yellow Polyolefin, 1/4 inch, 5 feet length
EZ-MP34
EZL Wire Marker Label for flat applications, Metallic Permanent Polyester, 3/4 inch, 18 feet lengthFrequently Asked Questions
What printers is the DP4300M-CUT compatible with?
The DP4300M-CUT is designed for use with Panduit DP4300M thermal transfer desktop printers.
What is the power requirement for the DP4300M-CUT?
The device operates on 24V DC power.
What label width does the DP4300M-CUT support?
The cutter supports labels up to 4 inches wide.
Is the DP4300M-CUT easy to install?
Yes, it mounts directly to the DP4300M printer without additional hardware.
How to Install, Operate, and Maintain the DP4300M-CUT Cutter
This guide provides step-by-step instructions for safely installing the DP4300M-CUT cutter onto a DP4300M series printer, loading material, performing standard and on-demand cutting operations, adjusting settings, and cleaning the unit.
Estimated time: 30m
Tools needed:
PTR-CLN cleaning kit
Supplies needed:
Labels/Media Strip
- Prepare for Installation
Disconnect the printer from the electrical outlet before beginning any installation or removal of the cutter. This is a critical safety measure to prevent electrical hazards.
- Remove Printer's Tear-off Plate
Fold down the existing tear-off plate on the printer. Pull the axles of the tear-off plate out of their holders and then completely remove the tear-off plate from the printer.
- Mount the DP4300M-CUT Cutter
Align the snap arm of the cutter with the guide on the printer. Push the cutter's axles into the corresponding holders on the printer. Fold up the cutter until it securely snaps into place on the printer.
- Load Material into the Cutter
Fold down the cutter. Place the media strip or labels between the printhead and the drive roller, ensuring the front edge of the strip extends through the cutter slot. Guide the labels into the slot and then fold up the cutter.
- Power On and Perform Synchronization Cut
Switch on the printer. The cutter will perform a synchronization action. Press the 'Feed' button (represented by a button icon in the manual) on the control panel to move the media forward and perform a synchronization cut.
- Adjust Cutter Settings via Easy Mark Plus Software
Open Easy Mark Plus labeling software. Select 'Print Document', then choose your printer and click 'Properties'. Navigate to 'Accessories Options', select the 'Perforator' option, and adjust the cutter settings as desired for your print job.
- Adjust Label Sensor Settings via Printer LCD
Access the printer's Start menu. Select 'Setup' then 'Labels'. Under 'Label sensor', choose the appropriate method for detecting the label's start, such as 'Gap Sensor', 'Bottom-Reflect', or 'Continuous media' if using continuous label material.
- Adjust Cut Position via Printer LCD
From the printer's Start menu, select 'Setup' then 'Cutting'. Adjust the 'Cut position' parameter to set the offset of the cut relative to the rear label edge. Note that software settings are added to this value.
- Enable and Use 'Cut on Demand' Mode
From the printer's Start menu, select 'Setup' then 'Printing'. Set 'Print on demand' to 'On'. Send a print job. Press the 'Feed' button to print and cut the first label, and press it again for each subsequent label you wish to print and cut individually.
- Clean the Cutter
For cleaning, first disconnect the printer from the electrical outlet. Carefully remove the cutter from the printer, being mindful of the sharp blades. Clean the cutter using a PTR-CLN cleaning kit. Once cleaned, reattach the cutter securely to the printer.
