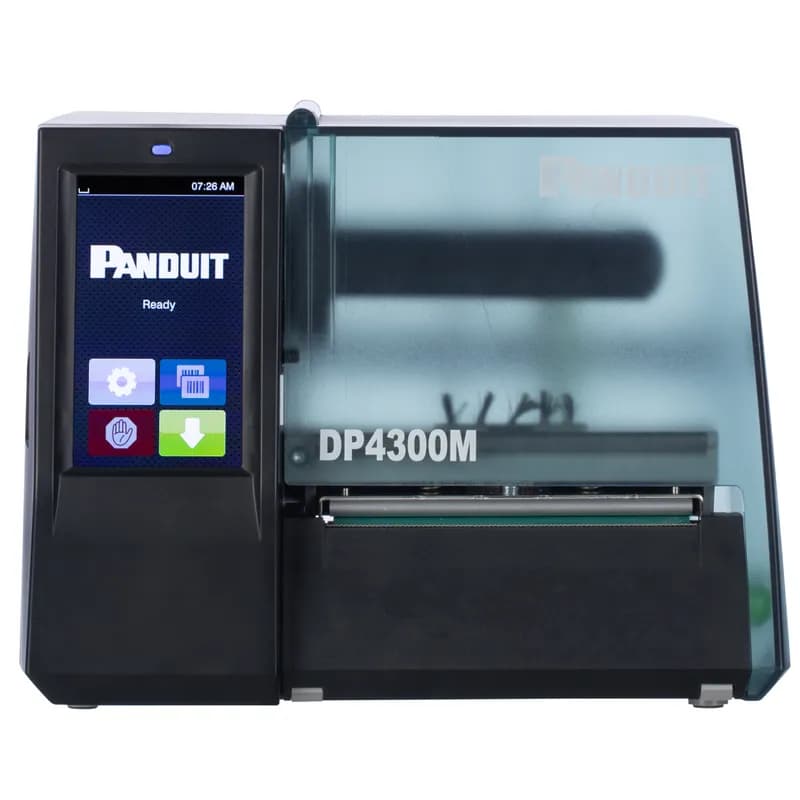

Panduit DP4300M The DP4300M Thermal Transfer Desktop Printer has 300 dpi resolution and 5.9" per second…
UPC: 613056897632
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 300 dpi print resolution for sharp text and graphics
- Maximum print speed of 5.9 inches per second
- Supports labels up to 4.16" wide and 78.74" long
- Includes Easy-Mark Plus™ Labeling Software and RMEH4BL black hybrid ribbon
- USB, Ethernet, serial, and optional Wi-Fi connectivity
Specifications
Connection Type | USB |
Printing Rate | 5.9 in/s |
Printing Rate | 149.86 mm/s |
Resolution | 300 dpi |
Series | DP4300M |
Size | 4 Inches (max media width) |
Standard | RoHS Compliant |
Type | Desktop Printer |
Package Dimensions (L x W x H) | 15 IN x 15 IN x 3 IN |
Package Dimensions (L x W x H) | 38.1 cm x 38.1 cm x 7.62 cm |
Package Weight (Imperial) | 10.0000 L |
Package Weight (Metric) | 4.5360 kg |
LS8E-ACA

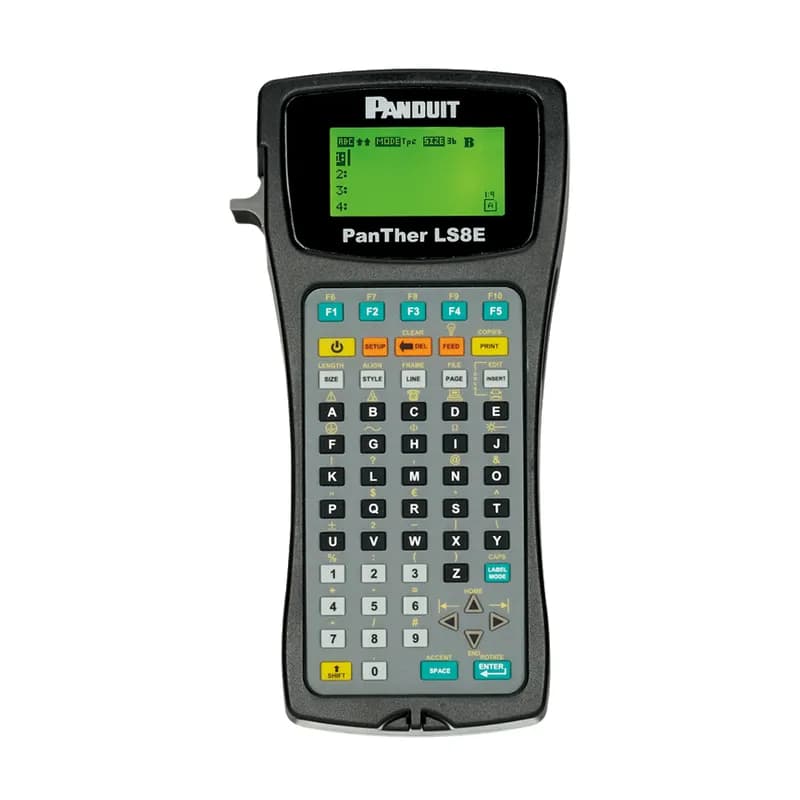

The 100 24-Her LS8E and LS8EQ Hand-Held Thermal Transfer Printers is part of the complete line of identification solutions from Panduit. It is available individually or as part of the printer kit.
DP4300HD/E
The DP4300HD/E Two-Sided Thermal Transfer Desktop Printer produces high-quality print-on-demand labels for wire and cable marking applications using Panduit Two-Sided Heat Shrink Labels. This solution is ideal for labeling in OEM, MRO, and Construction. Includes 300 dpi printer w/ Touch Screen, Easy-Mark™ Labeling Software, 2 rolls of RHEH4BL Black Hybrid Ribbons, USB Cable, Quick Start Guide and Power Cords for UK, Germany, Switzerland, and China. Not for use in North America.
DP4300HD
The DP4300HD Two-Sided Thermal Transfer Desktop Printer produces high-quality print-on-demand labels for wire and cable marking applications using Panduit Two-Sided Heat Shrink Labels. This solution is ideal for labeling in OEM, MRO, and Construction. Includes 300 dpi printer w/ Touch Screen, Easy-Mark™ Labeling Software, 2 rolls of RHEH4BL Black Hybrid Ribbons, USB Cable, Quick Start Guide and US Power Cord. For use in North America.
DP4300M/E
The DP4300M/E Thermal Transfer Desktop Printer has 300 dpi resolution and 5.9" per second maximum print speed. Print a variety of self-laminating labels, component labels, non-laminated labels, heat-shrink labels, marker plates, and continuous tapes up to 4" wide. It includes Easy-Mark™ Labeling Software, RMEH4BL black hybrid ribbon, a USB cable, a user manual, a quick start card, and EU, UK, Swiss, Australia, and China power cords; for use outside of North America.
MP500
Includes MP500 printer, 1 cassette of S150X150VAM2, USB cable, and power adapter (MP-ACS-2). For use in North America.
MP550
Includes MP550 printer, 1 cassette of S150X150VAM2, USB cable, Li-Ion Rechargeable battery pack, and power adapter (MP-ACS-2). For use in North America.Frequently Asked Questions
What is the purpose of Panduit's PanelMax Shielded Wiring Duct?
The shielded wiring duct is designed to reduce EMI/RFI noise, offering up to 20dB reduction, which can save panel space.
What types of cable ties are offered by Panduit?
Panduit offers Dome-Top barb ty cable ties and Panduit locking ties in various cross-sections like miniature, intermediate, and standard.
What adhesive types are available for Panduit adhesive backed cable tie mounts?
Panduit offers cable tie mounts with rubber-based adhesive for quick tack and high bond adhesive for a stronger bond.
What are the dimensions of the PanelMax DIN Rail Wiring Duct?
PanelMax DIN Rail Wiring Duct is available in 2 in., 3 in., and 4 in. heights. The width varies based on the specific model.
What material is the Flexible Wiring Duct made from?
The Flexible Wiring Duct is manufactured from polypropylene material.
What is the benefit of using Hinged Cover Wiring Duct?
Hinged cover wiring duct allows for easy access during maintenance and repair, as the cover remains attached.
What are the dimensions of the Wire Basket Overhead Cable Tray Routing System sections?
Basket sections for the Wire Basket Overhead Cable Tray Routing System are available in 118.33 inch lengths.
What is the purpose of the ABMQ Multiple Bridge Mount?
The ABMQ Multiple Bridge Mount secures up to four cable bundles with a large adhesive surface area and a dovetail feature for alignment.
What is the function of Panduit control panel mounts?
Control panel mounts provide strain relief for cables terminating to a control panel switch, securing terminated cables with a cable tie.
What is the purpose of the Dynamic Cable Manager?
The dynamic cable manager secures cable bundles routed across an enclosure door hinge, minimizing strain on the mount and wiring.
How to Install and Set Up the DP4300M Label Printer
This guide provides step-by-step instructions for unpacking, setting up, connecting, and performing initial material loading for the DP4300M Label Printer.
Estimated time: 45m
Tools needed:
Torx wrench TX10
Supplies needed:
Label roll, Transfer ribbon roll, Adhesive tape, Panduit cleaning kit (PTR-CLN)
- Unpack and Position the Printer
Carefully lift the DP4300M label printer from its packaging. Inspect the printer for any transport damage. Place the printer on a stable, level surface in a dry location, protected from splash water. Remove any foam transportation safeguards located near the printhead. Keep the original packaging for potential returns.
- Connect to Power Supply
Ensure the printer's power switch is in the OFF position. Connect the appropriate power cable into the power connection jack (20). Plug the other end of the power cable into a grounded electrical socket. Do not open the device casing, as there is a danger to life and limb from the power supply.
- Connect to Computer or Network
Connect the label printer to a computer or network using a suitable cable (e.g., USB or Ethernet). Ensure that all connected computers and cables are properly grounded to prevent malfunctions during operation.
- Power On the Printer
After all connections are secure, switch the printer ON using the power switch (19). Allow the printer to perform its system test; the display will show 'Ready' once complete.
- Load Label Media from Roll
Turn the ring (2) on the margin stop (1) counterclockwise and remove the margin stop from the roll retainer (4). Load the label roll (3) onto the roll retainer, ensuring the printing side of the labels faces upward. Re-mount the margin stop (1) and push it against the label roll until it touches both margin stops. Turn the ring (2) clockwise to lock it. Open the printhead by turning lever (8) counterclockwise. Adjust the guides (5) using knob (7) to be slightly wider than the material. Guide the label material below the roller (6) and through the print unit, ensuring it passes below the label sensor (9). Move the guides (5) close to the material edges without clamping. Lock the printhead by pressing the retainer down and turning lever (8) clockwise.
- Adjust the Label Sensor
Open the printhead. Press knob (3a) to release the sensor holder. Rotate knob (3) to position the sensor holder (1) so that the yellow LED marking the sensor position (2) aligns with the front edge of the label or any reflex/cut-out mark. Press knob (3a) again to lock the sensor in place. Close the printhead. This adjustment is primarily needed for materials with off-center marks, multi-strip, or irregularly shaped labels.
- Load Transfer Ribbon (If Not Direct Thermal)
If not performing direct thermal printing, load the transfer ribbon. First, clean the printhead (refer to the cleaning section for details). Open the printhead. Adjust the guide (1) on the ribbon supply hub (3) to match the transfer ribbon width by unlocking, sliding, and then locking it. Slide the transfer ribbon roll (5) onto the supply hub (3) with the color coating facing downward. Adjust the guide on the take-up hub (2) to the width of the ribbon core (4) and push the ribbon core onto the take-up hub. Guide the ribbon through the printing unit, ensuring it passes over the label sensor (6). Secure the ribbon's starting end to the transfer ribbon core (4) with adhesive tape, ensuring counterclockwise rotation. Turn the ribbon take-up hub (2) counterclockwise to smooth the ribbon's feed path. Close the printhead.
- Adjust Transfer Ribbon Feed Path (If Needed)
If the transfer ribbon wrinkles, adjust its feed path. Using a Torx wrench TX10, turn screw (1) to adjust the ribbon deflection (2). Turning clockwise tightens the outer edge of the ribbon, while turning counterclockwise tightens the inner edge. This adjustment is best performed during a test print.
