ABB - Installation Products SLK 102 M - Flood-Seal Street and Highway Lighting Mechanical Fuse and Disconnect Kits, In-Line Variable-Range, fused, conductor range stranded 1/0-2, and solid 2-14

ABB Installation Products SLK 102 M Flood-Seal Street and Highway Lighting Mechanical Fuse and Disconnect Kits, In-Line…

UPC: 783786752324

Documents & Media
Installation InstructionsManufacturer Product Website

Contact for Pricing

Minimum Qty: 50

Multiplier: 50

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB SLK 102 M Flood-Seal Street and Highway Lighting Mechanical Fuse and Disconnect Kit delivers reliable overcurrent protection and safe conductor disconnection for outdoor street and highway lighting systems. This in-line variable-range kit accommodates stranded conductors from 1/0 to 2 AWG and solid conductors from 2 to 14 AWG, ensuring broad compatibility with lighting circuits. The Flood-Seal design prevents moisture ingress, making it ideal for harsh outdoor environments with exposure to rain, humidity, and temperature fluctuations. The kit includes a fused disconnect mechanism for quick and safe maintenance without interrupting power to unaffected circuits. The variable-range design simplifies inventory management by reducing the need for multiple fuse sizes, streamlining procurement and installation. Installation requires identifying line and load side wires, matching housing body parts, and de-energizing the working area. The kit contains 1 Line End Housing, 1 Load End Housing, fuse clips, a connecting link, silicone grease, and an assembly dowel. For copper conductors only, insulation stripping lengths are 3/4" for 14-10 AWG and 3/8" for 8-4 AWG. The fuse clip must be crimped onto the conductor using recommended tools (T&B No. WT 111M or TBM-20S) and inserted to specified depths. The housing is mated after applying silicone grease to the fuse clip and cable ends. This kit is designed for municipalities, contractors, and utilities requiring durable, weather-resistant protection for street and highway lighting infrastructure.
  • Accommodates stranded conductors 1/0-2 AWG and solid conductors 2-14 AWG
  • Flood-Seal design prevents moisture ingress for harsh outdoor environments
  • In-line variable-range design reduces inventory needs with single kit
  • Includes fused disconnect for safe maintenance without power interruption

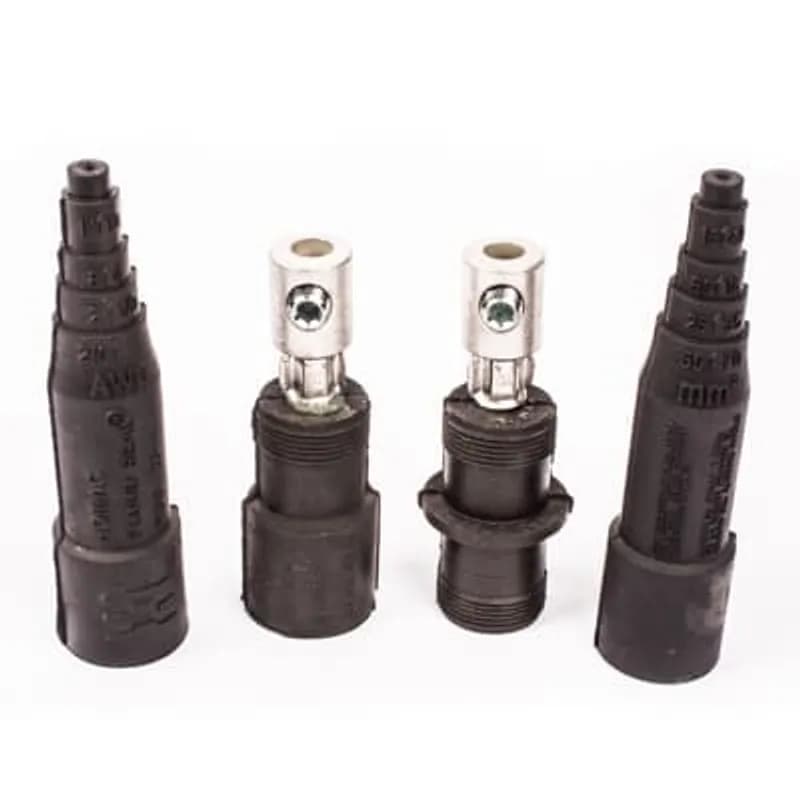

  • Contains Line/Load housings, fuse clips, connecting link, silicone grease, and assembly dowel

Specifications

Application
Rated 600 Volts, 30 Amps Maximum, perfect for heavy-duty applications
Conductor Range
1/0 to #2 STR AWG , #2 to #14 SOL AWG
Connection
Mechanical
Connection Type
In-Line
Insulation
True
Ip Rating
IP66/IP67
Material
EPDM-Rubber Housing
Material
Mechanical Fuse and Disconnect Kit
Material
Flood-Seal
Number of Conductors
2
Series
Flood-Seal Street and Highway Lighting
Series
SLK
Size
1/0-2 (stranded), 2-14 (solid)
Size
Stranded 1/0-2, Solid 2-14 AWG
Special Features
EPDM Rubber housing ensures a fully insulated, watertight and submersible connection. Safe separations - fuse or connecting link stays in load side when separated. Dual-rated and approved for a wide range of Aluminum or Copper Conductors
Type
Breakaway Street Light Kit Fused
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.0000 L
Package Weight (Metric)
0.4540 kg
Copper Flood-Seal Street and Highway Lighting Compression Non-Fused Kits - In-Line, Twin Housing, wire size stranded 2

SDT 2

Copper Flood-Seal Street and Highway Lighting Compression Non-Fused Kits - In-Line, Twin Housing, wire size stranded 2
Flood-Seal Street and Highway Lighting Mechanical Fuse and Disconnect Kits Y-Type with Crimped Lug Connectors, non-fused, wire size stranded 4, copper run, copper tap fused, installing dies 5/16,8,TP,29

DYC 4

Flood-Seal Street and Highway Lighting Mechanical Fuse and Disconnect Kits Y-Type with Crimped Lug Connectors, non-fused, wire size stranded 4, copper run, copper tap fused, installing dies 5/16,8,TP,29
Flood-Seal Street and Highway Lighting Mechanical Fuse and Disconnect Kits-In-Line, non-fused, twin housing ,conductor range stranded 12,10,8,6,4 and solid 12,10,8,6,4

SDT-M

Flood-Seal Street and Highway Lighting Mechanical Fuse and Disconnect Kits-In-Line, non-fused, twin housing ,conductor range stranded 12,10,8,6,4 and solid 12,10,8,6,4
Flood-Seal Street and Highway Lighting Mechanical Fuse and Disconnect Kits Y-Type with Crimped Lug Connectors, fused, wire size stranded 4, aluminum run copper tap fused, installing dies 52,BG,243,5/8

FYA 4

Flood-Seal Street and Highway Lighting Mechanical Fuse and Disconnect Kits Y-Type with Crimped Lug Connectors, fused, wire size stranded 4, aluminum run copper tap fused, installing dies 52,BG,243,5/8
Flood-Seal Street and Highway Lighting Mechanical Fuse and Disconnect Kits Y-Type with Crimped Lug Connectors, fused, wire size stranded 4, copper run, copper tap fused, installing dies 5/16,8,TP,29

FYC 4

Flood-Seal Street and Highway Lighting Mechanical Fuse and Disconnect Kits Y-Type with Crimped Lug Connectors, fused, wire size stranded 4, copper run, copper tap fused, installing dies 5/16,8,TP,29
Flood-Seal Street and Highway Lighting Mechanical Fuse and Disconnect Kits Y-Type with Crimped Lug Connectors, fused, wire size stranded 6 ,copper run, copper tap fused, installing dies J,7,TE,24

FYC 6

Flood-Seal Street and Highway Lighting Mechanical Fuse and Disconnect Kits Y-Type with Crimped Lug Connectors, fused, wire size stranded 6 ,copper run, copper tap fused, installing dies J,7,TE,24
Flood-Seal Street and Highway Lighting Mechanical Fuse and Disconnect Kits Y-Type with Crimped Lug Connectors, fused, wire size stranded 8 ,aluminum run copper tap fused, installing dies 1/4,6,TC,21

FYC 8

Flood-Seal Street and Highway Lighting Mechanical Fuse and Disconnect Kits Y-Type with Crimped Lug Connectors, fused, wire size stranded 8 ,aluminum run copper tap fused, installing dies 1/4,6,TC,21
Compression Lugs Crimped Onto Insulated Wire With Rockets/caps. Includes (2) Lugs with 1-Hole Pad 1/2-12 UNC-2B, (2) Insulating Caps without Liners, (2) Insulating Rockets, (2) Screws 1/2-13 x 1 inch long, and 15 inches of 350 kcmil Aluminum Wire.

URS 125 CSN

Compression Lugs Crimped Onto Insulated Wire With Rockets/caps. Includes (2) Lugs with 1-Hole Pad 1/2-12 UNC-2B, (2) Insulating Caps without Liners, (2) Insulating Rockets, (2) Screws 1/2-13 x 1 inch long, and 15 inches of 350 kcmil Aluminum Wire.

How to Install Flood-Seal Street Light Fuse Kits (SLK/SDK 102 M)

This guide provides step-by-step instructions for the safe and proper installation of Thomas & Betts Flood-Seal Street Light Fuse Kits (SLK/SDK series) for copper and aluminum conductors.

Estimated time: 45m

Tools needed:

Wire strippers, Torque wrench, Screwdriver

Supplies needed:

SLK/SDK Kit (line-end assembly, load-end assembly, 2 FSS 20 Flood-Seal Rockets, Silicone Grease), 13/32 inch cartridge fuse (for SLK kits, max 600V, non-glass)

  1. Ensure Safety and Identify Components

    WARNING: De-energize all associated wires and the working area completely to prevent electric shock. Installation must be performed by trained installers in accordance with all applicable local, state, and national electrical codes, installation standards, and safety rules. Identify the line-side and load-side wires and match them with the correct housing body parts (line-end assembly, load-end assembly).

  2. Prepare Cable Ends and Housings

    For both the line-end and load-end cables: Strip 3/4 inch of insulation from the cable end, exposing the conductor. Select the correct cut-off ring on the respective housing. Cut off the end housing at the tip of the arrow, leaving the correct cable size showing. Wipe the cable clean and pencil the end of the cable insulation for ease of installation. Apply silicone grease to the end of the cable and to the cut opening of the housing. CAUTION: Do NOT grease the sealing rings on the line-end housing.

  3. Insert and Secure Cables

    For both the line-end and load-end cables: Insert the prepared cable into its respective housing until it extends 2 to 3 inches beyond the housing. Insert the cable into the assembly and torque the set screw to 25 in-lbs to secure the conductor.

  4. Install Fuse or Connecting Link (Load-End Specific)

    For SLK Kits: Insert an appropriate 13/32 inch (maximum 600 Volt) cartridge fuse into the load-end assembly. Do NOT use a glass body fuse. For SDK Kits: Insert the provided connecting link into the load-end assembly in place of a fuse. Apply silicone grease to the sealing area of the load-end assembly.

  5. Final Assembly and Sealing

    Mate the "Flood-Seal" rocket to the line-end assembly to create a watertight seal. Mate the line-end housing to the load-end housing to establish the electrical connection and complete the unit's seal.
