ABB - Installation Products SDT 2 - Copper Flood-Seal Street and Highway Lighting Compression Non-Fused Kits - In-Line, Twin Housing, wire size stranded 2

ABB Installation Products SDT 2 Copper Flood-Seal Street and Highway Lighting Compression Non-Fused Kits - In-Line, Twin…

UPC: 783786044054

Documents & Media
Installation InstructionsManufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

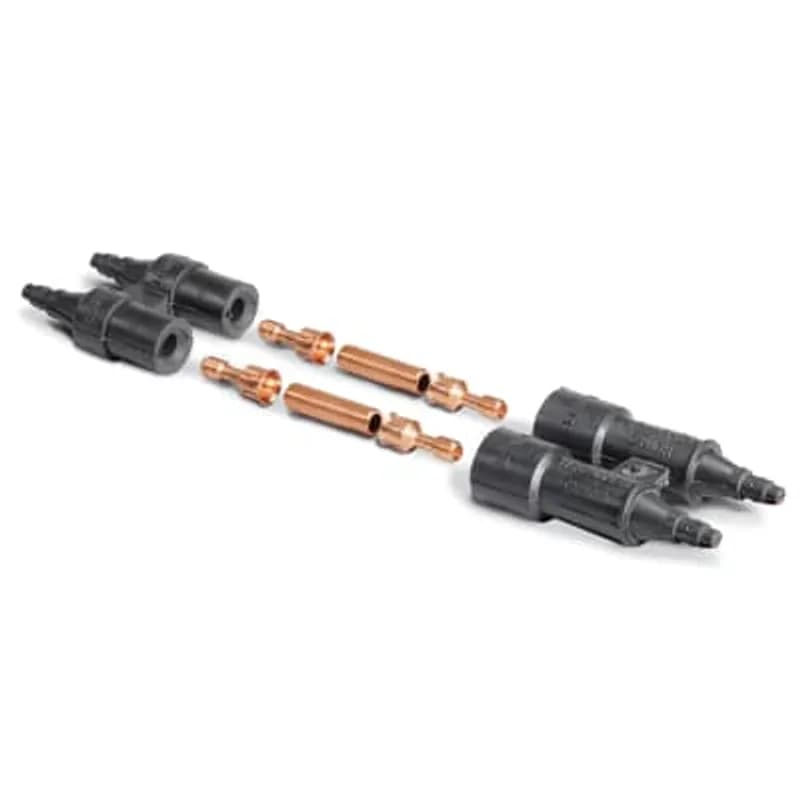

The ABB SDT 2 Copper Flood-Seal Compression Kit is a non-fused, in-line twin housing solution engineered for street and highway lighting applications requiring stranded wire size 2 (14-2 AWG) connections. This kit provides a moisture-resistant, corrosion-proof compression connection that maintains long-term conductivity under outdoor environmental stresses, including vibration and thermal cycling common in roadway lighting systems. Designed for 600V-rated circuits, the SDT 2 kit includes a line end housing, a load end housing, four fuse clips, one connecting link, silicone grease, and an assembly dowel. The flood-seal design ensures a watertight seal around the conductor, preventing moisture ingress that can lead to oxidation and connection failure. The twin housing configuration enables dual-point compression, enhancing mechanical stability and reducing the risk of loosening over time. Installation is simplified with pre-marked housing bodies and a depth gauge dowel to ensure proper crimp depth. The kit supports wire stripping lengths of 3/4" for 14-10 AWG and 3/8" for 8-4 AWG, with clear instructions to avoid pencil whipping insulation. The fuse clips are designed for copper conductors only and accommodate a 13/32" x 1-1/2" fuse (600V max), though the SDT 2 is a non-fused kit. The silicone grease included in the kit is applied to the conductor and housing cut openings to further enhance moisture resistance and ease of assembly. Ideal for new installations or maintenance of existing street and highway lighting systems, the SDT 2 kit is compatible with 120V–277V circuits. It is part of ABB’s Installation Products line, which is widely used in municipal, contractor, and utility applications where reliable, low-maintenance electrical connections are critical.
  • Non-fused, in-line twin housing design for stranded 14-2 AWG copper wire
  • Flood-seal moisture-resistant compression connection for outdoor durability
  • Includes line/load housings, 4 fuse clips, connecting link, silicone grease, and assembly dowel
  • 600V rated for 120V–277V street/highway lighting circuits
  • Simplified installation with pre-marked housings and depth gauge dowel

Specifications

Application
Rated 600 Volts, 30 Amps Maximum, perfect for heavy-duty applications
Conductor Range
#4 to #2 STR AWG , #2 SOL AWG
Connection
Compression
Connection Type
Compression
Insulation
True
Material
Copper
Material
EPDM-Rubber Housing
Mounting Type
In-Line, Twin Housing
Mounting Type
In-Line Twin Housing
Number of Conductors
4
Size
wire size stranded 2
Size
Stranded wire size 2
Special Features
EPDM Rubber housing ensures a fully insulated, watertight and submersible connection. Safe separations - fuse or connecting link stays in load side when separated. Breakaway design separates under tension so wires don't break
Type
Breakaway Street Light Kit Non-Fused
Voltage Rating
120-277 VAC
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
0.2000 L
Package Weight (Metric)
0.0910 kg
25 kV, 900 Amps, Short Shank Bushing with Stud, Apparatus Bushing, Tin Plated Copper Contact, Includes Instruction Sheet. CS2114 - for any customer

K675S1-CS2114

25 kV, 900 Amps, Short Shank Bushing with Stud, Apparatus Bushing, Tin Plated Copper Contact, Includes Instruction Sheet. CS2114 - for any customer
Copper-coated conductor 1,90m 63A x2

173G0412

Copper-coated conductor 1,90m 63A x2
Solenoid Valve Connectors, Accessory, Thumb screw, Cabled Form A, B, ISB, and FW ISC

V-25TB

Solenoid Valve Connectors, Accessory, Thumb screw, Cabled Form A, B, ISB, and FW ISC
Flood-Seal Street and Highway Lighting Mechanical Fuse and Disconnect Kits Y-Type with Crimped Lug Connectors, non-fused, wire size stranded 4, copper run, copper tap fused, installing dies 5/16,8,TP,29

DYC 4

Flood-Seal Street and Highway Lighting Mechanical Fuse and Disconnect Kits Y-Type with Crimped Lug Connectors, non-fused, wire size stranded 4, copper run, copper tap fused, installing dies 5/16,8,TP,29
Flood-Seal Street and Highway Lighting Mechanical Fuse and Disconnect Kits-In-Line, non-fused, twin housing ,conductor range stranded 12,10,8,6,4 and solid 12,10,8,6,4

SDT-M

Flood-Seal Street and Highway Lighting Mechanical Fuse and Disconnect Kits-In-Line, non-fused, twin housing ,conductor range stranded 12,10,8,6,4 and solid 12,10,8,6,4
Flood-Seal Street and Highway Lighting Mechanical Fuse and Disconnect Kits Y-Type with Crimped Lug Connectors, fused, wire size stranded 4, aluminum run copper tap fused, installing dies 52,BG,243,5/8

FYA 4

Flood-Seal Street and Highway Lighting Mechanical Fuse and Disconnect Kits Y-Type with Crimped Lug Connectors, fused, wire size stranded 4, aluminum run copper tap fused, installing dies 52,BG,243,5/8
Flood-Seal Street and Highway Lighting Mechanical Fuse and Disconnect Kits Y-Type with Crimped Lug Connectors, fused, wire size stranded 4, copper run, copper tap fused, installing dies 5/16,8,TP,29

FYC 4

Flood-Seal Street and Highway Lighting Mechanical Fuse and Disconnect Kits Y-Type with Crimped Lug Connectors, fused, wire size stranded 4, copper run, copper tap fused, installing dies 5/16,8,TP,29
Flood-Seal Street and Highway Lighting Mechanical Fuse and Disconnect Kits Y-Type with Crimped Lug Connectors, fused, wire size stranded 6 ,copper run, copper tap fused, installing dies J,7,TE,24

FYC 6

Flood-Seal Street and Highway Lighting Mechanical Fuse and Disconnect Kits Y-Type with Crimped Lug Connectors, fused, wire size stranded 6 ,copper run, copper tap fused, installing dies J,7,TE,24

How to Install the SDT 2 In-Line Fuse/Disconnect Kit

Comprehensive guide for the safe and correct installation of the Flood-Seal SDT 2 In-Line Fuse/Disconnect Kit. This process involves preparing cables, crimping fuse clips, and assembling the housing for a secure electrical connection.

Estimated time: 45m

Tools needed:

Wire strippers, T & B No. WT 111M Crimp Tool, T & B No. TBM-20S Crimp Tool

Supplies needed:

Line End Housing, Load End Housing, Fuse Clips (2 or 4 depending on kit), Connecting Link (for SDK/SDT kits), Silicone Grease, Assembly Dowel, 13/32 x 1-1/2 inch Fuse (600V max, non-glass body, if not using connecting link), Copper Cable (#14-2 AWG)

  1. De-energize and Identify Wires

    CAUTION: Identify Line and Load side wires and match housing body parts before installing. WARNING: All associated wires and working area must be de-energized to prevent electric shock. Installation must be performed by trained installers in accordance with all applicable codes and safety rules.

  2. Prepare Cable Conductors

    Strip insulation from the copper cable: 3/4 inch for 14 AWG to 10 AWG, and 3/8 inch for 8 AWG to 4 AWG. Do not pencil the insulation and do not exceed the specified strip length. Bevel the end of the cable insulation for easier installation.

  3. Prepare Line End Housing

    Select the correct cut-off ring on the Line End housing for the cable being used. Cut off the end of the housing at the tip of the arrow, ensuring the correct cable size is showing. Wipe the cable clean and apply silicone grease to the end of the cable and to the cut opening of the Line End housing.

  4. Insert Cable into Line End Housing

    Insert the prepared cable into the Line End housing until it extends 2 to 3 inches beyond the housing.

  5. Prepare Load End Housing and Cable

    Repeat steps 3 and 4 for the Load End housing and its corresponding cable.

  6. Crimp Fuse Clips onto Conductors

    Crimp the fuse clip onto the conductor according to the provided chart. For certain sizes, perform 2 crimps rotated 90 degrees. Use the recommended crimp tools and dies (T & B No. WT 111M or TBM-20S).

  7. Insert Fuse Clips into Housings

    Apply a small amount of silicone grease to the fuse clip. Slide the housing over the fuse clip until resistance is felt. Using the wood dowel as an assembly and depth gauge tool, insert the fuse clip to the depth indicated for the line and load side housings as marked on the dowel. DO NOT exceed these depths.

  8. Insert Connecting Link or Fuse

    Insert the connecting link (for SDK/SDT kits) or the appropriate fuse into the Load End housing. Ensure you use a 13/32 inch x 1-1/2 inch fuse (600V max) and do not use a glass body fuse.

  9. Mate Line End and Load End Housings

    Mate the Line End and Load End housings together to make the final electrical connection, ensuring they are securely joined.
