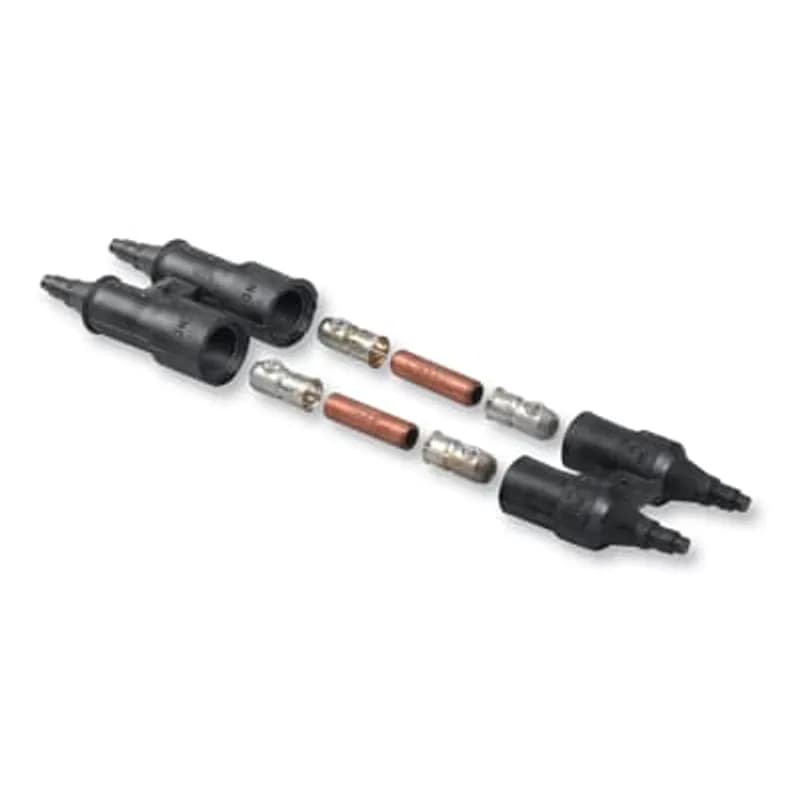

ABB - Installation Products SDT-M - Flood-Seal Street and Highway Lighting Mechanical Fuse and Disconnect Kits-In-Line, non-fused, twin housing ,conductor range stranded 12,10,8,6,4 and solid 12,10,8,6,4
ABB - Installation Products

SDT-M

UPC: 783786778010

Documents & Media
Manufacturer Product Website

Contact for Pricing

Overview

The ABB SDT-M Flood-Seal Street and Highway Lighting Mechanical Fuse and Disconnect Kit (SKU: SDT-M) is a non-fused, twin-housing in-line solution designed for reliable conductor disconnection in outdoor lighting applications. This kit supports stranded conductors from 12 AWG to 4 AWG and solid conductors from 12 AWG to 4 AWG, providing versatility for standard lighting circuits. The Flood-Seal design ensures environmental protection against moisture ingress, making it suitable for street and highway lighting installations exposed to weather conditions. The twin housing construction enhances durability and simplifies installation in confined or high-vibration environments typical of roadway lighting systems. As part of ABB’s Installation Products line, the SDT-M kit adheres to industrial-grade standards for mechanical integrity and electrical safety. It is ideal for maintenance personnel requiring quick, tool-free disconnection of lighting circuits without interrupting service to adjacent fixtures. The UNSPSC code 39121421 classifies this as a mechanical fuse and disconnect kit, confirming its alignment with industry specifications for roadway infrastructure. Use this kit where reliable, weather-resistant disconnection is required in street or highway lighting circuits.
  • Non-fused, twin-housing in-line mechanical fuse and disconnect kit
  • Supports stranded conductors: 12, 10, 8, 6, 4 AWG
  • Supports solid conductors: 12, 10, 8, 6, 4 AWG
  • Flood-Seal design for moisture resistance in outdoor environments
  • ABB Installation Products SKU: SDT-M, UNSPSC 39121421

Specifications

Application
Rated 600 Volts, 30 Amps Maximum, perfect for heavy-duty applications
Conductor Range
#12 to #4 STR AWG , #12 to #4 SOL AWG
Connection
Mechanical
Insulation
True
Material
EPDM-Rubber Housing
Number of Conductors
4
Series
SDT-M
Special Features
EPDM Rubber housing ensures a fully insulated, watertight and submersible connection. Safe separations - fuse or connecting link stays in load side when separated. Dual-rated and approved for a wide range of Aluminum or Copper Conductors
Type
Breakaway Street Light Kit Non-Fused
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.0000 L
Package Weight (Metric)
0.4540 kg
