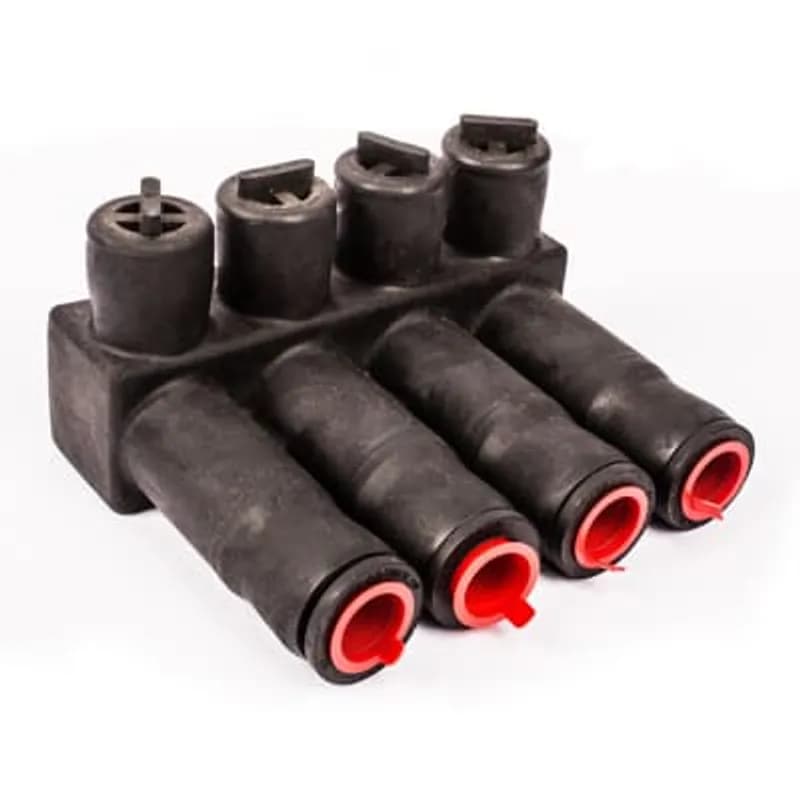

ABB - Installation Products RAB 55 C - Multi Seal, Aluminum Insulated Bus Connector, #10 - 500 kcmil, Five Conductor, Dual Rated Aluminum and Copper, 5 pieces

ABB Installation Products RAB 55 C Multi Seal, Aluminum Insulated Bus Connector, #10 - 500 kcmil, Five Conductor, Dual…

UPC: 783786745302


Documents & Media
Installation InstructionsManufacturer Product Website

Contact for Pricing

Minimum Qty: 50

Multiplier: 50

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB RAB 55 C is a five-conductor, dual-rated insulated bus connector designed for reliable electrical connections in underground distribution systems. This connector accommodates wire sizes ranging from #10 AWG to 500 kcmil (or 350 kcmil based on specific catalog data), making it versatile for various conductor gauges. Its multi-seal design, referred to as Flood-Seal, provides enhanced protection against environmental factors, suitable for URD direct burial, below-grade boxes, above-grade pedestals, and street light taps. Constructed from high-strength, high-conductivity 6061-T6 aluminum alloy bar with tin-plated screws and high-performance TPE compound insulation, it is dual-rated for use with both aluminum and copper conductors, offering flexibility in material selection for your installations. The connector is 100% hi-pot tested at 4000 V for 60 seconds to ensure safety and performance, with a voltage rating of 600 V and an operating temperature range of -40 °F to 194 °F (-40 °C to 90 °C). Each unit is supplied in a pack of 5 pieces, ensuring you have sufficient connectors for your project needs. This connector is suitable for applications requiring secure and insulated joining of multiple conductors, facilitating efficient power distribution and management within electrical systems. Its dual-rating simplifies inventory and application planning, as it can be used across different conductor types without compromising connection integrity. The robust construction and multi-seal feature contribute to the longevity and safety of the electrical connections it facilitates. The RAB 55 C model has a length of 6.00 inches (152 mm) and dimensions of 4.60" x 2.90" (117 mm x 74 mm). It is RUS accepted and ANSI C119.1 compliant.
  • Five-conductor, dual-rated insulated bus connector for aluminum and copper conductors.
  • Accommodates wire sizes from #10 AWG to 500 kcmil (or 350 kcmil).
  • Flood-Seal design for enhanced environmental protection, suitable for direct burial and pedestal applications.
  • Constructed from high-strength 6061-T6 aluminum alloy with tin-plated screws and TPE insulation.
  • 100% hi-pot tested at 4000 V, rated for 600 V and -40 °F to 194 °F (-40 °C to 90 °C).

Specifications

Application
Direct-Burial, Pedestal or Vault Applications
Color
Black
Conductor Range
#12 to 500 kcmil
Connection
Mechanical
Environmental Conditions
Waterproof
Insulation
yes
Material
Aluminum Connector, Santoprene Body
Material
Aluminum
Number Of Conductors
5
Number of Poles
5
Poles
5
Series
RAB
Size
length 7.5 inch, 191 mm
Size
#10 - 500 kcmil
Special Features
Comapct Design, Built Touch for Rugged Conditions
Standard
ANSI C119.1 and C119.4 and Western Underground C.G. 2.5
Type
Aluminum Flood-Seal Multi-Port Connector RAB 500 Series
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.9600 L
Package Weight (Metric)
0.8890 kg
Flood Seal, Aluminum Bus Connector, #12 - 500 kcmil, Aluminum and Copper, Bolt 1/2 inch, Six Tower

FS 6-125 CSN

Flood Seal, Aluminum Bus Connector, #12 - 500 kcmil, Aluminum and Copper, Bolt 1/2 inch, Six Tower
Aluminum Multi-Port Connectors - RAB 350 Series, conductor range 12 sol-350, length 6 inch, Oxide Inhibitor. Cap is attached by Strap.

RAB 5 C

Aluminum Multi-Port Connectors - RAB 350 Series, conductor range 12 sol-350, length 6 inch, Oxide Inhibitor. Cap is attached by Strap.
Aluminum Flood-Seal, Multi-Port Connector, RAB 1/0 Series, Conductor Range #14 - 1/0. Santoprene Coated. RUS Accepted. Total Outlets 3. Length 2-39/64 inch. Includes Caps and Screws. Contains Oxide Inhibitior.

RAB 1/0-3 C

Aluminum Flood-Seal, Multi-Port Connector, RAB 1/0 Series, Conductor Range #14 - 1/0. Santoprene Coated. RUS Accepted. Total Outlets 3. Length 2-39/64 inch. Includes Caps and Screws. Contains Oxide Inhibitior.
Multi Seal, Aluminum Insulated Bus Connector, #12 - 350 kcmil, Ten Conductor, Dual Rated Aluminum and Copper, 10 outlets. Cap is attached by Strap.

RAB 10 C

Multi Seal, Aluminum Insulated Bus Connector, #12 - 350 kcmil, Ten Conductor, Dual Rated Aluminum and Copper, 10 outlets. Cap is attached by Strap.
Aluminum Multi-Port Connectors - RAB 350 Series, conductor range 12 sol-350, length 7-1/8 inch, Oxide Inhibitor. Cap is attached by Strap.

RAB 6 C

Aluminum Multi-Port Connectors - RAB 350 Series, conductor range 12 sol-350, length 7-1/8 inch, Oxide Inhibitor. Cap is attached by Strap.
Multi Seal, Aluminum Insulated Bus Connector, #12 - 350 kcmil, Seven Conductor, Dual Rated Aluminum and Copper, 10 pieces. Cap is attached by Strap.

RAB 7 C

Multi Seal, Aluminum Insulated Bus Connector, #12 - 350 kcmil, Seven Conductor, Dual Rated Aluminum and Copper, 10 pieces. Cap is attached by Strap.
Multi Seal, Aluminum Insulated Bus Connector, #12 - 350 kcmil, Eight Conductor, Dual Rated Aluminum and Copper, 10 pieces. Cap is attached by Strap.

RAB 8 C

Multi Seal, Aluminum Insulated Bus Connector, #12 - 350 kcmil, Eight Conductor, Dual Rated Aluminum and Copper, 10 pieces. Cap is attached by Strap.
Multi Seal, Aluminum Insulated Bus Connector, #12 - 350 kcmil, Nine Conductor, Dual Rated Aluminum and Copper, 10 pieces. Cap is attached by Strap.

RAB 9 C

Multi Seal, Aluminum Insulated Bus Connector, #12 - 350 kcmil, Nine Conductor, Dual Rated Aluminum and Copper, 10 pieces. Cap is attached by Strap.

Frequently Asked Questions

Can this bus connector be used with both aluminum and copper conductors?

Yes, the ABB RAB 55 C is dual-rated, meaning it is designed for use with both aluminum and copper conductors, offering flexibility in installation.

What type of insulation is used on the ABB RAB 55 C connector?

The ABB RAB 55 C connector features high-performance TPE compound insulation, providing robust protection for the conductors.

What wire sizes does the ABB RAB 55 C connector support?

The ABB RAB 55 C connector supports wire sizes ranging from #10 AWG to 500 kcmil, or potentially 350 kcmil based on specific catalog data. It is designed for both solid and stranded conductors.

Is the ABB RAB 55 C connector suitable for underground applications?

Yes, the ABB RAB 55 C features a Flood-Seal design, making it suitable for URD direct burial, below-grade boxes, above-grade pedestals, and street light taps.

How to Install a Submersible Set Screw Junction (for RAB 500 Series)

This guide provides detailed instructions for the safe and proper installation of a submersible set screw junction, including conductor preparation, connection, and sealing procedures.

Estimated time: 45m

Tools needed:

Screwdriver, Wire strippers, Wire brush, Torque wrench, Utility knife

Supplies needed:

Silicone lubricant, Conductor cable

  1. Prepare for Installation and Safety Check

    Before starting, read and understand all instructions and safety information. WARNING: Disconnect all power to the apparatus before beginning installation to prevent risk of shock. Ensure the product is installed by a qualified electrician in accordance with national and local electrical codes. Verify all package contents are complete and undamaged, and that components fit properly with the cable and mating products. Have all required tools ready and maintain cleanliness.

  2. Prepare the Cable Seal Sleeve

    Remove the conductor cable seal sleeve from the bus. Select the appropriate ring on the sleeve based on your conductor size (e.g., #12-6, #4-2, #1-2/0, 3/0-4/0, 250-350 MCM). Cut the sleeve straight across the end of the chosen ring. For 400-500 kcmil wire sizes, use the conductor port without a sleeve.

  3. Prepare the Conductor Cable

    Wipe the end of the conductor insulation clean. Apply silicone lubricant to the conductor insulation. Slide the collar end of the prepared sleeve onto the cable so that 4 inches of the insulation are showing. Strip 1 3/8 inches of insulation from the conductor, using the strip length imprinted on the bus cover as a guide. Finally, use a wire brush to thoroughly clean the stripped conductor surface to remove oxides.

  4. Install and Secure the Conductor

    Loosen and back out the set screw to create sufficient clearance for the conductor. Insert the prepared conductor into the conductor port of the bus until it firmly hits the bottom. Verify that the sleeve tip is even with the end of the port, indicating full cable insertion. Refer to the torque table (e.g., #12-1/0: 110-120 in-lbs; 2/0-4/0: 200-250 in-lbs; 250-350: 300-400 in-lbs; 400-500: 360-500 in-lbs) and tighten the set screw to the specified inch-pounds for your conductor size. Install the set screw plug into its access port.

  5. Seal the Cable Connection

    Apply silicone lubricant to the outside of the sleeve on the ring marked 3/0-4/0. If this ring was removed, apply lubricant to the 250-350 ring instead. Carefully slide the lubricated cable seal sleeve into the port until its collar is flush against the end of the port. Repeat steps 2 through 5 for each additional conductor port as required.
