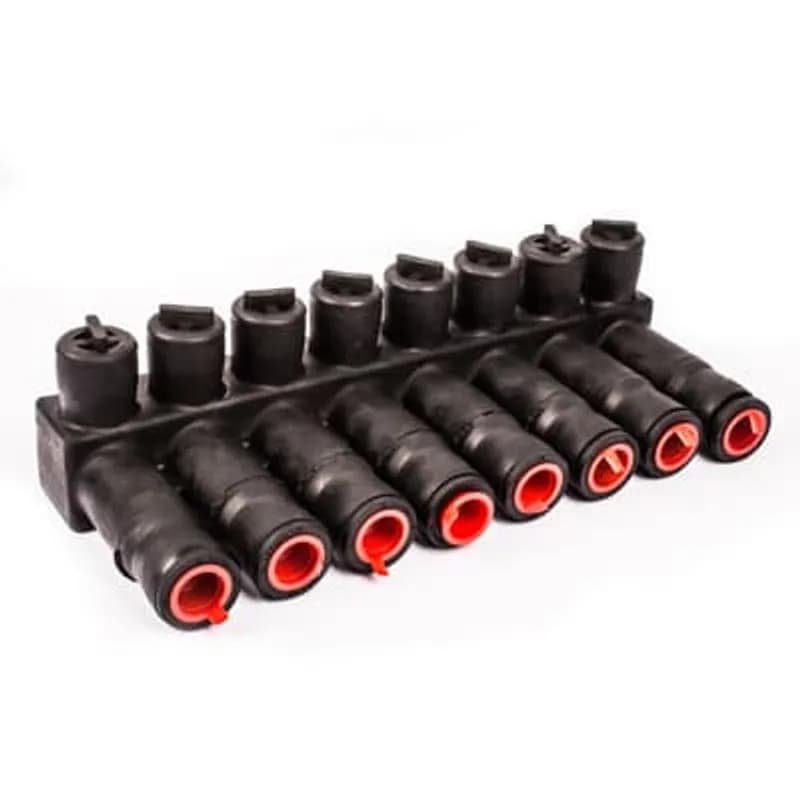

ABB - Installation Products RAB 85 C - Aluminum Flood-Seal Multi-Port Connectors - RAB 500 Series, cable range 12-500, length 12 inch, 305 mm, ports 8

ABB Installation Products RAB 85 C Aluminum Flood-Seal Multi-Port Connectors - RAB 500 Series, cable range 12-500, length…

UPC: 783786745456


Documents & Media
Installation InstructionsManufacturer Product Website

Contact for Pricing

Minimum Qty: 5

Multiplier: 5

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB RAB 85 C is an 8-port aluminum flood-seal multi-port connector from the RAB 500 Series, designed for terminating cables in the 12–500 mm² range. Measuring 12 inches (305 mm) in length, this connector provides a secure, waterproof seal for multiple cable entries in industrial and commercial installations. The aluminum construction ensures corrosion resistance and mechanical strength, while the flood-seal design prevents moisture ingress, making it suitable for outdoor and harsh environments. This connector is part of ABB’s RAB 500 Series, which is widely used in power distribution, control panels, and junction boxes where reliable cable management and environmental protection are required. The 8 ports allow for efficient bundling of multiple cables, reducing the need for individual gland entries and simplifying installation. The 12-inch length provides ample space for cable dressing and termination, accommodating standard industry practices. Key applications include industrial automation, renewable energy systems, and infrastructure projects where multi-cable terminations are common. The RAB 85 C is compatible with ABB’s range of installation products, ensuring consistency in system design and compliance with industry standards. For projects requiring durable, moisture-resistant multi-port connections, the RAB 85 C delivers a practical and reliable solution.
  • 8-port aluminum flood-seal multi-port connector
  • Supports cable range 12–500 mm²
  • 12 inch (305 mm) length for cable dressing
  • Flood-seal design prevents moisture ingress
  • Part of ABB RAB 500 Series for industrial use

Specifications

Application
Direct-Burial, Pedestal or Vault Applications
Color
Black
Conductor Range
#12 to 500 kcmil
Connection
Mechanical
Environmental Conditions
Waterproof
Insulation
yes
Material
Aluminum Connector, Santoprene Body
Number of Conductors
8
Number of Poles
8
Size
Length 12 inches (305 millimeters)
Special Features
Comapct Design, Built Touch for Rugged Conditions
Standard
ANSI C119.1 and C119.4 and Western Underground C.G. 2.5
Type
Aluminum Flood-Seal Multi-Port Connector RAB 500 Series
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
3.2000 L
Package Weight (Metric)
1.4520 kg
Flood Seal, Aluminum Bus Connector, #12 - 500 kcmil, Aluminum and Copper, Bolt 1/2 inch, Six Tower

FS 6-125 CSN

Flood Seal, Aluminum Bus Connector, #12 - 500 kcmil, Aluminum and Copper, Bolt 1/2 inch, Six Tower
Aluminum Flood-Seal Multi-Port Connectors - RAB 500 Series, cable range 12-500, length 6 inch, 152 mm, ports 4

RAB 45 C

Aluminum Flood-Seal Multi-Port Connectors - RAB 500 Series, cable range 12-500, length 6 inch, 152 mm, ports 4
Aluminum Flood-Seal Multi-Port EPDM Rubber Insulated Bus Connector - RXL 600 Series, Cable Range #6-600 kcmil, 6 Outlets - Side A has 4, Side B has 2. Oxide Inhibitor. 10.437 inch

RXL 600-42 C

Aluminum Flood-Seal Multi-Port EPDM Rubber Insulated Bus Connector - RXL 600 Series, Cable Range #6-600 kcmil, 6 Outlets - Side A has 4, Side B has 2. Oxide Inhibitor. 10.437 inch
Aluminum Flood-Seal Multi-Port Insulated Bus Connector - RXL 600 Series, Cable Range #6-600 kcmil, 6 Outlets all on Same Side.

RXL 600-6

Aluminum Flood-Seal Multi-Port Insulated Bus Connector - RXL 600 Series, Cable Range #6-600 kcmil, 6 Outlets all on Same Side.
Aluminum Flood-Seal Multi-Port Connectors - RMX Series, Cable entry one side only, length 21-3/4 inch, outlets 12

RXM 12

Aluminum Flood-Seal Multi-Port Connectors - RMX Series, Cable entry one side only, length 21-3/4 inch, outlets 12
Aluminum Flood-Seal Multi-Port Santoprene Insulated Bus Connector - RXL 350 Series, Cable Range #12-350 kcmil, 11.8 X 4.0 X 2.63 inch, outlets 8, Oxide Inhibitor. Includes Cable Adapters, Plugs, Caps, Screws.

RXL 8 C

Aluminum Flood-Seal Multi-Port Santoprene Insulated Bus Connector - RXL 350 Series, Cable Range #12-350 kcmil, 11.8 X 4.0 X 2.63 inch, outlets 8, Oxide Inhibitor. Includes Cable Adapters, Plugs, Caps, Screws.
Aluminum Flood-Seal Multi-Port Connectors - RMX Series, Cable entry from either side, length 7-1/4 inch, outlets 4

RXM 22

Aluminum Flood-Seal Multi-Port Connectors - RMX Series, Cable entry from either side, length 7-1/4 inch, outlets 4
Aluminum Flood-Seal Multi-Port Connectors - RMX Series, Cable entry one side only, length 3-1/16 inch, outlets 2

RXM 2

Aluminum Flood-Seal Multi-Port Connectors - RMX Series, Cable entry one side only, length 3-1/16 inch, outlets 2

How to Install the RAB Submersible Set Screw Junction

This guide provides step-by-step instructions for installing and wiring the RAB Submersible Set Screw Junction, including conductor preparation, connection, and sealing procedures. Ensure all safety precautions are followed.

Estimated time: 45m

Tools needed:

Wire strippers, Cutting tool, Wire brush, Torque wrench

Supplies needed:

Conductor cable, Silicone lubricant, Set screw plug

  1. Ensure Safety and Disconnect Power

    Before beginning installation, ensure all apparatus is de-energized and disconnect power to prevent risk of shock. This product must be installed by a qualified electrician in accordance with national and local electrical codes. Do not touch or move energized products.

  2. Remove Cable Seal Sleeve

    Carefully remove the conductor cable seal sleeve from the bus junction.

  3. Prepare Cable Seal Sleeve

    Select the appropriate ring on the cable seal sleeve based on your conductor size. Cut the sleeve straight across the end of the selected ring. For 400-500 kcmil wire sizes, do not use a sleeve in the conductor port.

  4. Clean and Lubricate Conductor Insulation

    Wipe the end of the conductor insulation clean. Apply silicone lubricant to the conductor insulation to aid in installation.

  5. Position Cable Seal Sleeve

    Slide the collar end of the prepared sleeve onto the cable. Ensure that approximately 4 inches of the conductor insulation remains exposed.

  6. Strip Conductor Insulation

    Strip the insulation from the conductor. Use a precise strip length of 1 3/8 inches, as indicated on the bus cover.

  7. Clean Conductor Surface

    Use a wire brush to thoroughly clean the conductor, breaking up any oxides present on its surface to ensure good electrical contact.

  8. Prepare Set Screw Port

    Back out the set screw in the conductor port sufficiently to create the necessary clearance for inserting the conductor.

  9. Insert Conductor

    Insert the prepared conductor into the conductor port of the bus. Push until the conductor firmly hits the bottom of the port. Verify that the sleeve tip is even with the end of the port, indicating full cable insertion.

  10. Torque Set Screws

    Tighten the set screws to the specified torque values based on conductor size: #12 - 1/0 AWG/MCM: 110-120 in-lbs; 2/0 - 4/0 AWG/MCM: 200-250 in-lbs; 250 - 350 MCM: 300-400 in-lbs; 400 - 500 MCM: 360-500 in-lbs.

  11. Install Set Screw Plug

    Securely install the set screw plug into the access port.

  12. Lubricate Sleeve Exterior

    Apply silicone lubricant to the outside of the sleeve. If the 3/0-4/0 ring is present, lubricate it. If that ring has been removed, lubricate the 250-350 ring instead.

  13. Insert Sleeve into Port

    Carefully slide the lubricated sleeve into the port until its collar is flush against the end of the port, ensuring a proper seal.

  14. Repeat for All Conductor Ports

    Repeat steps 4 through 13 for each remaining conductor port on the junction bus.
