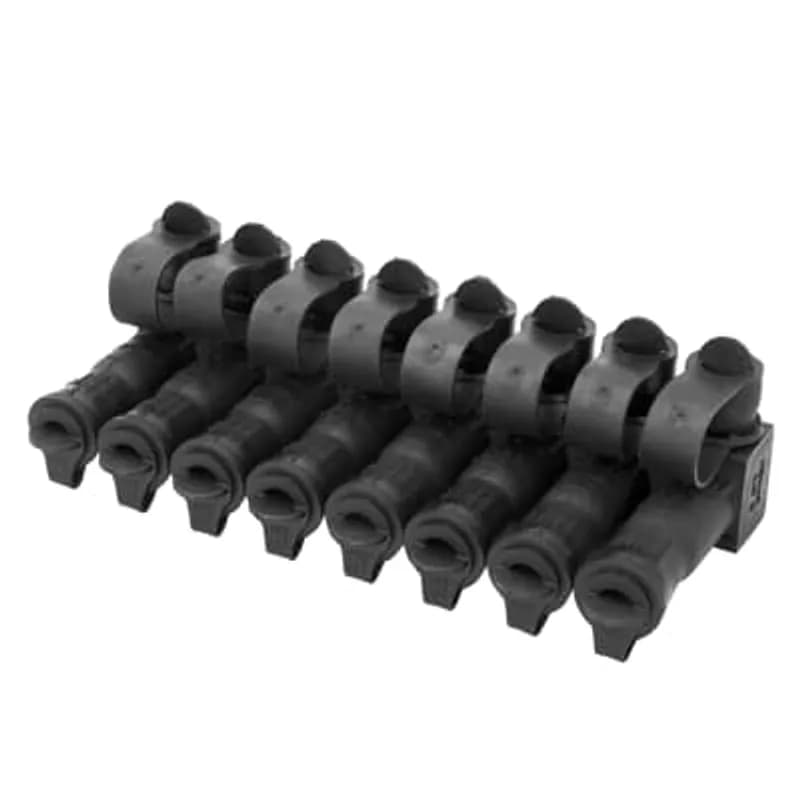

ABB - Installation Products RAB 8 C - Multi Seal, Aluminum Insulated Bus Connector, #12 - 350 kcmil, Eight Conductor, Dual Rated Aluminum and Copper, 10 pieces. Cap is attached by Strap.
More images

ABB Installation Products RAB 8 C Multi Seal, Aluminum Insulated Bus Connector, #12 - 350 kcmil, Eight Conductor, Dual…

UPC: 783786745432


Documents & Media
BrochureInstallation InstructionsManufacturer Product Website

Contact for Pricing

Minimum Qty: 10

Multiplier: 10

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB RAB 8 C Multi Seal Insulated Bus Connector is an eight-conductor, dual-rated aluminum and copper bus connector designed for reliable electrical terminations in power distribution systems. This connector supports conductor sizes from #12 AWG to 350 kcmil, making it suitable for heavy-duty industrial applications such as switchgear, control panels, and motor control centers. Each connector features an integrated cap secured by a strap, which seals unused ports to prevent moisture ingress and contamination. The aluminum construction ensures lightweight durability while maintaining high conductivity, and the insulated design reduces the risk of short circuits and electrical hazards. Installation is straightforward with clear strip-length markings on the connector body, and the included screw plug allows for easy cable insertion and removal. The connector must be torqued to 80 in/lbs for proper performance. The 10-piece pack provides cost-effective bulk purchasing for large-scale projects, ensuring consistent supply and reducing procurement complexity. Compatible with standard bus bar systems, the RAB 8 C simplifies multi-conductor terminations in high-current applications. Follow all safety precautions, including the use of insulating gloves rated for the appropriate voltage, when installing on energized circuits. Always adhere to local electrical codes and installation standards.
  • Eight-conductor design for multi-wire terminations
  • Dual-rated for aluminum and copper conductors (#12 to 350 kcmil)
  • Integrated cap with strap for sealing unused ports
  • Torque requirement: 80 in/lbs for secure connections
  • 10-piece pack for bulk purchasing and project efficiency

Specifications

Application
Dual-Rated Connector
Color
Black
Conductor Range
#12 to 350 kcmil
Connection
Mechanical
Environmental Conditions
Waterproof
Insulation
yes
Material
6061-T6 Aluminum Connector, Santoprene Body
Number of Conductors
8
Number of Poles
8
Size
Length 9-9/16 inch
Special Features
High Performance, Dual Rated Connectors
Standard
RUS Accepted
Type
Aluminum Flood-Seal Multi-Port Connector RAB 350 Series
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.5300 L
Package Weight (Metric)
0.6940 kg
Multi Seal, Aluminum Insulated Bus Connector, #12 Solid - 350 kcmil, Aluminum and Copper, Four Conductor. Outward Rocket.

RAB 4 OR

Multi Seal, Aluminum Insulated Bus Connector, #12 Solid - 350 kcmil, Aluminum and Copper, Four Conductor. Outward Rocket.
Multi Seal, Aluminum Insulated Bus Connector, #12 - 350 kcmil, Nine Conductor, Dual Rated Aluminum and Copper, 10 pieces. Cap is attached by Strap.

RAB 9 C

Multi Seal, Aluminum Insulated Bus Connector, #12 - 350 kcmil, Nine Conductor, Dual Rated Aluminum and Copper, 10 pieces. Cap is attached by Strap.
Aluminum Flood-Seal Multi-Port Santoprene Insulated Bus Connector - RXL 350 Series, Cable Range #12-350 kcmil, Four Conductor, Dual Rated Aluminum and Copper, 5.8 X 4.0 X 2.63 inch, outlets 4, Orange Plug, Oxide Inhibitor.

RXL 4 C-OP

Aluminum Flood-Seal Multi-Port Santoprene Insulated Bus Connector - RXL 350 Series, Cable Range #12-350 kcmil, Four Conductor, Dual Rated Aluminum and Copper, 5.8 X 4.0 X 2.63 inch, outlets 4, Orange Plug, Oxide Inhibitor.
Aluminum Flood-Seal Multi-Port Santoprene Insulated Bus Connector - RXL 350 Series, Cable Range #2 - 1000 kcmil, Five Conductor, Dual Rated Aluminum and Copper, 7.3 X 4.0 X 2.63 inch, outlets 5, Orange Plugs, Oxide Inhibitor. Includes Cable Adapters, Plugs, Caps, Screws.

RXL 5 C-OP

Aluminum Flood-Seal Multi-Port Santoprene Insulated Bus Connector - RXL 350 Series, Cable Range #2 - 1000 kcmil, Five Conductor, Dual Rated Aluminum and Copper, 7.3 X 4.0 X 2.63 inch, outlets 5, Orange Plugs, Oxide Inhibitor. Includes Cable Adapters, Plugs, Caps, Screws.
SweetHeart FloodSeal Aluminum Mechanical Connectors with Streetlight option, dual rated, Black PVC insulated, cable range feeder outlet / StreetLight #6-350 kcmil, outlets 3, length 5-1/8 inch, Comes with Tin Plated Screws and Flood Seal EPDM Rubber Rockets, but has Flood Seal Streetlight Santoprene Rocket (longer body, shorter nose) for Center Tower only. Grooved Wire Ports.

SHC 3 S

SweetHeart FloodSeal Aluminum Mechanical Connectors with Streetlight option, dual rated, Black PVC insulated, cable range feeder outlet / StreetLight #6-350 kcmil, outlets 3, length 5-1/8 inch, Comes with Tin Plated Screws and Flood Seal EPDM Rubber Rockets, but has Flood Seal Streetlight Santoprene Rocket (longer body, shorter nose) for Center Tower only. Grooved Wire Ports.
SweetHeart FloodSeal Aluminum Mechanical Connectors with Streetlight option, dual rated, Black PVC insulated, cable range feeder outlet / StreetLight #6-350 kcmil, outlets 7, length 12.625 inch, Comes with Tin Plated Screws and (6) Flood Seal EPDM Rubber Rockets and (1) FloodSeal Streetlight Santoprene Rocket (longer body, shorter nose). Grooved Wire Ports.

SHC 7

SweetHeart FloodSeal Aluminum Mechanical Connectors with Streetlight option, dual rated, Black PVC insulated, cable range feeder outlet / StreetLight #6-350 kcmil, outlets 7, length 12.625 inch, Comes with Tin Plated Screws and (6) Flood Seal EPDM Rubber Rockets and (1) FloodSeal Streetlight Santoprene Rocket (longer body, shorter nose). Grooved Wire Ports.
SweetHeart Mechanical Connectors, dual rated, Black PVC Insulated, cable range feeder outlet S/L 6-350, outlets 8, length 14-1/2 inch x 2.94 inch, with Rockets, Screws and Silicone Grease

SHC 8 CS

SweetHeart Mechanical Connectors, dual rated, Black PVC Insulated, cable range feeder outlet S/L 6-350, outlets 8, length 14-1/2 inch x 2.94 inch, with Rockets, Screws and Silicone Grease
NEMA Transformer Spade Adapters - Tin Plated Aluminum - TSC 4 series, (12) .562 inch Diameter Bolt Holes, L-Shaped - 7 inch x 6.5 inch, thickness 3/8 inch. 4-Hole Pad Side is 3 inches Wide with 1.75 inch centers,8-Hole Pad Side is 3.125 inch x 7 inch with 1.75 inch centers.

TSC 4-8 TN

NEMA Transformer Spade Adapters - Tin Plated Aluminum - TSC 4 series, (12) .562 inch Diameter Bolt Holes, L-Shaped - 7 inch x 6.5 inch, thickness 3/8 inch. 4-Hole Pad Side is 3 inches Wide with 1.75 inch centers,8-Hole Pad Side is 3.125 inch x 7 inch with 1.75 inch centers.

Frequently Asked Questions

What is the cap on the RAB 8 C secured with?

The cap on the RAB 8 C is secured by a strap for a reliable and secure termination.

What conductor sizes does the RAB 8 C support?

The RAB 8 C supports conductor sizes from #12 to 350 kcmil for both aluminum and copper.

Is the RAB 8 C suitable for both aluminum and copper conductors?

Yes, the RAB 8 C is dual-rated for both aluminum and copper conductors.

How many conductors can the RAB 8 C handle?

The RAB 8 C is designed for eight conductors, making it suitable for multi-wire connections.

Is the RAB 8 C connector insulated?

Yes, the RAB 8 C features an insulated aluminum design to enhance safety and prevent short circuits.

How to Install RAB 350 Series Connectors

This guide provides step-by-step instructions for installing RAB 350 series connectors, including cable preparation, insertion, and proper torquing. Ensure all safety precautions are followed, especially when working with energized circuits.

Estimated time: 15m

Tools needed:

Wire strippers, Torque wrench

Supplies needed:

Cable

  1. Prepare the Rocket (if applicable)

    For #12 to 250 kcmil cables, cut the rocket at the marked ring. For 300/350 kcmil cables, the rocket is not required and should be removed if present. Reinsert the rocket into the connector if it was cut and is required for your specific cable size.

  2. Strip the Cable

    Measure the required cable strip length by aligning the cable alongside the markings on the connector's tower. Carefully strip the cable to this measured length.

  3. Insert the Cable

    Insert the stripped cable into the appropriate opening: use the tower for 300-350 kcmil cables or the rocket for #12-250 kcmil cables. Push the cable until the end of the conductor firmly touches the internal window.

  4. Remove the Screw Plug

    Locate the screw plug on the connector and remove it by pulling its attached tether.

  5. Torque the Connector

    WARNING: Danger of Electric Shock! If working on energized circuits, wear insulating gloves rated to the appropriate voltage and ensure the circuit is NOT UNDER LOAD. Use a torque wrench to tighten the connector to the values indicated on the tether. For #12 to #3 AWG, torque to 120 in-lb. For #2 to 350 kcmil, the acceptable torque range is 240-350 in-lb.

  6. Replace and Reseal Plugs

    Replace the screw plug into its opening. Then, reseal the connector by installing any attached plug into unused cable ports to ensure all ports are sealed.
