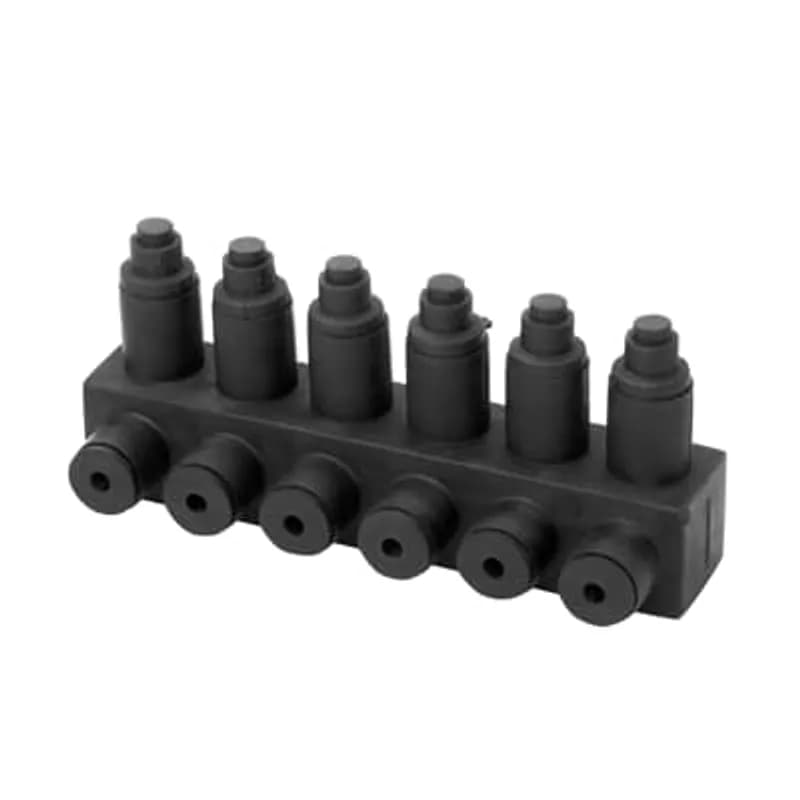

ABB - Installation Products RAB 6 C - Aluminum Multi-Port Connectors - RAB 350 Series, conductor range 12 sol-350, length 7-1/8 inch, Oxide Inhibitor. Cap is attached by Strap.
More images

ABB Installation Products RAB 6 C Aluminum Multi-Port Connectors - RAB 350 Series, conductor range 12 sol-350, length…

UPC: 783786745333


Documents & Media
BrochureInstallation InstructionsManufacturer Product Website

Contact for Pricing

Minimum Qty: 10

Multiplier: 10

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB RAB 6 C is a multi-port connector from the RAB 350 Series, designed for reliable electrical connections. Constructed from aluminum, this connector is suitable for a conductor range of 12 AWG stranded to 350 kcmil stranded conductors. Its overall length measures 7-1/8 inches, providing ample space for multiple conductor terminations. Each connector includes an oxide inhibitor to prevent corrosion and ensure long-term electrical integrity, especially critical in aluminum conductor applications. The attached cap is secured by a strap, simplifying installation and ensuring proper sealing. This connector is part of ABB's Installation Products line, known for its focus on practical, durable electrical components. The UNSPSC code for this product is 39121443. This connector is engineered for applications requiring secure, multi-wire terminations in electrical distribution and transmission systems where aluminum conductors are utilized. Its design prioritizes ease of use with the integrated strap and cap mechanism, while the oxide inhibitor addresses a common concern with aluminum conductor connections, promoting reduced resistance and heat buildup over time. The specific conductor range of 12 AWG sol to 350 kcmil sol makes it versatile for various feeder and branch circuit applications. Manufacturer: ABB - Installation Products. SKU: RAB 6 C.
  • Aluminum construction for conductor compatibility
  • Suitable for conductor range 12 AWG stranded to 350 kcmil stranded
  • Overall length of 7-1/8 inches
  • Includes oxide inhibitor for enhanced connection integrity
  • Cap attached by strap for secure installation

Specifications

Application
Dual-Rated Connector
Color
Black
Conductor Range
#12 to 350 kcmil
Connection
Mechanical
Connection Type
Multi-Port Connector
Environmental Conditions
Waterproof
Insulation
yes
Material
6061-T6 Aluminum Connector, Santoprene Body
Material
Aluminum
Number of Conductors
6
Number of Poles
6
Series
RAB 350
Size
7-1/8 inch
Size
Length 7-1/8 inches
Size
12 sol-350
Special Features
High Performance, Dual Rated Connectors
Standard
RUS Accepted
Type
Aluminum Flood-Seal Multi-Port Connector RAB 350 Series
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.1300 L
Package Weight (Metric)
0.5130 kg
Multi Seal, Aluminum Insulated Bus Connector, #12 Solid - 350 kcmil, Aluminum and Copper, Four Conductor. Outward Rocket.

RAB 4 OR

Multi Seal, Aluminum Insulated Bus Connector, #12 Solid - 350 kcmil, Aluminum and Copper, Four Conductor. Outward Rocket.
Multi Seal, Aluminum Insulated Bus Connector, #12 - 350 kcmil, Seven Conductor, Dual Rated Aluminum and Copper, 10 pieces. Cap is attached by Strap.

RAB 7 C

Multi Seal, Aluminum Insulated Bus Connector, #12 - 350 kcmil, Seven Conductor, Dual Rated Aluminum and Copper, 10 pieces. Cap is attached by Strap.
Multi Seal, Aluminum Insulated Bus Connector, #12 - 350 kcmil, Eight Conductor, Dual Rated Aluminum and Copper, 10 pieces. Cap is attached by Strap.

RAB 8 C

Multi Seal, Aluminum Insulated Bus Connector, #12 - 350 kcmil, Eight Conductor, Dual Rated Aluminum and Copper, 10 pieces. Cap is attached by Strap.
Multi Seal, Aluminum Insulated Bus Connector, #12 - 350 kcmil, Nine Conductor, Dual Rated Aluminum and Copper, 10 pieces. Cap is attached by Strap.

RAB 9 C

Multi Seal, Aluminum Insulated Bus Connector, #12 - 350 kcmil, Nine Conductor, Dual Rated Aluminum and Copper, 10 pieces. Cap is attached by Strap.
Aluminum Flood-Seal Multi-Port Santoprene Insulated Bus Connector - RXL 350 Series, Cable Range #12-350 kcmil, Four Conductor, Dual Rated Aluminum and Copper, 5.8 X 4.0 X 2.63 inch, outlets 4, Orange Plug, Oxide Inhibitor.

RXL 4 C-OP

Aluminum Flood-Seal Multi-Port Santoprene Insulated Bus Connector - RXL 350 Series, Cable Range #12-350 kcmil, Four Conductor, Dual Rated Aluminum and Copper, 5.8 X 4.0 X 2.63 inch, outlets 4, Orange Plug, Oxide Inhibitor.
Aluminum Flood-Seal Multi-Port Santoprene Insulated Bus Connector - RXL 350 Series, Cable Range #2 - 1000 kcmil, Five Conductor, Dual Rated Aluminum and Copper, 7.3 X 4.0 X 2.63 inch, outlets 5, Orange Plugs, Oxide Inhibitor. Includes Cable Adapters, Plugs, Caps, Screws.

RXL 5 C-OP

Aluminum Flood-Seal Multi-Port Santoprene Insulated Bus Connector - RXL 350 Series, Cable Range #2 - 1000 kcmil, Five Conductor, Dual Rated Aluminum and Copper, 7.3 X 4.0 X 2.63 inch, outlets 5, Orange Plugs, Oxide Inhibitor. Includes Cable Adapters, Plugs, Caps, Screws.
SweetHeart FloodSeal Aluminum Mechanical Connectors with Streetlight option, dual rated, Black PVC insulated, cable range feeder outlet / StreetLight #6-350 kcmil, outlets 3, length 5-1/8 inch, Comes with Tin Plated Screws and Flood Seal EPDM Rubber Rockets, but has Flood Seal Streetlight Santoprene Rocket (longer body, shorter nose) for Center Tower only. Grooved Wire Ports.

SHC 3 S

SweetHeart FloodSeal Aluminum Mechanical Connectors with Streetlight option, dual rated, Black PVC insulated, cable range feeder outlet / StreetLight #6-350 kcmil, outlets 3, length 5-1/8 inch, Comes with Tin Plated Screws and Flood Seal EPDM Rubber Rockets, but has Flood Seal Streetlight Santoprene Rocket (longer body, shorter nose) for Center Tower only. Grooved Wire Ports.
SweetHeart FloodSeal Aluminum Mechanical Connectors with Streetlight option, dual rated, Black PVC insulated, cable range feeder outlet / StreetLight #6-350 kcmil, outlets 7, length 12.625 inch, Comes with Tin Plated Screws and (6) Flood Seal EPDM Rubber Rockets and (1) FloodSeal Streetlight Santoprene Rocket (longer body, shorter nose). Grooved Wire Ports.

SHC 7

SweetHeart FloodSeal Aluminum Mechanical Connectors with Streetlight option, dual rated, Black PVC insulated, cable range feeder outlet / StreetLight #6-350 kcmil, outlets 7, length 12.625 inch, Comes with Tin Plated Screws and (6) Flood Seal EPDM Rubber Rockets and (1) FloodSeal Streetlight Santoprene Rocket (longer body, shorter nose). Grooved Wire Ports.

Frequently Asked Questions

What is the voltage rating for these connectors?

The Homac RAB 350 series connectors have a voltage rating of 600 V.

What is the operating temperature range for the connectors?

The connectors are designed to operate within a temperature range of -40 °F to 194 °F (-40 °C to 90 °C).

What is the length of the RAB 6 C connector?

The RAB 6 C connector has a length of 7.19 inches (183 mm).

How many outlets does the RAB 6 C connector have?

The RAB 6 C connector has 6 outlets.

What cable sizes are compatible with these connectors?

The connectors are compatible with #12 AWG solid through 350 kcmil cables, for both copper or aluminum conductors.

What is the length of the RAB 6 C connector?

The RAB 6 C connector has a length of 7.19 inches (183 mm).

How many outlets does the RAB 6 C connector have?

The RAB 6 C connector has 6 outlets.

What cable sizes are compatible with these connectors?

The connectors are compatible with #12 AWG solid through 350 kcmil cables, for both copper or aluminum conductors.

What is the operating temperature range for the connectors?

The connectors are designed to operate within a temperature range of -40 °F to 194 °F (-40 °C to 90 °C).

What is the voltage rating for these connectors?

The Homac RAB 350 series connectors have a voltage rating of 600 V.

How to Install RAB 350 Series Tap Connectors

This guide details the installation process for RAB 350 Series tap connectors, covering cable preparation, insertion, torquing, and sealing for #12 to 350 kcmil conductors. Always follow safety practices for energized circuits.

Estimated time: 20m

Tools needed:

Wire strippers, Torque wrench, Insulating gloves (rated to appropriate voltage)

Supplies needed:

Electrical cable, RAB 350 Series connector

  1. Prepare for Installation Safely

    Before starting, ensure all unused cable ports are sealed. If working on energized circuits, follow standard safety practices, wear insulating gloves rated to the appropriate voltage, and ensure tap conductors are NOT under load. Installation must be performed by trained installers in accordance with all applicable local, state, and national electrical codes, installation standards, and safety rules.

  2. Prepare the Rocket (Conditional)

    For #12 to 250 kcmil cables, remove the rocket from the connector, cut it at the marked ring, and then reinsert it. For 300 to 350 kcmil cables, the rocket is not required; proceed to the next step.

  3. Strip the Cable

    Measure the required strip length by placing the cable alongside the markings on the connector's tower. Carefully strip the insulation from the cable according to this measurement.

  4. Insert the Conductor

    Insert the stripped cable into the appropriate opening: use the tower for 300 to 350 kcmil cables, or the rocket for #12 to 250 kcmil cables. Push the conductor until its end touches the internal window.

  5. Torque the Connector

    Remove the screw plug by pulling its tether. Using a torque wrench, tighten the connector to the values indicated on the tether: 120 in-lb for #12 to #3, and 240 in-lb for #2 to 350 kcmil. The acceptable range for 2-350 kcmil is 240-350 in-lb.

  6. Seal the Connector

    Replace the screw plug. Then, reseal the connector completely by installing the attached plug.

  7. Final Check

    Verify that all connections are secure and all ports are properly sealed. If reinstalling a cable, ensure it is of the same size or larger than the one removed.
