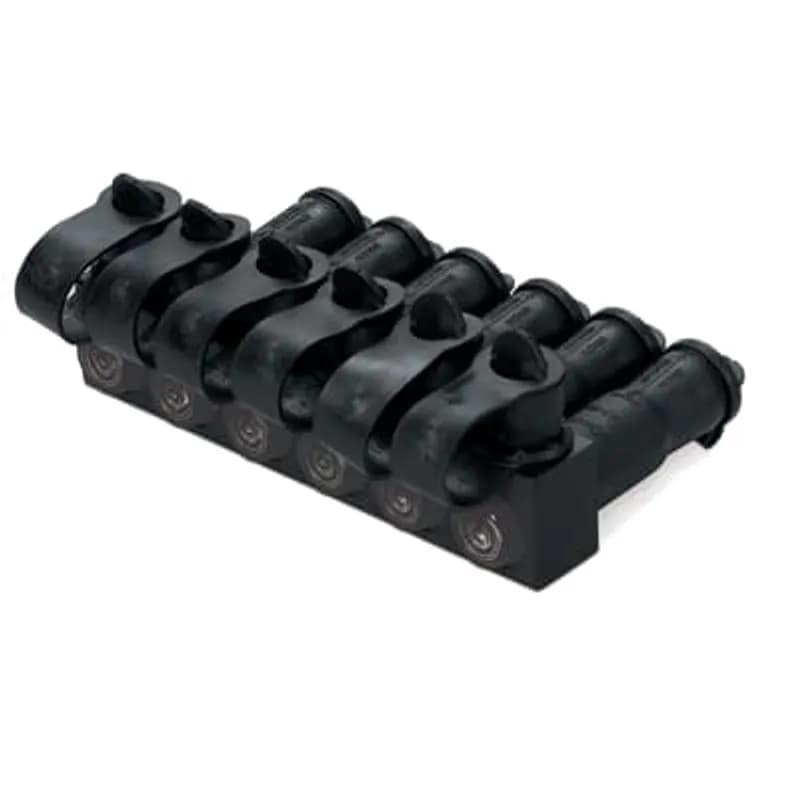

ABB Installation Products RAB 7 C Multi Seal, Aluminum Insulated Bus Connector, #12 - 350 kcmil, Seven Conductor, Dual…
UPC: 783786745418
Documents & Media
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- Dual-rated for aluminum and copper conductors
- Accommodates conductor sizes from #12 to 350 kcmil
- Seven-conductor design for multiple wire terminations
- Insulated construction for enhanced safety
- Cap attached by strap for secure insulation
Specifications
Application | Dual-Rated Connector |
Color | Black |
Conductor Range | #12 to 350 kcmil |
Connection | Mechanical |
Environmental Conditions | Waterproof |
Insulation | yes |
Material | 6061-T6 Aluminum Connector, Santoprene Body |
Number of Conductors | 7 |
Number of Poles | 7 |
Size | length 8.38 inch |
Special Features | High Performance, Dual Rated Connectors |
Standard | RUS Accepted |
Type | Aluminum Flood-Seal Multi-Port Connector RAB 350 Series |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 1.3400 L |
Package Weight (Metric) | 0.6080 kg |
RAB 4 OR
Multi Seal, Aluminum Insulated Bus Connector, #12 Solid - 350 kcmil, Aluminum and Copper, Four Conductor. Outward Rocket.
RAB 8 C
Multi Seal, Aluminum Insulated Bus Connector, #12 - 350 kcmil, Eight Conductor, Dual Rated Aluminum and Copper, 10 pieces. Cap is attached by Strap.RAB 9 C
Multi Seal, Aluminum Insulated Bus Connector, #12 - 350 kcmil, Nine Conductor, Dual Rated Aluminum and Copper, 10 pieces. Cap is attached by Strap.
RXL 4 C-OP
Aluminum Flood-Seal Multi-Port Santoprene Insulated Bus Connector - RXL 350 Series, Cable Range #12-350 kcmil, Four Conductor, Dual Rated Aluminum and Copper, 5.8 X 4.0 X 2.63 inch, outlets 4, Orange Plug, Oxide Inhibitor.RXL 5 C-OP
Aluminum Flood-Seal Multi-Port Santoprene Insulated Bus Connector - RXL 350 Series, Cable Range #2 - 1000 kcmil, Five Conductor, Dual Rated Aluminum and Copper, 7.3 X 4.0 X 2.63 inch, outlets 5, Orange Plugs, Oxide Inhibitor. Includes Cable Adapters, Plugs, Caps, Screws.
SHC 3 S
SweetHeart FloodSeal Aluminum Mechanical Connectors with Streetlight option, dual rated, Black PVC insulated, cable range feeder outlet / StreetLight #6-350 kcmil, outlets 3, length 5-1/8 inch, Comes with Tin Plated Screws and Flood Seal EPDM Rubber Rockets, but has Flood Seal Streetlight Santoprene Rocket (longer body, shorter nose) for Center Tower only. Grooved Wire Ports.SHC 7
SweetHeart FloodSeal Aluminum Mechanical Connectors with Streetlight option, dual rated, Black PVC insulated, cable range feeder outlet / StreetLight #6-350 kcmil, outlets 7, length 12.625 inch, Comes with Tin Plated Screws and (6) Flood Seal EPDM Rubber Rockets and (1) FloodSeal Streetlight Santoprene Rocket (longer body, shorter nose). Grooved Wire Ports.SHC 8 CS
SweetHeart Mechanical Connectors, dual rated, Black PVC Insulated, cable range feeder outlet S/L 6-350, outlets 8, length 14-1/2 inch x 2.94 inch, with Rockets, Screws and Silicone GreaseFrequently Asked Questions
What conductor sizes does the ABB RAB 7 C connector support?
The ABB RAB 7 C connector supports conductor sizes ranging from #12 AWG up to 350 kcmil.
Is the ABB RAB 7 C connector suitable for both aluminum and copper wires?
Yes, the ABB RAB 7 C is dual-rated, meaning it is designed for use with both aluminum and copper conductors.
How many conductors can be terminated with one ABB RAB 7 C connector?
The ABB RAB 7 C is a seven-conductor connector, allowing for the termination of multiple wires in a single unit.
What is the manufacturer of the RAB 7 C bus connector?
The ABB RAB 7 C bus connector is manufactured by ABB - Installation Products.
What is the purpose of the attached cap and strap on the RAB 7 C connector?
The cap is attached by a strap to help maintain insulation and protection for the conductors within the connector.
How to Install RAB 350 Series Connectors
This guide provides step-by-step instructions for the safe and correct installation of RAB 350 series connectors, including cable preparation, insertion, and torquing. Ensure all safety precautions are followed.
Estimated time: 30m
Tools needed:
Wire strippers, Torque wrench, Insulating gloves (rated to appropriate voltage)
Supplies needed:
RAB 350 series connector, Electrical cables (#12 to 350 kcmil)
- Observe Safety Precautions and Prepare for Installation
WARNING: Danger of Electric Shock! Installation must be performed by trained installers in accordance with all applicable local, state, and national electrical codes, installation standards, and safety rules. Follow standard safety practices when working on energized circuits. Wear insulating gloves rated to the appropriate voltage when installing on live conductors. If installing on an energized main, ensure tap conductors are NOT under load.
- Prepare the Rocket (if applicable)
If using 300/350 kcmil cables, remove the rocket from the connector as it is not required for these sizes. For #12 to 250 kcmil cables, cut the rocket at the marked ring. Reinsert the rocket into the connector if it was cut and is required for your specific cable size.
- Strip the Cable Insulation
Measure the required strip length by placing the cable alongside the markings on the connector's tower. Carefully strip the cable insulation to the measured length, ensuring a clean cut without damaging the conductor.
- Insert the Cable
Insert the stripped cable into the appropriate opening of the connector. For 300 to 350 kcmil cables, insert into the tower. For #12 to 250 kcmil cables, insert into the rocket. Push the cable until the end of the conductor touches the internal window.
- Torque the Connector
Remove the screw plug by pulling its tether. Using a calibrated torque wrench, tighten the connector to the specified values: 120 in-lb for #12 to #3 AWG, or 240-350 in-lb for #2 to 350 kcmil. Ensure the applied torque is within the acceptable range for your specific cable size.
- Seal the Connector
Replace the screw plug into its port. Reseal the connector by installing the attached plug. Additionally, ensure all unused cable ports on the connector are properly sealed to maintain integrity.
