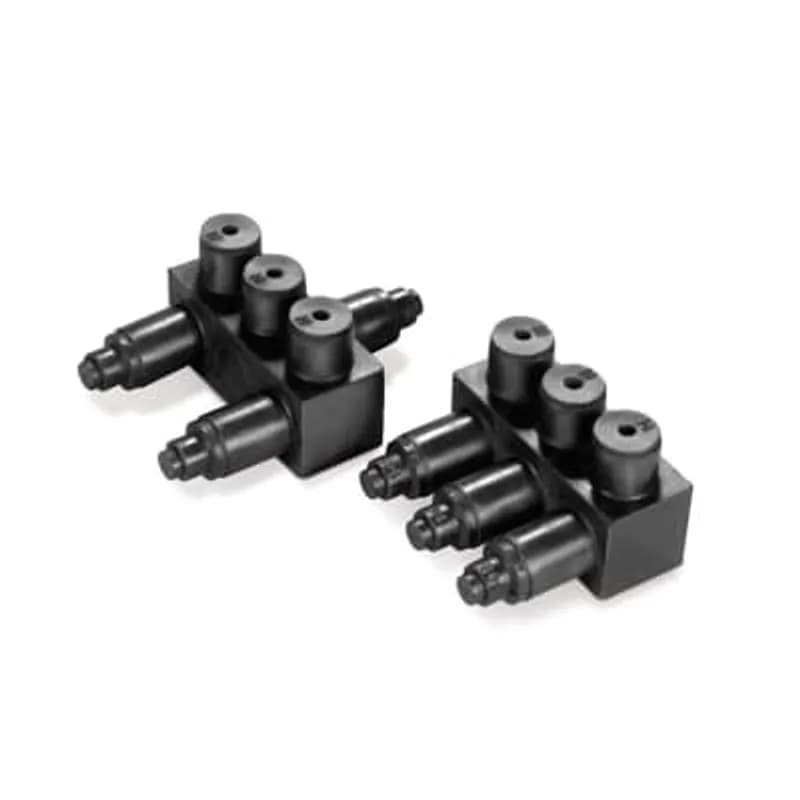

ABB Installation Products RAB 1/0-31 Aluminum Flood-Seal Multi-Port Connectors - RAB 1/0 Series, length 3-7/16 in outlets 4
UPC: 783786744978
Documents & Media
Contact for Pricing
Minimum Qty: 75
Multiplier: 75
*Contact for lower quantities*
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- High-strength 6061-T6 aluminum alloy construction for corrosion resistance
- Flood-Seal design for environmental ingress protection in URD applications
- Voltage rating: 600 V; temperature range: -40°F to 194°F (-40°C to 90°C)
- Dimensions: 4.60" x 2.90" (117 mm x 74 mm); 4 outlets for multi-service connections
Specifications
Application | Dual-Rated Connector |
Color | Black |
Conductor Range | #14 to 1/0 AWG |
Connection | Mechanical |
Environmental Conditions | Waterproof |
Insulation | yes |
Material | 6061-T6 Aluminum Connector, Santoprene Body |
Material | Aluminum |
Number of Conductors | 4 |
Number of Poles | 4 |
Poles | 4 |
Series | RAB 1/0 |
Series | RAB 1/0 Series |
Size | 3-7/16 inch |
Size | Length 3-7/16 inches |
Special Features | High Performance, Dual Rated Connectors |
Standard | RUS Accepted |
Type | Aluminum Flood-Seal Multi-Port Connector RAB 1/0 Series |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 0.3000 L |
Package Weight (Metric) | 0.1360 kg |
RAB 1/0-3 OP
Multi Seal, Aluminum Insulated Bus Connector, #14 - 1/0, Aluminum and Copper, Three Conductor, Orange Plug instead of Black
RAB 1/0-4
Aluminum Flood-Seal, Multi-Port Connector, RAB 1/0 Series, Conductor Range #14 - 1/0. Santoprene Coated. RUS Accepted. Total Outlets 4. Length 3-17/32 inch. Includes Caps and Screws.RAB 1/0-21
Aluminum Flood-Seal Multi-Port Connectors - RAB 1/0 Series, length 2-39/64 inch, outlets 3, 2 on one side, 1 on the other.RAB 1/0-2
Aluminum Flood-Seal, Multi-Port Connector, RAB 1/0 Series, Conductor Range #14 - 1/0. Santoprene Coated. RUS Accepted. Total Outlets 2. Length 1-3/4 inch. Includes Caps and Screws.RAB 1/0-32
Aluminum Flood-Seal, Multi-Port Connector, RAB 1/0 Series, Conductor Range #14 - 1/0. Santoprene Coated. RUS Accepted. Total Outlets 5 - alternating with 3 on one side and 2 on the other side. Length 4-25/64 inch. Includes Plugs, Caps and Screws.RAB 1/0-22
Aluminum Flood-Seal Multi-Port Connectors - RAB 1/0 Series, length 3-7/16 inch, outlets 4, two on each side
RAB 1/0-3
Aluminum Flood-Seal, Multi-Port Connector, RAB 1/0 Series, Conductor Range #14 - 1/0. Santoprene Coated. RUS Accepted. Total Outlets 3. Length 2-39/64 inch. Includes Caps and Screws.
SHC 2
Aluminum Flood-Seal Mechanical Connectors with Streetlight option, dual rated, PVC insulated, cable range feeder outlet S/L 6-350, outlets 2, length 3-1/4 inHow to Install the Multi-Seal® RAB 1/0 Series Connector
This guide provides step-by-step instructions for the safe and correct installation of the Multi-Seal® RAB 1/0 Series connector. It covers preparing the connector, stripping the cable, inserting it, and torquing the connection. Always follow local electrical codes and wear appropriate safety gear.
Estimated time: 15m
Tools needed:
Torque wrench, Wire strippers, Utility knife, Insulating gloves (rated to appropriate voltage)
Supplies needed:
Multi-Seal® RAB 1/0 Series connector, Electrical cable (appropriate size), Sealant for unused cable ports (if applicable)
- Observe Safety and Prepare Connector Cap
WARNING: Danger of Electric Shock! Ensure all installations are performed by trained personnel according to applicable electrical codes. Wear insulating gloves rated to the appropriate voltage when working on live conductors, and ensure tap conductors are not under load. If installing #14 to #4 AWG cable, first remove the cap, cut it at the correct cut-off ring, then reinsert it. For #2 to 1/0 AWG cable, the cap is not required. Ensure all unused cable ports are sealed.
- Remove the Screw Plug
Locate and remove the screw plug from the connector body.
- Measure and Strip the Cable
Place the cable alongside the markings on the bottom of the connector to measure the correct strip length. Carefully strip the cable insulation to the measured length. When reinstalling a cable, it must be of the same size or larger than the one removed.
- Insert Cable into Connector
Insert the prepared cable fully into the appropriate opening: into the tower for #2 to 1/0 AWG cables, or into the cap for #14 to #4 AWG cables. Ensure it is seated completely.
- Replace Plug and Torque Connector
Replace the screw plug into the connector. Using a torque wrench, tighten the connector to 80 in/lbs to ensure a secure and reliable electrical connection.
