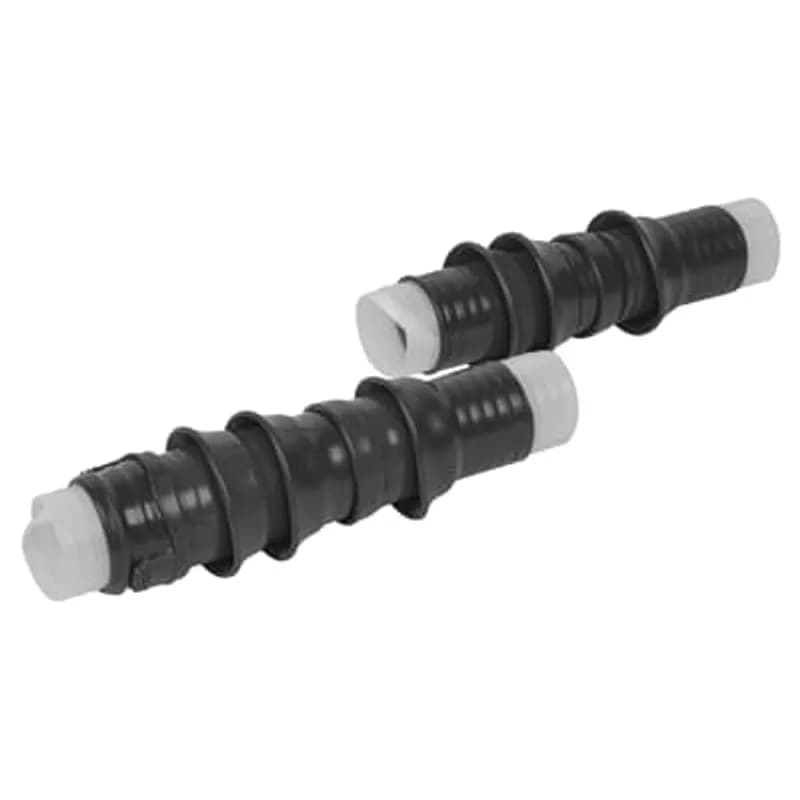

ABB Installation Products R2T28J2-N0230 Ranger2 Termination. Type - Outdoor, 28kV, Cable Type - Concentric Neutral/Jacketed…
UPC: 075114152204
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 28kV outdoor termination for concentric neutral/jacketed concentric neutral cables
- Insulation range: 0.84 inch to 1.38 inch
- Aluminum 2-hole spade connector (#2 to 1250 kcmil)
- Supports stranded/compressed #1 compact or solid 1/0 conductors
- Field-proven for substations, switchgear, and overhead line applications
Specifications
Application | Cable Termination, Outdoor Application, 28kV |
Cable Type | Concentric Neutral Wire |
Color | Gray |
Conductor Size | #1 STR AWG , #1 COMPR AWG , 1/0 SOL AWG , 1/0 COMPT AWG |
Connection Type | Aluminum 2-Hole Spade #2-1250 kcmil |
Earthing | Products Includes Their Own Grounding System |
Mounting | Product Need to have Cable Holder (not included) |
Number Of Terminals | (1) Single Phase |
Series | Ranger2 |
Size | 0.84 inch - 1.38 inch |
Special Features | Silicone Rubber Housing. Lightweight, Compact Design. Pull-Down Tabs for Easy Installation. Thick Wall Construction |
Standard | IEEE 48 |
Type | Cable Termination - Outdoor - Ranger2 |
Voltage Rating | 28 kV |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 1.0000 L |
Package Weight (Metric) | 0.4540 kg |
R2T28J2-T1230-B2
Ranger2 Termination. Type - Outdoor, 28kV, Cable Type - Concentric Neutral/Jacketed Concentric Neutral, Insulation Range - .84 inch - 1.38 inch, Connector Type - Aluminum Barrel for AL Condutor only with Copper Wire Lead #2-4/0, Conductor Code - 230 -Stranded or Compressed #1 Compact or Solid 1/0. Cable Mounting Bracket - B2 - Stainless Steel - Size 1.10 inch - 1.50 inch.R2T28M2-N0250
Ranger2 Termination. Type - Outdoor, 28kV, Cable Type - Tape Shield/Wire Shield/ Unshield, Insulation Range - .84 inch - 1.38 inch, Connector Type - Aluminum 2-Hole Spade #2-1250 kcmil, Conductor Code - 250 -Stranded or Compressed 2/0 Compact or Solid 3/0.R2T28J2T0240B2
Ranger2 Termination for 25/28KV outdoor application, cable insulation diameter .84 - 1.38 inches for Concentric Neural and Jacketed Concentric Neutral Cable, includes Universal Aluminum Barrel For Aluminum or Copper Conductor with copper wire lead #2-4/0, Stranded or Compressed 1/0 /Compact or Solid 2/0, Stainless Steel Mounting Bracket 1.10 inch - 1.50 inchR2T28M2-N0260
Ranger2 Termination for 25/28KV outdoor application, cable insulation diameter .84 - 1.38 inches for Tape Shield, Wire Shield, and Unshielded Cable, includes Aluminum 2-Hole Spade connector for #2-1250 kcmil, Stranded or Compressed 3/0 /Compact or Solid 4/0R2T28J2-N2240
Ranger2 Termination for 25/28KV outdoor application, cable insulation diameter .84 - 1.38 inches for Concentric Neural and Jacketed Concentric Neutral Cable, Includes Copper 2-Hole Spade connector for #2-1250 kcmil, Stranded or Compressed 1/0 /Compact or Solid 2/0R2T28J2-T0240-B3
Ranger2 Termination. Type - Outdoor, 28kV, Cable Type - Concentric Neutral/Jacketed Concentric Neutral, Insulation Range - .84 inch - 1.38 inch, Connector Type - Universal Aluminum Barrel for AL or CU Condutor with Copper Wire Lead #2-4/0, Conductor Code - 240 -Stranded or Compressed 1/0 Compact or Solid 2/0. Cable Mounting Bracket - B3 - Stainless Steel - Size 1.45 inch - 1.95 inch.R2T28J2-T0270-B3
Ranger2 Termination. Type - Outdoor, 28kV, Cable Type - Concentric Neutral/Jacketed Concentric Neutral, Insulation Range - .84 inch - 1.38 inch, Connector Type - Universal Aluminum Barrel for AL or CU Condutor with Copper Wire Lead #2-4/0, Conductor Code - 270 -Stranded or Compressed 4/0 Compact or Solid 250. Cable Mounting Bracket - B3 - Stainless Steel - Size 1.45 inch - 1.95 inch.
R2T28J4-N0310
Ranger2 Termination for 25/28KV outdoor application, cable insulation diameter 1.30 - 2.10 for Concentric Neural and Jacketed Concentric Neutral Cable, includes Aluminum 2-Hole Spade connector for #2-1250 kcmil, Conductor 400 Stranded/Compressed or 500 Compact/SolidFrequently Asked Questions
Where can I find installation instructions?
Installation instructions are available as IS-1134 for R2T28J, IS-1135 for R2T28M, and IS-1136 for R2T28L.
How many sheds does the 25/28kV outdoor model have?
The 25/28kV outdoor model of the R2T28 termination features six sheds.
What is the maximum altitude for installation?
The maximum altitude for installing the R2T28 termination is 3300 feet (1005 m).
What power system frequency does it support?
The R2T28 termination supports a power system frequency range of 48 to 62 Hz.
What is the operating temperature range?
The R2T28 termination operates within an ambient temperature range of -22 to +149 °F (-30 to +65 °C).
What is the maximum design voltage to ground?
The maximum design voltage to ground for the R2T28 termination is 16 kV.
What is the voltage rating of the R2T28 termination?
The R2T28 termination has a voltage rating of 25/28 kV.
What cable types are compatible with R2T28 terminations?
R2T28 terminations accommodate popular XLP and EPR cable types and various shield constructions.
What cable sizes does the R2T28 termination cover?
The R2T28 termination covers cable insulation diameters from 0.84 in (21.3 mm) to 2.10 in (53 mm), accommodating #2 AWG through 1250 kcmil cables.
Where can I find installation instructions?
Installation instructions are available as IS-1134 for R2T28J, IS-1135 for R2T28M, and IS-1136 for R2T28L.
How to Install the R2T28J2 Ranger 2 Cable Termination
This guide provides step-by-step instructions for the safe and proper installation of the R2T28J2 28kV Ranger 2 Cable Termination for concentric and jacketed concentric neutral cables in indoor/outdoor applications.
Estimated time: 2h
Tools needed:
Wire strippers, Crimping tool, Measuring tape, Utility knife, Solvent applicator (e.g., clean cloth), Abrasive (aluminum oxide, grit 120 or finer, optional)
Supplies needed:
R2T28J2 Silicone Rubber Termination kit (includes termination, lubricant, grey silicone rubber tape, sealing mastic, gloves), Connector (if not included in kit), Cable support bracket (optional), Vinyl tape or binding wire, Approved solvent, Silicone grease
- Prepare for Installation and Ensure Safety
Before starting, ensure all apparatus is de-energized. This product must be installed only by competent personnel trained in high voltage electrical equipment safety. Check the kit contents for completeness and damage. Verify all components fit the cable and mating products. Have all required tools and supplies ready, and maintain cleanliness throughout the procedure.
- Prepare the Cable for Termination
Train the cable into position and cut to the required length, allowing sufficient neutral wire length for grounding. Verify the cable size fits the kit range. Prepare the cable using the dimensions provided in Table 1 for R2T28J2 (Dimension A: 10.5 inches). Allow additional exposed conductor distance for aluminum lug crimping (1/4” for #2-350, 1/2” for 400-650, 3/4” for 750-1000 Kcmil). Wrap one band of sealing mastic around the cable jacket 1/4” (6mm) from the jacket end, stretching 50%. Bend neutral wires back over the mastic and secure them to the cable jacket 4-6” (100-150mm) from the cut edge using vinyl tape or binding wire. Apply a second mastic band over the neutral wires, stretching 50%. Wrap two half-lapped layers of vinyl tape over the mastic seal, carefully maintaining the 1/4” (6mm) dimension.
- Install the Terminal Lug or Connector
If using a lug that does not fit through the termination core, clean the insulation and slide the termination onto the cable before installing the lug (do not remove the core yet). Position the connector or lug and crimp it according to its specific directions. Do not crimp the last 1/4” to 3/8” of the connector. After crimping, remove any excess oxide inhibitor and sharp crimp flashings.
- Clean Cable Insulation and Lug Barrel
Wipe the cable insulation with an approved solvent, ensuring the solvent does not touch the semi-con insulation shield. If abrasive cleaning is necessary, use only aluminum oxide abrasive (grit 120 or finer) on the insulation only, avoiding the semi-con shield. Be careful not to reduce the cable insulation diameter below the kit's allowed range.
- Install the Silicone Rubber Termination Body
Create a track-resistant moisture seal between the termination insulator and the lug/connector by wrapping a band of gray silicone rubber tape around the base of the terminal lug. If the barrel diameter is smaller than the cable primary insulation, build up the tape band to equal the insulation diameter. Liberally coat the edge of the semi-con insulation shield with silicone grease to fill the step at the semi-con cut-off. For lower terminations with a fold-down skirt, pull the loose end of the removable core through the top of the termination until it is flush with the bottom. Slide the termination body onto the cable, aligning it with the forward edge of the mastic seal. Carefully remove the core by unwinding it counter-clockwise from the loose end. Ensure the termination body, not the core, is butted against the leading edge of the mastic seal. Do not push or pull the termination assembly during core removal.
- Complete Termination Sealing and Grounding
Apply a thin film of silicone lubricant to the skirt and mastic seal area, but avoid lubricating the skirt tabs. Carefully fold down the skirt over the mastic seal. Complete the lug area moisture seal using the remaining gray silicone rubber tape, overlapping the termination insulator by approximately 1” and extending the tape wrapping over a non-crimped region of the lug/connector barrel with a half-lap configuration. Twist the concentric neutral wires together and connect them securely to the system ground. Finally, confirm that the High-K step does not exceed 1.5 inches.
