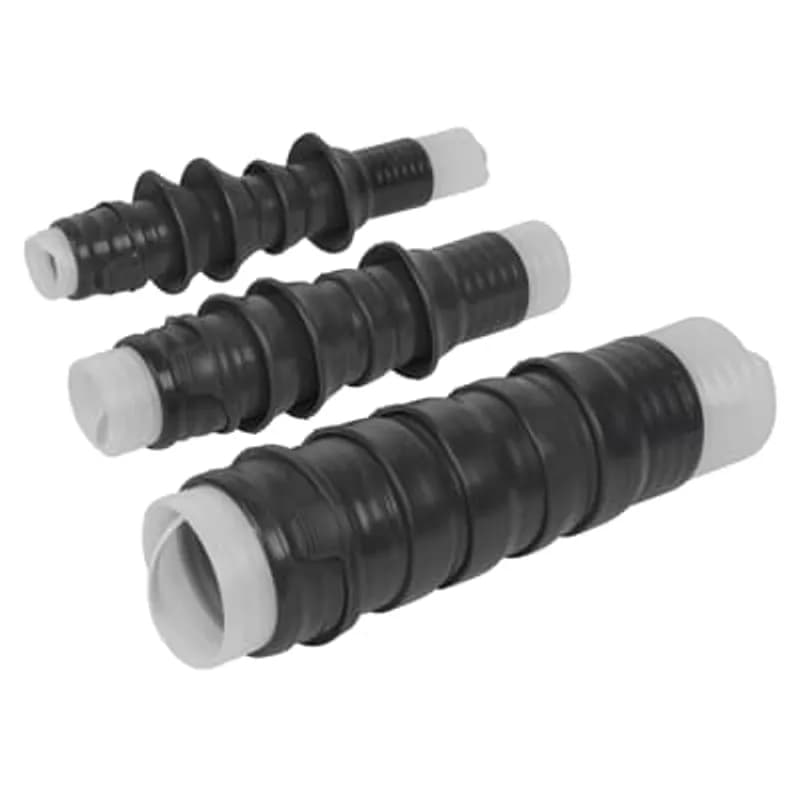

ABB Installation Products R2T15M4N0440 Ranger2 Termination. Type - Outdoor, 15kV, Cable Type - Tape Shield/Wire Shield/…
UPC: 783786519156
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- Outdoor-rated 15kV termination
- Accommodates 1.30" - 2.10" insulation range
- Compatible with tape shield, wire shield, and unshielded cables
- Aluminum 2-hole spade connector (#2 - 1250 kcmil)
- Suitable for stranded, compressed, or solid conductors
Specifications
Application | Cable Termination, Outdoor Application, 15kV |
Cable Type | Copper Tape Shielded Wire |
Color | Gray |
Conductor Size | 1250 kcmil |
Earthing | Products Includes Their Own Grounding System |
Mounting | Product Need to have Cable Holder (not included) |
Number Of Terminals | (1) Single Phase |
Special Features | Silicone Rubber Housing. Lightweight, Compact Design. Pull-Down Tabs for Easy Installation. Thick Wall Construction |
Standard | IEEE 48 |
Type | Cable Termination - Outdoor - Ranger2 |
Voltage Rating | 15 kV |
Package Dimensions (L x W x H) | 1 IN x 1 IN x 1 IN |
Package Dimensions (L x W x H) | 2.54 cm x 2.54 cm x 2.54 cm |
Package Weight (Imperial) | 1.0000 L |
Package Weight (Metric) | 0.4540 kg |
R2IT15M4N0440
Ranger2 Termination. Type - Indoor, 15kV, Cable Type - Tape Shield/Wire Shield/ Unshield, Insulation Range - 1.30 inch - 2.10 inch, Connector Type - Aluminum 2-Hole Spade #2-1250 kcmil, Conductor Code - 440 -Stranded or Compressed 1250 Compact or Solid N/A.
R2T28J4-H0270-B3
Ranger2 Termination. Type - Outdoor, 28kV, Cable Type - Concentric Neutral/Jacketed Concentric Neutral, Insulation Range - 1.30 inch - 2.10 inch, Connector Type - Aluminum 1-Hole Spade #2-500 kcmil, Conductor Code - 270 -Stranded or Compressed 4/0 Compact or Solid 250. Cable Mounting Bracket - B3 - Stainless Steel - Size 1.45 inch - 1.95 inch.R2T28L4-N0410-B3
Ranger2 Termination for 25/28KV outdoor application, cable insulation diameter 1.30 - 2.10 inches for Cable Type - LC Shield Tape Shield/Wire Over Tape Shield, includes Aluminum 2-Hole Spade connector for #2-1250 kcmil, Stranded or Compressed 1000, Cable Mounting Bracket - Stainless Steel, 1.45 inch - 1.95 inch (37-50mm)
R2T28M2-N0310
Ranger2 Termination. Type - Outdoor, 28kV, Cable Type - Tape Shield/Wire Shield/ Unshield, Insulation Range - .84 inch - 1.38 inch, Connector Type - Aluminum 2-Hole Spade #2-1250 kcmil, Conductor Code - 310 -Stranded or Compressed 400 Compact or Solid 500.R2T28M2-N0330
Ranger2 Termination. Type - Outdoor, 28kV, Cable Type - Tape Shield/Wire Shield/ Unshield, Insulation Range - .84 inch - 1.38 inch, Connector Type - Aluminum 2-Hole Spade #2-1250 kcmil, Conductor Code - 330 -Stranded or Compressed 500 Compact or Solid 600.R2T28M2-N0270
Ranger2 Termination. Type - Outdoor, 28kV, Cable Type - Tape Shield/Wire Shield/ Unshield, Insulation Range - .84 inch - 1.38 inch, Connector Type - Aluminum 2-Hole Spade #2-1250 kcmil, Conductor Code - 270 -Stranded or Compressed 4/0 Compact or Solid 250.R2T28M4-N0350
Ranger2 Termination. Type - Outdoor, 28kV, Cable Type - Tape Shield/Wire Shield/ Unshield, Insulation Range - 1.30 inch - 2.10 inch, Connector Type - Aluminum 2-Hole Spade #2-1250 kcmil, Conductor Code - 350 -Stranded or Compressed 650 Compact or Solid 750.R2T28J4-N0250
Ranger2 Termination. Type - Outdoor, 28kV, Cable Type - Concentric Neutral/Jacketed Concentric Neutral, Insulation Range - 1.30 inch - 2.10 inch, Connector Type - Aluminum 2-Hole Spade #2-1250 kcmil, Conductor Code - 250 -Stranded or Compressed 2/0 Compact or Solid 3/0.Frequently Asked Questions
What is the insulation range for this ABB termination?
The ABB Ranger2 termination supports an insulation range from 1.30 inches to 2.10 inches.
What cable shield types are compatible with this termination?
This termination is compatible with tape shield, wire shield, and unshielded cable types.
What conductor sizes does the aluminum spade connector accommodate?
The aluminum 2-hole spade connector is designed for conductors from #2 AWG up to 1250 kcmil.
What type of conductors can be used with this termination?
It is suitable for stranded or compressed 1250 kcmil compact conductors, and solid conductors.
What is the voltage rating of the ABB Ranger2 termination?
The ABB Ranger2 termination is rated for 15kV applications.
How to Install the R2T28J4 Cable Termination
This guide provides step-by-step instructions for the safe and proper installation of the R2T28J4 28kV Ranger 2 Cable Termination for concentric and jacketed concentric neutral cables in indoor/outdoor applications. Ensure all apparatus is de-energized before beginning.
Estimated time: 1h 30m
Tools needed:
Crimping tool, Wire strippers, Approved solvent applicator, Aluminum oxide abrasive (grit 120 or finer, if needed)
Supplies needed:
R2T28J4 Termination Kit (Silicone Rubber Termination, Lubricant, Grey Silicone Rubber Tape, Sealing Mastic, Gloves), Terminal lug (copper or aluminum), Approved solvent, Vinyl tape, Binding wire (optional)
- Perform Initial Checks and Ensure Safety
Check the contents of the package to ensure they are complete and undamaged. Verify all components fit properly with the cable and/or mating products. Read these entire installation instructions before starting. Have all required tools at hand and maintain cleanliness throughout the procedure. DANGER: All apparatus must be de-energized during installation or removal of parts to prevent serious or fatal injury.
- Prepare the Cable for Termination
Confirm the cable size fits within the kit's specified range. Train the cable into position and cut it to the required length, allowing sufficient neutral wire length for grounding. Prepare the cable using the dimensions shown in the documentation, accounting for terminal lug depth and additional exposed conductor distance for crimping. Wrap one band of sealing mastic around the cable jacket 1/4 inch (6mm) from the jacket end, stretching it 50%. Bend the neutral wires back over the mastic and press them into it, securing them to the cable jacket 4-6 inches (100-150mm) from the cut edge using vinyl tape or binding wire. Apply a second mastic band over the neutral wires and the first mastic, stretching 50%. Wrap two half-lapped layers of vinyl tape around the mastic seal, carefully maintaining the 1/4 inch (6mm) dimension.
- Install the Terminal Lug or Connector
If using a lug that will not fit through the termination core, clean the insulation and slide the termination onto the cable before installing the lug (do not remove the core at this time). Position the connector or lug and crimp it according to its specific directions, ensuring the last 1/4 inch to 3/8 inch of the connector is not crimped. After crimping, remove any excess oxide inhibitor and sharp crimp flashings.
- Clean Cable Insulation and Lug Barrel
Wipe the cable insulation with an approved solvent, taking care not to allow the solvent to touch the semi-con insulation shield. If an abrasive is necessary, use it only on the insulation (not the semi-con shield), ensure it is aluminum oxide abrasive (grit 120 or finer), and be careful not to reduce the cable insulation diameter below the kit's allowed range.
- Install the Termination Body
Create a track-resistant moisture seal between the termination insulator and the lug/connector using the gray silicone rubber tape from the kit. Wrap a band of silicone tape around the base of the terminal lug, adjusting layers if the barrel diameter differs from the cable primary insulation. Liberally coat the edge of the semi-con insulation shield with silicone grease to fill the step at the semi-con cut-off. For lower terminations with a fold-down skirt, pull the loose end of the removable core through the top until it is flush with the bottom of the termination. Slide the termination body onto the cable, aligning it with the forward edge of the mastic seal. Carefully remove the core by unwinding it counter-clockwise, starting with the loose end. Ensure the termination body, not the core, is butted against the leading edge of the mastic seal. Do not push or pull on the termination assembly while removing the core material.
- Complete Sealing and Grounding
Apply a thin film of silicone lubricant to the skirt and mastic seal area, but do not lubricate the skirt tabs. Carefully fold down the skirt over the mastic seal. Complete the lug area moisture seal using the remaining gray silicone rubber tape, overlapping the termination insulator by approximately 1 inch and extending the tape wrapping over a non-crimped region of the lug/connector barrel with a half-lap configuration. Twist the concentric neutral wires together and connect them to the system ground. Finally, confirm that the High-K step does not exceed 1.5 inches.
